Summary of Contents for Phonak TV Connector

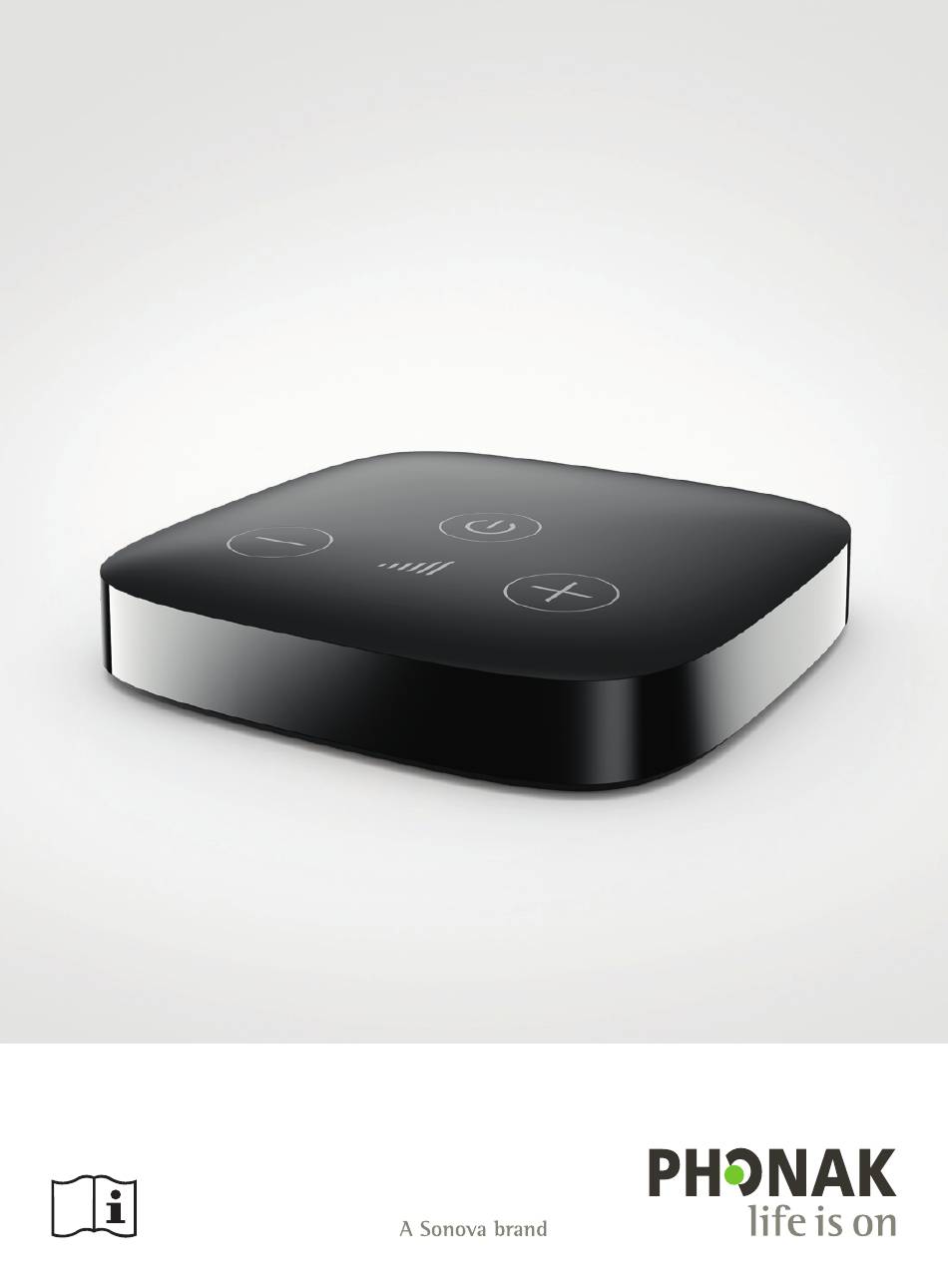

- Page 1 TV Connector User Guide...
-
Page 2: Table Of Contents
Contents 1. Welcome 6. Service and warranty 2. Getting to know your TV Connector 6.1 Local warranty 3. Getting started 6.2 International warranty 3.1 Setting up the power supply 6.3 Warranty limitation 7. Compliance information 3.2 Supported audio connections 8. Information and explanation of symbols 3.3 Connecting to an audio device... -
Page 3: Welcome

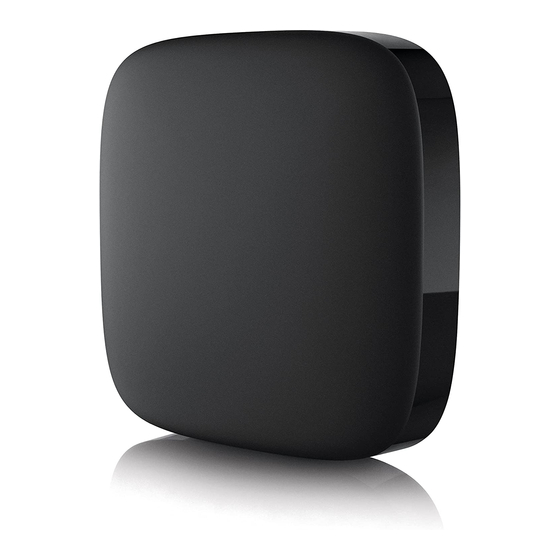

2. Getting to know your TV Connector Congratulations on choosing the TV Connector. The TV The intended use of the TV Connector is to establish Connector allows you to connect your hearing aids to a wireless connection between your hearing aids your TV or other entertainment/communication devices. - Page 4 Indicator light (LED) microUSB power socket Line-of-sight between your hearing aids and Audio socket for optical (Toslink) the TV Connector is not required. However, or analog (3.5mm jack) cable environmental interference like walls or furniture Power button may reduce the operating range.
-
Page 5: Getting Started
2. Insert the smaller end of the USB cable into the free The TV Connector will turn ON the first time it is socket of the TV Connector. connected to a power source. If the TV Connector... -
Page 6: Supported Audio Connections
3.2 Supported audio connections 3.3 Connecting to an audio device The TV Connector can be connected to any audio source Connect the free end of the optical (TOSLINK) such as a TV, PC or HiFi system. It supports two different cable into the optical digital audio output of your TV audio cable inputs: Optical (Toslink) or Analog (3.5 mm... -
Page 7: Optional: Connecting To An Audio Device Using The Audio Socket
Connector with the analog (3.5 mm jack) cable. Insert one source the very first time upon installation, the end of the analog cable into the TV Connector and connection to the hearing aids will be initiated connect the other end of the analog cable to the audio automatically and the hearing aids will play a out port of your TV (or alternative audio source). -
Page 8: Daily Use Of The Tv Connector
If present, this audio signal will be indicated by a • If no audio is present during the blinking red LED indicator light on the TV Connector. connect process, beeps will be Please change the audio signal to this (PCM) in the played left/right during 5 seconds audio settings menu of the TV. -
Page 9: Adjusting The Volume Of The Audio
(standby mode). audio source (Toslink or analog). The individual settings remain stored even after powering OFF the If the hearing aids are out of range of the TV Connector TV Connector. the audio transmission will be terminated. Once the hearing aids are back into the range of TV Connector, the... -
Page 10: Tv Connector And Phone Calls
The TV Connector will go into the standby mode automatically. Alternatively, turn OFF the TV Connector using the power button on the top of the device. In this case turn ON the TV Connector using the power button when using the TV Connector next time. -
Page 11: Troubleshooting
OUT plug of the audio source (e.g. TV) (indicator light is solid TV Connector and the audio source • Switch on the audio device and the TV Connector white or blinking red). properly. • Test the connection of the TV Connector to the •... - Page 12 What to do Causes What to do Cannot hear sound from the audio source, the LED indicator After connecting the TV Connector, the TV loudspeaker is is off switched off TV Connector is plugged in Press and hold the Power button on top You have selected •...
-
Page 13: Service And Warranty
6.2 International warranty and void. This warranty does not cover any services performed by a hearing care professional in his/her office. Phonak offers a one year limited international warranty, valid as of the date of purchase. This limited warranty Serial number: Authorized hearing covers manufacturing and material defects. -
Page 14: Compliance Information
1) this device may not cause harmful interference, and manufacturer or the local representative whose address 2) this device must accept any interference received, can be taken from www.phonak.com including interference that may cause undesired Operation frequency: 2400 - 2483.5 MHz operation. - Page 15 More details can be found in the data sheet which can be particular installation. If this device does cause harmful downloaded from www.phonak.com/tvconnector interference to radio or television reception, which can be Notice 5:...
-
Page 16: Information And Explanation Of Symbols
8. Information and explanation of symbols The CE symbol is confirmation by Sonova Operating The device is designed such that conditions AG that this product meets the it functions without problems or requirements as the Radio Equipment restrictions if used as intended, unless Directive 2014/53/EU. -
Page 17: Important Safety Information
TV Connector may generate magnetic fields. If any of your waste equipment separately influence of the TV Connector on the Implantable from the municipal waste stream. The correct disposal of your old appliance Device (e.g. - Page 18 Use only hearing aids that have been specially For safety reasons, only use chargers supplied by programmed for you by your hearing care Sonova AG or stabilized chargers with a rating of professional. 5 VDC, min. 500 mA. Dispose of electrical components in accordance with Do not use the device in explosive areas (mines or your local regulations.
- Page 19 Product safety information Protect the device connectors, plugs, power supply If the device has been dropped or damaged, if it from dirt and debris. overheats, has a damaged cord or plug, or has been dropped into liquid, stop using your device and Do not use excessive force when connecting your contact authorized service centre.
- Page 20 Notes...
- Page 21 Manufacturer: Sonova AG Laubisrütistrasse 28 CH-8712 Stäfa Switzerland www.phonak.com...
