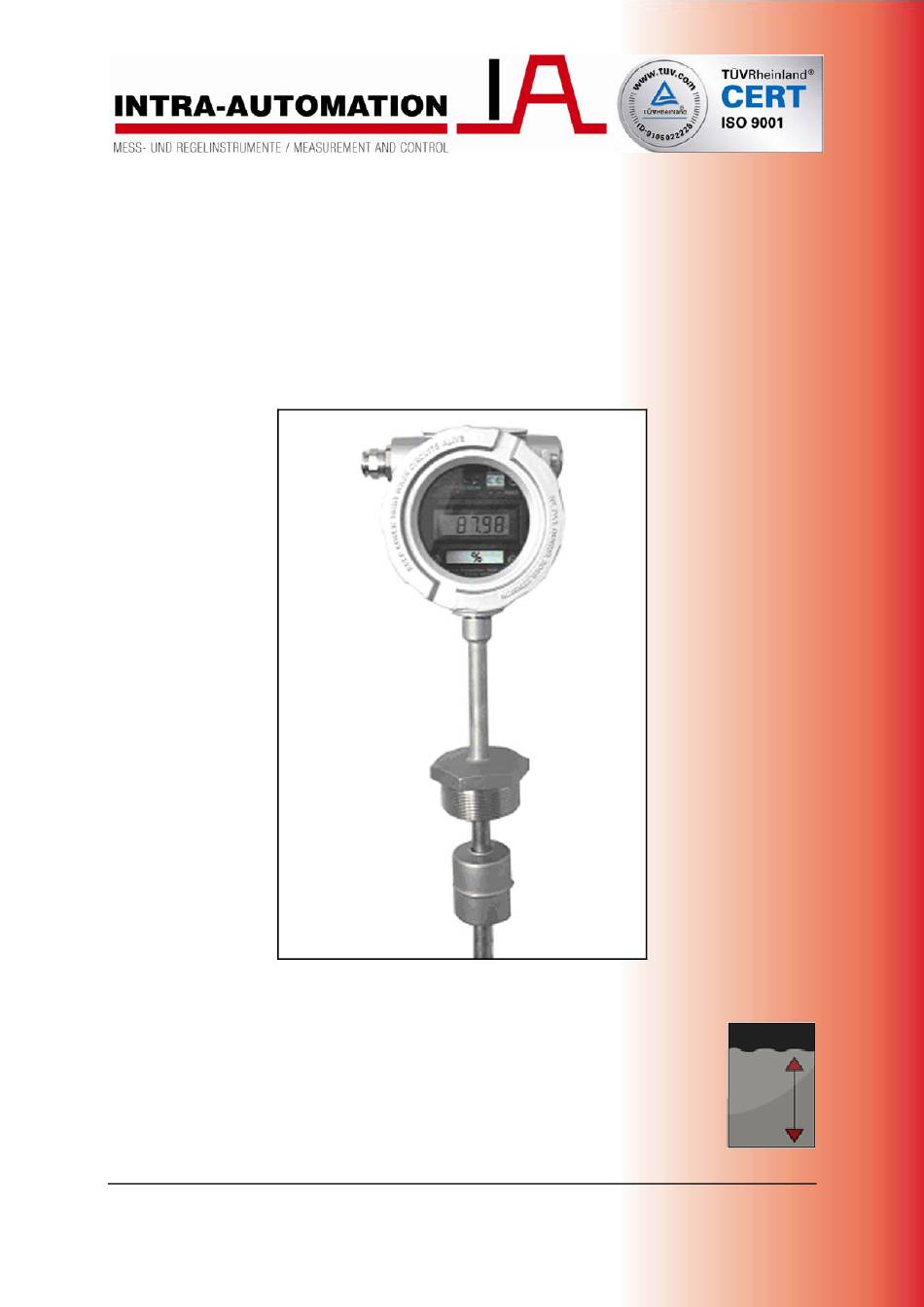

- Page 1 Magnetic Level Sensing Transmitter Type: ITA-T1S Technical Information 02/2011 LEVEL THE EXPERT IN LEVEL AND FLOW...
- Page 2 ITA-T1S Technical Information Intra-Automation Intra-Automation Technical Information 02/2011 Technical details subject to be changed Please send your comments regarding this brochure to: info@intra-automation.de - 1 -...
-
Page 3: Table Of Contents
Intra-Automation GmbH Technical Information ITA-T1S ITA-T1S Magnetic Level Sensing Transmitter List of contents: Chapt. Description Page Characteristics Functional Principle Indicator Interface Measurement Techncal Data Float Types Transmitter Order Code - 2 -... -
Page 4: Characteristics
If no requests have been received, the configuration is 0-100 %. For indication of the measured value the DigiFlow 520 can be connected directly to the sensor type ITA-T1S. The DigiFlow 520 shows the actual value in most of all engineering units (see fig. 3). Linearization of various tank shapes can be done in the indicator. -
Page 5: Interface Measurement
(see fig. 4). This function will be solved while using the ITA-T1S. Depending on the difference of density the float will be designed to measure the interface. -
Page 6: Float Types
ITA-T1S Technical Information Intra-Automation Optional Digital Indicator Display 4 ½ digits Power supply 2,9 VDC (Two-wire-version) Current input +3,8…+20,4 mA Load 190 Counter-Resolution 19,999 Frequency 2,5 readings per second Precision 0,01 % (of span) + 2 counts ... -
Page 7: Order Code
Intra-Automation GmbH Technical Information ITA-T1S 8 Order Code Code Description ITA-T1S Continous Level Sensing Element for vertical tank-mounting Material Guide tube / Measuring length in mm Material Resolution 316SS 10 mm S10-L____mm S05-L____mm 316SS 5 mm S20-L____mm 316SS 20 mm... - Page 8 ITA-T1S Technical Information Intra-Automation (Continuation) Float Dimension min. Density max. Pressure [mm] [kg/dm³] [bar] Material 52 0,70 316SS 80 0,60 Titanium 80x35 0,50 316SS 44x52 0,80 316SS 50x120 0,50 50x120 0,55 65 0,70...
- Page 9 Intra-Automation GmbH Technical Information ITA-T1S Besides the products covered by this brochure, Intra-Automation GmbH also manufactures other high- quality and high precision instruments for industrial measurement tasks. For more information, please contact us (contact details on the backside of this brochure).
- Page 10 ITA-T1S Technical Information Intra-Automation International Headquarters: Sales Office for the BENELUX: Intra-Automation GmbH B.V. Intra-Automation HTP Otto-Hahn-Str. 20 PO Box 10 41515 Grevenbroich 4730 AA Oudenbosch GERMANY THE NETHERLANDS +49 – (0) 21 81 / 7 56 65-0 +31 – (0)165 – 32 22 01 ...
