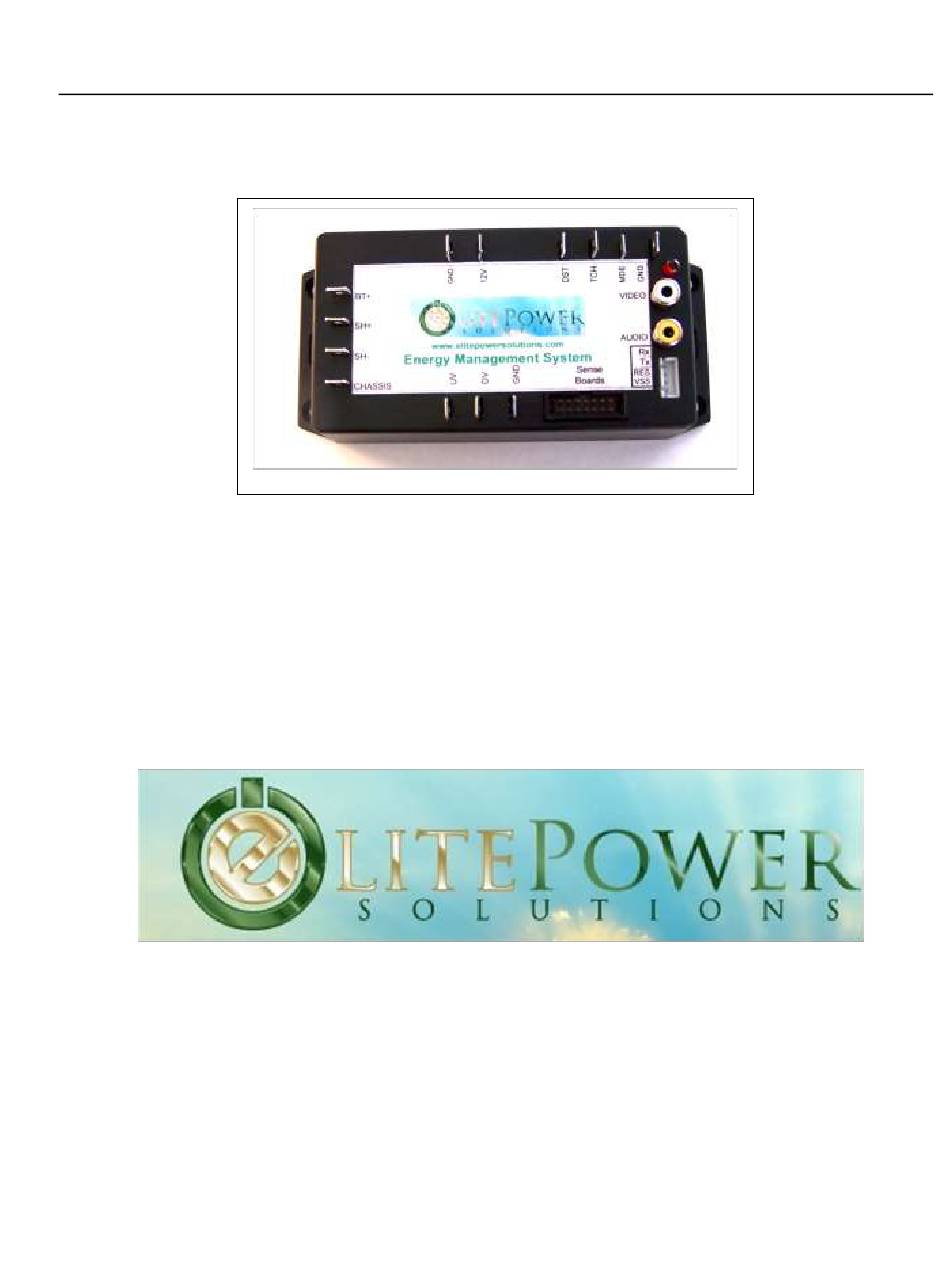

- Page 1 A N D I N S T A L L A T I O N M A N U A L Operation Energy Management System and Installation Manual Elite Power Solutions 21411 N. 11th Ave, Suite 3 Phoenix, AZ 85027 www.elitepowersolutions.com...
-
Page 2: Table Of Contents
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L T able of Contents 1 Introduction ______________________________________________________ 1 2. - Page 3 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L 9. Trouble Shooting _________________________________________________ 26 Appendix A. Enclosure Mounting ______________________________________ 28 Warning! Read ALL of the instructions before attempting installation.
-
Page 4: Introduction
In addition, there are warnings to let you know that error conditions are approaching. One of the important safety features of the EMS is ground fault detection. When an inadvertent connection is made between the battery pack and the vehicle chassis, it is detected and a warning is shown on the screen. - Page 5 M A N U A L microprocessor that is capable of outputting composite video. A CAN interface option is available to display the EMS information on a CAN display. Many options in the EMS are programmable and can be customized for your car.
-
Page 6: Packing List
I N S T A L L A T I O N M A N U A L Section 2. Packing List 1x – EMS Computer 1x – Composite video cable 1 per cell - Battery Sense Boards Wiring Harness(es) 1x- Current Shunt 1x –... -
Page 7: Specifications
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Section 3. Specifications Items Displayed......Voltage, Current, Battery Capacity (Main Screen) Cell number, cell voltage, cell temperature (Detail Screen) Computer Power……………..8 - 20V, 20mA or 8 - 85V as an option... - Page 8 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Measurement speed …………….. Voltage and current 3 times per second main screen Voltage and Temperature 1 time per second detail screens Number of cells supported ………128 Cell Voltage………………………2.5 to 4.5...
-
Page 9: Installation
¼” quick disconnect terminals. The EMS computer should be installed as close to the shunt as possible. The shunt sense wires should be less than 1’ long and twisted around each other. Mounting holes for the computer box are shown in Appendix A. -
Page 10: Heartbeat Led
Refer to the figure below for these connections. The connections between the battery bank, shunt and high voltage loads are usually large wire like 2/0. The connections to the EMS from the battery and the shunt can be smaller gauge like 18 or 20. -
Page 11: Car Battery
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L 12v Vehicle Battery The 12V supply to the computer is connected on terminals on the top and left of the computer as shown below. -
Page 12: Sense Board Wiring
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Sense Board Wiring The sense boards are connected to the computer via a 14 conductor ribbon cable. There are 2 types of ribbon cables: a cable with a 6 foot end for connecting the computer to the first 8 batteries and an “extension”... - Page 13 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Before installing the first sense board, plug in the ribbon cable and then bring the cable under the board, then attach it to the cell.
- Page 14 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L The extension cable should be connected like this:...
-
Page 15: Making Your Own Cables
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Making your own cables Should the need arise to make your own cables, you can do so easily. You will need to procure 14 Pin Ribbon Cable, 14 pin connectors, and 14 pin headers (for the extension cables). -
Page 16: Video Output
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Video Output The composite video output of the computer is accessed through the connector shown below, labeled “Video”. -
Page 17: Programming
Section 5. Programming Many parameters in the system can be programmed. Please use this form to tell us how to program your EMS computer. Contact Name _________________________ Phone ___________________ Email ________________________________ Date ____________________ Over Voltage Alarm ___________________ Under Voltage Alarm _______... -
Page 18: Usage
I N S T A L L A T I O N M A N U A L Section 6. Usage When properly installed, the EMS shows the status (Voltage, Current, and Battery Capacity) of your Electric Vehicle. Here is an example of what you see on the display. Main Screen... -
Page 19: Video Display
M A N U A L Video Display The EMS has at least two pages of information it can display. The first is a summary page which has information for the entire system and then one or more detail pages. - Page 20 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L gives a precise reading. The graph is green when the voltage is above 3.0V per of maximum, and it changes to red when it is below.
- Page 21 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Maximum Cell Voltage is the maximum of the readings of the individual cell voltages. This value is updated after each scan of the individual cells, every 1-2 seconds.
-
Page 22: Detail Page
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Detail Page The data for up to 20 cells is displayed on each page as two columns of up to 10. Cell number is the ID number of the cell. -
Page 23: Alarms And Warnings
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Alarms and Warnings To protect the battery pack, there are a number of alarms and warnings. These are based on Voltage, Current, Temperature and connection ground fault. -
Page 24: Controlling Other Devices With Alarm Outputs
200 mA to drive a relay. In this way, these outputs can signal an alarm when there is an error condition or have the voltage go away when there is an error condition. When power is removed from the EMS computer, the outputs will not supply power. -
Page 25: Battery Balancing
E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L The alarm outputs are located as shown below: Battery Balancing When the cell voltage rises above a predetermined threshold (see specifications for this value), a small current is drawn from it. -
Page 26: Capacity Algorithm
Because the EMS is keeping track of all current in or out of the battery, it must powered at all times. When the EMS first powers up, it sets the capacity to 50% so it will not read correctly until after the first complete charge. -
Page 27: Can Interface
Section 8. CAN Interface A CAN BUS interface is available as an option for the EMS computer. The CAN BUS Interface transmits all the summary information on the main page, alarm status, and the information on the detail page about the sense boards continuously over the BUS, so that a display device can present the data in graphical form. - Page 28 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L The signals available on the interface are as follows: 12V the 12V input CAN H the normally high CAN signal in the differential pair CAN L the normally low CAN signal in the differential pair...
- Page 29 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Section 9. Trouble Shooting When the system does not work we suggest that you check the items below: The red light does not blink Check 12V connection No Video...
- Page 30 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Not reading pack current Check battery + and – wiring Check wiring to shunt, may be reversed Check shunt + is fully plugged in Current display wrong polarity...
- Page 31 E M S O P E R A T I O N A N D I N S T A L L A T I O N M A N U A L Appendix A. Enclosure Mounting...
