Bijur Delimon SS2200 Manual

SS2200 Remote Controller
General Purpose, AC Voltage

General

The SS2200 Remote Controller is a microprocessor-based programmable controller specifically
designed to control single line and dual line centralized lubricating systems. The remote controller
will operate on time or machine cycles and will control electric or motor-driven lubricators. The
controller is housed in a nEmA 4X polycarbonate enclosure with a clear front cover. Precise LEd
indicators clearly display idle, lube or fault modes, and a three-digit numerical display used during
both programming and lube system operation.
The SS2200 remote controller is easy to program. Simply advance through the programming steps
with the select key, increasing or decreasing the displayed value for each step with the + and – keys.
The program is permanently stored by EEPROm permanent memory.

Technical Data

Input Voltage
Pump Output
Cycle Switch
Fault Switch
Fault Relay Contacts
Enclosure
Ambient Temperature
Vibration
Permanent Memory

Installation and Connections

before making any connections, make sure they are within the rating given shown in the Terminal
Connections schematic on right.
1. Input: The controller operates on 115 VAC 50/60 Hz electrical power, connected to
the terminals labeled "Hot, neutral, 120 VAC input." These terminals are overvoltage protected.
The controller does not contain a power switch, and means of quick disconnecting
electrical power to a unit should be easily accessible for installation, troubleshooting, and
emergency shutoff.
2. Pump: The controller supplies output power for operating pumps as Form A, 115 VAC, 5 amp,
inrush, 2 amp continuous from the terminals labeled "neutral, Hot, 120 VAC Pump." This output
can be programmed (step #P6 and P7) to be continuous or pulsed.
3. Relay: The controller contains a fault relay which is programmed to be normally open or normally
closed (step #P9) and which changes state when a fault is detected. The relay has a normally
open and a normally closed contact rated at 2 amp 125 VAC. The relay terminals are labeled
"Relay, n.O., n.C."
4. Cycle: The cycle switch which counts divider valve or reversing valve cycles must be connected to
the terminals labeled "+, –, cycle." Power through the switch will be 12-16 VdC, 12-16 mA dC. if a
cord containing an LEd is used, power polarity must be observed.
5. Fault Count: The terminals labeled "+, –, Fault Count" can be programmed for one of two outputs
(step #P1) system fault or machine cycle count.
1
115 VAC, 50/60 Hz (Over voltage protected)
Pulsed or continuous, Form A, 115 VAC, 5 amps inrush, 2 amps continuous
12-16 VdC, 12-16 mA dC
12-16 VdC, 12-16 mA dC
2 amps, 125 VAC
nEmA 4X Polycarbonate
20°F to 120°F
1.5 g
EEPROm (no battery)
Power must be off when making
any connections.

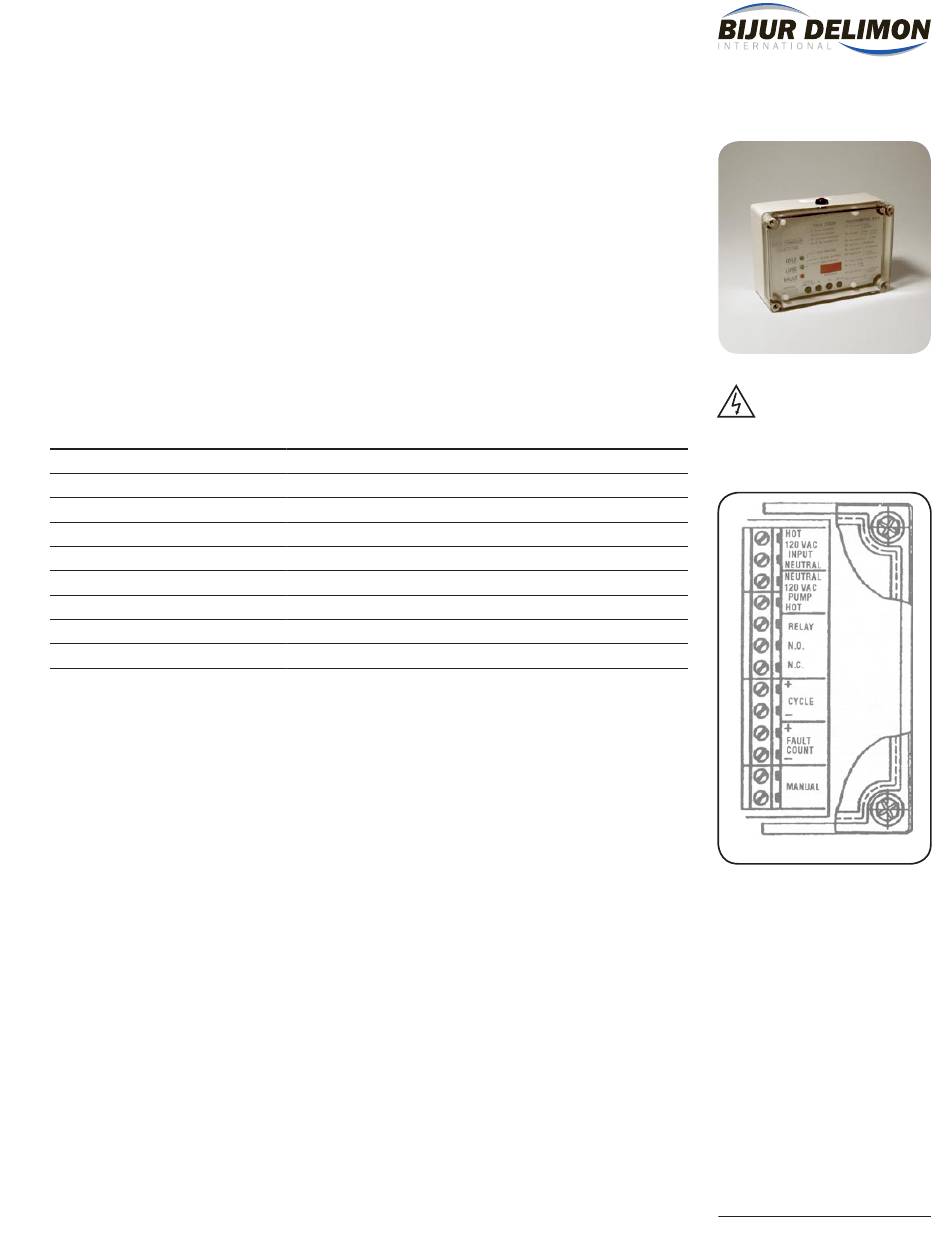

Terminal Connections
BIJUR DELIMON INTERNATIONAL
(919) 465 4448 LOCAL
(800) 631 0168 TOLL-FREE
(919) 465 0516 FAX
www.bijuRdELimOn.COm
2100 Gateway Centre blvd., Suite 109
morrisville, nC 27560
24735 • R1 03/08
