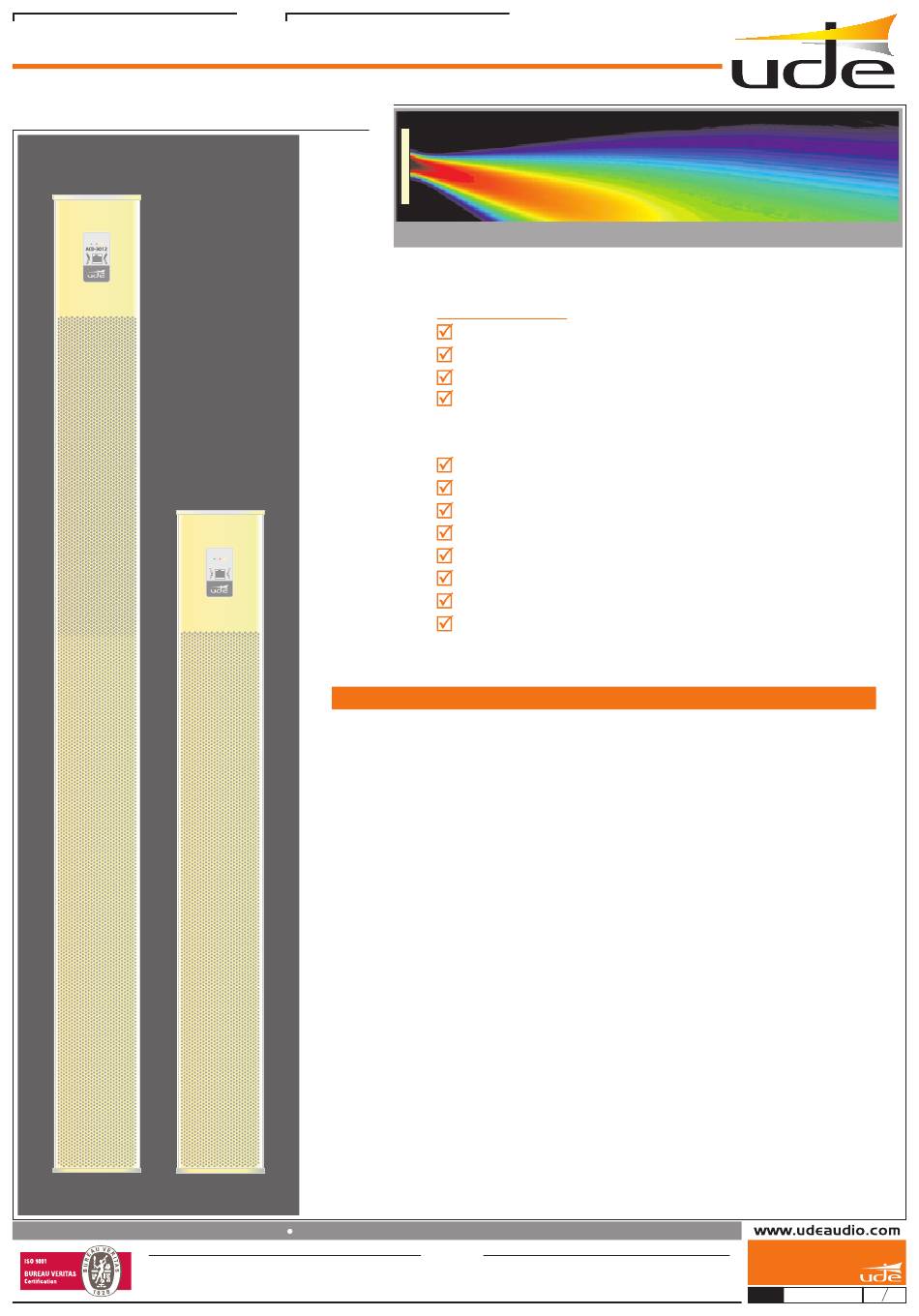

Ude ACD-3008 Manual

ACD-3008 ACD-3012
DSP ACTIVE
LINE ARRAY SPEAKER
ACD-3012
ACD-3008 ACD-3008
UNION DESARROLLOS ELECTRONICOS
Barcelona
Avda. BARCELONA, 24
08970 - SANT JOAN DESPÍ
BARCELONA - ESPAÑA
ACD-3008 ACD-3008
The ACD-3008 / ACD-3012 has been designed and constructed as a high
quality LINE ARRAY with 4" loudspeakers. The new audio algorithms for digital
signal processor developed by UNION DESARROLLOS ELECTRONICOS and
implemented, allow modifying the sound diffusion, adapting the response to
the acoustical requirements of the installation.
The line array has an internal DSP and microcontroller where audio signals are
processed. The DSP has a 100dB SNR and 50 MIPS. The line array Increases
new functionalities in comparison with the old passive columns, giving better
performance for example in vertical dispersion control and secondary lobes,
thanks to the new class D amplifiers reaching 240 W / 360 W RMS.
LINE ARRAY is really useful and versatile for reverberant and complex acoustic
installations (like churches, sport centre, big halls, etc.) In the power
consumption side the line array has been designed for an optimize
consumption (with 3 states: ON, MUTE, ECO) depending on the VOX control is
processing.
The mechanical construction based in aluminum to ensure many years of
reliable operation in high humidity environments.
The unit can be controlled with the WCD-3000, which offers real time
configuration and save characteristic operation in the internal memory of the
ACD-3008 / ACD-3012 column. This is a friendly way to interact and configure
in the startup process.
UDE reserves the right to modify the technical characteristics of its products without previous notice
Tel: +34 93 477 28 54
Fax: +34 93 261 17 52
ude@udeaudio.com
ACD-3008 / ACD-3012 Engineered and made in E.U.

MAIN FEATURES

Uniform coverage within the listening area
Adjustable sound beam
Line level (0 dB) input/output. (XLR)
Input from loudspeakers line ( Terminals ):
- High impedance: L100V/L70V
- Low impedance: 4 – 8 ohms
Sensitivity adjustment: 0 dB / -3 dB / -6 dB
VOX detection for automatic power switch.
Tone control: Bass & treble.
Volume control.
15 band graphic equalizer.
Speech filter for increasing intelligibility.
Mute option.
Use for indoor and outdoor applications.
DESCRIPTION
Madrid
C/ LUIS I, 88, 3ª planta Tel: +34 91 311 60 76
28031 - MADRID Fax: +34 91 450 19 97
ESPAÑA centro@udeaudio.com
PUBLIC ADDRESS
Systems
610.486A 1 6
Rev. 1
