GOGLOO

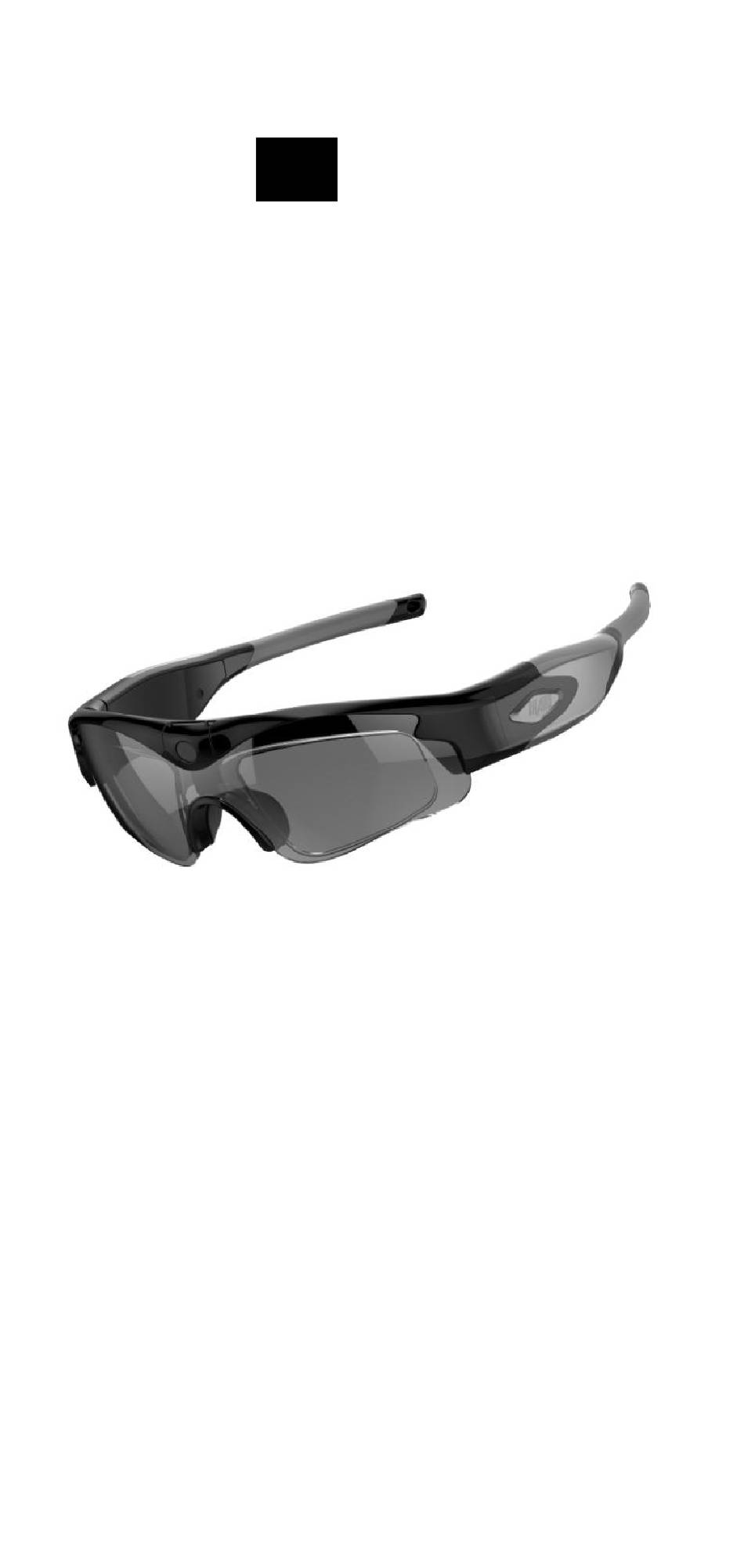

Manual d'utilisateur des lunettes E7
Merci de bien lire cette documentation et de la garder comme référence
NOTE: Toute future modification sera ajouté sans aucune notification.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GOGLOO E7

  • Page 1: Warning

    GOGLOO Manual d'utilisateur des lunettes E7 Merci de bien lire cette documentation et de la garder comme référence NOTE: Toute future modification sera ajouté sans aucune notification.

  • Page 2: Table Of Contents

    ATTENTION: Note: Cher Client, merci de noter que le coté gauche de la monture des lunettes devient Très chaud, pendant une longue periode d'enregistrement.Ceci est normal. Un radiateur en cuivre a été ajouté pour une meilleur dicipation thermique. User Guide Contents ...

  • Page 3: Product Features And Advantages

    Product Features and Advantages Features: 1. Patent Unique Design •Patent Unique Design, suitable for long time wearing •Slim & elegant design to fit human body characteristics. •Higher curve and flexible design suits different faces - smaller and bigger. •With unique cooling system design for perfect protection. •The most lightweight and mini volume WIFI 1080P HD video camera sunglasses in the world.
  • Page 4 4. Adjustable Nose Pads •The nose pads can be adjusted from smaller to larger to be suitable for different size noses. Smaller and bigger, suitable for long time wearing. 5. 2.2mm Quality Lens, ANSI Z87.1 standard: •UV400, interchangeable lenses •The quality lens of 2.2mm exceeds optical requirements of ANSI Z80.3, AS/NZS 1067, EN 1836 standards, ANSI Z87.1 standard •Blocks out 100% of all UVA, UVB, UVC and harmful blue light up to 400nm protection.

  • Page 5: What's In The Box

    What's in the box  1x 1080P HD video recording glasses  1x Carrying hard case  1x Carrying bag  1x Retaining lanyard  1x Cleaning cloth  1x Micro USB 2.0 HS cable  1x 16G memory card ...

  • Page 6: Basic Operation

    Basic OperationFR 1. Turning on to start video recording To turn on the video-glasses, simply press the ON/OFF button for 1 second. The green/blue LED is on and the device enters into the initialization status. After 2~3 seconds, the vibrating alerts ”Z-Z” 2 times and the blue LED( 1080P flashes slowly, it begins to record automatically.

  • Page 7: Storage

    Use a tip of a pen (or other fine tip object) to press the button in fully. It will reset your device back to the manufacturer default. Also, if the malfunction occurred or it can’t be recognized by a computer, try resetting. Resetting will not delete recorded files.

  • Page 8: Usb Storage Mode

    1.2. Setting “DATE_STAMP”, Set to “0” to turn Off date stamp or set to “1” to turn On date stamp. Note: This can also be done using the phone APP “Gogloo E7E9”. 4. Setting Real Date / Time, the default is hiding format.

  • Page 9: Changing Video Resolution Settings, Audio Volume Settings

    5.3. Saving the file and disconnect the glasses. The new setting takes effect next time when you record a video. Note: This also can be done using the phone APP “Gogloo E7E9”. Or click WiFi button for 2 seconds to switch.

  • Page 10: Settings Explained

    10. Settings Explained • VIDEO RESOLUTION ( Video Switch )= 0-1 def: 0 # (0=1080p@30fps, 1= 720p@60fps) Note: This also can be done using the phone APP “Gogloo Camera” and WIFI button Switch. • RECORDING FILE LENGTH = 0 def: 0...

  • Page 11: Changing The Lenses

    Changing the lenses Note: Remove the protective film on the lenses before wearing the sunglasses. To remove the lenses, start on the nose side and pull the lens out (see below) To insert the lens, start on the arm-side and plug it into the guides. (See below) How to fix prescription Lenses frame part &...
  • Page 12 Utilisation de base 1. Mise en marche de l'enregistrement vidéo Pour commencer l'enregistrement, appuyer sur le bouton ON/OFF pendant 1 sec. La LED Vert/Bleuest ON; La lunette entre en mode initialisation. Après 2~3 secondes,une vibrating se déclenche ”Z-Z” 2 fois et la LED Bleu( 1080P) flashe doucement, L'enregistrement vidéo commence.

  • Page 13: Led Indicator

    LED Indicator No. Operation Mode LED Indicator Status Blue and Green LED on and the device enters into the initialization status, after 2~3 seconds, the Turn ON vibrating alerts ”Z- Z” 2 times and the working LED(720P:Green LED, 1080P: Blue LED) flashes Slowly, it begins to record automatically.

  • Page 14: Troubleshooting

    Common media players, or Mainstream audio and Player video media playing software, with the high version player Windows XP, Win7/8/ , Vista 7/8, Mac OS, Android Operating System system Troubleshooting Symptom Possible reason Solution Flat battery Recharge battery Failing to start Device jam Reset, then start again Low battery...

  • Page 15: Announcement

    Facility, will void the limited warranty. Recycling Please contact your local corporate offices for recycling/disposal information for this product. Do not dispose with household waste. Battery DO NOT attempt to remove the battery. (Note: Battery disposal must be in accordance with local environmental regulations. See "RECYCLING" above.) If the recording function has not been used for lengthy period, charge it fully before using.
