Summary of Contents for Checkmate TR3

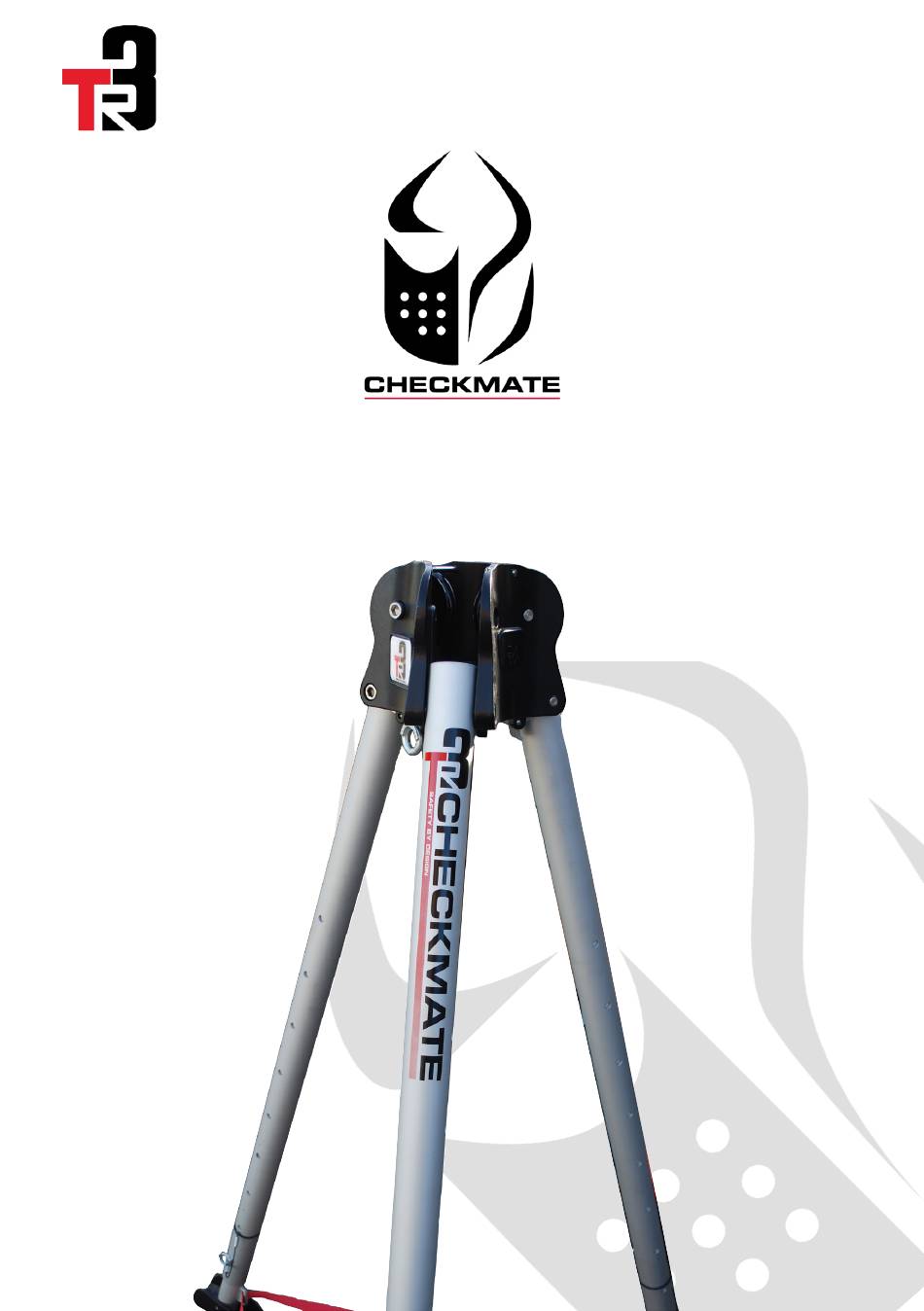

  • Page 1 TR3 Tripod User Manual ANSI Z359.18-2017 TR3 Tripod...

  • Page 2: Table Of Contents

    The user must also comply with OSHA and local safety regulations. Failure to follow these guidelines could result in injury or death. The Checkmate TR3 meets the requirement of ANSI Z359.18-2017, A10.32.12, OSHA 1910 and OSHA 1926 Subpart M...

  • Page 3: Issue

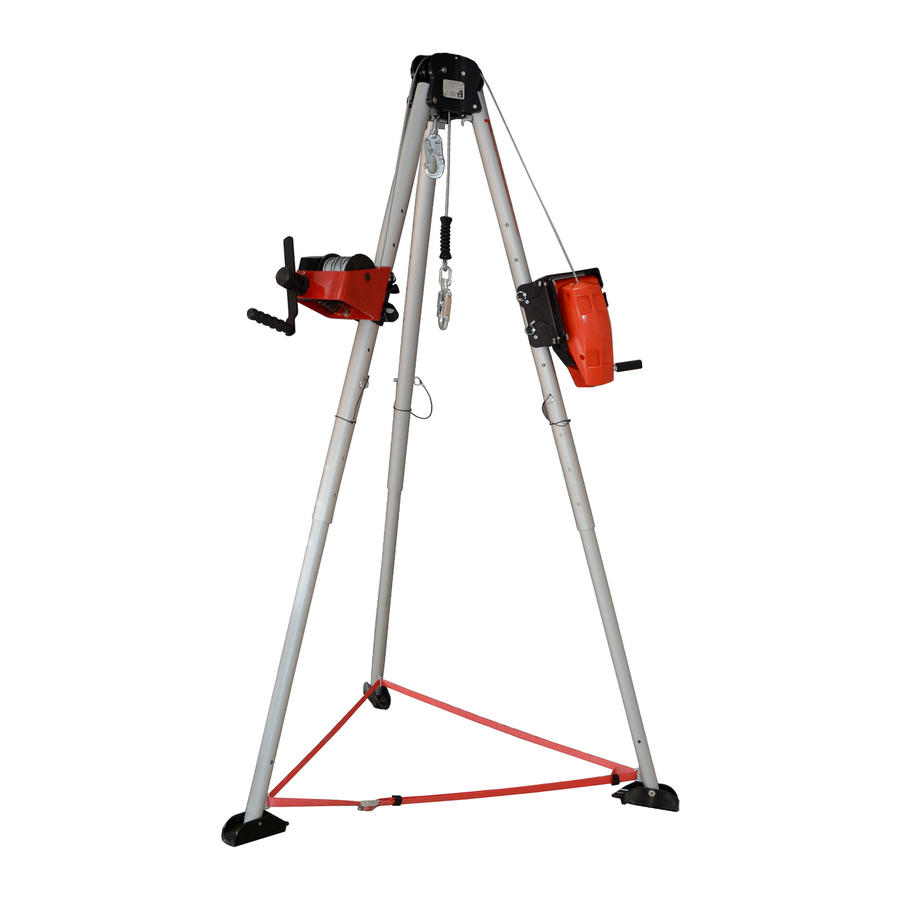

    Introduction to TR3 & Scope of Use TR3 Tripod The TR3 Tripod has been designed for your safety. The TR3 is supplied as a passive fall arrest device. The device is designed to be used above structures and confined entry areas where other attachment is not possible.

  • Page 4: Assembly

    Assembly NOTE: The Checkmate TR3 and FABX2R/FABXLR are designed for rescue use only. If the device is to be used as a primary man riding winch Checkmate recommend the use of a secondary rescue device. The device is designed to be used in free running mode and in the event of a fall the user can be rescued via the winching facility.
  • Page 5 Issue 0 TR3 Tripod User Manual Page 5 Section 2.0 Assembly Fig. 7 Fig. 8 Fig. 9 Fix FABXR-DB or FABXLR-DB with Insert FABX2R or FABXLR into Secure with M12 bolt. two supplied pins. the bracket as shown seating the cable end in the bracket Fig.

  • Page 6: Assembly

    Issue 0 TR3 Tripod User Manual Page 6 Section 2.0 Assembly Fig. 1 Fig. 2 Fig. 3 Slide the bracket (WG-02) Align the holes in the bracket Insert the second detent pin. which is fixed to the winch with the holes in the tripod leg onto the tripod leg.

  • Page 7: Confined Space Recommendations

    FABX2R or FABXLR When entering a confined space when a fixed access system is installed the user should use: 1 x Tripod (TR3) 1 x SRLR (FABX2R or FABXLR) 1 x SRLR adaptor bracket (FABXR-DB or FABXLR-DB) The FABX2R/FABXLR should be in free run mode and in the event of a fall the device will automatically lock on and then the winch can be engaged.

  • Page 8: Confined Space Recommendations

    When entering a confined space when there is no fixed access system and there is a need to lower the user down under control, you should use: 1 x Tripod (TR3) 1 x SRLR (FABX2R or FABXLR) 1 x SRLR adaptor bracket (FABXR-DB or FABXLR-DB)
  • Page 9 Issue 0 TR3 Tripod User Manual Page 9 Section 4.0 Storage, Issue & Inspection Storage Storage in a central protected location allows assurance of inspection on issue and return This tripod should be stored in a clean dry place where it can be protected from damage by chemical attack and sharp objects .

  • Page 10: Quality, Legislation & Exclusions

    Suitable planning and risk assessment 5.2 Legislation and Standards should be carried out by the user and or The TR3 Tripod has been designed supervisor. A suitable rescue plan and to meet the requirements of ANSI equipment shall be in place to minimise Z359.18:2017,...
  • Page 11 550lbs (250kg) and a suitable winch. more certification details). In the absence of certification Ensure that the TR3 is not subjected to any shock loads, the mounting surface must be capable of withstanding and that the stability of the TR3 is not compromised. Do 5,000lbs (22.2kN) (2) of static force.
  • Page 12 Issue 0 TR3 Tripod User Manual Page 12 Section 6.0 Fall Clearance...
  • Page 13 Body Harness (approved to ANSI Z359.11-2014), suitable from splatter and heat at all times. The TR3 tripod must only shock absorbing lanyards (approved to ANSI Z359.3-2013), be installed on flat level ground with a stable surface using suitable non-shock absorbing lanyards (approved to ANSI the installation procedure provided within this document.

  • Page 14: Labeling

    620 lbs. If used for equipment hois�ng, maximum equipment weight is 551 lbs./250 kg. All equipment used in combina�on with TR3 MUST be selected and deemed compa�ble by Competent Person. Keep away from all poten�al hazards including, but not limited to, heat, electricity, chemicals, and sharp or abrasive edges and surfaces.

  • Page 15: Record Card

    Issue 0 TR3 Tripod User Manual Page 15 Section 9.0 Record Card SERIAL NO: DATE OF FIRST USE: PRODUCT CODE: USER: DATE CONDITION OF SYSTEM INSPECTED BY...
  • Page 16 UM-131_PSGTR3_IS0 Approved service company: Checkmate Lifting & Safety Ltd, Sheerness, Kent. England. ME12 1PZ, UK Tel: +44 (0)1795 580333 Fax: +44 (0)1795 668280 sales@checkmateuk.com www.checkmateuk.com...
