※Please read though user manual carefully before you install.
※ Advise you test the device by 12V power before install it to your car.
Contents
1. Product Specification ........................................
2. Product Diagram................................................
3. Operation of UI ...................................................
4. Setting of System Function..................................
5. Update MCU and System .....................................
6. Frequently Asked Questions .................................
OS + RAM + ROM
CPU
Display
Network
Radio IC
AMP IC
Standard Functions
Optional Accessories

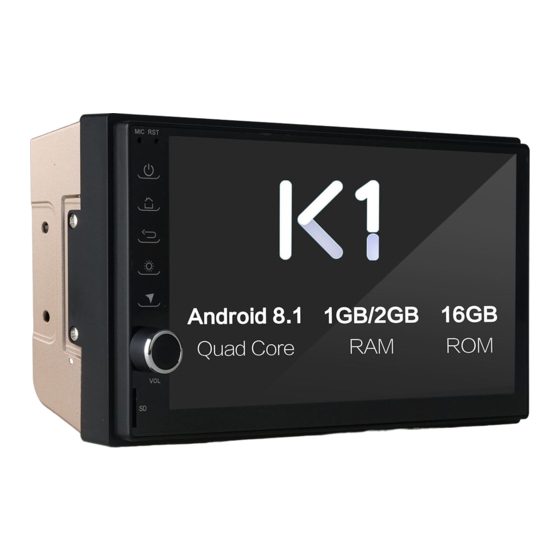

Ownice K1 - User Manual
Product Specification
E version: Android 6.0 | 4core | 2G RAM | 16G ROM
C version: Android 8.1 | 4core | 1G RAM | 16G ROM
Quad Core
1024*600/ Multi-touch
WiFi （Built-in）
External 4G Dongle （Optional）
TDA7786
TDA7388
FM/AM Radio + RDS + GPS + Bluetooth + Multimedia(USB)+ AUX in + Screen
Mirroring
Support 4G Dongle, Carplay Dongle, Starlight Camera, DVR, DAB+, TPMS,
DTV, OBDII, Mic,External DVD Box , Don't Support Bluetooth SWC
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Ownice K1
-
Page 1: Product Specification
Ownice K1 - User Manual ※Please read though user manual carefully before you install. ※ Advise you test the device by 12V power before install it to your car. Contents 1. Product Specification ........2. Product Diagram..........3. Operation of UI ........... - Page 2 Noted: If you want to use built-in mic, then must dis-connected the cable "16" , then the built-in mic will be work. If you want to use external mic, then must connected the cable "16" , then the built-in mic will be useless.
- Page 3 Camera: red power port <--> Original Car: power cable of the reverse light (black wire <--> ground; red wire <--> power 12v+), to make sure the Ownice Head Unit get instruction to display the rear view image when you put the gear to reverse and the reverse light turn on.
- Page 4 3.1 UI Operation This section contains instructions for locating the basic controls and operations found in the main section. Home Page ① Back ② Navigation ③ Radio ④ Video ⑤ Bluetooth ⑥ Music ⑦ App page ⑧ Browsing history ⑨...
- Page 5 3.2 Radio This section contains instructions for locating the controls and basic operations for navigation in the "radio" mode.
- Page 6 3.3 Bluetooth Bluetooth connection icon Refresh ① ⑪ Diad Pad End Calling ② ⑫ Phone book Phonebook download ③ ⑬ Recent call Delete ④ ⑭ Bluetooth music Seach ⑤ ⑮ Connect bluetooth Bluetooth music volume adjust ⑥ ⑯ Dis-connect bluetooth Backward ⑦...
- Page 7 3.4 Music Play Click into music player 3.5 Video Play Click into video player Aspect Radio Switch ① Play mode ② Previous ③ Pause/Play ④ Next ⑤ Collection ⑥ Video list ⑦ Close Video ⑧...
- Page 8 3.6 EQ Setting 3.7 Volume setting...
- Page 9 4. Setting of System Function Q: How to set the boot logo to others A: Please set as the following step: Setting -->car infotainment -->Common-->Boot Logo (Password 9999) --> Choose the boot logo you want to display --> Confirm. Q: How to set the button color A: Please set as the following step: Setting -->car infotainment -->Common-->...
- Page 10 Q: How to set the standby time A: Please set as the following step: Setting -->car infotainment -->Common--> Standby time (0, 10munites, 20munites, 30munites,1hour) --> choose the standby time Q: How to enter the factory setting. A: Please set as the following step: Setting -->car infotainment -->About Device -->...
- Page 11 Q: How to let the the message "Do not operate while Driving" disappear? A: Setting -->car infotainment -->Video ---->Disable Video In Motion ( mark off). Q: How to automatically connect Bluetooth A: Please set as the following step: Setting -->Car infotainment -->Bluetooth --> Open Auto Connect...
- Page 12 4.Setting of System Function Q: How to change bluetooth name? Step 1: Follow below to enter to factory setting: Setting -->car infotainment -->About Device --> click t --> Password 1260 --> Ok Step 2: Other -->BT name Q: How to Study Steer Wheel Button. Way 1: Firstly, click one of the original car steer wheel button, then click the related button on steer wheel control interface.
- Page 13 Q: How to install the DVR camera APP? The DVR camera APP is not preload before shipping, we default to install this app only if you buy the DVR camera together with the Ownice radio. Otherwise you need install it by yourself.
- Page 14 5.Update MCU and System How to update: 1) Please contact seller to get the update software download link.(Don’t download from website randomly, maybe didn’t fit). 2) Then must un-zip the download file. 3) Then copy the two file to onenew USB disc root (can not change the files name), then connected with our device USB port.
-
Page 15: Frequently Asked Questions
6.Frequently Asked Questions Answer For cool boot, the time need about 25s. For hot boot, the time need about 5s. What means cool boot: our item can set for delay turn off for (0, 10munites, The boot time 20munites, 30munites, 60munites), if you set for 10munites, then after you turn off your car, and within 10munites, you turn on your car, only need wait for 5s to turn on our item, but if you after 10munites to turn on your car, then you need wait for about 25s to turn on our device.
