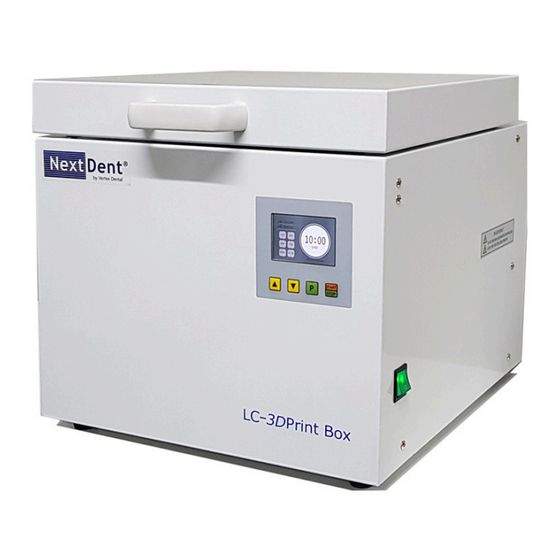

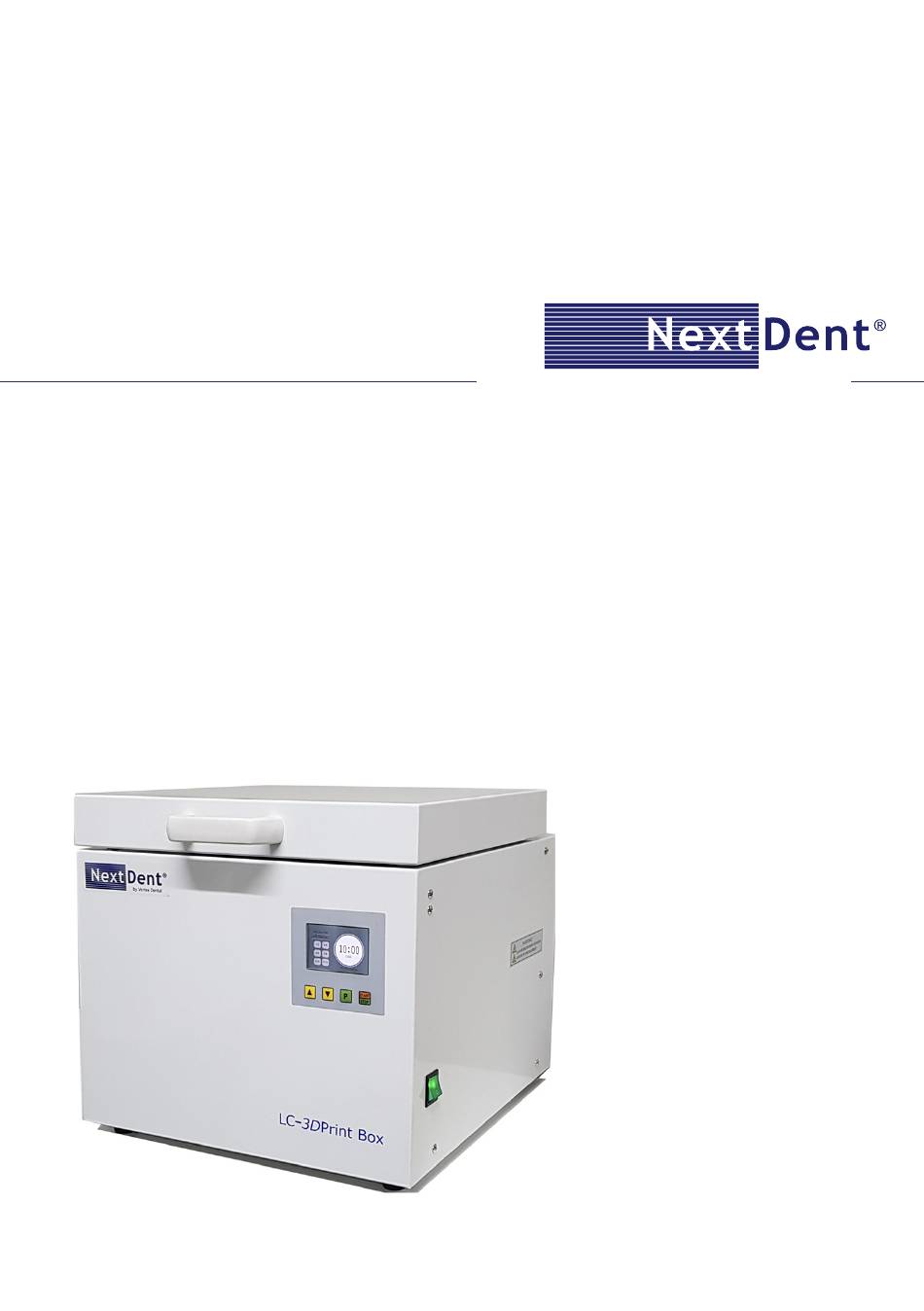

LC-3DPRINT BOX
Light Polymerisation unit (Post-curing oven)
Leading manufacturer of dental materials for 3D printing
Instruction For Use
LC-3DPrint Box
The following instruction is for professionals
who want to use the NextDent
LC-3DPrint
TM
Box as a light polymerisation unit (post-curing
oven)
LC-3DPrint Box is used to dry and polymerize 3D printing objects
which need an additional drying and polymerising process. This unit
is equipped with 12 pcs of 18W lights in order to dry and fully polym-
erize the 3D printed objects.
Page 1 of 10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for NextDent LC-3DPRINT BOX
- Page 1 Box as a light polymerisation unit (post-curing oven) LC-3DPrint Box is used to dry and polymerize 3D printing objects which need an additional drying and polymerising process. This unit is equipped with 12 pcs of 18W lights in order to dry and fully polym- erize the 3D printed objects.
- Page 2 Page 2 of 10...
- Page 3 STOP: READ ME FIRST. DO Voltage Selection THIS AT INSTALLATION. on Print Box Check And Change Your Voltage If Needed 100V The LC-3D Print Box comes with a pre-set voltage from 110V/115V the factory that may require changing to align with your country specific voltage rating.
-
Page 4: Specifications
Continue to press the “P” changed to 220V. button until your country specific voltage rating appears. Specifications Type of unit: Light Polymerisation unit (Post-curing oven) Model name: LC-3DPrint Box Rated Voltage: AC110-240V 50/60Hz Power Consump- Max. 264W tion: Fuse: AC250V T5.0A Dimension:... -
Page 5: General Cautions
Do not touch live electric parts. Do not use this machine for any other kind of mate- Turn off power source and disconnect rial than NextDent 3D printing Materials. power cable before installing or servicing the machine. Turn off the machine when not in use. - Page 6 Rear Front Front panel Identification label Fuze Box and AC power cable socket Front panel Display / LCD The machine is equipped with a fan to cool down the inside and maintain a proper working temperature inside the machine. Fan operates when the machine is in use and cool- ing is needed.
-
Page 7: Starting Mode
(green button) on the right side of the machine. When switching on the machine, Lamp socket welcome! Lamp holding clamp the version information will LC-3DPRINT BOX Reflection plate appear in the display. Lamp Socket Silicone O-ring V300 1/110V V300 1/110V Chamber inside... -
Page 8: Maintenance
Maintenance If error continues after replacing the lamps, the bal- last must be replaced by a qualified person. General instructions Repair or maintenance of the machine, must be Lamp 1/2 = Ballast 1 Lamp 3/4 = Ballast 2 carried out by qualified persons only. Lamp 5/6 = Ballast 3 Lamp 7/8 = Ballast 4... - Page 9 Page 9 of 10...
- Page 10 © 2016 Vertex-Dental B.V. All Rights Reserved NextDent” is a registered trademark of Vertex-Dental B.V. used under a tem- porary license granted by NextDent B.V.. Neither. NextDent B.V. nor any of its affiliates is responsible for the manufacturing of the product(s).
