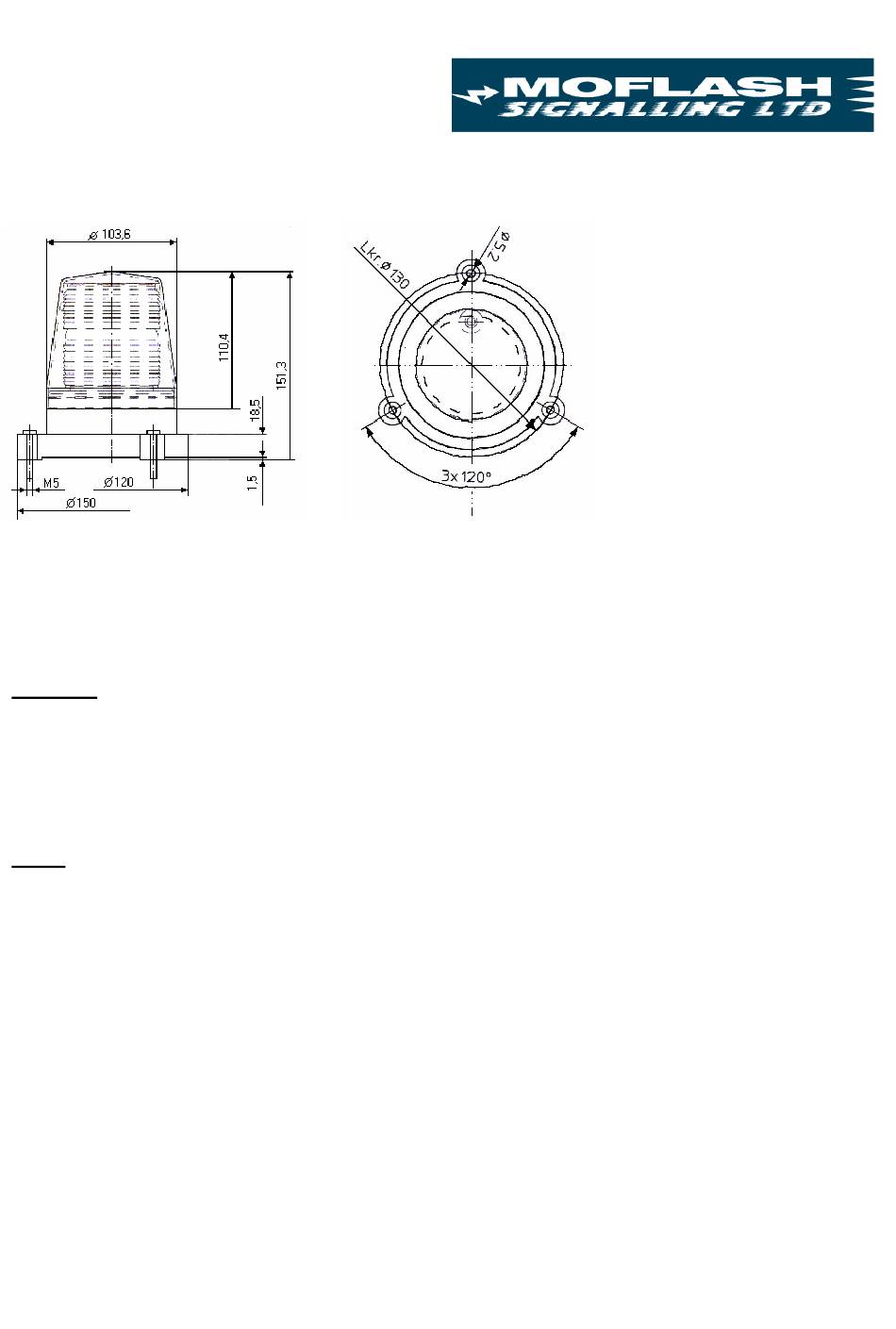

MOFLASH SIGNALLING LED500-04-10-02 Manual

LED500-04-10-02 & LED501-02-10-02 Beacons
Low Intensity ICAO Warning beacons

General:

These beacons serve as a method of air traffic control by distinguishing
Aviation obstacles on or around airports / airfields etc. They can be used for example on
High buildings, chimneys, pylons or towers etc in conjunction with ICAO (International
Civil Aviation Organization) regulations for low intensity warning lights.
Note:
The installer should be aware of the International laws, prescriptions and guide lines for
Distinguishing aviation obstacles when installing these obstacle marking beacons.

Electrical connections:

Part Code: LED500-04-10-02
Current Draw:
Part Code: LED501-02-10-02
Current Draw:
Connecting wire: H05VV-F 3x0,75 ² Ø min 6mm, Ø max 8 mm
You must have an external strain relief attachment for the power cables.
Connecting clip: flexible 0,5 -1,5 mm²
Fuse: You have to install an external fuse
230v Ac or 115v Ac (switchable)
70mA 150mA
24v Dc
800mA
.
