Summary of Contents for STREETER SUPER LIFT

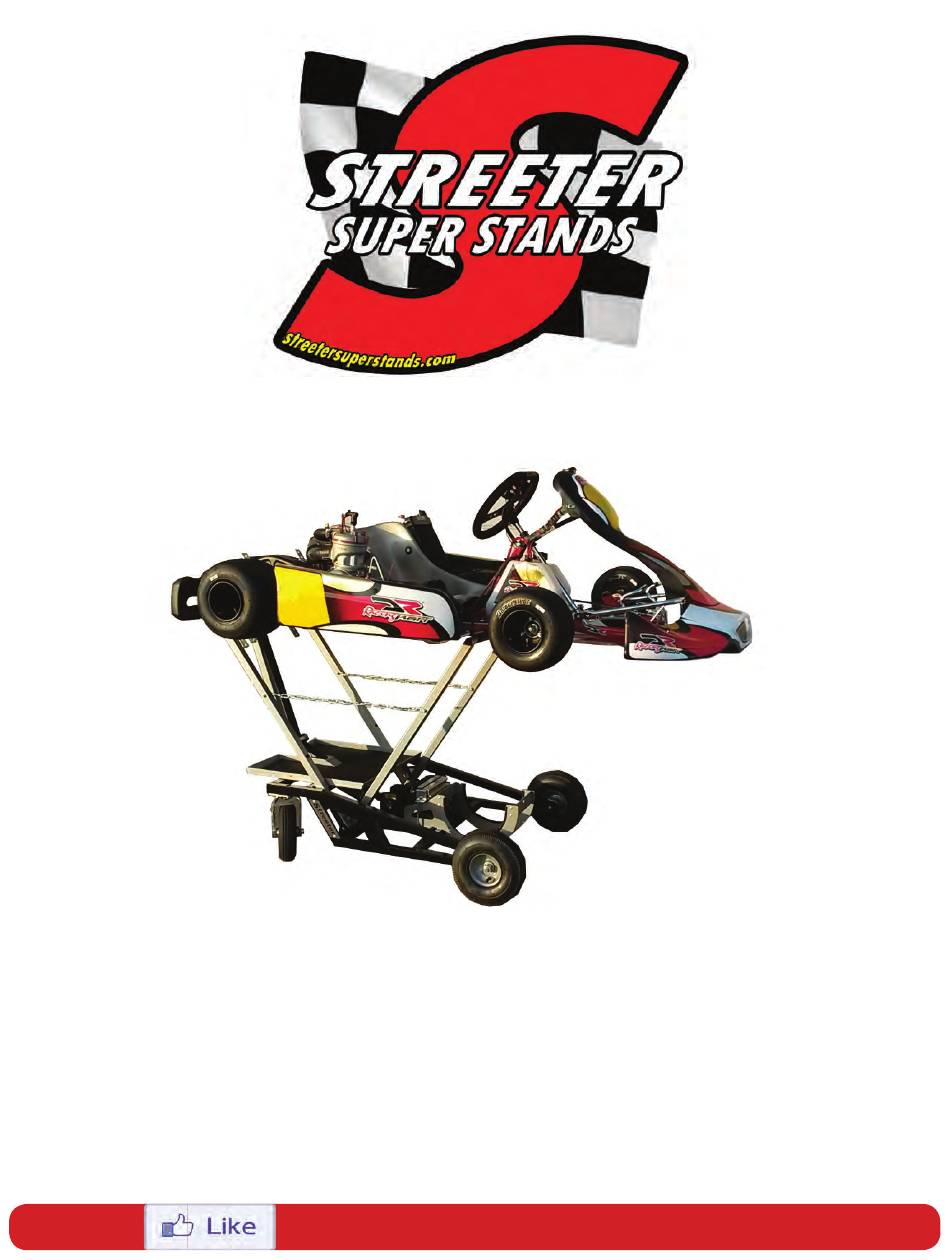

- Page 1 SUPER LIFT ASSEMBLY GUIDE TECH/ORDER LINE: (262) 457-5018 streetersuperstands.com...
- Page 2 Thank You and Congratulations on your purchase of a Streeter Super Stands SUPER LIFT. This booklet is the basic guide for assembly of your stand. Minimal mechanical knowledge and standard tools are all that will be neded for the assembly procedure. Please familiarize yourself with this booklet, the included components and your stand prior to beginning the assembly.
- Page 3 Thread short end of front axle studs into the stand. The use of a “blue” thread locker is suggested. Tigthen each axle/ stud. Install wheels and tighten each axle nut. Once tightened, back-off (loosen) nut just enough so the wheel spins freely. Install casters and tighten mounting bolts.
- Page 4 The two short bolts with nuts will be used to attach the lower portion of the handle to the bottom of the stand base. The longer bolt with nut will attach the handle to the upper portion of the base. Strip wire ends on the handle wires and match up wires to those already installed in the terminal connector.
- Page 5 Chains are semi-installed on the stand. You will need to tighten the bolts that attached them to the stand arms. Make sure the chain links are not kinked and that each side is extended equal. Turn the winch knob to “Free Wheel” mode.
- Page 6 Check fi t prior to use. Sometimes, hook adjustments or modifi cation may be required. If you have questions regarding hooks and their use, please contact Streeter Super Stands directly. (262) 457-5018 Your Super Lift will use a U1 group sized battery (lawn tractor type). Suggested batteries used for a Super Lift are: Farm &...
- Page 7 Do not attempt to lift your kart unless you are sure of the lifting hooks position and you are also comfortable with the use of this stand. The potential for injury is present and the user accepts all liability as such. Streeter Super Stands is not responsible for personal injury, any damage to the stand, kart or surroundings due to misuse or wrongful assembly.
- Page 8 UPPER STORAGE / PARTS TRAY (part# STR-2800-511) The Super Lift Upper Tray fits all model year Streeter Super Lifts, quickly attaching to the Control Handle bars. This handy tray is nice for tool and parts storage when working in the pits or post- race tech.
