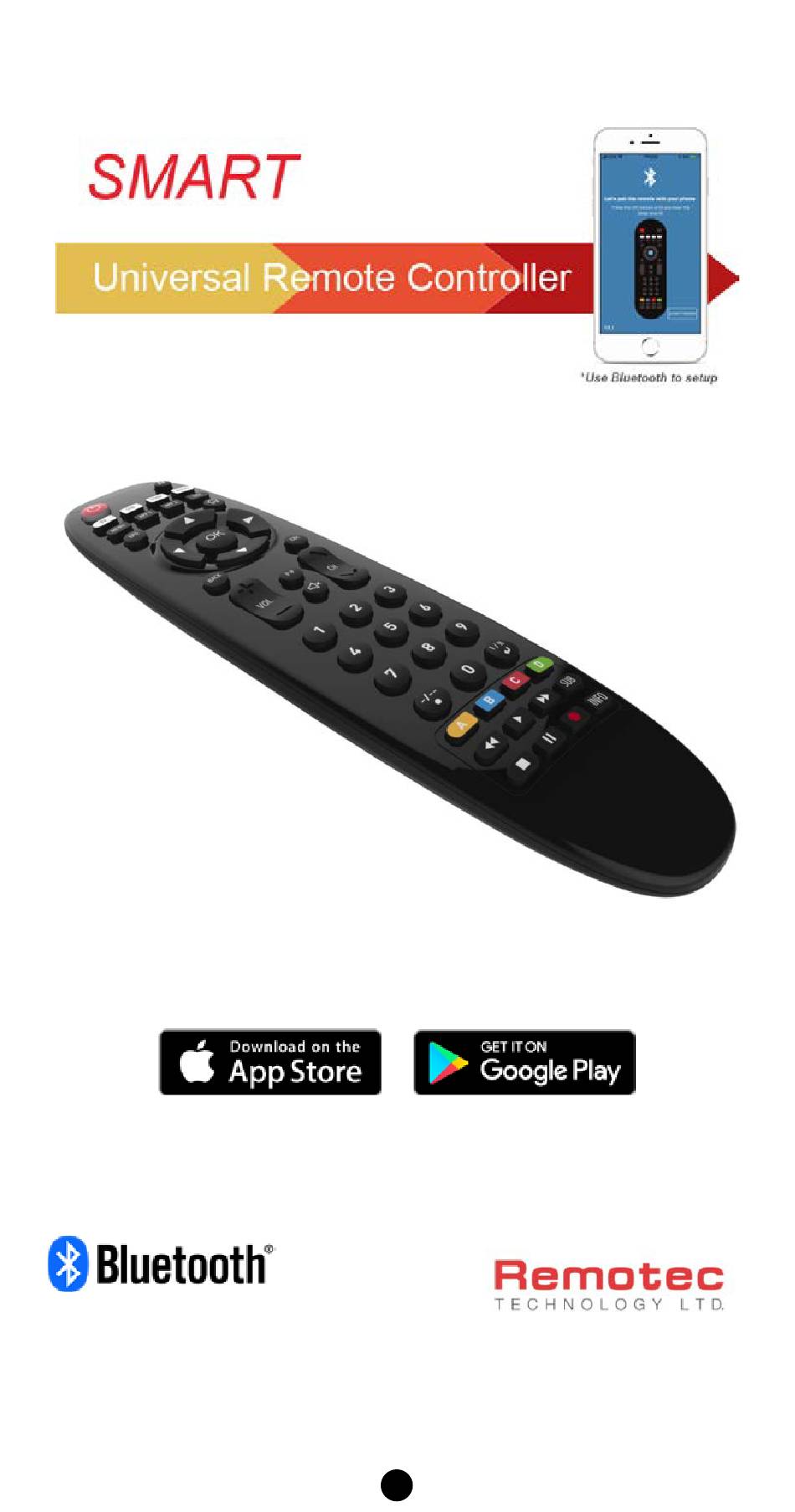

- Page 1 Smart Remote with Mobile App Setup Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. V1.0...
-
Page 2: Table Of Contents
Table of Contents Introduction…………………………………………………………3 Features & Requirements…………………………………………4 App Installation………………………………………………..4 Pairing the Remote Controller…………………………………….5 Adding a New Device……………………………………………...7 Extender Mode…………………………………………………..13 Find my Remote………………………………………………..14 Technical Specifications…………………………………………15 Warranty…………………………………………………………...17 Customer Service………………………………………………...18... -
Page 3: Introduction
The user can setup the Conexum Smart URC-11 in a few simple steps, guided by the user-friendly mobile app interface on the smart phone or tablet PC. -
Page 4: Features & Requirements
Features Supports Remote and BLE Extender mode (option) Comprehensive access to cloud-based infrared code library database Battery Low warning LED indication Upgradeable firmware over-the-air (OTA) Bluetooth Low Energy device with ultra-low power consumption Programme up to 4 devices Requirements iOS 9 or above (Supports BLE4.2) Android - Android 5.0 or above (Supports BLE4.2) Application Software (App) Installation Scan QR code or search “Conexum”... -
Page 5: Pairing The Remote Controller
Mobile App Once you have downloaded the Conexum mobile app from the app store, you can start to setup and pair it with the Conexum remote controller. Launch the app and you will be presented with the End User Software License Agreement, please press “ACCEPT”... - Page 6 Each Conexum remote controller has a unique id (e.g. Conexum_FFFF0) and the app will scan for this remote controller and indicate it to you. If the app fails to find the remote controller, the following screen will be shown. You can hold down the “OK” + “HOME” key at the same time on the remote controller to reinitialize the pairing process, wait for a BEEP sound and now you can press the “SCAN DEVICE”...
-
Page 7: Adding A New Device
Adding a New Device If the pairing is successful, you will be able to setup and add up to 4 new devices and start downloading the relevant infrared codes required to operate them for this remote controller. Press “Add new device” and you will be prompted to setup the 4 devices. There are 4 devices location (e.g. - Page 8 Once you have confirmed setting up on the “TV” location, you can choose from our comprehensive cloud-based Infrared code library and select device. Your smartphone or tablet PC must be connected to the Internet. Select “TV” and press “NEXT” as an example and then you will need to select the device brand.
- Page 9 Once selected, the mobile apps’ built-in Smart Search feature will find the infrared code for your device. The app will make an attempt to connect to the remote controller via BLE. You will need to point your remote controller to the device to test out a few keys.
- Page 10 Testing the power button Please press the “Power” button on the app. If the TV turns ON/OFF, then press “YES”, otherwise press “NO” or “SKIP”. *If the TV is now turned off, you may need to turn it on with your original remote or manually for the next step.
- Page 11 Downloading infrared codes The mobile app will now download the infrared codes to the remote controller. *If you have a second TV, you could also use the other device button (e.g. STB) for setting up the second TV. In total, there are 4 device location available for you to setup.
- Page 12 Congratulations The remote controller’s first device location TV, which is now named as Living room TV, is now considered setup and you can use the remote to control it. *You can repeat the process to add up to 4 new devices...
-
Page 13: Extender Mode
Extender Mode The Extender Mode gives you the additional function of controlling your devices through the smartphone and the Conexum app For assessing the full functions of the Extender Mode, you have to purchase with an in-app purchase inside the Conexum app. Press any device name on the main-screen (e.g. -
Page 14: Find My Remote
After the payment has been successfully completed, you will be able to access full features of the Extender Mode through clicking on any device which you wish to operate. Find my remote If you happen to misplace the Conexum remote, you can press the bell icon in your Conexum app to make the remote buzz and emit a “beep beep”... -
Page 15: Technical Specifications
Technical Specifications Smart URC-11 Model No. BW8611UN ( No. of IR Device 4 devices (TV, STB, STREAMING, AUDIO) Bluetooth BLE 4.2, Class 2 device Up to 30meters outdoor line of sight, in RF Operating Distance unobstructed environment Up to 10meters line of sight, in unobstructed IR Operating Distance environment Powered by AAA x 2pcs... - Page 16 FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 17: Warranty
Warranty ONE-YEAR LIMITED WARRANTY: Remotec warrants this product to be free from defects in materials and workmanship under normal use and service for a period of one year from the original date of purchase from the distributor or dealer. REMOTEC shall not be liable for:... -
Page 18: Customer Service
To receive customer service, please click the information menu on the mobile app to look for the latest information such as firmware, database, mobile software app. Please contact Customer Service at Customer Service Website http://support.Remotec.com.hk +852 2270 9238 E-mail: info@conexum.life www.Conexum.life...
