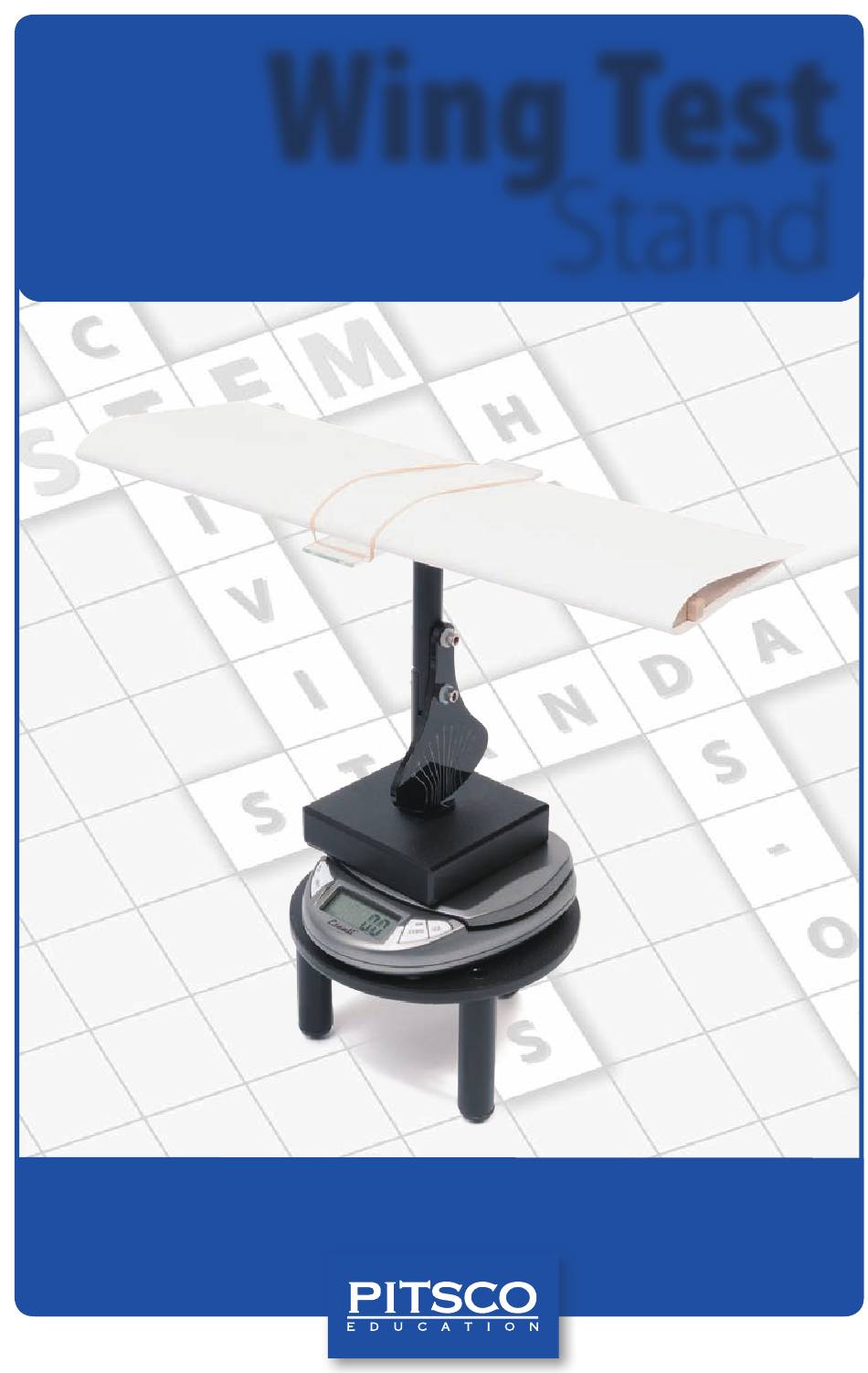

  • Page 1 Wing Test Stand User Guide 42154 V1215...
  • Page 2 • Box fan or high velocity fan Note: While not required, the Air Control Funnel is recommended for optimal usage of the Wing Test Stand. Setting Up the Wing Test Stand 1. Place the digital scale, wing test base, and angle gauge stand on top of each other respectively (Figure 1).
  • Page 3 3. Set the angle for testing your wing and place a fan in front of the Wing Test Stand (Figure 5). Turn on the fan. The number in the display will represent the lift of the wing. Disregard the negative sign (Figure 6).
  • Page 4 • Determine the stall angle of the wing. As you increase the angle of attack, there will be a drop-off in lift. That will be the stall angle. Discuss why this happens. • Try many different wing designs with the Wing Test Stand. P.O. Box 1708 • Pittsburg, KS 66762 www.pitsco.com...
