Sutter Instrument Lambda HPX Operation Manual

High-power led light source system (liquid cooled)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

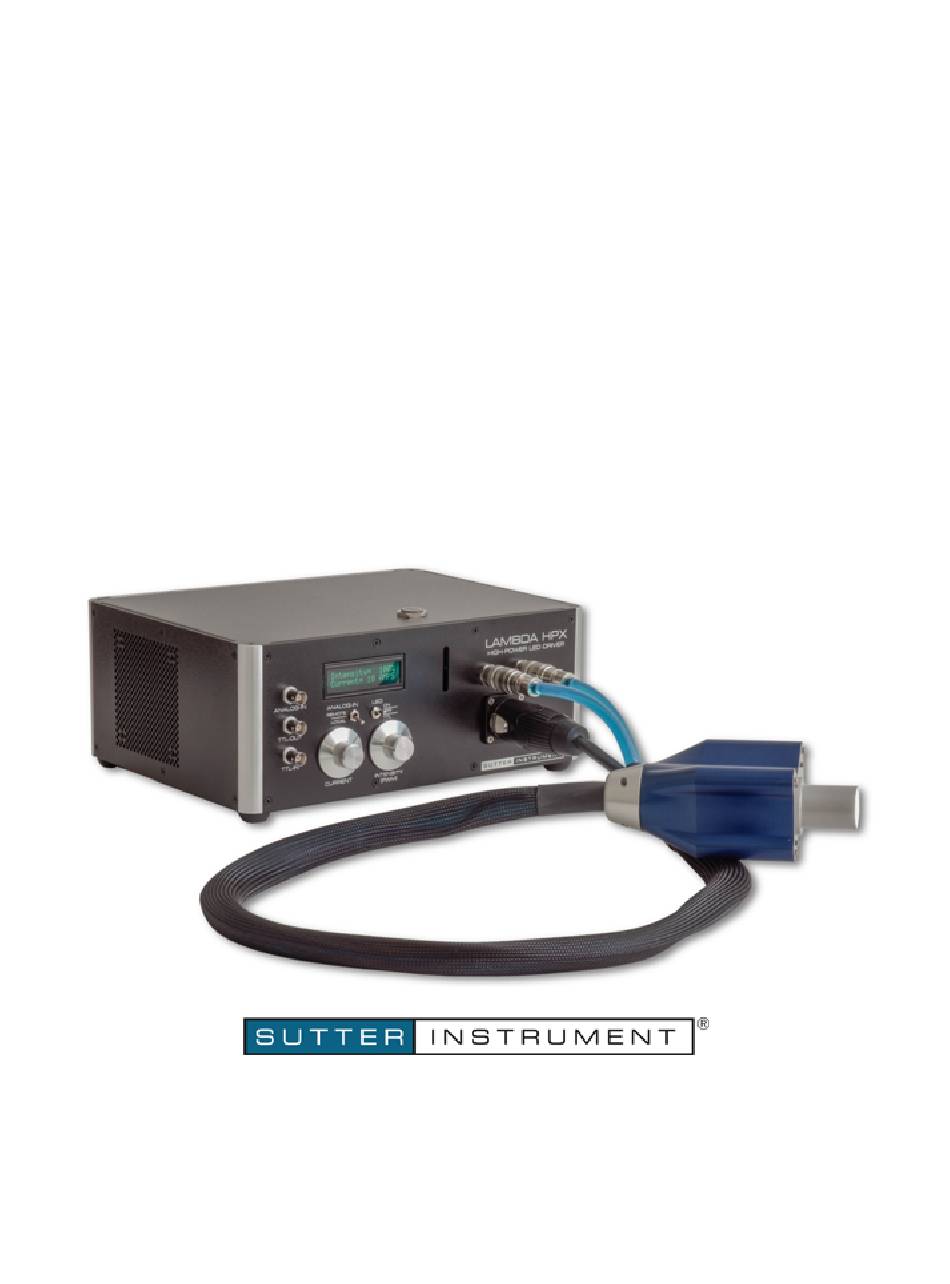

Lambda HPX
High-Power LED Light Source System
(Liquid Cooled)
Operation Manual
Rev. 1.03e ((20141208)
One Digital Drive
Novato, CA 94949
Voice: 415-883-0128 Web: www.sutter.com
Fax:
415-883-0572 Email: info@sutter.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lambda HPX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sutter Instrument Lambda HPX

  • Page 1 Lambda HPX High-Power LED Light Source System (Liquid Cooled) Operation Manual Rev. 1.03e ((20141208) One Digital Drive Novato, CA 94949 Voice: 415-883-0128 Web: www.sutter.com Fax: 415-883-0572 Email: info@sutter.com...
  • Page 2 Copyright © 2014 Sutter Instrument Company. All Rights Reserved. LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 5: Disclaimer

    DISCLAIMER The Lambda HPX is a high-power LED illumination or light source device. The purpose of the system is to be an illuminator for microscopes. No other use is recommended. This instrument is designed for use in a laboratory environment. It is not intended, nor should it be used in human experimentation or applied to humans in any way.
  • Page 6 Do not operate if there is any obvious damage to any part of the instrument. LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 7: Avoiding Physical Injury While Powered Up And Emitting Light

    Retain the original packaging for future transport of the instrument. Sutter Instrument reserves the right to change specifications without prior notice. This device is intended only for research purposes. LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 8 (This page intentionally left blank.) LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 9: Table Of Contents

    3.3.3 ANALOG-IN BNC Connector ....................17 3.3.4 TTL-IN BNC Connector......................17 3.3.5 TTL-OUT BNC Connector .....................17 3.4 Fault Conditions ..........................17 4. MAINTENANCE..........................19 4.1 Routine Maintenance ........................19 4.2 Liquid Coolant Replacement ......................19 LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 10 TABLE OF FIGURES Figure 1-1. HPX indicators, controls, and connectors................9 Figure 2-1. Lambda HPX-series left-side panel removed for access to configuration DIP switches.12 Figure 2-2. Configuration DIP switch bank as viewed head on and top-down........12 Figure 3-1. Locations of individual indicators, controls, and connectors on the Lambda HPX controller..........................15...

  • Page 11: Introduction

    The Lambda HPX is a liquid-cooled, high-output, LED light source (illuminator). Designed around a single 90W 4.25mm LED die, the Lambda HPX provides light output comparable to a 200W xenon arc lamp. The system includes a quiet, vibration-free, liquid cooling head (pre- filled at the factory) that allows for the low-junction temperatures required to reach the LED LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL –...

  • Page 12: Technical Support

    Sutter Instrument’s custom microscope adapters. Because LEDs exhibit color shift with electrical current change, the Lambda HPX has the ability to dim the LED using either PWM (pulse width modulation) or current control. The PWM method of dimming is generally preferred for most applications, and allows the LED to run cooler.

  • Page 13: Installation

    2. INSTALLATION 2.1 Unpacking The Lambda HPX and associated hardware comes packed in a single carton. The following is a list of the components found there. If you believe that any of these components are missing or show obvious signs of damage from shipping, please contact the factory.

  • Page 14: Ttl In To Ttl Out Logic (Switch 1)

    (left-side while viewing the front panel) by unscrewing the six screws. Figure 2-1. Lambda HPX-series left-side panel removed for access to configuration DIP switches. While viewing the left side of the cabinet, the location of the DIP switch bank on the vertically-mounted control board as shown in the following figure.

  • Page 15: Led On/Off State Control By Ttl In (Switch 2)

    2.3.4 Firmware and Lambda HPX Model (Switch 4) The position of DIP Switch 4 informs the control board’s firmware of the specific Lambda HPX model it is controlling. This switch must be OFF (Lambda HPX with liquid-cooled lamp). LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 16 OFF position (the OFF position is located in between ON and TTL). NOTE 3: Switch 4 must be OFF for proper operation of the Lambda HPX (liquid-cooled lamp). LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 17: Operations

    3. OPERATIONS This chapter describes the operation of the Lambda HPX. The locations of the individual indicators, controls, and connectors are indicated in the following figure. Figure 3-1. Locations of individual indicators, controls, and connectors on the Lambda HPX controller.

  • Page 18: Controls

    Note that the CURRENT knob is functional regardless of the positions of the LED and ANALOG-IN switches, and manual or external state of intensity via PWM (manually adjusting INTENSITY (PWM) knob or applying 0-5 VDC on ANALOG-IN input). LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 19: Connectors

    LED is on, TTL-OUT is held low the duration that the LED is on. 3.4 Fault Conditions The Lambda HPX is equipped with temperature and flow monitors to maximize the life of the LED. Should a fault occur, the screen turns red and the lamp is turned off automatically.
  • Page 20 (This page intentionally blank.) LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 21: Maintenance

    4. MAINTENANCE 4.1 Routine Maintenance Routine cleaning of the Lambda HPX-L5 system is required to prevent excessive dust accumulations. Wipe all exterior surfaces with a dry, soft, cotton cloth. Periodically inspect all cables ensuring that all connections are made well and connectors are evenly seated.
  • Page 22 (This page intentionally blank.) LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 23: Appendix A. Limited Warranty

    Warranty work will be performed only at the factory. The cost of shipment both ways is paid for by Sutter Instrument during the first three months this warranty is in effect, after which the cost is the responsibility of the customer.
  • Page 24 (This page intentionally blank.) LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 25: Appendix B. Accessories

    Liquid-cooled LED housing adaptors for various microscopes are available. Please contact Sutter Instrument for more information. 4.6 TTL Triggering A USB-controlled trigger box is available for TTL control of the Lambda HPX series. Please contact Sutter Instrument for more information. 4.7 Liquid Coolant Additional liquid coolant may be obtained from Sutter Instrument or from a qualified source.
  • Page 26 (This page intentionally blank.) LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 27: Appendix C. Technical Specifications

    3 - 3.5V DC, 4 - 18A, 70W Max.. Mains fuses T2.0A, 250V , 5 x 20mm, Time Delay fuse (EIC 60127-2) (E.g., Bussmann GDC S506-2-R or S506-2A (RoHS)) LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 28 (This page intentionally blank.) LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 29: Appendix D. Coolant Fluid Safety Data Sheet

    P302+P352 If on skin: Wash exposure area with plenty of water and soap. P305+P351+P338 If in eyes: Rinse continuously with water for several minutes. Remove contact lenses if present and easy to do so. Continue rinsing. LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 30 - Use water spray to cool unopened containers. - Fire fighters should enter area wearing respiratory protection and protective equipment. 6. Accidental Release Measures Personal Precautions: Ensure adequate ventilation. LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 31 Explosive properties: No self-reaction hazard; UN TDG test & criteria – Test E3 Autoignition temperature: No spontaneous combustion under 300°C Boiling point (initial): >98ºC Melting range: No data available LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 32 Bird EC50: 1,634mg/l 72hr Selenastrum capricornutum  Persistence and degradability: No data available Bioaccumulative potential: No data available Mobility in soil: No data available Other adverse effects: No data available LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 33 HSDB : US Hazardous Substances Data Bank, http://toxnet.nlm.nih.gov/ CCRIS : US Chemical Carcinogenesis Research Information System, http://toxnet.nlm.nih.gov/ IARC : International Agency for Research on Cancer, http://monographs.iarc.fr LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 34 Koolance has been advised of the possibility of such damages. LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)

  • Page 35: Index

    27 CURRENT control knob......17 TTL ..............27 INTENSITY (PWM) control knob..... 16 voltage..............27 LED control switch........16 installation ............11 power switch ..........16 LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
  • Page 36 27 mains..............27 safety data sheet output ..............27 coolant fluid............31 safety warnings............3 electrical..............3 warranty..............23 safety warnings & precautions wavelength ............27 operational............4 NOTES LAMBDA HPX HIGH-POWER LED LIGHT SOURCE SYSTEM OPERATION MANUAL – REV. 1.03E (20141208)
