Summary of Contents for Progressive Industries EMS-PT30X

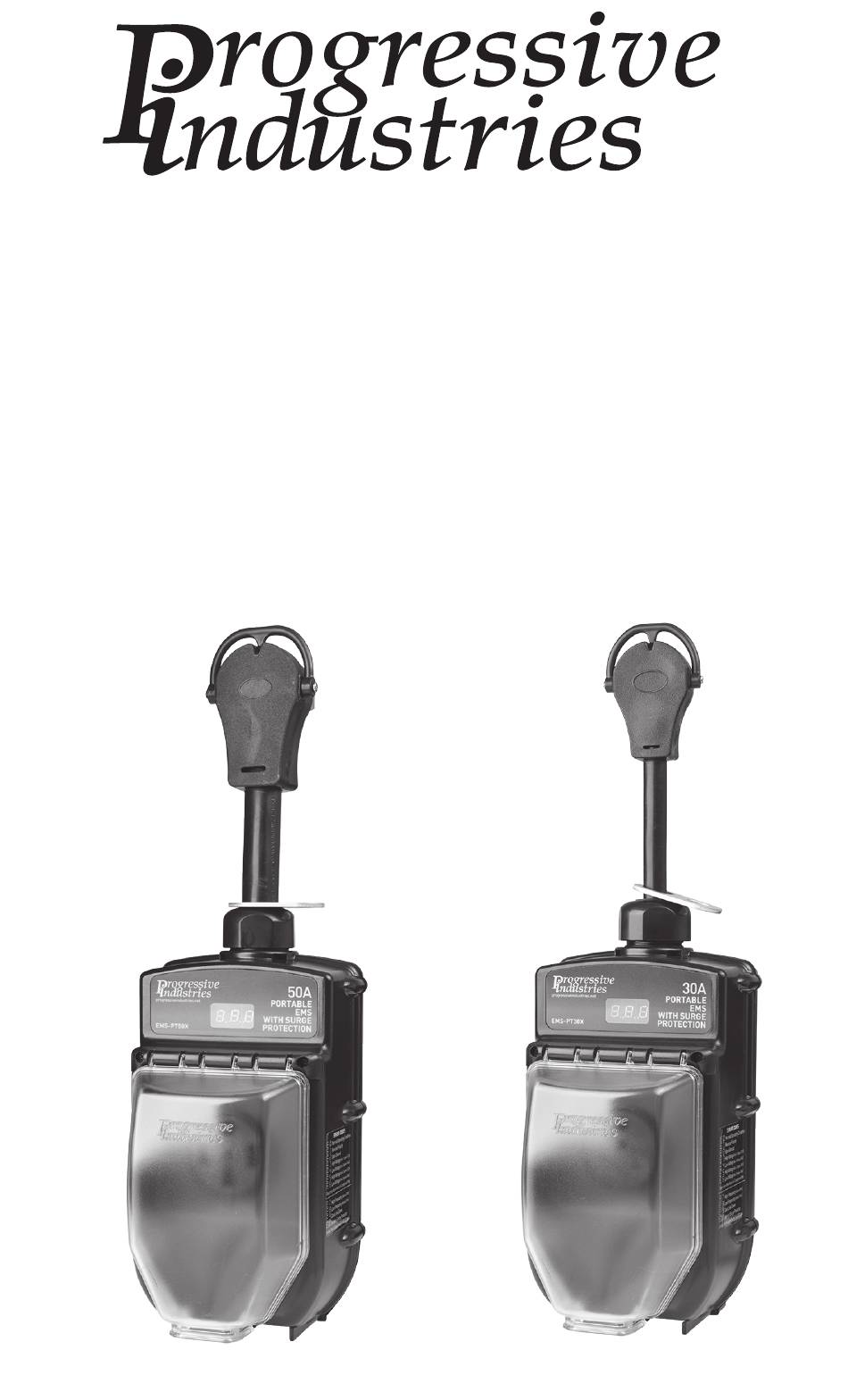

- Page 1 Instruction Manual Electrical Management System (EMS) EMS-PT30X & EMS-PT50X EMS-PT30X EMS-PT50X...
- Page 2 INSTRUCTION MANUAL: ELECTRICAL MANAGEMENT SYSTEM (EMS) ProgressiveIndustries.net | 800.307.6702...
- Page 3 6 seconds, the EMS will automatically shut down power to the RV. If using an EMS-PT30X, the display will show a low voltage error code of E 4. If using an EMS-PT50X, an E 4 error code indicates a low voltage error on line 1 while a low voltage error on line 2 will display an error code of E 6.
- Page 4 INSTRUCTION MANUAL: ELECTRICAL MANAGEMENT SYSTEM (EMS) surge protection module is depleted and is no longer providing surge protection to your RV. It is recommended that you replace the surge protector. This error will not shut off incoming power to the RV. •...
- Page 5 INSTRUCTION MANUAL: ELECTRICAL MANAGEMENT SYSTEM (EMS) Warnings • RV wiring is different than house wiring. In an RV, neutral and ground conductors are isolated whereas in a house they are bonded at the service panel. Therefore; never connect neutral and ground as this can result in a ground fault condition, electric shock, and/or a fire hazard.
- Page 6 E 0 or E 10, the 2 minute 16 seconds (136 seconds) timer will not start and the time delay indicator will not blink. 5) The EMS display will indicate multiple electrical characteristics. Examples of these characteristics are listed below: EMS-PT30X EMS-PT50X 120 – Voltage L-1 – Line 1 Characteristics 7A –...
- Page 7 INSTRUCTION MANUAL: ELECTRICAL MANAGEMENT SYSTEM (EMS) NOTE: Provided you have the proper adapter, the EMS may be used with 15A, 20A, 30A or 50A service and will provide full protection. The power should be limited to the lower amperage rating of the power source and RV. The circuit protection at the power source and the RV are the current limiting devices.
- Page 8 INSTRUCTION MANUAL: ELECTRICAL MANAGEMENT SYSTEM (EMS) Error Code Description Troubleshooting Steps If Error Code Remains Normal Operating None No action required Condition Reverse Polarity 1) Plug RV into an AC power 1) Fill out the online warranty source at a different form for a replacement location.
- Page 9 INSTRUCTION MANUAL: ELECTRICAL MANAGEMENT SYSTEM (EMS) Error Code Description Troubleshooting Steps If Error Code Remains Line 2 Low Voltage 1) Plug RV into an AC power 1) Verify AC power source source at a different voltage with a multi-meter location. or contact an electrician to verify the voltage.
- Page 10 INSTRUCTION MANUAL: ELECTRICAL MANAGEMENT SYSTEM (EMS) This page has been left blank intentionally ProgressiveIndustries.net | 800.307.6702...
- Page 11 INSTRUCTION MANUAL: ELECTRICAL MANAGEMENT SYSTEM (EMS) This page has been left blank intentionally ProgressiveIndustries.net | 800.307.6702...
- Page 12 ELECTRICAL MANAGEMENT SYSTEM (EMS) INSTRUCTION MANUAL: Progressive Industries, Inc. For more information regarding the Limited Lifetime Warranty, Troubleshooting and the Warranty Claim Form visit: www.progressiveindustrustries.net Technical Support • 800.307.6702 • progressivetech@powerprodllc.com ProgressiveIndustries.net | 800.307.6702 | ZX483 (0918)
