R4, R8, R16 Digital Video Recorders Quick Setup Guide
This guide provides instructions to initially setup the R16 (16 channel) digital video recorders (DVR). The DVR supports these advanced
features:
Self-adaptive HD-TVI / HD-CVI / AHD / CVBS video input
•
Support camera resolution up to 8 MP video input and live view
•
H.264/H.265 Video encoding
Supports HDDs up to 8TB. See specifications.
•
Simultaneous HDMI / VGA monitor output
•
Up to 16-channel synchronous playback
•
Supports HDVision mobile app for iOS and Android
•
DDNS, PoE and P2P remote connectivity
•

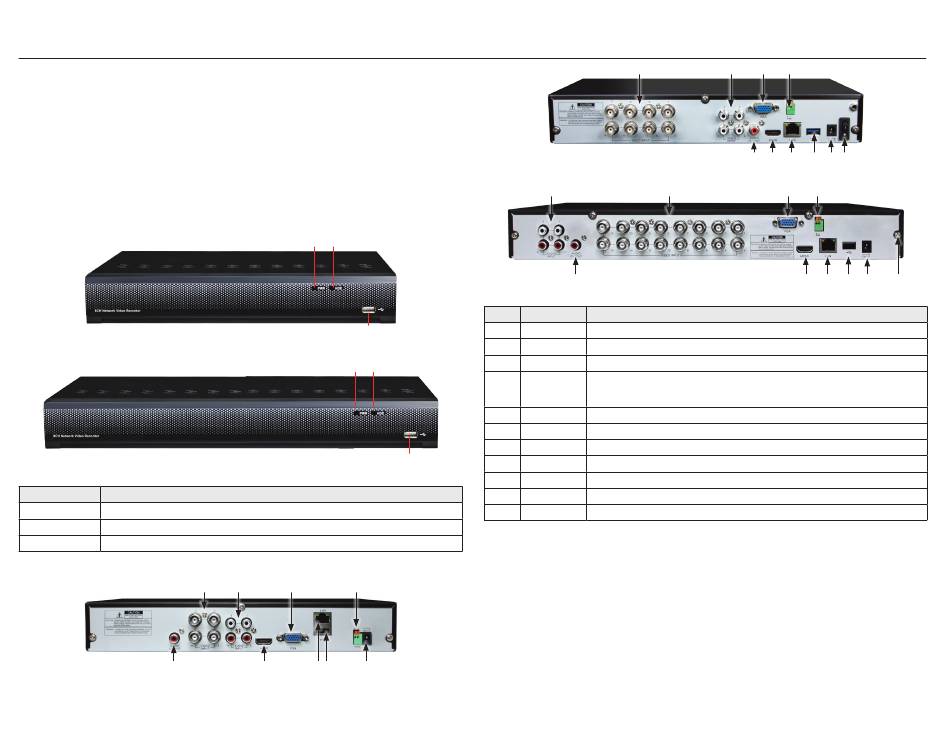

DVR Front Panel
Item
Usage
Power LED
Indicator turns green when DVR is powered up.
HDD in use
Indicator turns red when HDD is reading / writing.
USB Interface
This port can be used for a USB mouse or USB flash memory devices.
DVR Back panel
5
1
Power LED HDD in use
USB Interface
R4, R8 front panel
Power LED HDD in use
R16 front panel
2
1
3
4
6
7
8
9
R4 backpanel
1
Item
1
AUDIO IN
2
VIDEO INPUT
3
VGA
4
RS-485 terminations
5
AUDIO Out
6
HDMI
7
LAN
USB Interface
8
USB
9
12 Vdc
10
Ground
11
Switch
Mouse control
A standard 3-button (left / right / scroll-wheel) USB mouse can also be used with this DVR. To use a USB mouse:
1.
Plug the USB mouse into the either the front panel or back panel USB connector of the DVR.
2.
When the recorder is powered on, the mouse will be automatically detected. If the mouse is not detected, the mouse may not be
compatible with the DVR. Please refer to the recommended device list from your provider.
2
1
5
R8 backpanel
2
5
R16 backpanel
Description
RCA connector for audio in cable
BNC connectors for camera video channels in
Connector VGA monitor cable.
Connector for RS-485 devices. Connect the D+ and D- terminals to T+ and T- of PTZ receiver respectively.
(+, –) pins connect to R+ and R- pins of PTZ receiver respectively. For cascading devices, the first DVR's +, – pins should be
connected with the +, – pin of the next DVR.
RCA connector for audio out cable.
Connector HDMI monitor cable.
RJ-45 connector for Ethernet drop cable.
USB (3.0) for a USB mouse or USB memory device such as a flash drive or DVD drive. A USB port is also located on the front panel.
Plug for 12 Vdc power adapter (provided).
Ground terminal. Connect to earth ground.
ON / OFF switch
3
4
6
7
8
9 11
3
4
6
7
8
9
10
RS_R4-8-16_SQ
