Hidden Installed WiFi Car DVR

Operating Instruction

Table of Contents

Need help?

Do you have a question about the M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for RICHVIEW M2

Page 1 Hidden Installed WiFi Car DVR Operating Instruction ...
Page 2 Car DVR Instruction Manual for 1080P High‐Definition In addition to the general function of this DVR, it adds mainly four features: (1) Quick lock the video recording and unlock function. (2) Parking monitoring function: After turn on the parking mode, DVR will open to recording automatically according to around environment for its own judgement and also can save the files automatically. (3) Built‐in accelerometer can record the gravity sensing information and estimate an offset according to car up and down, left and right, front and rear. When the offset reaches a certain value that think of driving is abnormal and lock current video immediately. (4) With WiFi function inside, users can connect to the DVR via mobile phone WiFi, through the phone APP to achieve the relevant settings, simultaneous shooting video, file preview and download and so on. In order to play the maximum performance and better meet operational needs, please read carefully of the instruction manual before use it (if there are any changes for the designs and specifications of native and without notice).
Page 3: Table Of Contents
Contents: Product appearance and function indicators……………………………………………………4 Buttons function description……………………………………………………………………………5 Memory card preparation………………………………………………………………………………7 Adjust the position of the lens…………………………………………………………………………8 Open on and turn off local machine…………………………………………………………………8 Basic operations of DVR…………………………………………………………………………………8 Usage of WiFi…………………………………………………………………………………………………9 Setup menu…………………………………………………………………………………………………10 Read video……………………………………………………………………………………………………11 Product feature……………………………………………………………………………………………11 Technical specification…………………………………………………………………………………12 Product structure…………………………………………………………………………………………12 ...
Page 4: Product Appearance And Function Indicators

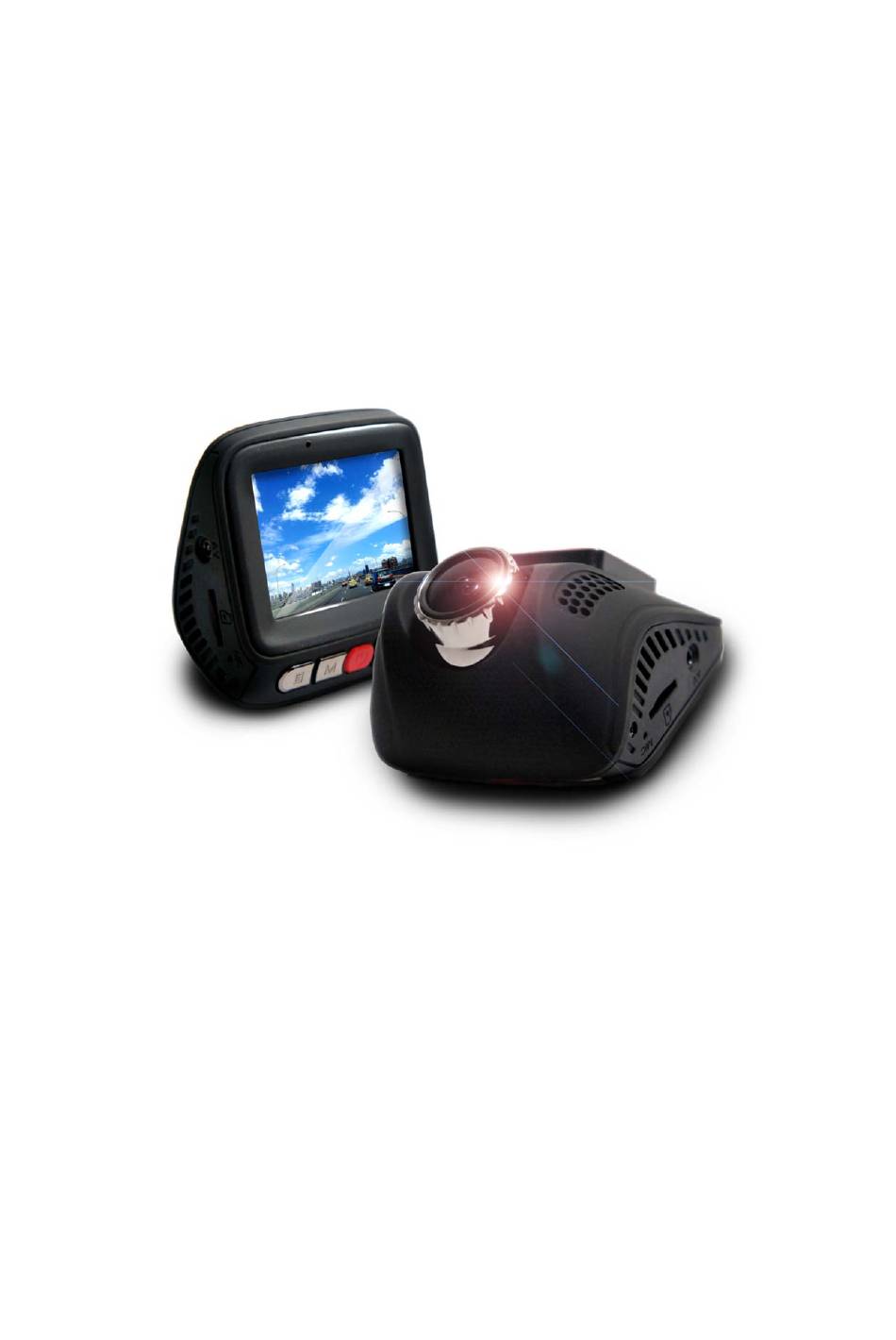

Product Appearance and Function Indicators (1) Menu (2) Mode Key (3) Power Switch (4) The Up Arrow Key (5) Down Key (6) Pulled‐Back Interface (7) TF Card Slot (8) Microphone (9) BMW Line Interface (10) USB Interface (11) Reset Hole (12) Running Light ...
Page 5: Buttons Function Description
Buttons Function Description Menu: Function 1: Menu function In the standby mode, press the MENU key to enter recording menu, press twice to enter setup menu, and then press menu key again under the setup menu mode to exit to standby automatically. In the camera mode, short press menu key to enter camera menu one time, or double press into setup menu. In playback mode, short press menu key into file operations menu at one time, and double press to enter setup menu. Function 2: Manual lock function At normally recording, short press this key than can manual lock current files, and then short press again can be unlocked. Mode Key: Function 1: In the camera stage Short press mode key to enter camera stage in the standby mode. Function 2: In the playback stage In the standby mode, double‐press into playback state, and then press mode key again to return standby mode automatically.
Page 6 The Up Arrow Key: Function 1: Press the up key in the menu to operate up function. Function 2: In the video and camera status perform zoom magnification function. Function 3: When replay the video, quick rewind video file. The Down Key: Function 1: Press the down key in various menu for down operation. Function 2: In the video and camera status have narrow the zoom function. Function 3: Fast speed to play video file when the video is played. Function 4: Short press this button in the video mode to turn on / off recording function. Function 5: Long press in the video mode, to realize the switching between the LCD display and TV display. Reset: When the machine is abnormal, press this button with slender tools to reset and close this machine.
Page 7: Memory Card Preparation
Storage Card (TF) Preparation TF card requirement: this DVR card capacity requires a speed of CLASS10 or above. Installation and pull out the TF card  1. Insert the TF card into the TF card slot in the correct direction, until the TF card is seated in the card slot. 2. Remove the TF card, please gently press down the TF card, TF card can be removed after the pop‐up.  Attention: 1. Attention: please don’t remove TF card when the machine was at work to prevent the damage.
Page 8: Adjust The Position Of The Lens
Adjust the Position of the Lens The front of the camera can be rotated to obtain a better shooting angle. Turn on / off Local Machine 1. Manual turn on / off machine: Short press the power button once, the screen lights up, then press the power button to achieve shutdown. 2. The automatic switch machine at driving status: access 12V car power supply at first, the car starts after the delay will start the camera and video automatically. When the car stops to close the Key, DVR continue videotaping 15 seconds after outage and save the files automatically and then shutdown. Basic Operations of DVR DVR with function of video / photo / preview, can short press mode key to switch. DVR will record automatically when the car starts. In the case of a TF card will automatically start recording, short press the record key to control the video to start and stop.
Page 9: Usage Of Wifi
Usage of the WiFi This function can use phone app to achieve connection between of DVR and phone. Use steps as follow: 1. Download mobile phone APP, please use below 2D car code 2. Connect the machine WiFi, general name is MR‐DVR, enter the default password: 12345678 3. Connect APP, open the phone APP, click the upper right corner of the add setting, as show in below Figure, Apple as an example: After finish connection, come out the frame as below At this time through the interface button to control the recording of the stop No connect ...
Page 10: Setup Menu
and start, recording on and off and so on. It also can be reset WiFi name and password. Setup Menu This DVR support machine setup and navigation interface setup (Optional). Press menu button into menu setup, up and down button to choose, OK is confirmation.
Page 11: Read Video
+0.0, EV+1/3, EV+2/3, EV+1.0, EV+4/3, EV+5/3, EV+2.0 Motion detection: on / off The video audio: on / off Date tag: on / off Video interval: off, 100MS, 200MS, 300MS, 500MS Dual record: on / off Camera Mode Menu Options Shooting mode: single shot, 2 seconds time, 5 seconds timer, 10 seconds timer Resolution: 12M, 10M, 8M, 5M, 3M, 2MHD, VGA, 1.3M Burst mode: on / off Image quality: high quality, standards and economy Sharpness: strong, standard, soft White Balance: Auto, Daylight, Cloudy, Tungsten, Fluorescent Color: Black and white, tan ISO: automatic, 100, 200, 400 Exposure compensation: EV‐2.0, EV‐5/3. EV‐4/3, EV‐1.0, EV‐2/3, EV‐1/3, EV+0.0, EV+1/3, EV+2/3, EV+1.0, EV+4/3, EV+5/3, EV+2.0 Anti‐shake: on / off Quick Preview: off, 2 seconds, 5 seconds Date tag: off, date, date / time Playback Mode Menu Option Delete: Delete single, delete all Protection: Protect current, protect all, unlock current, unlock all Slide show: set automatically browse the file inside of TF card, can be set to 2 seconds, 5 seconds, 8 seconds Video Reading This DVR uses TF saver card which you can directly remove the TF card if you want to read the video or photos, also read TF card files from the car reader. Product Features: Prefect combination design of 1080P ultra‐wide‐angle vision lens, more ...
Page 12: Technical Specification
convenient for a variety of occasions, multi‐angle and high‐resolution video capture. Built‐in microphone/ speaker Support for high capacity Micro TF card Vehicle starts automatic video recording function With a delayed start function in case that current strike damage the DVR G‐SENSOR Technology Specification Lens 140 Degrees Ultra Wide Angle Option Languages English/ French/ Spanish/ Portuguese/ German/ Italian/ Simplified Chinese/ Traditional Chinese/ Russian / Japanese Video Format H.264 MOV TF Memory Card Slot Micro TF Microphone/ Speaker Build In Vehicle Power Supply DC Input 12V 1.5A Battery (Optional) On‐Board Battery System Requirements Windows 2000/XP/Vista/Windows 7, MAC OS*10.3.6 above Product Structure Imaging Sensor SONY323...
