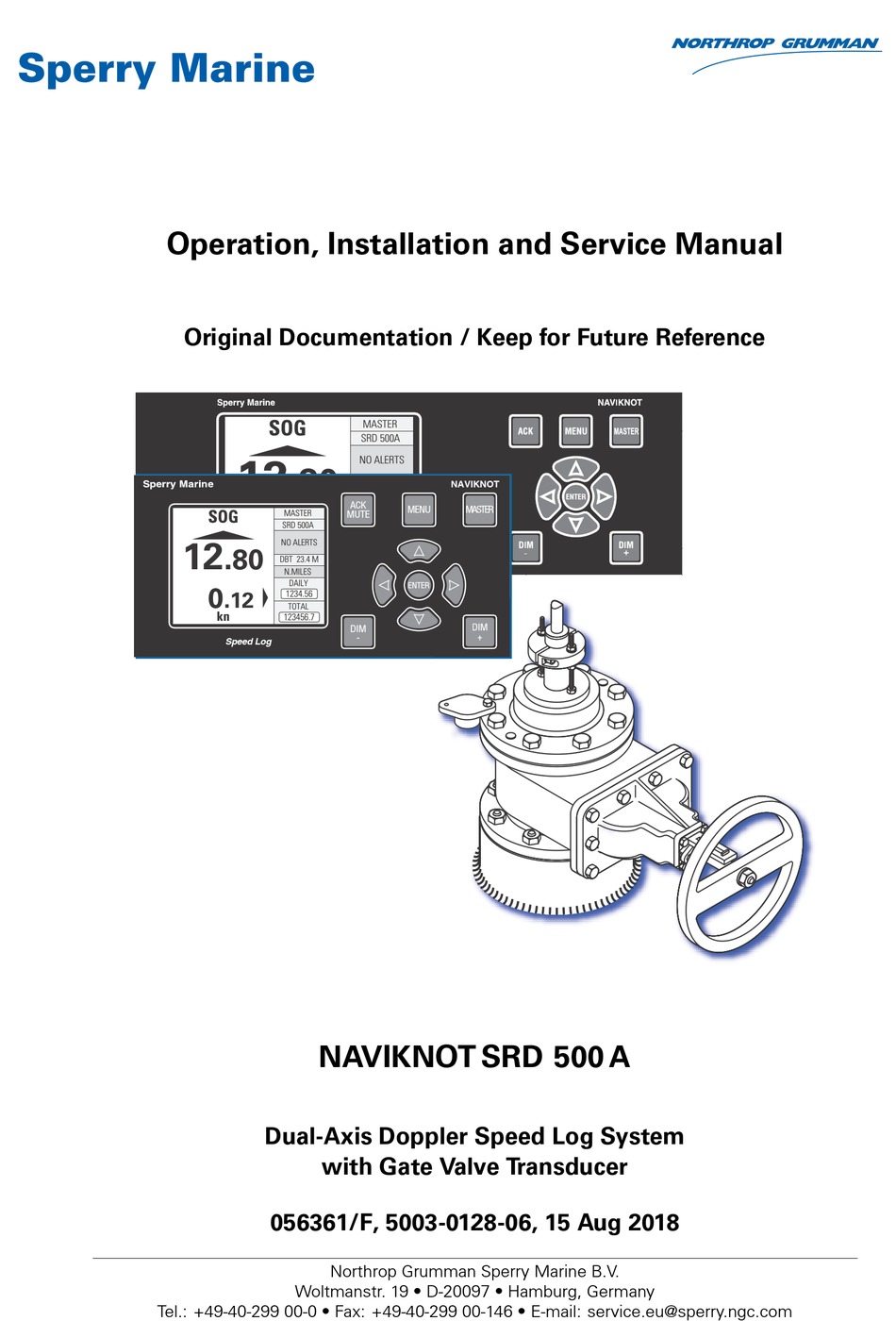

Operation, Installation and Service Manual

Original Documentation / Keep for Future Reference

12

.

8

0

MASTER

0

.

12

SRD 500A

NO ALERTS

12

.

kn

8

0

DBT 23.4 M

N.MILES

DAILY

0

.

1234.56

12

TOTAL

kn

123456.7

Speed Log

NAVIKNOT SRD 500 A

Dual-Axis Doppler Speed Log System

with Gate Valve Transducer

056361/F, 5003-0128-06, 15 Aug 2018

Woltmanstr. 19 • D-20097 • Hamburg, Germany

Tel.: +49-40-299 00-0 • Fax: +49-40-299 00-146 • E-mail: service.eu@sperry.ngc.com

MASTER

SRD 500A

NO ALERTS

NAVIKNOT

N.MILES

ACK

MENU

MASTER

DAILY

MUTE

1234.56

TOTAL

123456.7

ENTER

DIM

DIM

DIM

+

+

-

Northrop Grumman Sperry Marine B.V.

Table of Contents

Advertisement

Table of Contents

Troubleshooting

Need help?

Need help?

Do you have a question about the NAVIKNOT SRD 500 A and is the answer not in the manual?

Questions and answers

Francesco

March 6, 2025

How to turn ON Naviknots speed log

0

Summary of Contents for Sperry Marine NAVIKNOT SRD 500 A

Page 1 DAILY ENTER 1234.56 TOTAL 123456.7 Speed Log NAVIKNOT SRD 500 A Dual-Axis Doppler Speed Log System with Gate Valve Transducer 056361/F, 5003-0128-06, 15 Aug 2018 Northrop Grumman Sperry Marine B.V. Woltmanstr. 19 • D-20097 • Hamburg, Germany Tel.: +49-40-299 00-0 • Fax: +49-40-299 00-146 • E-mail: service.eu@sperry.ngc.com...
Page 2 © 2018 Northrop Grumman Sperry Marine B.V. This document and the information herein is the intellectual property of Northrop Grumman Sperry Marine B.V. [NGSM BV] and its associate companies and may not be copied, reproduced or translated without the express permission of NGSM BV.
Page 3: Table Of Contents
SRD 500 A 056361/F Contents Safety Instructions Safety Notice Conventions................. ix General Safety Information for the Operator ..........x General Safety Information for Service Personnel......... xiii Chapter 1: Introduction System Information .................. 1-1 Intended Use ....................1-1 Not Intended Use..................1-1 System Overview Transducer and Sea Chest......... 1-2 System Design and Main Features ............
Page 4 056361/F SRD 500 A Editing Parameter Values ................2-15 Caption for Selecting and Editing .............. 2-16 Manual Settings Menu ................2-17 Manual Settings – Overview ..............2-18 Manual Settings – Parameters ..............2-19 2.10 User Setup ....................2-22 User Setup – Overview ................2-23 User Setup –...
Page 5 SRD 500 A 056361/F Chapter 5: Sea Chest and Transducer Installation Determining the Transducer Location ............. 5-1 Installing the Sea Chest and Transducer..........5-4 Installing the Spool Piece ................5-4 Installing the Sea Chest and Transducer in Drydock ........5-6 Installing the Sea Chest without Transducer in Drydock......5-12 Chapter 6: Electronics Unit and CDU Installation Mechanical Installation ................
Page 6 056361/F SRD 500 A Chapter 10: Troubleshooting 10.1 General Troubleshooting Approach............10-1 Environmental Factors affecting Operation ..........10-1 SRD 500 Doppler EU Faults ..............10-2 Unit Level Fault Isolation ................10-3 SRD 500 Doppler EU Fault Isolation............10-4 Transducer Fault Isolation................10-4 10.2 NAVIKNOT EU and CDU(s) Fault Isolation ..........
Page 7 SRD 500 A 056361/F 13.5 SRD 500 Doppler EU Update..............13-21 Downloading Firmware into the SRD 500 Doppler EU ......13-21 Chapter 14: SRD 500 Doppler EU Utility Software 14.1 Installing the SRD 500 Doppler EU Utility Software ......14-2 14.2 The BBTalk Program................
Page 8 056361/F SRD 500 A viii...
Page 9: Safety Instructions
SRD 500 A 056361/F Safety Instructions Safety Notice Conventions The following safety notice conventions apply throughout this manual: A Danger notice contains an operating or main- DANGER tenance procedure, practice, condition, state- ment, etc., which, if not strictly observed, will result in injury or death of personnel.
Page 10: General Safety Information For The Operator
The NAVIKNOT electronics unit and CDU unit are generally not field-ser- viceable on the component level. Defective units must be returned to Sperry Marine for exchange. Any service work on the electronics unit or CDU is to be carried out by authorized service personnel only.
Page 11 The design and implementation of modifications to the hull which might be required to achieve satisfactory performance of the speed log are beyond the scope of Sperry Marine's expertise or responsibility and are, therefore, the responsibility of the shipyard or shipowner.
Page 12 Sperry Marine Service: Note In case of service refer to www.sperrymarine.com/offices for a list of all Sperry Marine Offices and Service Agents worldwide.
Page 13: General Safety Information For Service Personnel
As a minimum, ensure that the atmosphere in the confined space is safe and breathable. Sperry Marine recommends that a competent person test the atmosphere for oxygen deficiency, combustible gases, hydro- gen sulfide, and other hazardous gases that are reasonable to expect in that area.
Page 14 056361/F SRD 500 A WARNING Risk of electrical shock Avoid installing the SRD 500 Doppler EU in hazardous areas. If it is unavoidable to install the unit in a hazardous area, secure the SRD 500 Doppler EU inside an explosion proof housing and the intercon- necting cables inside an explosion proof conduit.
Page 15 SRD 500 A 056361/F CAUTION Damage to the transducer function caused by cabling changes) Cutting or shortening of the transducer cable or connecting new cables with existing old cabling will lead to damage or malfunction.The given length of any specific transducer cable is a necessary element of its per- formance.
Page 16 056361/F SRD 500 A CAUTION Risk of inoperable device state through failure during software update Updating software through SUSI‘s Flash Update mode is a risky opera- tion, as SUSI writes directly to the device’s flash memory. Furthermore, SUSI cannot verify whether the file supplied is indeed intended for the device under service.
Page 17 The CDU software update can only be carried out with a special RS-232 connection cable, to connect to the receptacle on the CDU PCB. Always check that the correct Sperry Marine cable is available and that the cable is undamaged before executing the CDU software update.
Page 18 056361/F SRD 500 A xviii...
Page 19: Chapter 1: Introduction
SRD 500 A 056361/F Chapter 1: Introduction 1.1 System Information Intended Use The SRD 500 A is a dual-axis Doppler speed log system for the maritime navigation of vessels and must only be operated from appropriately trained and educated personnel familiar with all mandatory safety and operating procedures.
Page 20: System Overview Transducer And Sea Chest
056361/F SRD 500 A 1.2 System Overview Transducer and Sea Chest Figure 1-1: Parts Reference Sea Chest and Transducer System Overview Transducer and Sea Chest...
Page 21 SRD 500 A 056361/F Table 1-1: Ref. Qty. Stock No. Description Parts List 1982769-VAR Gate valve transducer Sea Chest and Transducer 1979552-123 Spool piece 1979552-124 Orkot sleeve 1979552-125 Threaded stud cres, 3/4”-10 UNC 1979552-122 Gasket, full face, 8” (203 mm) 1979552-126 Nut hex cres, 3/4”-10 UNC 1979552-101...
Page 22: System Design And Main Features
The SRD 500 A system combines the proven Doppler transducer and Doppler EU of the former SRD 500 system with the NAVIKNOT CDU and electronics units of Sperry Marine‘s current NAVIKNOT speed log series. The SRD 500 A system has been type-approved by DNV GL SE as Speed...
Page 23: Naviknot Alert Management
SRD 500 A 056361/F A basic system consists of the SRD 500 Doppler Electronics Unit (EU), the NAVIKNOT electronics unit, type 5003, the SRD 500 gate valve trans- ducer and a Control and Display Unit (CDU) of type 5002 or 5001. Up to three additional remote CDUs may be installed.
Page 24: Data Outputs
056361/F SRD 500 A Data Outputs The NAVIKNOT electronics unit transmits speed, distance and depth data to receiving external equipment and to the connected CDUs. While speed and depth data are transmitted as received from the SRD 500 Doppler EU, the distances travelled are calculated from the lon- gitudinal ground and water speeds.
Page 25: Operating Principle
SRD 500 A 056361/F 1.4 Operating Principle To determine longitudinal and transverse ground and water speeds and depth below the transducer, the SRD 500 A utilizes the principle of Dop- pler-shifted sound waves. The SRD 500 Doppler EU uses a microprocessor controlled transmitter to generate a series of short duration ultrasonic pulses.
Page 26: Technical Data
056361/F SRD 500 A 1.5 Technical Data System Specifications System Performance speed range – 50 to + 50 kn speed accuracy - ground speed < 2 kn: ± 0.01 kn > 2 kn: ± 0.05 kn - water speed < 10 kn: ± 0.01 kn 10 –...
Page 27: Naviknot Electronics Unit, Type 5003
SRD 500 A 056361/F NAVIKNOT Electronics Unit, Type 5003 Type Specification NAVIKNOT electronics unit Type 5003 Environmental Requirements ambient temperature, operation – 15° C to + 55° C ambient temperature, storage – 25 °C to +70 °C protection grade IP 23 to IEC 60529 environmental conditions / EMC in accordance with IEC 60945 Power Supply...
Page 28 056361/F SRD 500 A Signal and Status Inputs ext. dim + connection to P .Gnd via ext. dim – ext. contact, momentary, normally open Data Outputs SRD 500 Doppler EU control data SRD500 protocol serial data RS-422 outputs, NMEA 0183 / IEC 61162; group 1 (3x) all or selected subset of: longitudinal and transverse...
Page 29: Control And Display Units (Cdu)
SRD 500 A 056361/F Control and Display Units (CDU) Note From March 2016 on, the NAVIKNOT 600 S Control and Display Unit (CDU) type 5002 cannot longer be manufactured or serviced and is there- fore not available anymore as basic system equipment or spare part. Legacy CDUs of type 5002 may be used as system equipment as long as remaining operable.
Page 30 056361/F SRD 500 A Dimensions and Weight, Main CDU and 3x1 remote unit PN 73508 (for console mounting) width 288 mm height 96 mm depth 43 mm; approx. 120 mm backward clearance from mounting surface required for connector cable and plug weight 2.4 kg...
Page 31 SRD 500 A 056361/F Dimensions and Weight, Main CDU and 2x1 remote unit PN 73506 (for console mounting) width 192 mm height 96 mm depth 44 mm; approx. 100 mm backward clearance from mounting surface required for connector cable and plug weight 2.4 kg PN 79488 (PN 73506 factory-assembled in console frame)
Page 32: Srd 500 Doppler Electronics Unit (Eu) Specification
056361/F SRD 500 A SRD 500 Doppler Electronics Unit (EU) Specification Type Specification SRD 500 Doppler EU Type 1982770 Environmental Requirements ambient temperature, operation – 15 to + 55° C protection grade IP 52 to IEC 60529 environmental conditions / EMC in accordance with IEC 60945 Power Supply supply voltage...
Page 33: Doppler Transducer Specification
SRD 500 A 056361/F Doppler Transducer Specification General Properties part no. 1982769-nn for gate valve mounting for single bottom steel vessels functionality Doppler transducer, installation method from inside vessel, through sea chest cable length 45 m (part no.1982769-45) 60 m (part no. 1982769-60) Environmental Requirements ambient temperature, operation -2 to +30°...
Page 34: Declaration Of Conformity
Note The current issue of the detailed Marine Equipment Directive EC Declaration of Conformity of Northrop Grumman Sperry Marine B.V. Hamburg is part of the client CD stock no. 56 800. For further details please contact: Northrop Grumman Sperry Marine B.V. Hamburg...
Page 35: Chapter 2: Operation
SRD 500 A 056361/F Chapter 2: Operation 2.1 Display and Operating Keys Figure 2-1: SRD 500 A Control and Display Unit NAVIKNOT (CDU) MENU MASTER MUTE MASTER SRD 500A NO ALERTS DBT 23.4 M N.MILES DAILY ENTER 1234.56 TOTAL 123456.7 Main Display : shows one of three selectable pages, indicating –...
Page 36: External Control Devices
056361/F SRD 500 A 2.2 External control devices Depending on the installation, external devices may be present to remotely control certain functions of the SRD 500 A: • The audible alert at the SRD 500 A may be muted from a remote device, e.g.
Page 37: Power-Up Sequence
SRD 500 A 056361/F 2.3 Power-up Sequence Operational Power-up Sequence Except for the SRD 500 Doppler EU, the individual system components are not equipped with power switches. All devices start up simultane- ously, as soon as supply power is applied to the system. Upon power up, the startup routine is executed: The startup screen is shown and a system test sequence is executed.
Page 38: Power-Up Sequence With Software Mismatch
056361/F SRD 500 A Power-up Sequence with Software Mismatch Note In case of Software Mismatch, the NAVIKNOT system is in non-compliant system state and the alert handling is not operable. The NAVIKNOT EU and all installed CDUs must correctly be updated before operating the NAVIKNOT system again.
Page 39 SRD 500 A 056361/F The system displays the actual MASTER speed and the daily and total mile SRD 500A counters. NO ALERTS  The system is operational but in DBT 23.4 M non-compliant system state. N.MILES DAILY  Software update of the EU must 1234.56 TOTAL now be proceeded to regain sys-...
Page 40: Display Indications
056361/F SRD 500 A 2.4 Display Indications Main Display Pages in Normal Operational Mode In the normal operational mode, the CDU permanently displays one of the two selectable main display pages. Ground Speed (SOG) The main display shows the actual MASTER longitudinal and transverse speed SRD 500A...
Page 41 SRD 500 A 056361/F Alert Page The alert page list the alert ID, alert MASTER ALERT LIST message and acknowledge status of SRD 500A all active alerts. < (1/3) > ALARM NO: 71  The alert with the topmost alert EXT HDG TIMEOUT 30.4 M priority is always shown first.
Page 42: Additional Operating Status Indications
056361/F SRD 500 A Additional Operating Status Indications Master/Remote status The indication „MASTER” is con- MASTER. stantly shown in the top right cor- ner of the CDU which currently is MASTER the master unit. A point alternately flashing close behind „MASTER“ high- lights that the display indication is active (not freezed).
Page 43: Requesting Master Control
SRD 500 A 056361/F Speed not calibrated If no transducer calibration values UNCAL have been entered in the Service 123456.7 Setup menu, the indication “UNCAL ” is shown in the bottom left corner of the main display. 2.5 Requesting Master Control If more than one CDU is installed, only one CDU is assigned master con- trol at a time, while all others will operate as remote units.
Page 44: Adjusting The Display Brightness
056361/F SRD 500 A 2.6 Adjusting the display brightness The brightness of the display and keypad illumination is adjusted via the DIM+/DIM- keys: Press the DIM+ key to MASTER increase the illumination SRD 500A brightness. NO ALERTS Press the DIM- key to reduce the illumination DBT 23.4 M DBT 23.4 M...
Page 45: Optional Functions
SRD 500 A 056361/F 2.7 Optional Functions The following functions may be available if the system is equipped with the respective external controls and configured accordingly. Muting Alerts Remotely On alert, the mute control may be actuated from a remote device (e.g. a central alert panel).
Page 46: External Dimming
056361/F SRD 500 A External Dimming External dimming function to connected CDUs is available by means of pushbuttons or a dimming device. External Dimming via Pushbuttons If external DIM+/DIM- pushbuttons are installed, these operate in parallel with the built in DIM+/DIM- keys of all connected CDUs. Via external pushbuttons, the same functionality is available as with the DIM+/DIM- keys at the CDU.
Page 47: Operating Menu
SRD 500 A 056361/F 2.8 Operating Menu The manual settings, user and service setup sub-menus are accessed through a multilevel operating menu. Entering and Quitting the Menu Mode From the normal operational MASTER mode, press MENU to enter SRD 500A the menu mode.
Page 48: Navigating The Menu
056361/F SRD 500 A Navigating the Menu In the menu mode, the operator may navigate through the menu using the Right, Left, Up and Down arrow keys. Arrow symbols (>) to the MAIN MENU MAIN MENU right of the window indicate XXXXXXXX XXXXXXXX that a sub-menu exists for...
Page 49: Selecting Parameter Settings
SRD 500 A 056361/F Selecting Parameter Settings In a number of sub-menus, the operator is expected to select parameter settings from a list of available options. The available settings and the current selection are indicated by differ- ent symbols: Radio buttons: Allow to select exactly one of the available settings. : selected : deselected Checkboxes: Allow to select or activate none, one or more of the...
Page 50: Caption For Selecting And Editing
056361/F SRD 500 A Caption for Selecting and Editing Figure 2-2 shows the caption for the different selecting and editing sym- bols used in all menus and submenus. Figure 2-2: SERVICE SETUP 1 û Caption for choice, functionality of submenu 1 F1 SUBMENU 1 SUBMENU 1 F2 SUBMENU 2...
Page 51: Manual Settings Menu
SRD 500 A 056361/F 2.9 Manual Settings Menu CAUTION Invalid speed and distance information in “MAN” mode of operation in case of failure of the Doppler transducer the SRD 500 A does not pro- vide valid speed and distance information and the system needs to become operated in the alternative “MAN”...
Page 52: Manual Settings - Overview
056361/F SRD 500 A Manual Settings – Overview Figure 2-3: MAIN MENU Manual Settings MANUAL SETTINGS > > SPEED MODE STW > > SPEED MODE STW water speed input mode SENSOR > > SPEED MODE SOG > > SPEED MODE SOG ground speed input mode SENSOR >...
Page 53: Manual Settings - Parameters
SRD 500 A 056361/F Manual Settings – Parameters SPEED MODE STW Selects the input mode for water speed data. Settings: MAN (Manual) The actual speed value is entered manually. This setting may be activated only temporarily, to generate water speed output data in case of failure of the Doppler transducer or for testing.
Page 54 056361/F SRD 500 A TRANSDUCER ON/OFF Switches the transducer transmit power on or off. Settings: ON (option checked) The transducer power supply in the SRD 500 Doppler EU is switched on. This setting must be active at all times during normal opera- tion of the system.
Page 55 SRD 500 A 056361/F SSD12 REP . SPD SEL Sets the operating mode for SSD12 digital speed repeaters. While the SSD12 is now discontinued, existing units from the previously installed SRD 500 system may be operated with the SRD 500 A. The SSD12 Rep.
Page 56: User Setup
056361/F SRD 500 A 2.10 User Setup The User Setup menu provides access to settings which the operator may need to alter only occasionally. 2-22 User Setup...
Page 57: User Setup - Overview
SRD 500 A 056361/F User Setup – Overview Figure 2-4: MAIN MENU User Setup USER SETUP > > DAMP. TIME DISPLAY > > damping time constant DAMP . TIME DISPLAY for speed display RANGE: 0 – 60 SEC > > DAMP.
Page 58 056361/F SRD 500 A Figure 2-5: contd. from previous page User Setup (contd.) > > SCALE > > speed display units SCALE SPEED SCALE FT/S SOFTWARE VERSION NN.NN > > NAVIKNOT Electronics Unit SOFTWARE VERSION software version version ID (read-only) 2-24 User Setup...
Page 59: User Setup - Parameters
SRD 500 A 056361/F User Setup – Parameters DAMP . (Damping) TIME DISDPLAY Sets the damping time constant for the speed indication at the speed display. The higher the time constant, the stronger sudden peaks of the actual speed indication will be damped. ...
Page 60 056361/F SRD 500 A TOTAL MILES COUNTER WATER START VALUE Sets the water speed total miles counter to a desired start value. Settings: RANGE: 0.0 – 999999.9 NM GROUND START VALUE Sets the ground speed total miles counter to a desired start value. Settings: RANGE: 0.0 –...
Page 61 SRD 500 A 056361/F SCALE SPEED SCALE Selects the unit of measure for the displayed speeds. The respective settings act on the actual speed displays at the CDU only and have no further effect on the output data, mile counters etc. SPEED SCALE Unit of measure for the ground and water speed display pages Settings:...
Page 62 056361/F SRD 500 A 2-28 User Setup...
Page 63: Chapter 3: Alerts
SRD 500 A 056361/F Chapter 3: Alerts 3.1 Alert Management Preliminaries CAUTION Risk of non-compliant System State / defective Alert Handling Software update of the NAVIKNOT electronics unit at least to version 3.000 and of all installed CDUs at least to version 2.000 is mandatory for correct operation and alert handling of the NAVIKNOT system.
Page 64 056361/F SRD 500 A Note The NAVIKNOT alert management with NMEA message selection ALF-ALC-ARC/ACN differentiates between alarms, warnings and cautions as alert priorities. The alert priority of the topmost alert ant the total number of active alerts are indicated in the alert display area of the main display. Additional alert information as alert identifier (four digit), alert descrip- tion and alert status are only displayed in the alert list.
Page 65: Alert Indication
SRD 500 A 056361/F 3.2 Alert Indication Audible Alert Indication Single Beep: Invalid Action A single short beep indicates that the operator attempted to carry out an invalid action. This is the case e.g. if the operator attempts to enter the menu from a remote unit.
Page 66: Visual Alert Indication (Alr/Ack)
056361/F SRD 500 A Visual Alert Indication (ALR/ACK) Note The NAVIKNOT alert management with NMEA message selection ALR/ACK differentiates between alarms and warnings as alert priorities. The alert priority of the topmost alert and the total number of active alerts are indicated in the alert display area of the main display.
Page 67 SRD 500 A 056361/F Acknowledged: The operator has acknowledged the alarm but the error cause of the alarm is still active. The acknowledged alarm message ALARM is shown with white text on a solid 2 ALERTS red background (not flashing). Warning Alert Indication Pending warnings have one of two possible alert states: •...
Page 68: Visual Alert Indication (Alf-Alc-Arc/Acn)
056361/F SRD 500 A Visual Alert Indication (ALF-ALC-ARC/ACN) Note The NAVIKNOT alert management with NMEA message selection ALF-ALC-ARC/ACN differentiates between alarms, warnings and cautions as alert priorities. The alert priority of the topmost alert and the total number of active alerts are indicated in the alert display area of the main display.
Page 69 SRD 500 A 056361/F Acknowledged: The operator has acknowledged the warning but the error cause of the warning is still active. The acknowledged warning is shown with white text on a solid WARNING yellowish orange background (not 2 ALERTS flashing). Caution Alert Indication Note Cautions have always the alert state „ACTIVE“.
Page 70: Muting Alerts
056361/F SRD 500 A 3.3 Muting Alerts Local Alert Mute To mute (silence) a pending alert at the SRD 500 A CDU: From the main speed display page, press ACK MUTE.  The audible alert indication is ALARM 2 ALERTS muted (silenced).
Page 71: External Alert Mute
SRD 500 A 056361/F External Alert Mute To mute (silence) the audible alert externally, e.g. from a central alert panel or by a BAMS (sending of ACN message): Actuate the external mute facility.  The audible alert indication is muted (silenced). ALARM 2 ALERTS ...
Page 72: Acknowledgement Of Alerts (Alr/Ack)
056361/F SRD 500 A 3.4 Acknowledgement of Alerts (ALR/ACK) Note From CDU and EU software version 2.100 on, acknowledgement of alerts is possible from the alert main display page only. Previous EU software versions allowed alert acknowledgement from any display page without previous mute, as now considered not compliant. Note If a not muted alert is acknowledged from the alert main display page, the alert is simultaneously muted.
Page 73: Acknowledgement Of Alarms
SRD 500 A 056361/F Acknowledgement of Alarms To acknowledge a pending alarm at the SRD 500 A CDU: A pending alarm is displayed flash- MASTER ing in the alert display area of the SRD 500A speed main display page. ALARM 2 ALERTS Until acknowledged, the pending DBT 23.4 M...
Page 74 056361/F SRD 500 A Alert List main display page ACTIVE UNACKNOWLEDGED MASTER ALERT LIST as respective alert state is shown at SRD 500A the bottom of the alert page. < (1/2) > ALARM NO: 60 SRD500 TIMEOUT The index number of the currently DBT 30.4 M displayed alert and the total number 04.8kn...
Page 75 SRD 500 A 056361/F RECTIFIED UNACKNOWLEDGED MASTER ALERT LIST as respective alert state is shown at SRD 500A the bottom of the alert page, if an < (1/2) > unacknowledged active alert gets ALARM NO: 60 SRD500 TIMEOUT inactive (rectified). DBT 30.4 M 04.8kn The alert priority with alert ID (two...
Page 76 056361/F SRD 500 A If an acknowledged alert gets inac- tive, the alert will immediately dis- appear from the alert list.  RECTIFIED ACKNOWLEDGED as alert state is NEVER indicated.  The next topmost alert priority will be indicated, in case of other pending alert priorities.
Page 77: Acknowledgement Of Warnings
SRD 500 A 056361/F Acknowledgement of Warnings To acknowledge a pending warning at the SRD 500 A CDU: A pending warning is displayed MASTER flashing in the alert display area of SRD 500A the speed main display page. WARNING 2 ALERTS DBT 23.4 M N.MILES DAILY...
Page 78 056361/F SRD 500 A Alert List main display page ACTIVE UNACKNOWLEDGED MASTER ALERT LIST as respective alert state is shown at SRD 500A the bottom of the alert page. < (1/2) > WARNING NO: 62 NO DEPTH The index number of the currently DBT 30.4 M displayed alert and the total number 04.8kn...
Page 79 SRD 500 A 056361/F RECTIFIED UNACKNOWLEDGED MASTER ALERT LIST as respective alert state is shown at SRD 500A the bottom of the alert page, if an < (1/2) > unacknowledged active alert gets WARNING NO: 62 NO DEPTH inactive (rectified). DBT 30.4 M 04.8kn The alert priority with alert ID (two...
Page 80 056361/F SRD 500 A Note In case of an “EU timeout” alert, dashes will appear in the CDUs speed and distance displays. The “EU timeout” will be shown as the only alert condition, as the CDU receives no messages from the electronics unit when communication is lost.
Page 81: Acknowledgement Of Alerts (Alf-Alc-Arc/Acn)
SRD 500 A 056361/F 3.5 Acknowledgement of Alerts (ALF-ALC-ARC/ACN) Note From CDU and EU software version 2.100 on, acknowledgement of alerts is possible from the alert main display page only. Previous EU software versions allowed alert acknowledgement from any display page without previous mute, as now considered not compliant. Note If a not muted alert is acknowledged from the alert main display page, the alert is simultaneously muted.
Page 82: Acknowledgement Of Warnings
056361/F SRD 500 A Note NAVIKNOT does not keep a history of past (rectified acknowledged) alerts. Acknowledgement of Warnings To acknowledge a pending warning at the SRD 500 A CDU: A pending warning is displayed MASTER flashing in the alert display area of SRD 500A the speed main display page.
Page 83 SRD 500 A 056361/F When the alert list page is indicated: Press the Left or Right arrow keys to scroll to the ranked list of pending alerts up the Alert List.  The Alert List shows the alert with the next ranked alert priority. Alert List main display page ACTIVE UNACKNOWLEDGED MASTER...
Page 84 056361/F SRD 500 A with yellowish orange text on dis- MASTER ALERT LIST play background as long as unac- SRD 500A knowledged. < (1/2) > WARNING NO: 3008 Lost STW DBT 30.4 M Check communication 04.8kn with SRD500 EU ACTIVE 01.4kn SILENCED RECTIFIED UNACKNOWLEDGED as...
Page 85 SRD 500 A 056361/F ACTIVE ACKNOWLEDGED MASTER ALERT LIST as respective alert state (is shown at SRD 500A the bottom of the alert page. < (1/2) > WARNING NO: 3008 Lost STW The alert priority with alert ID (four DBT 30.4 M digit) is shown with white text on Check communication 04.8kn...
Page 86: Cautions
056361/F SRD 500 A Cautions A pending caution has always the alert state „ACTIVE“ and does there- fore not need to become acknowledged. A pending caution is displayed in MASTER the alert display area of the speed SRD 500A main display page with black text CAUTION on a solid yellow background (not 2 ALERTS...
Page 87: Serial Data Alert Management
SRD 500 A 056361/F 3.6 Serial Data Alert Management Alert Handling (ALR/ACK) NAVIKNOT complies with the statutory requirements regarding a serial interface for the alert management (alert presentation and acknowledge- ment) by a Central Alert Management System (CAM) following IEC 61162 (NMEA 0183) and MSC.302(87) (BAMS).
Page 88: Alert Handling (Alf-Alc-Arc/Acn)
056361/F SRD 500 A Alert Handling (ALF-ALC-ARC/ACN) NAVIKNOT complies with the statutory requirements regarding a serial interface for the alert management (alert presentation and acknowledge- ment) by a Central Alert Management System (CAM) following IEC 61162 (NMEA 0183) and MSC.302(87) (BAMS). The SRD 500 A system supports the external alert handling using the $-- ALF, $--ALC, $--ARC sentences and the $--ACN sentence (acknowledge alert) according to IEC standards 62923 (BAMS) and 61162-1...
Page 89: Naviknot Electronics Unit / Cdu Alert Codes
SRD 500 A 056361/F 3.7 NAVIKNOT Electronics Unit / CDU Alert Codes Alerts (ALR/ACK) Note If NMEA messages ALR/ACK are selected for alert management, the NAVIKNOT alerts have no IEC standard categorization. The NAVIKNOT electronics unit generates the following alert messages indicated at the NAVIKNOT CDU: Table 3-1: Alert...
Page 90 056361/F SRD 500 A Alert Alert Alert Message Cause Corrective Action Type NO DEPTH The SRD 500 Acknowledge Doppler EU is warning. unable to track depth. EXT DIM TIME- No valid com- Check connec- mands received tion between at serial input. dimming device and electronics unit.
Page 91: Alerts (Alf-Alc-Arc/Acn) / Prop. Bam Alerts Active
SRD 500 A 056361/F Alerts (ALF-ALC-ARC/ACN) / Prop. BAM Alerts Active Note If NMEA messages ALF-ALC-ARC/ACN are selected for alert manage- ment, all NAVIKNOT alerts are category B alerts according to IEC 62923. Note In case the proprietary BAM alert setting is ACTIVATED and the NMEA Messages ALF-ALC-ARC/ACN (BAMS) are selected for the alert management, all four digit alert IDs (30xx) are incremented by „10000“, making this NAVIKNOT alerts PROPRIETARY.
Page 92: Alerts (Alf-Alc-Arc/Acn) / Prop. Bam Alerts Inactive
056361/F SRD 500 A Alerts (ALF-ALC-ARC/ACN) / Prop. BAM Alerts Inactive Note In case the proprietary BAM alert setting is INACTIVATED and the NMEA messages ALF-ALC-ARC/ACN are selected for the alert manage- ment, all NAVIKNOT alerts are category B alerts according to 80/857/CDV 2017-9-15 supposed to become released as IEC 62923-2.
Page 93: Srd 500 Doppler Eu Fault Codes
SRD 500 A 056361/F 3.8 SRD 500 Doppler EU Fault Codes The following table indicates fault conditions with fault codes > 300, which are detected by the SRD 500 Doppler EU. Table 3-5: code description probable cause corrective action Fault codes detected by Communication Faults: The following group of fault codes are dis- the SRD 500 Doppler EU played as a result of errors detected in communication over the serial...
Page 94 056361/F SRD 500 A code description probable cause corrective action The following fault codes are associated with control communication and RS-232/RS-422 control port selection in the Doppler electronics unit. Speed will still be valid but will not be transmitted out of the aux- iliary port.
Page 95 SRD 500 A 056361/F code description probable cause corrective action Transmit/Receive Ping Faults: The following group of fault codes are displayed as a result of errors detected in the Doppler processing on one or more channels. If faults persist, Doppler speed will be invalid. Select MANUAL speed.
Page 96 056361/F SRD 500 A code description probable cause corrective action 610- Low sensitivity on RF Processor Unit receiver channel. 2A1 or pickup of The received sig- Electromagnetic nal strength indi- Interference (EMI). cator (RSSI) is sampled in high gain mode during a quiet period (i.e.
Page 97 SRD 500 A 056361/F code description probable cause corrective action Transmitted signal RF Processor Unit does not correlate 2A1 or Transducer as expected or the Unit. Electromag- received signal netic Interference strength indicator (RSSI) is not within expected limits. As part of the continu- ous built-in test, a test ping is fired...
Page 98 056361/F SRD 500 A 3-36 SRD 500 Doppler EU Fault Codes...
Page 99: Chapter 4: Scheduled Maintenance
SRD 500 A 056361/F Chapter 4: Scheduled Maintenance 4.1 Maintenance by Shipboard Personnel Electronic Components and CDU The electronic components of the SRD 500 A system are solid-state devices and contain no consumable parts. Therefore, no set mainte- nance schedule is required. The CDU front plate should be kept clean and the system’s cables and connectors should regularly be checked visually to detect any signs of damage or deterioration.
Page 100: Maintenance By Service Personnel
As a minimum, ensure that the atmosphere in the confined space is safe and breathable. Sperry Marine recommends that a competent person test the atmosphere for oxygen deficiency, combustible gases, hydro- gen sulfide, and other hazardous gases that are reasonable to expect in that area.
Page 101 SRD 500 A 056361/F fore be regularly cleaned; for details see “Cleaning Recommendations” on page 4-3. Special maintenance instructions apply when the vessel is drydocked; for details see “Transducer Drydock Maintenance” on page 4-13. Cleaning Recommendations • At the first sign of any accumulation of foreign matter, clean the lens, using a cleaning or polishing agent which contains as little abrasive material as possible.
Page 102: Gate Valve And Sea Chest Maintenance
056361/F SRD 500 A Gate Valve and Sea Chest Maintenance Maintenance Recommendations • A regular inspection for any signs of corrosion shall be applied to the gate valve and sea chest. • At the first sign of corrosion, the gate valve and sea chest must be cleaned and corrosion protected to keep the equipment in working condition.
Page 103: 3-Months Maintenance: Lubricating The Sea Valve
SRD 500 A 056361/F Extreme corrosion of gate valve and sea chest, caused by ongoing contamination / lack of cleaning and corrosion prevention.  No overhaul possible.  Equipment is to be completely exchanged. 3-Months Maintenance: Lubricating the Sea Valve The spindle of the sea valve is to be lubricated during installation and regularly at three-monthly intervals using a suitable lubricant as recom- mend below or equivalent.
Page 104: Annual Maintenance: Cleaning The Transducer Lens
056361/F SRD 500 A Annual Maintenance: Cleaning the Transducer Lens To prevent corrosion and marine buildup, the transducer lens should be cleaned each time the transducer is removed from the water, at least once per year. Under conditions of heavy marine growth, more frequent cleaning is required.
Page 105 SRD 500 A 056361/F 5. Make sure that the gate valve’s handwheel is in the fully open posi- tion. 6. Pull the transducer assembly up. This can be started by turning the nuts under the clamp to lift the trans- ducer.
Page 106 056361/F SRD 500 A 11. Loosen the eight bolts securing the sea chest cap to the gate valve. Do not yet remove the bolts. Some water may exit between the gate valve and the sea chest cap. If the water is under pressure, how- ever, the gate valve is not completely closed.
Page 107 3. Should the lens be deeply scratched or cracked, such as from grounding of the vessel, the transducer must be replaced. In this case, contact Sperry Marine for replacement. Re-installing the transducer 1. Clean old grease off the top flange of the gate valve.
Page 108 056361/F SRD 500 A 3. Control the gate valve and check that the gate wedge is free of dirt or grease. 4. Carefully lower the transducer with cap into the gate valve until it rests on the gate wedge. 5. Clean old lubricant off the cap fasten- ing bolts and nuts.
Page 109 SRD 500 A 056361/F 1. Open the gate valve. Make sure that the handwheel is in the fully open position. 2. Apply a fresh coating of silicone grease to the transducer stem. Lower the transducer into the sea chest so that it is fully seated. Wiggle the transducer while pushing it down to dislodge false seating.
Page 110: Five-Year Maintenance: Overhauling The Sea Chest
056361/F SRD 500 A 5. Secure the cover gland to the sea chest cap for future maintenance. Five-Year Maintenance: Overhauling the Sea Chest The sea chest should be overhauled at regular intervals based on the ship's valve overhaul schedule, but at least every five years. A complete overhaul requires the vessel to be drydocked.
Page 111: Transducer Drydock Maintenance
SRD 500 A 056361/F Transducer Drydock Maintenance Whenever the vessel is drydocked, the transducer should be inspected for signs of damage and maintenance is to be performed to clean and prevent damage to the transducer and to overhaul the gate valve ensur- ing that the transducer can be easily replaced at sea, if needed.
Page 112 056361/F SRD 500 A Protecting the Transducer from Damage in Drydock After inspection and cleaning, the transducer should always be raised in the sea chest and the gate valve closed to protect the transducer from damage during the remaining drydocking period. The gate valve is to be opened and the transducer to be lowered in the sea chest again at the end of the drydocking period.
Page 113 SRD 500 A 056361/F 4. Pull the transducer assembly up. This can be started by turning the nuts under the clamp to lift the trans- ducer. As soon as the clamp clears the threaded rods, grasp it and pull with a twisting motion.
Page 114 056361/F SRD 500 A Lowering the Transducer 1. Open the gate valve. Make sure that the handwheel is in the fully open position. 2. Apply a fresh coating of silicone grease to the transducer stem. Lower the transducer into the sea chest so that it is fully seated.
Page 115 SRD 500 A 056361/F Note If, for any reason, the transducer clamp was removed from the stem dur- ing the drydocking period, the transducer must be re-aligned, so that the alignment flat faces ahead and is perpendicular to the vessel’s fore-and- aft line to within 2°.
Page 116 056361/F SRD 500 A 4-18 Maintenance by Service Personnel...
Page 117: Chapter 5: Sea Chest And Transducer Installation
Chapter 5: Sea Chest and Transducer Installation 5.1 Determining the Transducer Location As early as possible, contact Sperry Marine engineering to receive spe- cific recommendations for the location of the transducer. These recom- mendations will be based upon the principal requirements and general guidelines given below and upon the particular properties of the vessel.
Page 118 056361/F SRD 500 A General Transducer Location Guidelines While the transducer is mounted flush with the hull, it is not affected by boundary layer effects, because return echoes are received from undis- turbed water outside the boundary layer at the hull. However, in common with other sonar devices, the performance of transducer is adversely affected by aeration, i.e.
Page 119 To make sure that the impact on speed log performance is consid- ered, inform Sperry Marine about the location of all bow thrusters and make sure that no bow thruster is added without the knowledge of Sperry Marine.
Page 120: Installing The Sea Chest And Transducer
As a minimum, ensure that the atmosphere in the confined space is safe and breathable. Sperry Marine recommends that a competent person test the atmosphere for oxygen deficiency, combustible gases, hydro- gen sulfide, and other hazardous gases that are reasonable to expect in that area.
Page 121 SRD 500 A 056361/F Figure 5-2: Spool piece installation parallel to average water line spool piece 149 mm (or the ship‘s hull plate, if it is and welding flat), as close to 0.5° as possible hull plate requirements 45° 345 ±1 mm hull penetration weld height to be 12.7 mm or 1/2 T,...
Page 122: Installing The Sea Chest And Transducer In Drydock
The following instructions assume that the sea chest and transducer are to be installed in drydock at the same time. Materials and Tools Required • Sea Chest Kit, stock no. 1979552-2, as supplied by Sperry Marine. • Installation Kit, stock no. 1807997, as supplied by Sperry Marine. •...
Page 123 SRD 500 A 056361/F 6. Lightly coat a gasket with silicone grease (S) and place it on top of the spool piece. Place the gate valve onto the gasket and spool piece. 8. Attach the gate valve to the spool piece by screwing a nut on each of the studs.
Page 124 056361/F SRD 500 A 11. Lightly coat the upper half of the transducer stem with silicone grease. 12. As a temporary aid in holding the transducer, attach the transducer clamp with two hex socket screws and washers. CAUTION Risk of contamination or damage Contamination of or damage to the surface finish of the transducer face will alter the acoustic effectiveness of the transducer and degrade the system performance.
Page 125 SRD 500 A 056361/F 17. Draw the transducer cable through the hole in the sea chest cap and slide the cap over the transducer stem. 18. Apply a light coat of thread lubricant to the threads of the eight cap fasten- ing bolts.
Page 126 056361/F SRD 500 A 22. Thoroughly tighten the nuts and bolts which fasten the gate valve to the spool piece and the sea chest cap to the gate valve. Transducer Alignment AHEAD 23. Rotate the transducer so that the alignment flat faces ahead and is per- side view pendicular to the vessel’s fore-and- aft line to within ±...
Page 127 SRD 500 A 056361/F 31. Install a nut and washer onto each of the threaded rods. 32. Secure the clamp halves to the rods with the two nuts below and one nut and washer above each clamp half. 33. Firmly tighten the two hex head screws which fasten the clamp to the transducer stem.
Page 128: Installing The Sea Chest Without Transducer In Drydock
Make sure that all parts are aligned correctly to prevent sticking of the transducer, when it is installed at a later point in time. Materials and Tools Required • Sea Chest Kit, stock no. 1979552-2, as supplied by Sperry Marine. • Installation Kit, stock no. 1807997, as supplied by Sperry Marine. •...
Page 129 SRD 500 A 056361/F 5. Apply a light coat of thread lubricant (T) to the threads of the eight spool piece studs and install the studs in the spool piece. 6. Lightly coat a gasket with silicone grease (S) and place it on top of the spool piece.
Page 130 056361/F SRD 500 A 11. Thoroughly tighten the nuts which fasten the gate valve to the spool piece. 12. Close the gate valve. Check that the handwheel is in the fully closed posi- tion. 13. Remove the cover gland from the sea chest cap.
Page 131 SRD 500 A 056361/F 17. Place the cap onto the gate valve and gasket. 18. Apply a light coat of thread lubricant to the threads of the eight cap fasten- ing bolts. 19. Attach the sea chest cap to the gate valve with the bolts and nuts.
Page 132 Materials and Tools Required • The sea chest kit, stock no. 1979552-2, as supplied by Sperry Marine. • The installation kit, stock no. 1807997, as supplied by Sperry Marine.
Page 133 SRD 500 A 056361/F WARNING Risk of flooding If the sea chest cap is removed while the gate valve is not fully closed, water under pressure will exit from the valve, leading to flooding of the transducer compartment. Always make sure that the gate valve is fully closed before removing the sea chest cap from the gate valve when the vessel is afloat.
Page 134 056361/F SRD 500 A 10. Clean old grease off the two O-rings in the flange of the sea chest cap. Check that the O-rings are installed properly and not damaged. 11. Apply a fresh coat of silicone grease to the O-rings and flange of the sea chest cap and to the upper half of the transducer stem.
Page 135 SRD 500 A 056361/F 16. Close the petcock at the back of the gate valve. 17. Clean old lubricant off the cap fasten- ing bolts and nuts. 18. Apply a fresh coat of thread lubricant to the threads of the cap fastening bolts.
Page 136 056361/F SRD 500 A 22. Lower the transducer into the sea chest so that it is fully seated against the shoulder of the orkot sleeve. Wig- gle the transducer while pushing it down to dislodge false seating. CAUTION Risk of damage Water pressure can push up the transducer in the sea chest.
Page 137 SRD 500 A 056361/F 27. Fit another two nuts onto each of the threaded rods. Screw them down to below the level of the clamp groove in the transducer stem. 28. Fit the transducer clamp halves onto the threaded rods and push down on them until they engage into the clamp groove in the transducer stem.
Page 138 056361/F SRD 500 A 5-22 Installing the Sea Chest and Transducer...
Page 139: Chapter 6: Electronics Unit And Cdu Installation
SRD 500 A 056361/F Chapter 6: Electronics Unit and CDU Installation 6.1 Mechanical Installation NAVIKNOT Electronics Unit The NAVIKNOT electronics unit is to be installed at a protected location. In most cases, it will be mounted in the vicinity of the master CDU. The NAVIKNOT electronics unit is to be attached to a level surface with four M6 screws (or nuts and bolts).
Page 140: Control And Display Units
056361/F SRD 500 A Control and Display Units Console Mounting 3x1 CDU (main or remote) To mount a 3x1 CDU, type 5002, directly in a console panel (without con- sole frame), a panel cutout is required as shown in drawing 5002-0112-02 (see Appendix).
Page 141: Electrical Installation
SRD 500 A 056361/F 6.2 Electrical Installation Wiring Up the System DANGER Life danger through electrical shock When the AC supply power is switched on, live voltages are present at certain terminals and tracks on the SRD 500 Doppler EU. Always make sure that the AC power supply is switched off and safe- guarded against accidental switching-on, before wiring up the SRD 500 Doppler EU.
Page 142: Grounding
056361/F SRD 500 A Grounding Make sure to properly ground all the individual components according to the connection diagrams and other relevant documents provided in the Appendix of this manual. Configuring the CDU(s) CAUTION Risk of damage Incorrect assignment or mismatch of the CDU IDs will lead to incorrect CDU settings and may corrupt the system functionality.
Page 143 SRD 500 A 056361/F CDU Service Setup – Overview Figure 6-1: SERVICE SETUP CDU Service Setup > > CDU ID > > this CDU's local ID CDU ID RANGE: 0 – 9 > > DIMMING > > settings for DIMMING serial dimming GROUP ID dim group ID...
Page 144 056361/F SRD 500 A CDU Service Setup – Parameters CDU ID Sets the CDU’s local ID. The ID serves to identify the individual CDUs in systems where one or more remote CDUs are installed. In case more than one CDU is installed, the electronics unit uses the ID to keep track of which CDU is currently assigned master command.
Page 145 SRD 500 A 056361/F DIM VALUES (MIN VALUE - VALUE 2–7 - MAX VALUE) Maps the ordered brightness setting as read from the serial dim command to the CDU’s nine discrete brightness levels. CDU type 5001 CDU type 5002 RANGE: 00 – 999 RANGE: 00 –...
Page 146: Configuring System Parameters
After the initial system configuration, note all settings in the SRD 500 A Setup Table (see Appendix). Return one filled-out copy of the Setup Table to Sperry Marine for inclusion in the ship's file. Copying System Parameters The system parameters may also be stored on the flashboard.
Page 147: Srd 500 Doppler Eu Post-Installation Functional Checks
SRD 500 A 056361/F SRD 500 Doppler EU Post-Installation Functional Checks DANGER Life danger through electrical shock Even if the power mode switch at the SRD 500 Doppler EU is in the OFF position, live voltages are still found at certain terminals and tracks on the SRD 500 Doppler EU PCB.
Page 148 056361/F SRD 500 A If none of the DC voltages are present: Measure the filtered AC voltages at the electronics unit PCB: – filtered AC power (100-240 VAC) across J1-1 and 1-2, – filtered AC power (100-240 VAC) across J1-1 and 1-3. If the filtered AC voltages are not present: The DC power supply module, PS1, is defective and must be replaced.
Page 149 SRD 500 A 056361/F 5. Set the electronics unit’s On/Off switch to the ON position. A startup prompt must now appear in the BBTalk window, as shown below. 6. Should no startup prompt appear, press the RESET switch, SW2, on the electronics unit PCB.
Page 150 056361/F SRD 500 A 6-12 Electrical Installation...
Page 151: Chapter 7: System Configuration
After the initial system configuration, note all settings in the SRD 500 A system setup table (see Appendix). Return one copy of the filled-out table to Sperry Marine for inclusion in the ship’s file. The operating parameters in the Manual Settings, see “Manual Settings Menu”...
Page 152: Service Setup Menu
056361/F SRD 500 A 7.2 Service Setup Menu Setup Access Code To prevent inadvertent or unauthorized changes to the system configu- ration, setup menus which are to be accessed by service personnel only are protected by access codes. To access the Service Setup: Press MENU to call up the Main Menu: ...
Page 153: Service-Setup - Overview
SRD 500 A 056361/F Service-Setup – Overview Note The caption for the different selecting and editing symbols used in all setup menus is identical with the caption symbols used in the manual settings as described in figure on page 2-16. Figure 7-1: SERVICE SETUP Page 1 Service Setup,...
Page 154 056361/F SRD 500 A Figure 7-2: contd. from previous page Service Setup, page 1 (contd.) > > PULSE OUTPUT 1-3 > > settings for pulse outputs 1-3 PULSE / NM PULSE / NM 1–3 10 PULSE/NM 100 PULSE/NM 200 PULSE/NM 400 PULSE/NM 20000 PULSE/NM SOURCE PULSE 1-3...
Page 155 SRD 500 A 056361/F Figure 7-3: contd. from previous page Service Setup, page 1 (contd.) > > RS422 OUTPUT 1-3 > > settings for RS-422 outputs RS422 OUTPUT 1–3 group 1 (outp.1-3) PROTOCOL NMEA SSD12 MESSAGES NMEA 1–3 VLW extended PPLAK DEPTH ALERT MESSAGES...
Page 156 056361/F SRD 500 A Figure 7-4: contd. from previous page Service Setup, page 1 (contd.) > > NMEA INPUT 1 > > settings for NMEA input 1 NMEA INPUT 1 MESSAGES NMEA INP . 1 PPLAI BAUDRATE NMEA INP . 1 4800 BAUD 9600 BAUD 38400 BAUD...
Page 157 SRD 500 A 056361/F Figure 7-5: SERVICE SETUP Page 2 Service Setup, page 2 > > NEXT PAGE (1) > > skip to page 1 > > SYSTEM TYPE > > system type conﬁguration SYSTEM TYPE SRD 500A type must be set to SRD 500A >...
Page 158 056361/F SRD 500 A Figure 7-6: contd. from Service Setup, previous page page 2 (contd.) > > PROP. BAM ALERTS proprietary BAM alert setting PROP . BAM ALERTS activate proprietary BAM alert setting > > ESCALATION TIMEOUT > > escalation timeout setting ESCALATION TIMEOUT RANGE: 30 –...
Page 159: Service Setup - Description Of Parameters
SRD 500 A 056361/F Service Setup – Description of Parameters ANALOG OUTPUT Configures the analogue speed outputs (voltage and current output). SOURCE Selects the data source for the analogue outputs. Settings: The outputs provide the actual longitudinal ground speed The outputs provide the actual longitudinal water speed Service Setup Menu...
Page 160 056361/F SRD 500 A VOLTAGE Configures the analogue output voltage range. The output voltage range is defined by two pairs of values: The minimum speed and associated minimum voltage determine the lower limit of the output range, while the maximum speed and associ- ated maximum voltage define its upper limit.
Page 161 SRD 500 A 056361/F CURRENT Configures the analogue output current range. The output current range is defined by two pairs of values: The minimum speed and associated minimum current determine the lower limit of the output range, while the maximum speed and associ- ated maximum current define its upper limit.
Page 162 056361/F SRD 500 A PULSE OUTPUT Configures the pulse signal outputs. The outputs are divided into three individually configurable groups. Each group may be configured to deliver 10, 100, 200, 400 or 20000 pulses per nautical mile. The generated pulses possess a fixed “on” duty cycle of 100 ms for the 10, 100 or 200 pulse/NM setting, 50 ms for the 400 pulse/NM setting and 1 ms for the 20000 pulse/NM setting.
Page 163 SRD 500 A 056361/F PULSE OUTPUT 4–5 PULSE / NM 4-5 Configures group 2 of the pulse outputs (outputs 4– 5). Selects the output pulse frequency. Settings: 10 PULSE/NM The output delivers 10 pulses per nautical mile. 100 PULSE/NM The output delivers 100 pulses per nautical mile. 200 PULSE/NM The output delivers 200 pulses per nautical mile.
Page 164 056361/F SRD 500 A PULSE OUTPUT 6 PULSE / RELAY Configures group 3 of the pulse outputs (output 6). Selects the output pulse frequency or activates the alert mute output function. Settings: 10 PULSE/NM The output delivers 10 pulses per nautical mile. 100 PULSE/NM The output delivers 100 pulses per nautical mile.
Page 165 SRD 500 A 056361/F RS422 OUTPUT 1–3 Configures group 1 of the RS-422 serial data outputs (outputs 1–3). PROTOCOL Selects the protocol and preselects the message and baudrate settings of the RS422 output 1-3. Settings: NMEA NMEA messages are preselected. ...
Page 166 056361/F SRD 500 A MESSAGES NMEA 1-3 Selects the NMEA sentences to transmit or configures the outputs as dedicated SDD12 repeater outputs. If the SRD 500 A cannot provide valid data for an NMEA sentence field, a null field (empty field) is sent. Status fields for invalid or unknown data are marked invalid (“V“).
Page 167 SRD 500 A 056361/F CAM Interface Settings Note NAVIKNOT complies with the statutory requirements regarding a serial interface for the alert management (alert presentation and acknowledge- ment) by a Central Alert Management System (CAM) following IEC 61162 (NMEA 0183) and MSC.302(87) (BAMS). Note The NAVIKNOT alert management via the CAM interface can be chosen by selecting different NMEA messages within the Service Setup 600...
Page 168 056361/F SRD 500 A RS422 OUTPUT 4–6 Configures group 1 of the RS-422 serial data outputs (outputs 4–6). PROTOCOL Selects the protocol and preselects the message and baudrate settings of the RS422 output 1-3. Settings: NMEA NMEA messages are preselected. ...
Page 169 SRD 500 A 056361/F RS422 OUTPUT 4–6 Configures group 2 of the RS-422 serial data outputs (outputs 4–6). MESSAGES NMEA 4-6 Selects the NMEA sentences to transmit or configures the outputs as dedicated SDD12 repeater outputs. If the SRD 500 A cannot provide valid data for an NMEA sentence field, a null field (empty field) is sent.
Page 170 056361/F SRD 500 A Note For the use of EMRI DIB10 Docking Information Displays, the VBW protocol must be activated. For further details, see “Using DIB10 Display with the SRD 500 A Sys- tem” on page 15-1. CAM Interface Settings Note NAVIKNOT complies with the statutory requirements regarding a serial interface for the alert management (alert presentation and acknowledge-...
Page 171 SRD 500 A 056361/F NMEA INPUT 1 Configures the NMEA input 1. MESSAGES NMEA INP . (Input) 1 Selects the NMEA sentences to receive. Settings: Alert acknowledgements are read from the $--ACK sentence. This option must be activated only if an external NMEA alert handling device is present.
Page 172 056361/F SRD 500 A Note For the usage of the serial CAM interface only ONE RS422 Output and ONE NMEA Input shall be selected. To select both RS422 Outputs and NMEA Inputs at the same time voids the CAM interface functionality. BAUDRATE NMEA INP .
Page 173 SRD 500 A 056361/F NMEA INPUT 2 Configures the NMEA input 2. MESSAGES NMEA INP . (Input) 2 Selects the NMEA sentences to receive. Settings: Alert acknowledgements are read from the $--ACK sentence. This option must be activated only if an external NMEA alert handling device is present.
Page 174 056361/F SRD 500 A Note For the usage of the serial CAM interface only ONE RS422 Output and ONE NMEA Input shall be selected. To select both RS422 Outputs and NMEA Inputs at the same time voids the CAM interface functionality. BAUDRATE NMEA INP .
Page 175 SRD 500 A 056361/F SYSTEM TYPE Configures the log system type. For the SRD 500 A, the type must be set to SRD500 A; all other options are to be ignored. Settings: SRD 500 A RELAY SPEED LIMIT Setting thresholds for speed limit relay output Setting the lower and/or upper switching thresholds: The speed limit relay output provides a status signal to external equip- ment, to indicate that the actual speed has exceeded or fallen below a...
Page 176 056361/F SRD 500 A MINIMUM VALUE Sets the lower switching threshold for the limit relay. Value: RANGE: -99.9 – 99.9 KN Default value: +24.0 MINIMUM VALUE ON Activates or de-activates switching at the lower threshold Settings: ON (option checked) Switching is active at the lower threshold OFF (option unchecked) Switching is inactive at the lower threshold MAXIMUM VALUE...
Page 177 SRD 500 A 056361/F SRD 500 A SETUP Accesses the transducer rotation and calibration settings, selects the BSH and test modes and displays the SRD 500 Doppler EU’s software version and dip-switch settings. TRANSDUCER ROT. Sets the rotational offset for the transducer. The offset compensates for the existing angular misalignment of the transducer with respect to the vessel’s centerline.
Page 178 056361/F SRD 500 A TEST MODE Puts the system into the TEST mode. In this mode, a loopback test of the interface between the SRD 500 transducer and the SRD 500 Doppler EU is conducted. Speed data is continuously sent to and received back from the SRD 500 Doppler EU. After activating the TEST mode, quit the setup and observe the dis- played speeds.
Page 179 SRD 500 A 056361/F SWITCHES Displays the setting of the configuration dip-switches SW 3.1 to 3.8 inside the SRD 500 Doppler EU. Settings: none The dip-switch setting is read-only. PROP . (Proprietary) BAM ALERTS Activates or inactivates the proprietary BAM alert setting. Settings: ON (option checked) The proprietary BAM alert setting is activated.
Page 180 056361/F SRD 500 A 7-30 Service Setup Menu...
Page 181: Chapter 8: Srd 500 Doppler Eu Configuration
SRD 500 Doppler EU Utility Software” on page 14-2. Applying Approved Changes to the Default Configuration Sperry Marine has approved certain changes to the default settings of the current BBTalk firmware version, 12.30, which should be applied in all new installations: •...
Page 182: Srd 500 Doppler Eu Maintenance Mode
056361/F SRD 500 A 8.2 SRD 500 Doppler EU Maintenance Mode DANGER Life danger through electrical shock When the AC supply power is switched on, live voltages are still present at certain terminals and tracks on the SRD 500 Doppler EU PCB. Never touch the PCB or the connecting wires, when servicing the SRD 500 Doppler EU unit under power.
Page 183 SRD 500 A 056361/F  Another dialog box pops up, prompting for the communication parameters to apply: 8. Select 9600 Baud, parity “None” , stop bit “1” and flow control “None”; then click “Next” to continue.  Lastly, a dialog box prompts for optional settings: 9.
Page 184 056361/F SRD 500 A When the SRD 500 Doppler EU is in the normal operational mode, it does not process any characters received at the maintenance port, except for a BREAK. When a BREAK is received at the maintenance port, the unit quits normal operation and enters the maintenance mode.
Page 185: Maintenance Mode - Main Menu
SRD 500 A 056361/F 8.3 Maintenance Mode – Main Menu Figure 8-2: Maintenance mode - main menu options From the Main Menu, three sub-menus may be accessed by entering the appropriate key codes. These are the Auxiliary Port, the System Parame- ter and the Diagnostics Menu, respectively: Main Menu Options Auxiliary Port Menu...
Page 186: Maintenance Menu Overview
056361/F SRD 500 A Maintenance Menu Overview Auxiliary Port Menu Figure 8-3: MAIN MENU SRD 500 Doppler EU maintenance menu Auxiliary Port Menu port: 1 = Aux. Port 1 2 = Aux. Port 2 Change Communication Settings baud rate: 1 = 1200 2 = 2400 3 = 4800 4 = 9600 5 = 19200 6 = 38400 7 = 57600 8 = 115200 parity: 1 = none 2 = even 3 = odd...
Page 187 SRD 500 A 056361/F System Parameter Menu Figure 8-4: contd. from previous page SRD 500 Doppler EU maintenance menu System Parameter Menu (continued) Recall Factory Default Configuration restores all parameters to factory defaults Update Speed Filter Parameters Set fast-to-slow filter transition delay count *...
Page 188 056361/F SRD 500 A Diagnostics Menu Figure 8-5: contd. from previous page SRD 500 Doppler EU maintenance menu Diagnostics Menu (continued) Set BIT Enable Flags enables or disables fault message generation per type of fault Clear the Fault Log clears all entries from the fault log Run Diagnostic Tests executes the RAM, ROM and Electronics test routines Display Fault Log...
Page 189: Maintenance Menu - Low-Level Commands
SRD 500 A 056361/F 8.4 Maintenance Menu – Low-Level Commands In addition to the Main Menu options, a number of low-level commands may be called from the Main Menu prompt to set and/or query individ- ual system parameters. Normally, field service should not use low-level commands to configure the electronics unit.
Page 190 056361/F SRD 500 A &-Commands / Function &A Reserved (autotest) &B Sets WT alg (0=Shal 1=Stp 2=Sl 3=gr) &C Set NB Bin (near; size; xmit) (dm) &D Sets Manual Speed (on; fa; ps; d) &E Set NB LO Parms (interval; n) &F Flash Block Menu &K...
Page 191 SRD 500 A 056361/F B-Commands / Function BT Amplitude Threshold [0..255] BT Correlation Threshold [0..255] BT Depth Guess (dm) BT Set Xmt% (shal; deep; SwDepth) BT Set Ambi Lims (thresh; min; long) BT Enable WT Vel Screen Parms (err; up) Water Track Enable=1/Disable=0 Water Track Bin (min;...
Page 192 056361/F SRD 500 A C-Commands / Function Enable AUX Outputs (AUX1;AUX2) Serial Port Control (Baud; Parity; Stop) Set Debug Flag Set Ctrl Flags (AutoE; AutoP; Bin; Ser; n/a) Save Command Parameters to Flash Set Filter Enable (1=on 0=off) Restore Cmd defaults (0=user; 1=factory) Start Pinging Sync Mode(0=off;1=Ms;2=Sl;3=Al) del(mS)) Aux1 Port Setup (En;...
Page 193 SRD 500 A 056361/F P-Commands / Function Run all Built In Tests Display Sensor Data (0=help) Receive and Correlate Data Display P Command Menu (lists current parameter settings) V-Commands / Function Display Banner W-Commands / Function Water Bandwidth Hi=1/Lo=0 Water Corr Threshold [0..255] Water Blank Water Rcvr Gain Hi=1/Lo=0 Lag Hop (0=off 1=on n=nhops)
Page 194 056361/F SRD 500 A 8-14 Maintenance Menu – Low-Level Commands...
Page 195: Chapter 9: Doppler Transducer Calibration
SRD 500 A 056361/F Chapter 9: Doppler Transducer Calibration After installation and whenever the SRD 500 Doppler transducer or the SRD 500 Doppler EU are exchanged, the applicable speed calibration values must be determined as described below. After installation or exchange of the transducer, the actual rotational off- set must be newly determined and compensated for as well.
Page 196: Automatic Transducer Rotation Using Ground Speed
056361/F SRD 500 A Automatic Transducer Rotation using Ground Speed Automatic rotation lets the system automatically compute a transducer rotation angle. To use ground speed for automatic rotation, the water depth below the Transducer must be between one and 200 metres. The ship must be turned into the wind and into the current.
Page 197: Ground And Water Speed Calibration
SRD 500 A 056361/F 9.2 Ground and Water Speed Calibration The ground and water speed displayed and output by the system can be calibrated to correct for measuring errors of up to ± 10%. Separate calibration values are maintained for water and ground speeds.
Page 198 056361/F SRD 500 A • Observe the transverse speeds to determine whether the rotational offset correction procedure should be carried out. It should be car- ried out if the values displayed are considered unreasonable given the actual athwartships motion. • Check that environmental conditions permit proper measurements to be carried out.
Page 199 SRD 500 A 056361/F Water Speed Trial Runs Water speed calibration runs are made by running between two points of known distance, recording the measured time and distance, then reversing course and recording the measured time and distance of the reverse leg.
Page 200: Entering The Calibration Values
056361/F SRD 500 A Entering the Calibration Values To set the ground speed calibration value: 1. Go to page 2 of the Service SERVICE SETUP Page 2 Setup and select the 550DD SETUP SRD 500A Setup | Bottom BOTTOM CALIBRATION Calibration sub-menu.
Page 201: Chapter 10: Troubleshooting
SRD 500 A 056361/F Chapter 10: Troubleshooting 10.1 General Troubleshooting Approach As a first step in troubleshooting an apparent failure or malfunction of the speed log, make an overall assessment of the information available: • Which fault codes are displayed? •...
Page 202: Srd 500 Doppler Eu Faults
056361/F SRD 500 A Eddy Currents: Many ocean currents have eddies along their bounda- ries. These eddies often flow in a direction opposite or perpendicular to the direction of the primary current. Water Clarity: Operation of the Doppler log is dependent upon acoustic reflection from sound scatter in the water, i.e., solid particles such as micro-organisms or suspended material.
Page 203: Unit Level Fault Isolation
SRD 500 A 056361/F Unit Level Fault Isolation The first step in troubleshooting is to determine the unit(s) most likely to be causing the system fault. Table 10-1 lists faults, with no generated fault code, and can be used to determine the source of the problem for troubleshooting purposes.
Page 204: Srd 500 Doppler Eu Fault Isolation
056361/F SRD 500 A SRD 500 Doppler EU Fault Isolation In cases where the SRD 500 Doppler EU itself diagnoses a fault, an alert will be raised at the SRD 500 A CDU and the corresponding SRD 500 error code will be displayed. For the applicable troubleshooting procedures in such cases, see “NAVI- KNOT Electronics Unit / CDU Alert Codes”...
Page 205 SRD 500 A 056361/F Transducer Location The transducer location on the hull greatly affects system performance. Improper location will result in aerated water flow across the face of the transducer. This condition will become more noticeable during turns, in rough weather and/or at speeds above 7 – 9 knots. Indications are fre- quent loss of bottom track due to the sonar signal being blocked by the air bubbles or detection of false bottom depths at 1-5 meters due to the sonar signal being reflected back from the layer of bubbles.
Page 206: Naviknot Eu And Cdu(S) Fault Isolation
Unless instructed otherwise by Sperry Marine engineering, field service personnel should limit troubleshooting to the basic checks given below. Basic check instructions •...
Page 207: Location Of Parts On The Naviknot Electronics Unit Pcb
SRD 500 A 056361/F Location of Parts on the NAVIKNOT Electronics Unit PCB Figure 10-1 below shows the locations of exchangeable components, connectors and diagnostic LED indicators on the NAVIKNOT electronics unit PCB. Figure 10-1: Location of parts on the Flashboard CR 58 NAVIKNOT electronics...
Page 208: Exchangeable Components
056361/F SRD 500 A Exchangeable Components Table 10-1: Component Name and Function Exchangeable Flashboard (flash-memory card), components on the pre-programmed with system software processor PCB IC 2; quad RS-422 output driver IC; drives serial data RS-422 outputs 1 to 3 IC 14;...
Page 209: Diagnostic Leds
SRD 500 A 056361/F Diagnostic LEDs As an aid in troubleshooting, a number of diagnostic LED indicators are provided on the NAVIKNOT electronics unit PCB. These indicate the presence of supply voltages, activities on the serial data I/O lines and the current states of the status I/O ports.
Page 210: Maintenance Menu 1
056361/F SRD 500 A 10.3 Maintenance Menu 1 The Maintenance Menu 1 provides several control settings for the sen- sor status, views the error list, gives access to diagnostic menus of the electronics unit and allows a restart of the electronics unit. The Maintenance Menu 1 permits as well software update possibilities of the flashboard via the menu function.
Page 211: Maintenance Menu 1 - Overview
SRD 500 A 056361/F Maintenance Menu 1 – Overview Figure 10-2: MAINTENANCE Maintenance Menu 1 > > EU VERSIONS > > hard-/software version IDs EU VERSIONS (read-only) EU HARDWARE hardware version ID EU SOFTWARE software version ID EU SW BUILD NO software build number FPGA FPGA program ID...
Page 212 056361/F SRD 500 A Figure 10-3: contd. from previous page Maintenance Menu 1 (contd.) > > ERROR LIST > > internal error record ERROR LIST view list of recorded errors; ENTER-key clears all errors from list > > IN/OUT MONITOR >...
Page 213: Maintenance Menu 1 - Parameters
SRD 500 A 056361/F Maintenance Menu 1 – Parameters EU VERSIONS Displays the hardware/software versions ID of the NAVIKNOT Electron- ics Unit. Settings: EU HARDWARE The hardware version ID is read-only. EU SOFTWARE The software version ID is read-only. EU SW BUILD NO The EU software build number is read-only.
Page 214 056361/F SRD 500 A OPERATION COUNTER Displays the diagnostic counters (read only). Settings: WORKING HRS (Hours) Displays total system working hours. POWER UP’S Number of system resets. WDOG (Watchdog) RESETS Number of watchdog resets. ERROR LIST Displays the internal error record. Settings: ENTER-KEY Press ENTER clears all errors from list.
Page 215: Maintenance Menu 2
SRD 500 A 056361/F 10.4 Maintenance Menu 2 The Maintenance Menu 2 provides control settings for the CDU status and allows a restart of the CDU. The Maintenance Menu 2 permits as well menu functions for the GPS antennae and the GPS satellites (antenna view). This menu function is effective for GPS Log systems only.
Page 216: Maintenance Menu 2 - Overview
056361/F SRD 500 A Maintenance Menu 2 – Overview Figure 10-4: MAINTENANCE Maintenance Menu 2 > > CDU VERSIONS > > hard-/software version IDs CDU VERSIONS (read-only) CDU HARDWARE hardware version ID CDU SOFTWARE software version ID CDU SW BUILD NO software build number KERNEL operating system kernel ID...
Page 217 SRD 500 A 056361/F Figure 10-5: contd. from previous page Maintenance Menu 2 (contd.) > > RESTART CDU CDU restart ﬂag RESTART CDU check to restart CDU when maintenance menu is quit > > FACTORY SETTINGS factory settings restore ﬂag FACTORY SETTINGS check to restore all settings to factory defaults when maintenance menu is quit...
Page 218: Maintenance Menu 2 - Parameters
056361/F SRD 500 A Maintenance Menu 2 – Parameters CDU VERSIONS Displays the hardware/software versions ID of the NAVIKNOT CDU. Settings: CDU HARDWARE The hardware version ID is read-only. CDU SOFTWARE The software version ID is read-only. CDU SW BUILD NO The CDU software build number is read-only.
Page 219: Chapter 11: Troubleshooting - Autotest Program
SRD 500 A 056361/F Chapter 11: Troubleshooting – Autotest Program Note Before using the Autotest program, the program must be installed. For information regarding the installation of the Autotest program see “Installing the SRD 500 Doppler EU Utility Software” on page 14-2. 11.1 Executing the Automatic Test Sequence 1.
Page 220 056361/F SRD 500 A Should this file already exist, the data of the present test run will be appended at the end of the file. From now on, until the end of the automatic test sequence, all output sent to the screen is also copied to the test record. 4.
Page 221 SRD 500 A 056361/F Press N to save the note as shown on screen or, if you entered wrong data accidentally, press Y to start over entering your note. 6. Autotest will now start the automatic test sequence and execute the following individual tests in turn: –...
Page 222: Executing Single Tests
056361/F SRD 500 A 11.2 Executing Single Tests To execute one or more tests separately, proceed as follows. 1. From the Autotest Main Menu, press S to call up the single test options.  Autotest tries to establish communication with the SRD 500 Doppler EU.
Page 223 SRD 500 A 056361/F 4. The Single Test options menu opens. Press a key to select from the following options: 1: execute the WrapAround test, 2: execute the EMI Magnitude test, 3: execute the Transmit Energy test, 4: execute the Temperature (Simulated) test, 5: execute the Serial Port 232 test, 6: execute the Serial Port 422 test, 7: execute the Bottom Search test,...
Page 224: Launching Bbtalk From Autotest
056361/F SRD 500 A Launching BBTalk from Autotest The Autotest Main Menu offers the option to launch BBTalk from within Autotest. However, this option cannot be used with the Windows ver- sion of BBTalk, because the two programs cannot share access to the same COM port under Windows.
Page 225: Summary Of Single Test Options
SRD 500 A 056361/F 11.3 Summary of Single Test Options WrapAround Test The WrapAround test checks whether the electronics unit transmits and receives an encoded signal for evaluation. This verifies that the trans- mitters, receivers, and processing circuits are functional. Pass criteria: Last line of test result page must read “PASS”...
Page 226 056361/F SRD 500 A  The test result is displayed on the screen. 4. Autotest returns to the test options page (single test mode) or con- tinues to the next test (autotest mode). 11-8 Summary of Single Test Options...
Page 227 SRD 500 A 056361/F EMI Magnitude Test The EMI (electro-magnetic interference) Magnitude test confirms that interference levels are at a minimum. This test is used to evaluate the presence of an EMI term(s) which will significantly affect system perfor- mance. Pass criteria: HGain Correlation <...
Page 228 056361/F SRD 500 A 3. When the test is completed, the status indication will change from “ACTIVE” to either “PASSED” or “FAILED” .  The test result is displayed on the screen. 4. Autotest returns to the test options page (single test mode) or con- tinues to the next test (autotest mode).
Page 229 SRD 500 A 056361/F Transmit Energy Test The Transmit Energy test confirms that transmit circuitry delivers suffi- cient power for normal operation. Pass criteria: Test results must read “PASS” for the high and low energy tests of each beam. The most probable cause of a failed Transmit Energy test is a defective electronics unit PCB or dummy load.
Page 230 056361/F SRD 500 A 3. When the test is completed, the status indication will change from “ACTIVE” to either “PASSED” or “FAILED” .  The test result is displayed on the screen, showing a “PASS” or “FAIL ” . status for the high and low energy tests of each beam. 4.
Page 231 SRD 500 A 056361/F 2. Install the temperature adapter, part no. 03956-1813936 , and press the space bar to start testing. Autotest now takes a series of 10 samples each for the simulated transducer and water temperatures.  The test result is displayed on the screen. 3.
Page 232 056361/F SRD 500 A Serial Port -> 232 Test The Serial Port -> 232 Test confirms the functionality of the AUX1, and AUX2 serial circuits and RS-232 drivers/receivers by transmitting and receiving characters via the RS-232 loop back adapter. Pass criteria: “PASS” shown on test result page for all baud rates. The most probable cause of a failed Serial Port ->...
Page 233 SRD 500 A 056361/F 4. When the test is completed, the status indication will change from “ACTIVE” to either “PASSED” or “FAILED” .  The test result is displayed on the screen. 5. You are prompted to remove the loop back adapter. Remove the adapter and press the space bar.
Page 234 056361/F SRD 500 A Serial Port -> 422 Test The Serial Port -> Test confirms the functionality of the AUX1, and AUX2 and MDU serial circuits and RS-422 drivers/receivers by transmitting and receiving characters via the RS-422 loop back adapter. Pass criteria: “PASS”...
Page 235 SRD 500 A 056361/F 4. When the test is completed, the status indication will change from “ACTIVE” to either “PASSED” or “FAILED” .  The test result is displayed on the screen. 5. You are prompted to remove the loop back adapter set. Remove the adapter set and press the space bar.
Page 236 056361/F SRD 500 A Bottom Search Test The Bottom Search test determines if the transducer position to bottom range is satisfactory for continued testing of the transducer and the elec- tronics unit. It consist of an echo intensity test, which provides a measure of transmit energy, transducer ceramics (crystals) coupling and efficiency, and of a cross coupling test, which verifies that the receivers are operational.
Page 237 SRD 500 A 056361/F  When the test is completed, the test result is displayed on the screen. Summary of Single Test Options 11-19...
Page 238 056361/F SRD 500 A Receiver Gain Test The Receiver Gain test confirms the electronics unit receiver gain func- tionality. Pass criteria: High Gain Profile > 100 counts High Gain Correlation ≤ 48 counts Low Gain Profile 40 - 80 counts High Gain RSSI 38 - 64 counts High/Low Gain Step 50 - 120 counts If the EMI test fails, this test may also fail...
Page 239 SRD 500 A 056361/F 4. When the test is completed, the status indication will change from “ACTIVE” to either “PASSED” or “FAILED” .  The test result is displayed on the screen. 5. Autotest returns to the test options page (single test mode) or con- tinues to the System Bandwidth test (autotest mode).
Page 240 056361/F SRD 500 A System Bandwidth Test The System Bandwidth test confirms system bandwidth and transducer ceramic bonds. It evaluates the system (electronics unit and transducer) for spectral conditions which degrade performance. Pass criteria: None (a bandwidth value will be displayed) The most probable cause of degraded performance is a defective trans- ducer.
Page 241 SRD 500 A 056361/F Adding Notes with NotePad In single test mode, Autotest’s built-in line editor, NotePad, may be called from the options menu at any time. This permits to add notes to the test record just where they are required, e.g.
Page 242 056361/F SRD 500 A Press N to save the note as shown on screen or, if you entered wrong data accidentally, press Y to discard the data and edit a new note. 11-24 Summary of Single Test Options...
Page 243: Other Troubleshooting Procedures
SRD 500 A 056361/F 11.4 Other Troubleshooting Procedures Relative Temperature Test The “relative temperature test” is a quick plausibility check of the sam- pled temperature data. It will reveal continuity faults between the trans- ducer’s temperature sensors (thermistors) and the electronics unit. Carry out this test if the log’s performance appears to degrade depend- ing on temperature, i.e., if the speed temperature compensation seems not to be working properly.
Page 244: Troubleshooting If Transducer Shows Ringing
056361/F SRD 500 A Troubleshooting if Transducer shows Ringing “Ringing” is the effect of the transducer resonating at the system’s transmit frequency. This occurs during and just after the transmit pulse. Normally, the ringing should dissipate within the blanking period, i.e. the time of no data processing between the transmit and receive cycles.
Page 245 It is recommended to collect ringing data prior to and just after changing the blanking distance and to send the data to Sperry Marine for analysis. If the vessel is at sea, a slow speed should be maintained while ringing data is collected.
Page 246 A continuous stream of data is written to the BBTalk window. While this data is not in a human-readable format, it can later be retrieved from the log file and analysed by engineers at Sperry Marine. Allow about three minutes worth of data to be collected, then press F3 or select “End file logging”...
Page 247 10. Back in the maintenance mode, enter CR0 and press the return key to restore all parameters to the user default settings. 11. Enter X and press the return key to quit the maintenance mode. 12. Forward the two log files to Sperry Marine for analysis. Other Troubleshooting Procedures 11-29...
Page 248 056361/F SRD 500 A 11-30 Other Troubleshooting Procedures...
Page 249: Chapter 12: Corrective Maintenance - Transducer
As a minimum, ensure that the atmosphere in the confined space is safe and breathable. Sperry Marine recommends that a competent person test the atmosphere for oxygen deficiency, combustible gases, hydro- gen sulfide, and other hazardous gases that are reasonable to expect in that area.
Page 250: Removing The Existing Transducer
056361/F SRD 500 A Removing the Existing Transducer 1. Power down the speed log system. 2. If the cover gland is secured to the sea chest cap’s flange, unscrew it and save it for later use. 3. Before proceeding, measure and make a note of the exact distance from the top of the sea chest cap to 197 mm...
Page 251 SRD 500 A 056361/F Close the gate valve. Should the valve gate hit the trans- ducer, re-open it and pull the trans- ducer further up until it clears the gate. Close the gate again. 8. Check that the handwheel is in the fully closed position.
Page 252 056361/F SRD 500 A 13. Remove the nuts and bolts securing the sea chest cap to the gate valve. 14. Separate the cap from the gate valve. Should the cap be stuck to the valve, screw two of the existing bolts into the threaded holes in the cap flange and “jack”...
Page 253: Installing The Replacement Transducer
SRD 500 A 056361/F Installing the Replacement Transducer 19. Clean old grease off the top flange of the gate valve. 20. Apply a fresh coat of silicone grease (S) to the new gasket from the replacement parts kit and put the gasket onto the gate valve.
Page 254 056361/F SRD 500 A 26. Control the gate valve and check that the gate wedge is free of dirt or grease. 27. Carefully lower the transducer with cap into the gate valve until it rests on the gate wedge. 28. Close the petcock at the back of the gate valve.
Page 255 SRD 500 A 056361/F 33. Open the gate valve. Make sure that the handwheel is in the fully open position. 34. Lower the transducer into the sea chest so that it is fully seated against the shoulder of the orkot sleeve. Wiggle the transducer while pushing it down to dislodge false seating.
Page 256 056361/F SRD 500 A 36. Remove the transducer clamp from the stem. 37. Apply a light coating of thread lubri- cant (T) to the two threaded rods. 38. Install the threaded rods into the sea chest cap and secure each of them with a nut and washer.
Page 257: Chapter 13: Corrective Maintenance - Eu And Cdu
The NAVIKNOT electronics unit and the NAVIKNOT CDU are generally not field-serviceable on the component level. Defective devices must be sent back to Sperry Marine for repair. The only corrective maintenance procedures which may be performed by field service personnel are updates of the system software in the NAVIKNOT electronics units and/or the CDU(s) and in the SRD 500 Dop- pler EU.
Page 258: Cdu Sw Version Check
056361/F NAVIKNOT CAUTION Risk of loss of parameter settings through software update It cannot be guaranteed that parameters settings in the User and Setup menus and the currently active manual settings are left intact during the software download. Before exchanging the flashboard or performing a software update via SUSI, record all settings to be able to re-enter them manually, if required.
Page 259: Naviknot Electronics Unit Sw Version Check
NAVIKNOT 056361/F NAVIKNOT Electronics Unit SW Version Check 1. Get access to the Maintenance Menu 1 (electronics unit mainte- nance) by calling up the Main Menu, and selecting the Service Setup. 2. Enter the Service Setup Code 140, select „EU VERSIONS“ and press ENTER.
Page 260: Updating The Cdu Software Via Susi
The CDU software update can only be carried out with a special RS-232 connection cable, to connect to the receptacle on the CDU PCB. Always check that the correct Sperry Marine cable is available and that the cable is undamaged before executing the CDU software update.
Page 261: Update Procedure
For the update of the CDU software, it is mandatory to have the SUSI application installed on a PC or laptop. The required update files from Sperry Marine must be downloaded and stored at a convenient location on the same PC or laptop where the SUSI application is installed.
Page 262 056361/F NAVIKNOT 4. Plug in the RS-232 connection cable at the PC and at the service port of the respective CDU PCB (J2 at CDU 5002, J5 at CDU 5001). 5. Start up the PC and execute the SUSI application. You will be prompted for a login PIN: 6.
Page 263 NAVIKNOT 056361/F WARNING Risk of misusage Operating the SRD 500 system with a constantly muted CDU (jumper removed from respective CDU PCB) voids the alert functionality of the system resulting in unsafe and non conformable operability. Removing the jumper to mute the CDU is ONLY allowed to TEMPORARILY mute the system when in software update mode.
Page 264 056361/F NAVIKNOT 11. Click the “Online” button at the top of the screen or press F9 to open the COM port. The LED symbol next to the button should now change its colour from grey to orange: Note In the Update Flash mode, the orange LED symbol only indicates that SUSI has acquired control of the selected COM port.
Page 265 NAVIKNOT 056361/F 13. In SUSI‘s update tab, click to initiate the update. LEDs CR6, CR7 and CR22 on the electronics unit PCB will light up alternately while the software is being updated. The bargraph at the bottom of the screen indicates the progress of the update: 14.
Page 266 056361/F NAVIKNOT 18. Quit the Maintenance Menu. 19. Make sure to install the jumper at the respective CDU PCB (jumper J1 at CDU 5002, jumper J6 at CDU 5001) in case it has previ- ously been removed to mute the continuous beeping of the CDU during software update mode.
Page 267: Updating The Eu Software With A Flashboard
This allows both to upgrade to newer and to downgrade to previous releases by simply exchanging the flashboard. Important bugfix releases or software improvements will be announced to service representatives and customers via Sperry Marine Hamburg service bulletins. Following a new software release, existing stocks of flashboard 20793...
Page 268 056361/F NAVIKNOT 6. Insert the new flashboard into the socket. Secure the flashboard with the plastic pin. CAUTION Irrevocable data loss through power interrupts Interrupting the power-up process or disconnection from the power sup- ply after an exchange of the flashboard will lead to irrevocable data loss to the system.
Page 269 NAVIKNOT 056361/F 16. Reassemble the electronics unit cover. 17. To finalize the procedure, power down and power up the NAVIKNOT system.  The NAVIKNOT electronic unit software update is now complete. Updating the EU Software with a Flashboard 13-13...
Page 270: Updating The Eu Software Via Susi
Sperry Marine Hamburg service bulletins. Following a new software release, Sperry Marine will provide the required Sperry Universal Service Instrument (SUSI) application together with the electronics unit update files in one zipfile following the naming convention: „SUSI Rev 1.xxx with updates DD.MM.YYYY“...
Page 271: Update Procedure
5. You will have obtained an update file (hex file) from Sperry Marine. Save this file at a convenient location on the computer, where it is easily retrieved.
Page 272 056361/F NAVIKNOT 9. SUSI’s main window opens, with the “application” tab displaying a list of supported devices: 10. Power up the NAVIKNOT system now, while keeping button K1 on the electronics unit PCB pressed. This will prevent the device from entering normal operation and put it in the software update mode.
Page 273 NAVIKNOT 056361/F 12. Press to quit the setup dialog. SUSI‘s update tab opens automatically, displaying the Update Flash mode controls: 13. Click the “Online” button at the top of the screen or press F9 to open the COM port. The LED symbol next to the button should now change its colour from grey to orange: Note In the Update Flash mode, the orange LED symbol only indicates that...
Page 274 056361/F NAVIKNOT 14. Click to call up the file open dialog. Then, navigate to the update file, select it in the dialog and click Note The file open dialog searches for files with the extension “.hex” only. In case the update file has been given another extension for any reason, the filename, including the complete access path, must be entered manually in the respective text box of the update tab.
Page 275 NAVIKNOT 056361/F 17. Upon completion of the update, a message should appear on the screen, indicating that the software has been successfully updated. 18. The NAVIKNOT system will automatically change to the normal operational mode with the new software. 19. Call up the Main Menu and go to the Service Setup. When prompted for the setup access code, enter „140“...
Page 276 056361/F NAVIKNOT 28. Remove the USB or RS-232 connection cable from the PC and from the electronic unit‘s service port (USB = J5, RS-232 = J4). 29. Reassemble the electronics unit cover. 30. To finalize the procedure, power down and power up the NAVIKNOT system.
Page 277: Srd 500 Doppler Eu Update
NAVIKNOT 056361/F 13.5 SRD 500 Doppler EU Update Downloading Firmware into the SRD 500 Doppler EU If a new version of the SRD 500 Doppler EU firmware is released, exist- ing systems may be updated by downloading the new firmware from a PC into the SRD 500 Doppler EU via a parallel connection.
Page 278 10. If you have installed a new firmware version, further activities may be required to put the system back into normal operation. Upon release of a new firmware, Sperry Marine will provide specific instructions on how to update existing systems.
Page 279: Chapter 14: Srd 500 Doppler Eu Utility Software
SRD 500 A 056361/F Chapter 14: SRD 500 Doppler EU Utility Software For the installation, maintenance and service of the SRD 500 Doppler EU, several software tools are included on a 3.5’’ diskette in the SRD 500 Test Kit, 03956-1813672. The current version 1.7 of the SRD 500 Utility Software comprises the following software tools: •...
Page 280: Installing The Srd 500 Doppler Eu Utility Software
056361/F SRD 500 A 14.1 Installing the SRD 500 Doppler EU Utility Software To install the utility software on a laptop or personal computer (PC): 1. Create a directory on the PC where the tools are to reside, e.g.: C:\SRD500. 2.
Page 281: The Bbtalk Program
SRD 500 A 056361/F 14.2 The BBTalk Program BBTalk is a terminal emulator program which can be used for serial communications in either ASCII or binary mode. BBTalk is used to put the SRD 500 Doppler EU into the maintenance mode.
Page 282: Launching Bbtalk
056361/F SRD 500 A Launching BBTalk To launch BBTalk: 1. Change to the working directory where BBTalk resides. 2. Double-click on the BBTalk icon to launch the program. 3. BBTalk opens with an empty window and a dialog box pops up, prompting for an “ADCP”...
Page 283 SRD 500 A 056361/F To connect to one of the SRD 500 Doppler EU’s Aux ports: – Set the parameters as required to match to the Aux port’s current configuration. Click “Next” to continue. 5. Lastly, a dialog box prompts for optional settings: Click “Finish”...
Page 284: Bbtalk Commands
056361/F SRD 500 A BBTalk Commands The available commands are accessible via the BBTalk menu bar. The most frequently used commands are also accessible via the icons in the “toolbar” and/or via keyboard shortcuts. or Ctrl+N Opens a new connection. or F8 Connects to the SRD 500 Doppler EU.
Page 285: The Autotest Program
SRD 500 A 056361/F 14.3 The Autotest Program Autotest is a DOS executable, which helps to reduce installation and troubleshooting time by providing automated diagnosis of the SRD 500 Doppler EU and transducer failures. Autotest runs under the DOS operating system or inside a DOS com- mand shell under Windows.
Page 286: Setting Up The Hardware For Autotest
056361/F SRD 500 A Setting Up the Hardware for Autotest 1. Make sure that the AC supply power is available at the SRD 500 Dop- pler EU, TB6, but that the power switch SW1 is set to the OFF posi- tion.
Page 287 SRD 500 A 056361/F Check that all setup requirements are met. In particular, make sure that the jumpers are set to enable display override and to disable the watchdog and that the Master Display Unit (i.e. the NAVIKNOT electronics unit) is disconnected from termi- nal block TB3.
Page 288: Monitor Program
056361/F SRD 500 A 14.4 Monitor Program “Monitor” is a DOS executable, which can be used to view system per- formance in real-time and to collect and play back data files captured from the Aux1 or Aux2 serial ports of the SRD 500 Doppler EU. It is useful especially to collect data while the system is in the normal operational mode, e.g.
Page 289 SRD 500 A 056361/F Online-Help Options (F1): Table 14-2: Clear statistics Online-Help options Default display Toggle graph (prof/err/ship) Toggle test (test/NB Data) Recording start/stop alt + X Exit Space bar Graph select Arrow-keys Move graph data Plus/Minus keys Change the scale Playback Options: Table 14-3: Delay 0-2 Seconds...
Page 290: Monitoring System Performance In Real-Time
056361/F SRD 500 A Monitoring System Performance in Real-Time The SRD 500 A Dual Axis Doppler Speed Log can transmit data in binary format via auxiliary serial ports (RS-232 and RS-422) of the Doppler Elec- tronics Unit. To monitor system performance in real-time and collect data, a PC or laptop is required.
Page 291 SRD 500 A 056361/F Data Capture using the Monitor Program While the Monitor program is running, it can be used to collect binary format data from Doppler Electronics Unit's Aux1 and/or Aux2 serial ports.This data can later become played back (refer to ‘Data Playback using the Monitor Program”...
Page 292 056361/F SRD 500 A Figure 14-5: BBTALK DOS window Note Note the list of commands at the bottom of the window shown in figure 14-5 and table 14-4. Table 14-4: ? (Help) Bottom line commands Script ASCII COM1: baud rate Save Break alt + X...
Page 293 SRD 500 A 056361/F Data Playback using the Monitor Program The data collected by the Monitor program can be played back by engi- neers for system performance evaluation, troubleshooting, and other engineering purposes. 1. Change to the directory where the Monitor.exe program resides. 2.
Page 294 056361/F SRD 500 A 14-16 Monitor Program...
Page 295: Chapter 15: Docking Information Display
SRD 500 A 056361/F Chapter 15: Docking Information Display 15.1 Using DIB10 Display with the SRD 500 A System The DIB10 “Docking Information Display” by EMRI provides simultane- ous indication of the vessel’s longitudinal speed, transverse speed at the bow and transverse speed at the stern. The operator may select between bottom and water speed modes and may choose the speeds to be displayed in knots or m/s.
Page 296: Input Data Sources
056361/F SRD 500 A 15.2 Input Data Sources The DIB10 possesses three data input channels from which it may read serial data in the NMEA 0183 format (IEC 61162-1). The SRD 500 A is normally connected to the first channel, to provide longitudinal and transverse speeds at the location of the transducer.
Page 297: Operating Key Pad
SRD 500 A 056361/F 15.4 Operating Key Pad The DIB10 is delivered with the TKM remote key pad, which is required to dim the display brightness and to access the display and parameter setup modes. Optionally, a dimming potentiometer may be installed. Figure 15-4: TKM remote key pad Arrow-up key...
Page 298 056361/F SRD 500 A Water/Bottom Speed Preference Press the arrow-up key to select water speed or press the arrow-down key to select bottom speed as the preferred speed type. WATER During normal operation, the “WATER” or the “BOTTOM” indication is lit, depending on the BOTTOM actual speed being used.
Page 299: Initial Configuration
SRD 500 A 056361/F Note The currently active operating mode settings are not retained between power-ups. To make changes permanent, call up the parameter setup mode and store the setup parameters (see ‘Storing the Setup Parameters” on page 15-8). This will also save the operating mode settings as power-up defaults.
Page 300 056361/F SRD 500 A Distance from GPS antenna to bow Sets the distance (in metres) from the GPS antenna to the vessel’s bow. This parameter is relevant only if GPS data is supplied to the DIB10. The current distance value is shown in the top increase display row.
Page 301 SRD 500 A 056361/F HDT filtering time constant Sets a filtering time constant (in seconds) to smoothen fluctuations of the rate of turn calcu- lated from incoming heading data ($xxHDT sen- tence). This parameter is effective only if the forced use of $xxROT is turned off. increase The current time constant value is shown in the bottom display row.
Page 302 056361/F SRD 500 A Aft station mode Selects or de-selects the aft station mode. In this mode, the bow and stern transverse speed displays are flipped and the directional indica- tions reversed, for mounting the DIB10 e.g. at an aft bridge or steering station. The current setting (ON or OFF) is shown in the bottom display row.
Page 303: Chapter 16: Spare Parts
SRD 500 A 056361/F Chapter 16: Spare Parts Exchangeable Components Table 16-1: Spare Part Name Stock No. Exchangeable CDU (Control and Dis- 073506-0000-000 system components and play Unit), type 5001 spare parts Blind panel 1x1 030658-0000-000 Blind panel 3x1 027287-0000-000 Electronics Unit (EU), 073510-0000-000 type 5003...
Page 304 056361/F SRD 500 A 16-2...
Page 305: Abbreviations
SRD 500 A 056361/F Abbreviations Note The following list contains general abbreviations and shortcuts used in this manual and in displayed text of CDU menus. 1x1 frame Standard frame 96x96 mm 6 step/° scale measure setting of servomotor A/DO-160 Section A, DO-160E, Environmental Conditions and Test Procedures for Airborne Equipment Acknowledge alarms Actual distance over bottom as measured by the refer-...
Page 306 056361/F SRD 500 A cal. no. s. Calibration numbers CCFL Cold Cathode Fluorescent Lamp Control and Display Unit Course over ground COMP Compass Comp. Mon. Compass monitor CONST. Constant contd. Continued CORR. Correction cos. Cosine Carriage return D00 - D32 (D-Code, = Fault code) Digital analogue converter Decibel NMEA sentence for dimmimg commands...
Page 307 SRD 500 A 056361/F NMEA sentence for transmitting water depth (depre- cated) dwg. drawing East ECDIS Electronic Chart Display and Information System Extended capabilities port, mode of PC parallel port Environmental conditions EM-Log Electromagnetic (speed) log European Norm Extended parallel port, mode of PC parallel port ERR.STAT.BITS Validity check of fiber-optic sensor data status Electrostatic discharge...
Page 308 056361/F SRD 500 A Germanischer Lloyd Geographic position - latitude/longitude GMDSS Global Maritime Distress and Safety System Ground GNSS Global Navigation Satellite System Global Positioning System Global Positioning System GPS/AIS Global Positioning System / Automatic Identification System Gross tonnage Heading control system Heading, Magnetic Hdg.
Page 309 SRD 500 A 056361/F International Maritime Organization Inertial Measurement Unit Integrated navigation system INT HDG ONLY Internal heading only INT/EXT HDG Internal or external heading IPSU Interface and power supply unit International Organization for Standardization Jack (connector) Kalman Filter Knot Knot Knot Knot...
Page 310 056361/F SRD 500 A Milliampere Milliampere Magnetic Mag Hdg. Inp. Magnetic heading input MAGN. Magnet Magn. Cal. Tab Magnetic compass calibration table Magn. DEV Magnetic deviation Magn. VAR Magnetic variation MAN. Manually MarED Marine Equipment Directive max. Maximal Marine Equipment Directive Minute min.
Page 311 SRD 500 A 056361/F Nautic mile Newton meter Nautic mile NMEA National Marine Electronics Association NMEA NMEA format 4800 Bd NMEA $--HDG NMEA $--HDG sentence NMEA $--HDM NMEA $--HDM sentence NMEA $--HDT NMEA $--HDT sentence NMEA Sup.FAST SuperFAST serial data output NMEA-GGA NMEA-GGA sentence NMEA-GLL...
Page 312 056361/F SRD 500 A PLCC Plastic leaded chip carrier Position POSITION N No position PPLAI Proprietary sentence for dimming commands PPLAK Proprietary sentence for log status information Quicc QUad Integrated Circuit Controller Rudder angle calibrator Rudder angle indicator Random Access Memory Ref.
Page 313 SRD 500 A 056361/F Satnav Satellite navigation S/FAST M. Outp. Superfast / fast data output of magnetic heading SAT-Log Satellite (speed) log sc. Factor Scale factor Steering control unit SDD12 Repeater format for transmitting water speeds SDD12 REP . SPD SSD12 Repeater speed selection Second SENS.D.M.OUTP .
Page 314 056361/F SRD 500 A Transmitting heading system Transmitting magnet compass TMC function Transmitting magnet compass function TSS1 TSS1 protocol; Heading, pitch, roll, and heave mes- sage in the commonly used TSS1 message format Transistor-transistor-logic TxD NMEA FAST Fast serial data output UART Universal asynchronous receiver transmitter Universal digital repeater...
Page 315 SRD 500 A 056361/F with W/DO-160 Section W, DO-160E, Environmental Conditions and Test Procedures for Airborne Equipment without X rate Roll rate X/Y rates Roll and pitch rates Y rate Pitch rate Z/DO-160 Section Z, DO-160E, Environmental Conditions and Test Procedures for Airborne Equipment Abbreviations...
Page 316 056361/F SRD 500 A...
Page 317: Appendix
Note After installation of the SRD 500 A, please return a filled-out copy of the Setup Table to Sperry Marine for inclusion in the ship’s file. When permanent changes are made to the system configuration, please return an updated copy of the Setup Table to Sperry Marine.
Page 318 All appended documents and drawings are revision-controlled sepa- rately at Sperry Marine. In case of doubt, verify the current revision status of the drawings with Sperry Marine. This manual’s revision status does not change when the revision of an appended document or drawing changes.
Page 319 RS-422 OUTPUT 1-3 PROTOCOL NMEA SSD12 MESSAGES NMEA 1-3 Alert Messages BAUDRATE NMEA 1-3 PPLAK 4800 Baud 9600 Baud ALF/ALC/ARC VLW extended 38400 Baud Northrop Grumman Sperry Marine B.V. (Representative Ofﬁce) Woltmanstr. 19, 20097 Hamburg, Germany Tel.: +49-40-29900-0, Fax: +49-40-29900-298, E-mail: service.de@sperry.ngc.com...
Page 320 SWITCHES SRD 500 EU Dip-Switch Settings 3.1 - 3.8: PROP. BAM ALERTS Proprietary BAM alert setting ESCALATION TIMEOUT Value (s): Northrop Grumman Sperry Marine B.V. (Representative Ofﬁce) Woltmanstr. 19, 20097 Hamburg, Germany Tel.: +49-40-299 00-0, Fax: +49-40-299 00-298, E-mail: service.de@sperry.ngc.com...
Page 321 Elapsed Error Engine Wind Wind Run # Time Heading Speed Direction SOG /STW Average Error SOG (%): Average Error STW (%): Remarks: Northrop Grumman Sperry Marine B.V. (Representative Ofﬁce) Woltmanstr. 19, 20097 Hamburg, Germany Tel.: +49-40-29900-0, Fax: +49-40-29900-298, E-mail: service.de@sperry.ngc.com...
Page 348 Sperry Marine Service: www.sperrymarine.com/offices Northrop Grumman Sperry Marine B.V. (Representative Office) Woltmanstr. 19 • D-20097 • Hamburg, Germany Tel.: +49-40-299 00-0 • Fax: +49-40-299 00-146 • E-mail: service.eu@sperry.ngc.com...
