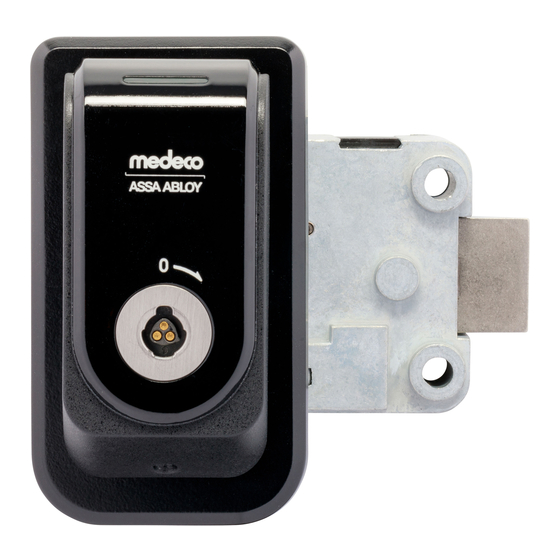

Summary of Contents for Medeco XT Safe Lock Series
- Page 1 Medeco ® Intelligent Key System Medeco XT Safe Lock Installation Guide ®...
- Page 2 Medeco XT Safe Lock Installation Guide FCC/CE Compliance Statement Medeco XT Safe Lock Models EA-100206, EA-100207, and EA-100208 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
-
Page 3: Table Of Contents
What Tools are Needed? ..............................7 Before you Begin ................................7 Installation Type ................................7 Installing your Medeco XT Safe Lock .......................... 8 Installation – All Lock Bolt Configurations ........................ 8 Installation – Dead Bolt & Spring Bolt Lock Configurations ................9... -
Page 4: Getting Started
The Medeco XT Safe Lock Installation Guide provides the steps and important information required to successfully install your XT Safe Lock. The Medeco XT Safe Lock User Guide is also available and provides feature, benefit and usage information not contained in the installation guide. A third guide, Configuring Your Medeco XT Safe Lock, is available for dealers or distributors to provide instructions for setting the functional mode and installing the tamper proof security seal. -
Page 5: Xt Lock - Configuration Setting Label & Security Seal
XT Lock – Configuration Setting Label & Security Seal Your Medeco XT Safe Lock includes a Functional Mode Selection label to indicate the configured mode of the XT Safe Lock. There are three functional modes that an XT Safe Lock can be configured to: •... -
Page 6: What Is Included In The Box
Medeco XT Safe Lock Installation Guide What is Included in the Box? The following parts are included. Medeco XT Safe Lock Reader Product Box Part Name Part Number Reader port EA-100209 Reader port outer housing EA-100214 Escutcheon EA-300214 Mounting plate CP-183170 #6-32x3/8"... -
Page 7: What Tools Are Needed
Medeco XT Safe Lock Installation Guide What Tools are Needed? You will need the following tools to complete the installation of your Medeco XT Safe Lock. • Hacksaw • Metal file • #2 Phillips head screwdriver • Tape measure or scale with fractional increments... -
Page 8: Installing Your Medeco Xt Safe Lock
Medeco XT Safe Lock Installation Guide Installing your Medeco XT Safe Lock Installation – All Lock Bolt Configurations Information on the pre-drilled holes This installation guide assumes that your door has a pre-drilled common vault door hole pattern and a 3/8”... -
Page 9: Installation - Dead Bolt & Spring Bolt Lock Configurations
Medeco XT Safe Lock Installation Guide Installation – Dead Bolt & Spring Bolt Lock Configurations Warning – Security Seal If the security seal is not affixed to the lock assembly case or if the seal is damaged or broken, you should not install the lock, but instead contact your dealer. - Page 10 Medeco XT Safe Lock Installation Guide 6. Install the spindle insert into the spindle pocket on the lock assembly, ensuring that the long side of the spindle insert is parallel to the long side of the mounting plate. 7. Being careful not to drop or unseat the spindle insert, temporarily install the lock assembly on the inside of the safe door.
- Page 11 Medeco XT Safe Lock Installation Guide 11. Remove the marked spindle from the door and cut the single D end of the spindle at the marked length. Information on determining spindle length The spindle must be cut to the desired length relative to the overall safe door thickness, including any additional plates that would space the lock off from the inside of the door.
-
Page 12: Installation - Swing, Dead & Spring Bolt Lock Configurations
Medeco XT Safe Lock Installation Guide 17. Remove the lock assembly you temporarily installed in step 7 from the inside of the safe door, being careful not to lose the spindle insert. 18. Set aside the lock assembly, spindle assembly, and spindle insert for later reinstallation. - Page 13 Medeco XT Safe Lock Installation Guide 4. If you are using a dead bolt or swing bolt lock, you must insert the spindle adaptor and spindle assembly into the rear of the Reader assembly, as shown in Figure 6. Information on the spindle adaptor drive pins The drive pins on the spindle adaptor have different diameters and must be placed in the corresponding sized holes on the back of the Reader assembly.
- Page 14 Medeco XT Safe Lock Installation Guide FIGURE 7 7. Align the two extending tabs at the back of the Reader assembly with the two slots in the escutcheon to properly insert the Reader into the escutcheon, as shown in Figure 8.
- Page 15 Medeco XT Safe Lock Installation Guide FIGURE 9 9. After the Reader is attached to the safe door, carefully pull the cable to remove any slack that remains inside the Reader assembly. Information on viewing the cable You can view the cable through the battery slot in the front of the Reader.
- Page 16 Medeco XT Safe Lock Installation Guide FIGURE 10 12. You should now insert any XT key into the installed Reader to perform a mechanical rotation test. • Test clockwise rotation for proper free movement (102 degrees). • Ensure that the green, red and black wires in the Reader are not inhibited or restricted during clockwise testing of rotation.
- Page 17 Medeco XT Safe Lock Installation Guide 14. Install the spindle insert onto the double D end of the spindle. See Figure 3. 15. Install the lock assembly on the inside of the safe door. Information on cable assembly The cable assembly was previously positioned to bend down as it exits the split bushing as shown in Figure 10.
- Page 18 28. Installation of your XT Safe Lock is now complete. Information on installation questions If you have any questions or issues regarding the installation of your Medeco XT Safe Lock, contact the online Technical Service chat line or call 800-548-8472.
