ARDI
SERVICE AND PARTS MANUAL
File name: ARDI Service Manual.pub
Last revised: March 6th 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARDI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alfresco ARDI

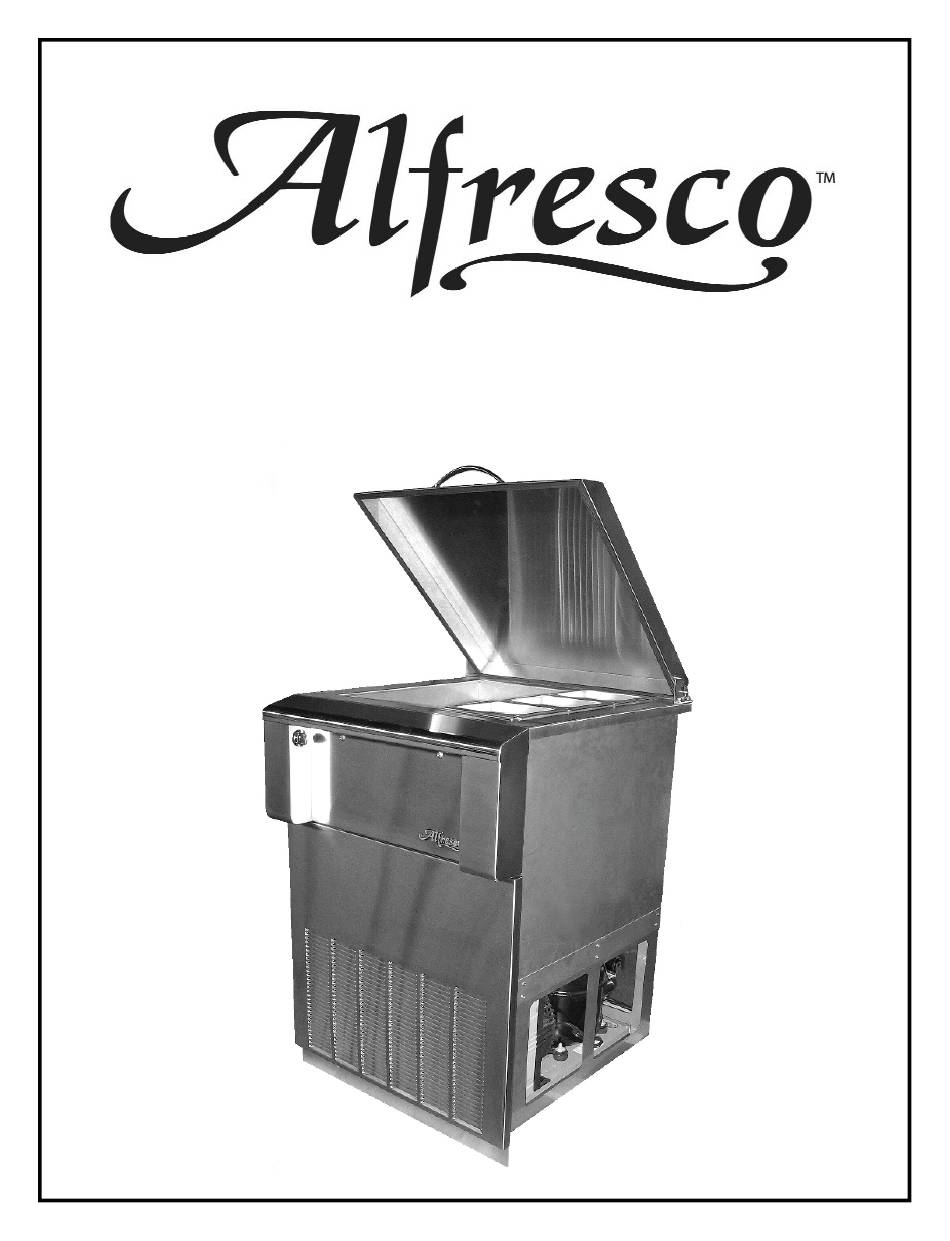

  • Page 1 ARDI SERVICE AND PARTS MANUAL File name: ARDI Service Manual.pub Last revised: March 6th 2009...
  • Page 2 TROUBLESHOOTING AND SERVICE GUIDE The following is intended as a brief service guide, designed to diagnose most common problems. It is intended to be used only as a guideline. Should the unit require replacement of components, those components must be replaced by a trained and licensed refrigeration professional. While the unit is within the factory warranty period, all repairs require factory authorization before the work is performed.
  • Page 3 PERFORMANCE ENVELOPE: The ARDI has a performance envelope up to 110°F ambient temperature. This means that the unit is capable of maintaining an internal cabinet temperature of between 22°F and 40°F when exposed to 110°F ambient air temperature. In order to maintain the internal cabinet temperatures stated above, the unit will operate without shutting off when the ambient air temperature exceeds 85 to 90°F These peak temperatures occur at least for a few hours per day in hot weather...
  • Page 4 ARDI SERVICE PARTS LIST: The following is a list of all components and or hardware that are serviceable on the URS-1 refrigerator unit. Please refer to the picture and associated text for reference and identification. REFRIGERANT COMPRESSOR 260-0055 SAFETY OVERLOAD...
  • Page 5 ARDI SERVICE PARTS LIST CONTINUED: Power Cord Main Power Switch 210-0287 210-0021 Strain Relief 200-0009 Used to secure power cord Refrigerator Control 210-0551 Food Pan 1/6 x 4 290-0162 Pan Holder 130-1043...
  • Page 7 ARDI SERVICE DATA: ELECTRICAL: VOLTAGE: 115 VAC • FREQ: 60 Hz • PHASE: 1 • AMPS: 6.0 • RLA: 5.3 • LRA: 29.0 • MCA: 7.0 • REFRIGERATION: REFRIGERANT 134A (13OZ) SUCTION PRESSURE @ TEMP. ACCEPTABLE RANGE: 12 - 21 PS I (COIL TEMP. 10°F - 24°F) 18 PSI @ 20°F...
