Bastl Instruments bitRanger Getting Started page 6

CASPER ELECTRONICS
INSTRMNTS
OVERRIDE
LEFT RIGHT
LFO VCO
BEND
RATE
BEND
HARD FREEZE
Y
SYNC
B
1
LFO CV VCO CV
+ – o
XOR
CLK IN CONN 1
MUX1
DATA
DIVIDER BITS
A
ADVENTURE BITS
B
MODE

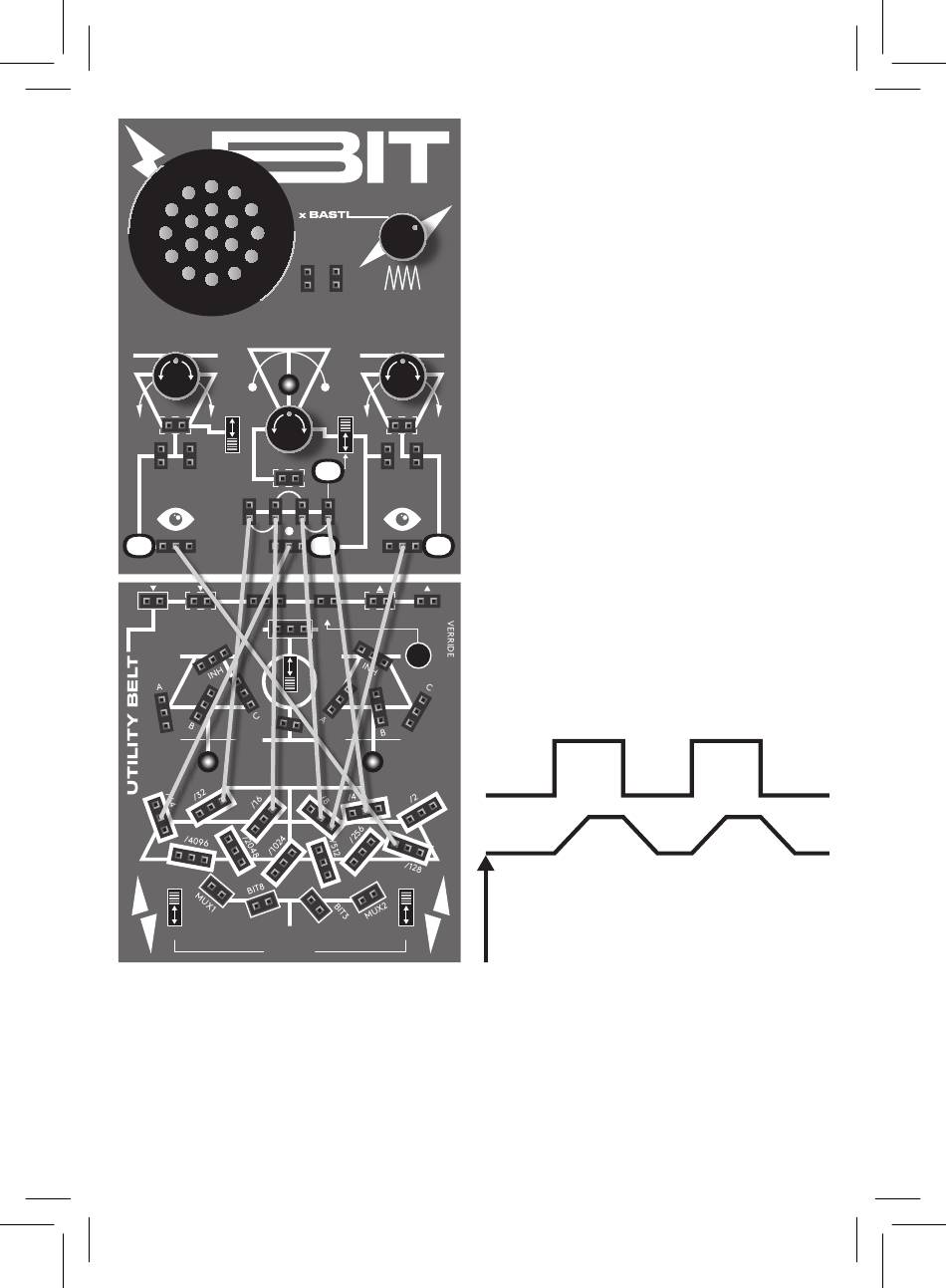

CV PATCHING
Use the bits as voltage
sources to control the
frequency of the three
voltage controlled
oscillators.
1 CV
(control voltage) [inputs]
VOLUME
The inputs in each of these sockets are
HFO
"weighted" from left to right, meaning
that the left most input (per socket) has
the weakest effect while the rightmost
has the strongest.
BEND
LFO: Change the rate of the LFO.
2
Higher voltage = higher rate.
VCO HFO
Works best with low frequency signals
T
SYNC
E
(such as /64 and up from the divider bit
section).
1 1
HFO CV
VCO: Change the pitch of the VCO.
Higher voltage = higher pitch.
RESET
CONN 2 CLK OUT O
This is a slewed input meaning that
MUX2
changes to the pitch will be gradual.
cv input
I
II
pitch change
