- Page 1 HYDRA MICROPHONE PRO USER MANUAL...

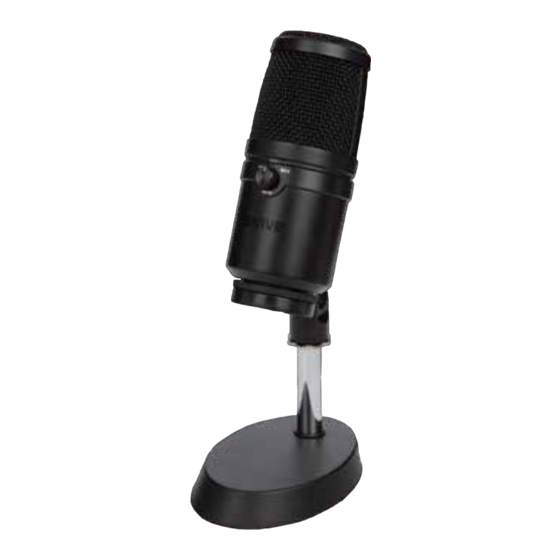

- Page 2 Thank you for purchasing SVIVE HYDRA MICROPHONE PRO. Please read the manual before using. Keep this manual handy for future reference. FEATURE • USB 2.0 • Headphone Volume control knob; Press to Mute Microphone • Music/Monitor select switch • Zero latency in real time monitoring •...
-
Page 3: Package Contents And Accessories
PACKAGE CONTENTS AND ACCESSORIES Desktop USB Condenser Microphone with Headphone Output Microphone mount x 1 Base x 1 Metal shaft x 1 USB 2.0 high speed cable x 1 Ø3.8 x 2M USB 2.0 USB A Type to B Type plug (plated Ni) - Page 4 Insert the SVIVE HYDRA MICROPHONE PRO’s mounting threads into the microphone mount. Make sure the logo on the front of the SVIVE HYDRA MICROPHONE PRO is facing you when stand is tilted upward. (For optimal sound recording).
-
Page 5: Function Switches
Headphones output 3.5 stereo jack USB port Plug your headphones directly to the SVIVE HYDRA MICROPHONE PRO. Monitor your recording without the latency that often occurs when monitoring through the computer’s headphone jack. To monitor through your SVIVE HYDRA MICROPHONE PRO, plug you headphone into the back- side of the microphone. -
Page 6: Connecting To Computer
Windows Use the included USB cable to connect the SVIVE HYDRA MICROPHONE to your comput- er. Once the SVIVE HYDRA MICROPHONE is plugged in, the power LED on the front of the microphone will turn blue. Your computer will automatically detect the SVIVE HYDRA MICROPHONE, but it may not set it as default sound device. - Page 7 From the Sound window, you can; adjust the computer’s input and output volumes, adjust the stereo balance, and select to show the volume in menu bar. * SVIVE HYDRA MICROPHONE can be used on Microsoft Windows (all versions) & Mac OS 9 or above.
-
Page 8: Specifications
SPECIFICATIONS Type Side address condenser microphone Polar pattern Cardioid Sensitivity -60dB±5dB (1V/u bar) Frequency response 50Hz -18KHz Max sound pressure level 120 dB S/N ratio 59 dB... - Page 9 TYPICAL FREQUENCY RESPONSE CURVE Sinusoidal -20.0 CLIO -30.0 -40.0 -50.0 -60.0 -70.0...
- Page 10 Imported by SVIVE, Østre Kullerød 4, N-3241 Sandefjord, Norway...
