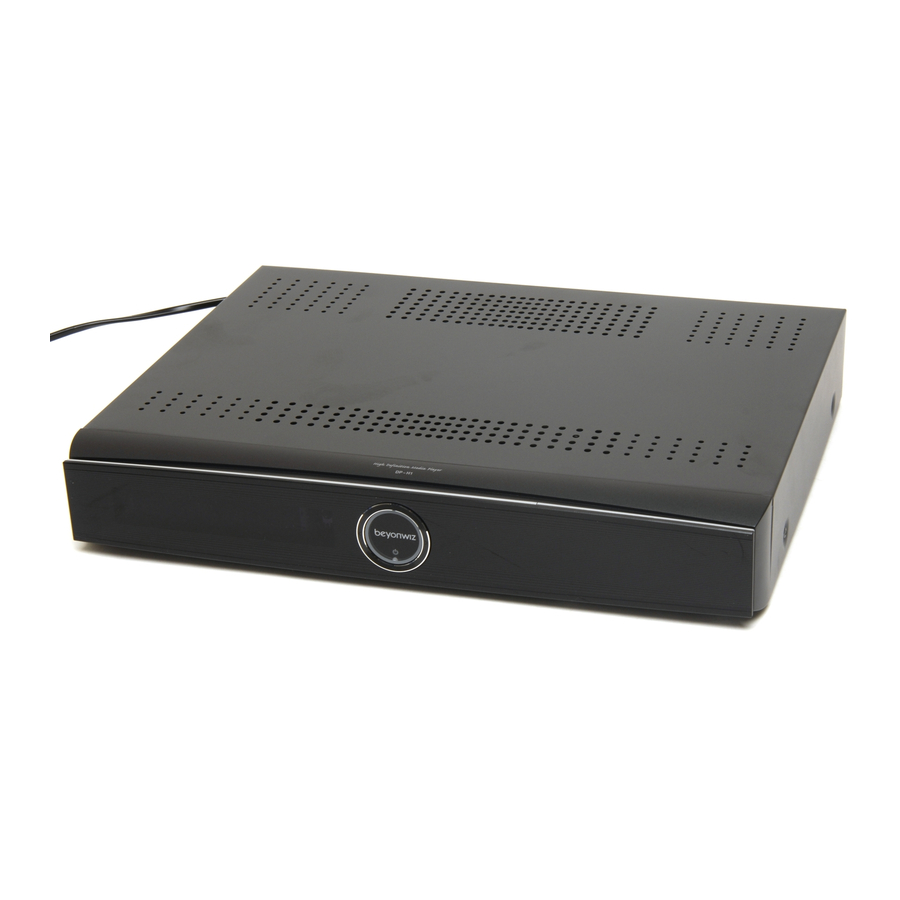

Beyonwiz DP-H1 User Manual

High-definition media player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DP-H1
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-H1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Beyonwiz DP-H1

  • Page 1 DP-H1 USER GUIDE...
  • Page 2 Contents...

  • Page 3: Welcome Message

    PC and Internet; the USB (Universal Serial Bus) ports and the networking feature combining with DivX playback, you can play any multimedia content in any storage device with no external device. With a DP-H1, you don’t need to bring your PC to your living room any more.

  • Page 4: Precaution

    Precaution Precaution Read this manual carefully before using this product. The cautions described below contain important information about safety, and are categorized into: Danger, Warning and Notice. The company will not be responsible for accidents or damage resulting from careless handling by the user.
  • Page 5 WARNING If the product is mishandled, the user might receiver a serious or minor injury. Damage or loss to the user’s property may also occur. The product must not be exposed to water or liquid. If the apparatus is exposed to drips or splashes, it might cause a problem that may not be repairable.
  • Page 6 Copyright This manual is protected by copyright laws. Copy, use, reproduction of this manual in part or whole without beyonwiz's prior written permission is prohibited. Disclaimer The manufacturers, distributors and agents are not liable to any kind of damage caused by the use of the information contained in this manual.
  • Page 7 This page intentionally left as blank.

  • Page 8: Table Of Contents

    Contents Contents Welcome Message Precaution 1. Package Contents 2. Introduction 1. DP-H1 Highlights 2. Front Panel 3. Rear Panel 4. Front Display Window 5. Remote Control 5-1. Operating DP-H1 5-2. Operating TV set 5-3. Remote Control HEXA Code 3. How to Connect 1.
  • Page 9 5. Edit Recording File 8. Internet Service 9. Advanced Setup 1. Miscellaneous 1-1. Favorite 1-2. OSD 1-3. Access Control 1-4. Preference 2. Management 2-1. F/W Upgrade 2-2. HDD 2-3. Initialize 10. Troubleshooting Guide Specification Warranty Conditions WEEE Information Contact Beyonwiz Contents...
  • Page 10 This page intentionally left as blank.

  • Page 11: Package Contents

    Package Contents The following elements are included in the gift box. Please check all package contents before using your product. DP-H1 User Manual RCA Audio/Video Cable Package Contents Remote Control Batteries of the Remote Control (AAA size x2) Component (Y/Pb/Pr) Video Cable...
  • Page 12 This page intentionally left as blank.

  • Page 13: Introduction

    Introduction 1. DP-H1 Highlights As a HD (High Definition) media player, the DP-H1 supports various ways of connecting to HD TVs and audio systems; HDMI port combining with HD video decoders, which support MPEG-2, MPEG-4, H.264 and WMV9, give you the true HD digital A/V environment. Moreover, by...

  • Page 14: Front Panel

    Introduction 2. Front Panel Five buttons are placed on the front panel. STANDBY Button: it switches the DP-H1 between the operation and standby modes. CHANNEL Buttons: the top and bottom parts of the circular button work as the channel-up and channel-down buttons.

  • Page 15: Front Display Window

    4. Front Display Window The front display window gives you easy way to check the status of the DP-H1. Lights when there is no time information. Lights when a timer recording is programmed in standby mode. Lights when the signal comes out via HDMI.

  • Page 16: Remote Control

    5. Remote Control 5-1. Operating DP-H1 In order to operate the DP-H1 with the enclosed remote control, please select STB mode by pressing the STB button. The red backlight beneath the STB button lights when you press a button in this mode.

  • Page 17: Operating Tv Set

    5-2. Operating TV set The enclosed remote control can also be used to control a TV set provided by major TV manufacturers. In order to operate a TV with the enclosed remote control, please select TV mode by pressing the TV button.
  • Page 18 NOTE If your TV brand is not listed on above, please visit the following website to get the correct code if available: www.beyonwiz.com.au. Your remote will not always be compatible with all branded televisions. If this remote doesn’t work or no code exists, please obtain the...

  • Page 19: Remote Control Hexa Code

    5-3. Remote Control HEXA Code The below picture and right table inform you to set your own remote control to operate the DP-H1. The coding system used for the DP-H1 is the NEC type. STANDBY 0xBE000AF5 EJECT 0xBE0040BF TV/RADIO 0xBE0055AA...
  • Page 20 This page intentionally left as blank.

  • Page 21: How To Connect

    If your TV does not support HDMI but has a DVI input, a HDMI to DVI converter can be purchased separately. (In this case, Audio signal output is disabled) If you do not have a High Definition display, you can connect the DP-H1 and A/V equipment via other connection options. 1-1. Video Connection To connect your DP-H1 to your TV or display, you have the following options;...

  • Page 22: Audio Connection

    How to Connect 1-2. Audio Connection To connect your DP-H1 to your TV or audio system, you have the following options; Only one connection can be done at a time. S/PDIF Digital Audio output (COAXIAL, OPTICAL) 5.1 CH Analog Audio output 2.

  • Page 23: Ethernet Connection

    An Ethernet cable. A PC with Windows XP operating system. As shown in the picture, you have to connect the DP-H1 to the router with an Ethernet cable included in the box. If you purchase a router with a DP-H1 and have no experience of connecting a router with a PC, please refer to user’s manual of the router and connect the DP-H1 to...

  • Page 24: Direct Connection To The Pc

    3-2. Direct Connection to the PC With this configuration, you can share contents with a PC through home network but the DP-H1 can not access to Internet. For this connection, the following equipment is required; A PC with Windows XP operating system.

  • Page 25: Direct Connection To Internet

    The most ISP (Internet Service Provider) services DHCP feature. Therefore, you can connect your DP- H1 to Internet with a crossed cable and enjoy it. If you have to configure your DP-H1 manually, please contact your ISP for more information.
  • Page 26 This page intentionally left as blank.

  • Page 27: Quick Setup

    Quick Setup This chapter guides you through the basic set up of the DP-H1 so that you can experience its basic feature. In order to enjoy the DP-H1 fully, please refer to Chapter 9. Advanced Setup. 1. Start Quick Setup If A/V and antenna connection is complete, press the STANDBY button to start.

  • Page 28: Quick Setup Of Video Output Format

    STB & PVR Function 1-1. Quick Setup of Video Output Format If the front display window indicates that the DP-H1 is ready to use but nothing displays on the TV screen, you have to adjust the format and resolution of the video output by pressing the TV-OUT button. The default video output is in a SD PAL (576i) format.

  • Page 29: Basic Operation

    1-2. Basic Operation 1) Enter and Exit Setup Menu You can enter the SET-UP MENU with the SET-UP button on the remote control and exit to the previous operation mode such as LIVE or FILE PLAY with the EXIT button. 2) Setup Menu Structure The SET-UP menu is grouped in four parts: CONFIGURATION, NETWORK, MISCELLANEOUS and MANAGEMENT.
  • Page 30 STB & PVR Function 3) How to Change Configuration In the setup menu, there are several ways to change the configuration. This manual explains how to change the configuration, here are three cases which are used frequently. Selection on a pop-up menu: You can choose an option on the pop-up menu.
  • Page 31 On-screen keyboard: If you need to input alphabetic characters, an on-screen keyboard will be displayed. You can move the cursor with the UP/DOWN/LEFT/RIGHT buttons and select the letters with the OK button. The YELLOW and BLUE buttons work as a space and backspace keys respectively.

  • Page 32: Configuration

    STB & PVR Function 2. Configuration 2-1. Time Setting Please set the current date and time. The date and time information will be the reference for the timer recording. Therefore, you have to configure the time and date information precisely. You can also select preferred date and time formats.
  • Page 33 NOTE Under the “AUTO” mode, the GMT information can be received automatically from DTV station when you turn on the DP-H1 and watch a program. Please note that some DTV stations don’t send the GMT information or send wrong information.

  • Page 34: A/V Output Setting

    2-2. A/V Output Setting You have to set the video and audio configuration according to your TV set. Please make sure the video and audio port of the DP-H1 is connected to your TV set. The A/V Output menu consists of two parts; the video output and the audio output.
  • Page 35 STB & PVR Function HDMI Video: If you set the HDMI output as Auto, the DP-H1 configures the best format of HDMI suitable for your TV set automatically. But some TV sets do not support the auto- configuration function.
  • Page 36 S/PDIF Output: Enables the digital audio output through the coaxial and optical ports. NOTE If you set the audio format as 2ch, the DP-H1 mixes down 5.1ch audio source to 2ch audio. If the content of a channel broadcasted has 2ch audio source, the DP- H1 can not expand the 2ch audio source to 5.1ch audio format.

  • Page 37: Service Scan

    Signal Quality Bar: Two horizontal bars indicate the signal quality of the start and end channels. The leftmost rectangular changes from black to yellow if the tuner locks the signal properly. DANGER IF THE ANTENNA IS PASSIVE TYPE, THE DC POWER WILL DAMAGE THE ANTENNA AND THE DP-H1 ITSELF.
  • Page 38 STB & PVR Function Start Scan: After selecting your scanning range, you can “start scanning”. Select Start Scanning and then press the OK button. On the screen, the scanning window appears and displays the process. Now, you are ready to watch live television by pressing the LIVE button. NOTE You can not select an end channel smaller than the start channel.

  • Page 39: Network

    STB & PVR Function 3. Network The DP-H1 supports an Ethernet interfaces. This section will guide you how to configure the network interfaces. 3-1. Ethernet Setting The first step is to enable the Ethernet interface. You can select this in the Network Device menu.

  • Page 40: Automatic Configuration

    STB & PVR Function 3-2. Automatic Configuration If you enable the Ethernet interface by selecting the “LAN” option on the “Network Device” menu, all the items to be configured for the Ethernet interface will be displayed. DHCP: If you want to get the all the configuration from the router and set automatically, please select the “Enable”...

  • Page 41: Manual Configuration

    The effective configuration of the Ethernet is always displayed as a pop-up window by pressing the GREEN button. To use the DHCP function for the DP-H1, your router should support the DHCP function. Please check the manual and the configuration of...

  • Page 42: Ice Guide

    STB & PVR Function 3-4. Ice Guide The DP-H1 supports IceTV service through the Internet. If you have an IceTV account, please set your account to utilize the service on your DP- Ice Guide: you can setup the way you get the EPG information; if you select “Enable”...

  • Page 43: Wizpnp

    The WizPNP enables to share the recording files with other beyonwiz products or PCs. The above picture illustrates how the WizPNP functions; If you set the DP-H1 as a WizPNP client, you can access to another beyonwiz product, which enables the WizPNP server, and play recording files on it.

  • Page 44: Windows Sharing

    ID and password to access. You also have to set account information to backup the recording files on the DP-H1 to the PC via network; the “Guest” account is not allowed to copy files to the shared folder.

  • Page 45: Stb & Pvr Function

    Chapter 6. File Playback Function. STB & PVR Function 1. Basic STB Function 1-1. Service Change 1) Change between TV and Radio Services You can watch TV services or listen to radio services with the DP-H1. The TV/RADIO button changes the operation mode.
  • Page 46 STB & PVR Function 2) Change Service with Service List The service list contains all the broadcasting services you can receive. You can get the service list as a pop-up menu by pressing the LIST button and select a service with the UP/DOWN buttons. Only the TV services will be listed under the TV service mode and only the radio services will be listed under the radio service mode.
  • Page 47 3) Other Ways to Change Service As in conventional TV sets, you can change a service which you want to watch or listen to in the following ways; Service Change with the CH+/CH- buttons: As you press the CH+ or CH- button, the next or previous service will be selected.

  • Page 48: Information Box

    STB & PVR Function 1-2. Information Box You can check the information of a service and the program using three information boxes; the information box contains specific information of a current service and program. The extended information box contains more details about the current program. And the recording information box shows the recording status.

  • Page 49: Volume Level Adjust

    1-3. Volume Level Adjust With the VOL+/VOL- buttons, you can adjust the volume level of the analog audio output. The MUTE button will turn off the analog and digital audio outputs. NOTE You can not control the volume level of the digital audio outputs if you set the audio format as “pass-through”.

  • Page 50: Subtitle And Teletext Service

    As the teletext service is optional, it does not mean that all TV programs include teletext information. The DP-H1 support teletext service by emulating a teletext interpreter. The TELETEXT button displays the teletext pages.

  • Page 51: Sleep Timer

    You can set the DP-H1 to turn off automatically at a specific time. Press the SLEEP button to set the timer. The DP-H1 will only turn off after a recording has finished even if you set it to turn off before the completion of the current recording(s).

  • Page 52: Service Edit

    STB & PVR Function 2. Service Edit 2-1. Service List Edit You can edit the service list if you want. The followings illustrate the editing functions you can use to edit a service list. Lock/Unlock: For your privacy, you can protect certain service from unauthorized access.

  • Page 53: Favorite Group

    2-2. Favorite Group Favorite group is your personal collection of TV or radio services. You can organize up to 20 groups including three default groups. 1) Favorite Group Edit Before you use the favorite service groups, you have to organize them. Please refer to Chapter 8.
  • Page 54 STB & PVR Function 4) Service Change on Favorite Group If you change services using the service list when you select a favorite group, the service list will show the services belong to that favorite group. You can change among these services on the list. If you want to exit from a favorite group and list up all services available in the service list, please press the BLUE button when the service list is displayed.

  • Page 55: Pvr Functions

    3. PVR Functions The DP-H1 does not include an onboard HDD. But it can support PVR functions such as time-shifting, recording and timer recording with an optional USB storage. You can also play the programs recorded in the USB storage. If you want to play a recorded program, please use the multimedia contents playback function with the FILE PLAY button on the remote control.
  • Page 56 STB & PVR Function You can jump to a certain position with the LEFT/RIGHT/UP/DOWN buttons. LEFT/RIGHT buttons skips and moves backward or forward 15 seconds at a time respectively. You can also jump to a certain position with these buttons: The anchor mark moves backward or forward while you are holding down the LEFT or RIGHT button respectively.

  • Page 57: A-B Repeat

    YELLOW button. A new anchor mark with “B” will be displayed and stat to play from “A” to “B” automatically. The DP-H1 will play A-B repeatedly until you press the YELLOW button and cancel it.

  • Page 58: Instant Recording

    STB & PVR Function 3-3. Instant Recording 1) Start Recording You can record the current service and store it in the USB storage instantly by pressing the REC button. The following picture shows options you can choose when you record a program. Duration: You can change the duration of recording with the LEFT and RIGHT buttons.
  • Page 59 “Current Program” and “All” have the same meaning. Therefore option “Current Program” does not appear. The star(*) mark on the file name indicates that the DP-H1 will assign the file name as the program name automatically. If you change the file name with a screen keyboard, the star(*) mark will be removed automatically.
  • Page 60 STB & PVR Function 3) Pause/Resume and Stop Recording If you want to skip recording for a certain period of time, i.e., commercial advertisements, please press the REC button while you are watching the recording service. Once a pop-up page appears, please press the PAUSE button. You can resume recording with the PAUSE button.
  • Page 61 You can stop the recording with the STOP button. You can change to the recording service with the OK button. The clock mark implies the recording comes from a timer recording. The DP-H1 can record two programs simultaneously but the programs should be broadcasted from the same channel.

  • Page 62: Timer

    You can set programs which you would like to record to USB storage. The timer function can also be used to turn on the DP-H1 and watch the set program according to your timer reservations. You can set up to a maximum 100 timers.
  • Page 63 2) Add New Timer To add a timer, please press the RED button to display a menu on the screen. A new pop-up window will appear to configure the timer. You can configure the following items with your preference for a new time record.
  • Page 64 STB & PVR Function Mode: If you would like to watch a certain program or transfer it to an external recorder instead of recording it to HDD, please choose “View” option with the LEFT/RIGHT buttons. If you want to record a program, please select “Record”...
  • Page 65 DP-H1 or not. If there is no confirmation to turn off, the DP-H1 will be turned off and go into standby mode. If you want to use the DP-H1 continuously, select “No” on the screen and press the OK button.

  • Page 66: Recording Conflict

    The DP-H1 can record two programs simultaneously but the programs should be broadcasted from the same channel. When you set a new timer, the DP-H1 checks if the new timer conflicts only with exiting timers: it does not check if the new timer conflicts with recordings set by instant recording option.
  • Page 67 2) When New Recording Starts If a new recording starts according to a timer while the DP-H1 records two programs simultaneously, the following pop-up will be displayed. There are two options you can choose if duplication occurs: you can stop one of the current recordings to let a new recording start. Else you can cancel the new recording or timer recording and let the current two recording finish properly.
  • Page 68 STB & PVR Function NOTE The new recording has higher priority than the existing recordings. Therefore, when a new recording starts it will stop one of the existing recordings, which ends earlier respectively, confirmation or cancellation. You may not notice the warning message so make sure you organize the timer list properly specifically if you are recording a very important program.

  • Page 69: Epg (Electronic Program Guide)

    The DP-H1 supports a full 7-day EPG provided as a subscription from IceTV. Please visit the IceTV website, www.icetv.com.au, to get your trial account and refer to Chapter 8 to organize it on your DP-H1. The DP-H1 supports two types of EPG interface which will be explained.

  • Page 70: Epg With Single Service

    STB & PVR Function 4-2. EPG with Single Service This EPG shows only one service at a time. You can change to the multiple-service EPG with the RED button. Programs are listed vertically by time. Therefore you can move cursor to the previous or next program with the UP/DOWN buttons.

  • Page 71: Service Change And Recording

    4-3. Service Change and Recording 1) Service Change If you want to change and watch a certain program, place the cursor on the program you want to watch and press the OK button. In this case, the thumb-nail screen will be changed and the time-shifting buffer will be refreshed.
  • Page 72 STB & PVR Function 3) Set timer recording If the cursor is placed on a future program, the REC button sets a timer and the colour of types changes to red to indicate that the program is reserved to be recorded. If a certain cell in the EPG has red colour, that program is reserved to be recorded.

  • Page 73: File Playback Function

    File Playback Function This chapter covers all functions regarding playing multimedia contents. The DP-H1 can play movie, music and photo files stored in the internal hard disk drive, PCs on the home network, USB storage devices, and memory cards. You can also play the recording contents in this mode.
  • Page 74 File Playback Function 2) Step 2: Select Storage With the UP/DOWN buttons, you can select a device to access. As you select a device, folders and files stored in that device will be listed on the screen. There are five icons on the left menu and each icon has the following meanings: HDD: You can access the internal hard disk drive by choosing “HDD”...
  • Page 75 The “PC” icon indicates the PC and the “STB” icon indicates the WizPNP server. USB: You can access any USB devices connected to the DP-H1 by selecting “USB” icon on the left menu. If there is more than one USB devices, all the devices will be listed on the screen.
  • Page 76 Each USB port can supply maximum of 500mA to the external device. Connecting devices consuming more than 500mA can damage the DP-H1 if there is no additional power supplier to the USB device. The USB device should be detached properly to prevent the DP-H1 from unstable operation or damage.
  • Page 77 3) Step 3: Exploring Folders and Files Once you select a content type, i.e., “Movie” and storage or device, i.e., “Network”, press the OK button to enter the list of folders and/or files (the file list). In the file list, the UP/DOWN buttons move the cursor upward or downward to select a folder or file.

  • Page 78: Contents Playback

    A certain movie content could not play as it depends on the content format. If you are recording a service, the playback of high-definition movie content can be limited. The DP-H1 plays the successive files in the same folder after playing a file unless you press the STOP button.
  • Page 79 1) Trick Mode Powerful trick-operation is supported while you watching a movie. PLAY button will display a time-bar. It changes to the normal playback mode while other trick mode is enabled such as PAUSE, FF or REW. PAUSE button will hold the picture until you play again with the PLAY button.
  • Page 80 YELLOW button. A new anchor mark with “B” will be displayed and stat to play from “A” to “B” automatically. The DP-H1 will play A-B repeatedly until you press the YELLOW button and cancel it.
  • Page 81 The DP-H1 automatically display subtitle when you play a movie with the OK or PLAY button.

  • Page 82: Music Playback

    You can play the previous or next file with the PREV or NEXT button. NOTE The DP-H1 plays all music files in a folder repeatedly unless you press the STOP button.

  • Page 83: Photo Playback

    2-3. Photo Playback To play photo files, please select the “Photo” icon on the top menu. Once the DP-H1 play a photo file, it will play all photos in the folder successively. Auto and Manual Slide Show: The default playback mode is auto but you can stop the auto-slide show with the PAUSE button and resume with the PLAY button.

  • Page 84: Play-List

    File Playback Function 2-4. Play-list The play-list is a personal collection of multimedia contents, which stores the list of files temporarily. You can organize a separate play-list for each media content type: movie, music and photo. 1) Add File to Play-list You can organize a play-list and enjoy the contents.
  • Page 85 3) Play from play-list You can play files in the play-list by pressing the OK or PLAY button. If you change to the previous or next file in the play-list, press the PREV or NEXT button. File Playback Function 4) Remove File from Play-list You can remove a file from the play-list with the YELLOW button the same way as adding a file to a play-list.
  • Page 86 This page intentionally left as blank.

  • Page 87: File Management

    File Management 1. Rename You can rename a recording file stored on the USB storage. Please select a file on the FLIE PLAY menu and press the POPUP button. A list of extended menus will be displayed. Please select “Rename” menu with the OK button.

  • Page 88: Delete

    File Management 2. Delete You can delete the recording files stoned on the USB storage. Please select a file on the FLIE PLAY menu and press the POPUP button. A list of extended menus will be displayed. Please select “Delete” menu with the OK button.

  • Page 89: Backup To Usb Storage

    NOTE A USB storage device is not included in the gift box. The USB storage device which is used for backup should be formatted with the DP-H1. The instruction is described in Chapter 9. Advanced Setup.
  • Page 90 File Management If you confirm, two options will be displayed. Please select “USB” with the OK button. The USB storage devices connected to the DP-H1 will be listed. Please select “USB” with the OK button. The USB storage devices connected to the DP-H1 will be listed. Please select one with the OK button.
  • Page 91 The RED button will copy or move the files to the selected folder. A progress-bar indicates the status. NOTE If you cancel to copy or move files, please press the EXIT button. In order to watch a TV program, please press the LIVE button. File Management...

  • Page 92: Backup To Pc Via Network

    The shared folder on your PC should permit for the network users to change files on the PC. You can also backup the recording files from the DP-H1 with the WizFX software. Please visit to www.beyonwiz.com.au and download the WizFX software.

  • Page 93: Edit Recording File

    5. Edit Recording File You can edit the recording file stored on the USB storage whilst you play a recording file on the FILE PLAY menu. Please activate the progress bar with the OK button. Place the anchor mark at the start position and press the YELLOW button. A new anchor mark with “A”...

  • Page 95: Internet Service

    Internet Service Internet Service The DP-H1 is designed to support various Internet services, however this will be updated at a later time. You can get the latest information for the DP-H1 by visiting the website, www.beyonwiz.com.au.
  • Page 96 This page intentionally left as blank.

  • Page 97: Advanced Setup

    Advanced Setup As an extension to Chapter 4. Quick Setup, this chapter illustrates how to configure your DP-H1. The MISCELLANEOUS and MANAGEMENT parts will be explained. In this chapter as they were the remaining two items that were not explained previously.

  • Page 98: Favorite

    Advanced Setup 1-1. Favorite Before using the favorite service groups, you have to organize them. The edit page consists of three columns: Group, Fav. Service and All Service. Once you enter into the list with the OK button, you can place the cursor on one of the three columns with the LEFT and RIGHT buttons.
  • Page 99 2) Favorite Service According to your selection of the favorite group in the first column, the services belonging to the favorite group will be displayed on the second column. You can remove a service from the favorite group with the OK button.

  • Page 100: Osd

    Advanced Setup 1-2. OSD 1) Help Box Display You can hide the help box which is displayed with the service list. If you set this option as “Hide”, the help box does not appear when you press the LIST button. 2) Transparency You can set the transparency of the OSD.

  • Page 101: Access Control

    Start-up: If you set this, you have to enter the PIN number when you turn on the DP-H1. Setup Menu: If you set this, you have to enter the PIN number when you access to Setup menu.

  • Page 102: Preference

    Factory Setting Menu: If you set this, you have to enter the PIN number to set your DP-H1 as factory-default setting. To change the configuration, press the OK button to get a pop-up menu to change the configuration. Please select with the UP/DOWN buttons and press the OK button to select.

  • Page 103: Management

    You can upgrade your DP-H1 with the latest firmware. Please visit the website, www.beyonwiz.com.au, for firmware information. If you wish to upgrade please download the latest firmware. The DP-H1 can upgrade firmware which is stored on a PC in the home network, memory card or USB device. Advanced Setup...
  • Page 104 Advanced Setup If you select the “Network” option, the PCs and network devices connected to your home network will be displayed. If you can not see any device on the list view, please press the RED button to scan the devices.
  • Page 105 Please select the firmware on the file list and press the OK button to start. It takes several minutes to complete upgrading. Please make sure that your DP-H1 is NOT turned OFF until it finishes upgrading. NOTE If you cannot visually see the firmware upgrading from your PC or device, please check the network configuration of your PC and DP-H1.

  • Page 106: Hdd

    To use the PVR function, an optional USB storage is required; the USB storage should be registered. If you select “Register USB HDD” menu with the OK button, the USB devices connected to the DP-H1 will be listed. To register the selected USB storage, please press the OK button.
  • Page 107 2) Format USB Storage The USB storage should be re-formatted with the DP-H1 to use it for the PVR functions. If you select “Format USB HDD” menu with the OK button, the USB devices connected to the DP-H1 will be listed. Please press the OK button to format the selected USB storage.

  • Page 108: Initialize

    2) Factory Setting If factory setting is selected, the DP-H1 will erase all information and reset itself to the factory configuration. If you select this with the OK button, a pop-up window will display to get your confirmation. If you select “YES”...

  • Page 109: Troubleshooting Guide

    10. Troubleshooting Guide The remote with the DP-H1 can control other brands. If you wish to Before contacting Beyonwiz Technical Support, please check the following Troubleshooting Guide and try all possible solutions for your problem. If the product does not work normally after completing the following troubleshooting suggestions, please contact your local product distributor or service centre.
  • Page 110 If the Remote control range seems to be limited, check to ensure that the protective plastic layers (for shipping protection) on the If not, front panel of the DP-H1 has been removed. Remote control To manipulate the equipment with Remote does not operate...
  • Page 111 (Setup\Network\Setting) Check to ensure that the other devices on your network are configured correctly to connect with another network device. EPG data is not Do you have an account subscription with an present in the EPG data provider? (eg. Ice TV) Guide, or the EPG Check with your provider to ensure that your data in the Guide is...
  • Page 112 This page intentionally left as blank.

  • Page 113: Specification

    Specification Main System Main Processor RISC CPU Tuner & Channel Decoder Tuner DVB-T Compliant Tuner Input Conn. IEC 169-2 Female Type Tuner Loop-through Conn. IEC 169-2 Male Type Frequency Range 174~230MHz, 470~860MHz Signal Level -20 ~ -80dBm Aerial Supply 5V, max. 100mA Video &...

  • Page 114: Warranty Conditions

    1. Where required by Beyonwiz only the original invoice/receipt issued by the dealer will be accepted as proof of purchase. 2. Beyonwiz may reject warranty claims on equipment which it believes to be illegally acquired or when the “owner” is unable to provide proof of purchase or where security labels or serial numbers have been tampered with or removed.

  • Page 115: Weee Information C

    WEEE Information WEEE Information Correct Disposal of This Product (Waste Electrical & Electronic Equipment) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 116: Contact Beyonwiz D

    Contact Beyonwiz Contact Beyonwiz Beyonwiz Australia support@beyonwiz.com.au www.beyonwiz.com.au Some features and information in this manual may differ slightly from the product itself due to firmware version and changes made after printing.
  • Page 117 Contents...
  • Page 118 Version 1.2_Eng...
