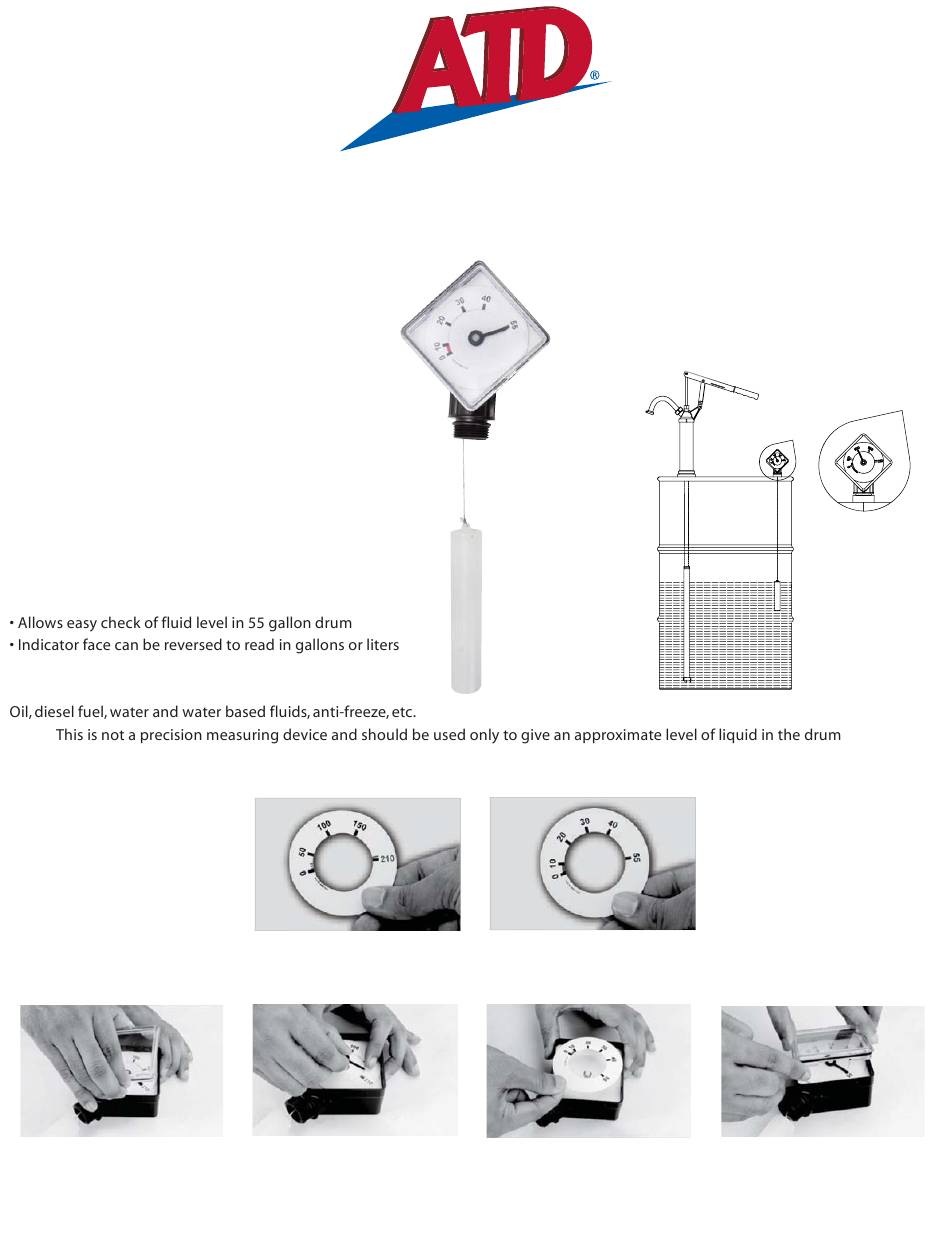

ATD Tools ATD-5038 Owner's Manual

SPECIFICATIONS:
RECOMMENDED USE:
NOTE:
Instructions to flip scale between liters and gallons
Open the cover of the indicator with the help
of the notches provided on the sides
ATD-5038
Drum Level Indicator
Owner's Manual
Read in liters and gallons
Scale graduated in liters
Carefully pull out the needle
Made in India to ATD Tools, Inc. Specifications
Visit us at www.atdtools.com
Scale graduated in gallons
Flip the scale to switch between gallons/ liters.
Align marking with the diagonal of the body.
Fits the smaller
3/4" hole on
drums, leaving
the 2" hole free
for installing pumps
Place the needle back on the center pin, ensure
that at the top most level the float and the needle
is on the max. marking. Now close the lid.
ATD5038_rev_0218
