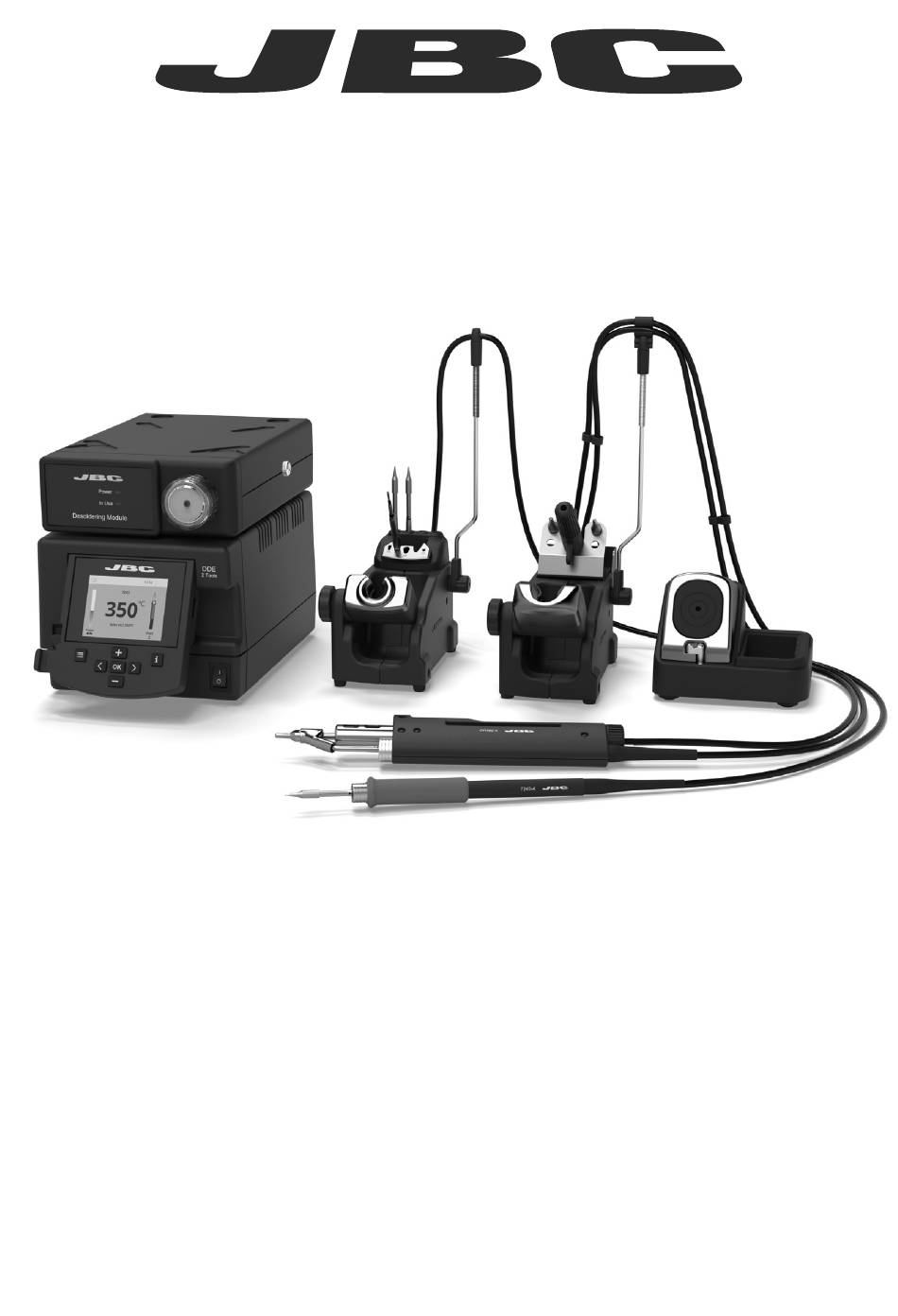

- Page 1 INSTRUCTION MANUAL 2 Tools DDE Station with Pneumatic Pump Ref. DDVE-QC...
-
Page 2: Packing List
Packing List The following items should be included: DDE Control Unit ..1 unit Pneumatic Desoldering ESD Tip Cleaner ... 1 unit Ref. DDE-1C (120V) Module ......1 unit Ref. CL8499 DDE-2C (230V) Ref. MVE-A DDE-9C (100V) General Purpose Stand ....1 unit Desoldering Stand .... - Page 3 Ref. 0008446 Cotton Filter ....1 unit Suction Filter ....1 unit Manual ......1 unit Ref. 0781046 Ref. 0821830 Ref. 0023125 It contains 10 filters w w w.jbctools.com INSTRUCTION MANUAL 2 Tools DDE Station with Pneumatic Pump Ref. DDVE-QC...
- Page 4 Features Work simultaneously with up to 2 tools and join each station port with 1 module + 1 pedal (Peripherals). Stand Cable Ref. 0011283 Equipotential connection USB-B connector RJ12 connector for Robot or Smart Fume Extractors Power Socket General Purpose Handle Desoldering Iron Ref.
-
Page 5: Pneumatic Desoldering Module
w w w.jbctools.com 2,8” Color TFT screen USB-A connector Tilt the display for easy reading Main switch Module Cable Ref. 0014874 Pneumatic Desoldering Module Ref. MVE-A To another peripheral To Pedal Ref. P-005 Suction Filter Air pressure (4-6 bar) Ref. 0821830 Tubing Ø4xØ6 mm (Not supplied) -
Page 6: Work Screen
Work Screen The DDE offers an intuitive user interface which provides quick access to station parameters. Default PIN: 0105 Status bar 17:14 17:14 Tool T245 T470 in use ºC ºC Power Temp. Levels Temp. Levels indicator Power Power Port Port Displayed if temperature levels are... -
Page 7: Advanced Functionalities
Insert a USB flash drive into the USB-A connector to save your soldering process in csv format. Files Station update Download the JBC Update File from www.jbctools.com/software.html Insert the USB flash drive with the Update file downloadedto the station. System notifications The following icons will be displayed on the screen’s status bar. - Page 8 MVE Initial Set up 1. After connecting the module, enter the 17:14 Peripherals Menu and select the port which you want to join with the module. Peripherals Port 2-DR 2. Select the module from the list of peripheral Pedal None Module connections.
-
Page 9: Operation
Operation The JBC Most Efficient Soldering System Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user can work at a lower temperature and improve the quality of soldering. The tip temperature is further reduced thanks to the Sleep and Hibernation modes which increase up to 5 times the life of the tip. - Page 10 Desoldering process Use a tip with a larger diameter than the pad to achieve maximum aspiration and thermal efficiency. 1. Placing 2. Rotating 3. Aspirating 4. Removing Place the tip over the When the solder Press and hold the Remove the tip lead.
-
Page 11: Dr560 Changing Tips
w w w.jbctools.com DR560 Changing Tips 1. Removing Unscrew the tip using the spanner supplied. 2. Inserting Fit the new tip and tighten with the spanner to make sure it is air tight. The DR560 uses C560 tips. Find the model that best suits your soldering needs in www.jbctools.com Glass Solder Collector Cleaning 1. - Page 12 DR560 Maintenance Tip Care The intake tube should be periodically cleaned with the largest rod possible. Important DO NOT press the vacuum pump button while tinning the desoldering tip, as the fumes given off by the flux would quickly block the ducts and the air filter. MVE Changing filters - Keep the casing clean by using a damp cloth.
- Page 13 w w w.jbctools.com Tip Cleaner Improve thermal transfer by cleaning the tip after each solder joint. Brass wool Ref. CL6210 Sponge Very effective cleaning Ref. S0354 method. It leaves a small layer of solder on the tip to The least harmful prevent oxidation between cleaning method.
- Page 14 DDE-C Compatibility Basic working system Peripherals Control Cartridge MSE-A / Stand Tool MNE-A FSE-A P-005 Unit Range MVE-A T210-A C210 AD-SE T245-A C245 T210-NA* C210 DN-SE T245-NA* C245 AP-SE AP250-A C250 DDE-C PA-SE PA120-A C120 HT-SE HT420-A C420 DS-SE DS360-A C360 DR-SE DR560-A...
-
Page 15: Maintenance
If necessary use a tool to lever it off. and replace it in the station. - Replace any defective or damaged pieces. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service. - Page 16 Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
- Page 17 w w w.jbctools.com 有害物质含量表 产品中有害物质的名称及含量 有害物质 部件名称 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 汞(Hg) 镉(Cd) (Cr(VI)) (PBB) (PBDE) 烙铁头 手柄 电源线 主机 电源插座 保险丝 主开关 电位连接 变压器 线路板 O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。...
- Page 18 Notes...
-
Page 19: Specifications
w w w.jbctools.com Specifications 2 Tools DDE Station with Pneumatic Pump DDVE-1QA / DDVE-2QA / DDVE-9QA DDE-1A 120V 50/60Hz. Input fuse: 4A. Output: 23.5V DDE-2A 230V 50/60Hz. Input fuse: 2A. Output: 23.5V DDE-9A 100V 50/60Hz. Input fuse: 5A. Output: 23.5V - Temperature Range: 90 - 450 °C (190 - 840 ºF) - Idle Temp. -
Page 20: Warranty
Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
