Summary of Contents for DOF SNAP

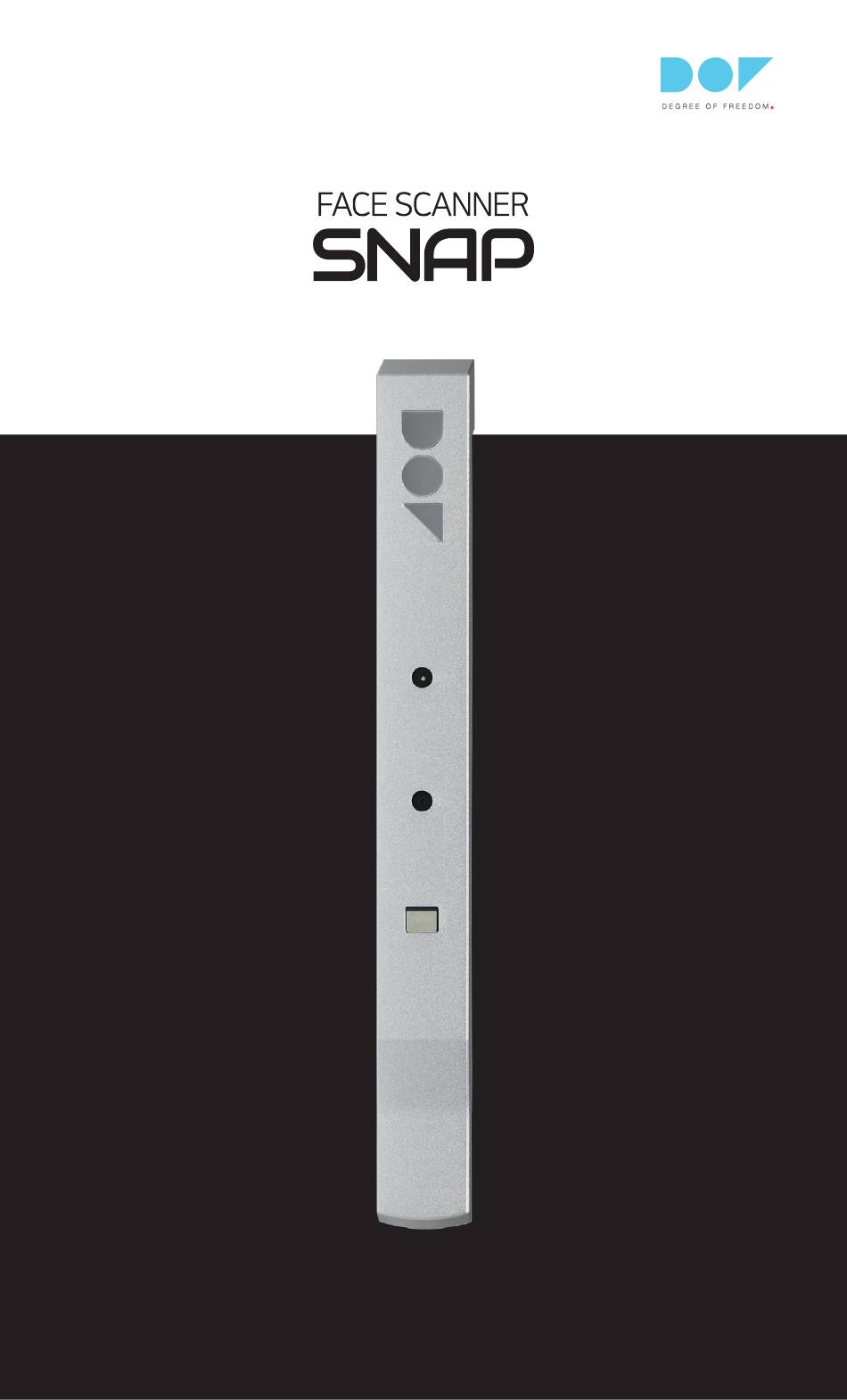

- Page 1 Basic Manual...
- Page 2 2. Precautions for Safety 3. Certification / Compliance Information 4. Specifications 5. Components 6. SNAP Installation Guide 7. Face Scan Process (SmileApp) Precautions for Safety Read the following precautions and use them according to the manual. Symbols in the User Guide Caution.
-
Page 3: Authentication Information
EN 55032:2015 / EN 55024:2010 +A1:2015 Following the provisions Directive2014/30/EU FCC Rule Part(s) : FCC 47CFR Part15 Subpart B Class B Part 15.107(a) & Part 15.109(a) Registration No : MSIP-REM-dof-FS17A Class B Equipment (home-use broadcasting communication equipment) Specification Electrical Specifications Rated Voltage DC 5V / 0.6A... - Page 4 Components Scanner Body Front view Rear view IR camera - capture data with infrared camera Color Camera - capture color of data with color camera IR Laser Projector - investigates IR patterns with an infrared projector USB connecter - connected to USB 3.0 port Aluminium Case Catcher Body - guides you to install the scanner on your tablet Size: 18(W) x 167(L) x 17(H) mm Weight: 70g...
-
Page 5: Hardware Installation
Surface Connection: connect scanner body to USB port. Surface Surface (Tablet PC) (Tablet PC) USB port USB port When SNAP is attached to the USB port, the catcher body is attached to the Surface. Surface Surface (Tablet PC) (Tablet PC) catcher body... - Page 6 Installing the Driver - Internet Connection: the Surface or PC must be connected to the Internet. - Driver Verification: connect SNAP to USB 3.0 port and wait for the relevant driver to be recognized (takes about 3 minutes). - If the driver cannot be installed: download the driver from the address below and install it.
- Page 7 Smile Line Scan(Face Scan) After running the program, click the Scan Smile Line icon. Start Scan: Position the scanner so that the front of the face is on screen, then press the Scan button to start scanning. Guide Zone Eye Zone Distance Control Guide When the Eye Zone enters the Guide Zone, the Scan button is activated.
- Page 8 Front Scan: complete the scan Data Verification: scanned data by rotating the scanner back to is merged after several seconds. a frontal view of the patient’s face. Verify the merged data. Press the Stop button to proceed to the next step. If there is an issue with the scan data, rescan by accessing the Smile Line Scan once more.
- Page 9 Removing the Bite Plate: When removing the bite plate from the target plate, remove it by twisting it in either the left or right direction and pulling. We recommend using up to three bite plates per target plate. Scan Bite Registration : click the Scan Bite icon in the scan list window. Start Scan: position the Eye Zone in the Guide Zone and press the Scan button to proceed with the scan.
- Page 10 Save Project File: click the Save File icon to save the project file in the desired folder. E-mail Function: a function to send the scan files by e-mail. You can save the scanned file as an e-mail ready file and then click the Yes / No button to decide whether or not to share the file via e-mail.
- Page 11 Send: select the recipient of the message in the chart, fill in the information required for the Subject and Note, and click the Send button to send the message. ScanApp Process Running ScanApp: launch ScanApp to scan stone models Scan Planning: select “Use face scan data” in the scanning options for integration with the face scan project.
- Page 12 Scan Progress: click the Smile Bite icon to proceed with the scan. Checking the Scan Data The four targets shown in the photo must be scanned. If the green target does not appear, perform an additional scan, confirm the target scan, and finish the scan. Scan Data Matching: match the stone model and bites using 3 points.
- Page 13 Load Face Scan Data: click the Load icon and load the project file. Edit Lip Line: tap the Trim icon and edit the lip line (tooth). Data Check: check the location of the face scan data and tooth model. If there is a problem in matching the tooth model with the face data, the position of the teeth may look distorted.
- Page 14 Plane Creation: creates various planes needed for tooth design. You can create four planes - Mid Line, Camper’s Plane, Occlusal Plane, and FH Plane and save them as OBJ files. Click the Set Plane icon and create plane. Create Mid Line: if you click the three points which are the bases of the Mid Line, plane is created automatically.
- Page 15 Create Camper’s Plane: click on the three points that are the base points of the Camper’s Plane. The plane will then be created automatically. Creating an Occlusal Plane: clicking a point in the center of your upper lip will automatically create a plane. Move the face to set the exact occlusal plane position. The Occclusal Plane is set parallel to the Camper’s Plane and can not be adjusted with toggle.
- Page 16 Confirm Plane: make sure all planes are created properly Data Storage Click the Save Data icon to save the face scan data. Click the Save STL icon to save the stone model scan data. exocad Design Add/Remove Mesh : After loading scan data Expert mode -> Tool-> Run Add / Remove Mesh...
- Page 17 Loading Data: select Face scan from the Select mesh type item and click the Load button at the bottom to load the data. Design: provisional prosthesis design using loaded face scan data.
-
Page 18: Trouble Shooting
We are not responsible for any problems caused by customer fault. All of the contents of this manual and all rights to the software and hardware are at DOF Inc. and protected by copyright law. Unauthorized copying, modification or production without prior consent is subject to criminal penalties under the copyright laws. - Page 19 DOF Korea DOF USA info@doflab.com | +82 70-5057-5576 info@dof-usa.com | +1 888-635-4999 601-602, 77, Seongsuil-ro 607 S. Euclid St. Seongdong-gu, Seoul, 04790 Korea Fullerton, CA 92832, USA DOF China DOF Germany info@doflab.cn | +86 755-2331-9063 info@doflab.com | +49 6196-7765675 1620, Rongchao-binhai Building A Ludwig-Erhard-Str.
