USER MANUAL
MFU 50-150
Mobile foam unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFU 50-150 and is the answer not in the manual?

Questions and answers

Summary of Contents for HNE MFU 50-150

  • Page 1 USER MANUAL MFU 50-150 Mobile foam unit...
  • Page 2: Table Of Contents

    CONTENTS Important basic information .................... 4 Content of delivery ....................4 Responsibility of the operator ................. 5 Symbols and signal words ..................5 Safety ..........................6 Acting in an emergency ..................6 Intended use of the Machine .................. 7 Operating range and storage .................. 7 Disposal .........................
  • Page 3 11.6.3 Pulsation damper ..................32 11.6.4 Reduction gear ..................33 11.7 Spare parts and consumables ................34 12 Attachments ........................35 12.1 Technical data ...................... 35 13 HNE - Contact ........................ 36 Mobile Foam Unit Version 50-150 3 of 36...
  • Page 4: Important Basic Information

    Important basic information Thank you for purchasing a Mobile Foam Unit. To achieve optimum results and operational reliability, please read this manual carefully before setting the MFU into operation. In case of questions or technical problems, please contact us. This manual is an important part of the MFU. Please keep it well with the other supplied documents, hold it available to users and pass it in case of sale.
  • Page 5: Responsibility Of The Operator

    Responsibility of the operator This manual refers to the intended use of the device and prevention of damage and risks. Please keep it available for the operating personnel and read it thoroughly before initial startup. In addition, observe the national provisions of your country with regard to accident prevention and environmental protection.
  • Page 6: Safety

    Safety The following chapter is a supplement. Please observe the already existing local accident prevention regulations and laws of your country. Basic principles:  Use the MFU only as intended and in perfect technical condition. Observe operating instructions.  The MFU may only be operated by trained personnel. ...
  • Page 7: Intended Use Of The Machine

    All spare parts for high-pressure applications must have the appropriate accreditation. only approved original spare parts for pump and engine. For damage caused by improper and/or negligent operation, maintenance or repair, the company HNE Technologie AG accepts no liability or claims for damages. Residual hazards and protective measures ...
  • Page 8: Electrical Safety

    Electrical safety The unit has a self-contained power supply (12 Volt DC) for the electrical control and the on-board starter battery (alternator on the engine with external rectifier/charger). Risk of short circuit or electric shock ! In case of damage to the electrical system: Never touch bare wires or voltage leading components if the engine is running or the ignition is active.
  • Page 9: Emissions

    When changing the battery, follow these rules: Work only with proper tools (open end wrench, size 10) For disconnecting the terminals: IMPORTANT ! Remove negative pole first (black wire) For reconnecting the terminals: Attach positive pole first (red wire) Isolate the positive terminal with the supplied plastic cover Emissions The exhaust emissions of the engine meet the requirements of the European Community.
  • Page 10: Design And Function

    Design and function MFU Description Specially designed for the requirements of first responders, the MFU is an autarkic, mobile high-pressure extinguishing system for fighting fires of class A and B. It is equipped with 28 meters of hose on a semi-automatic reel, adjustable foam mixture and an attachable foam thrower.
  • Page 11: Front (Covers Removed)

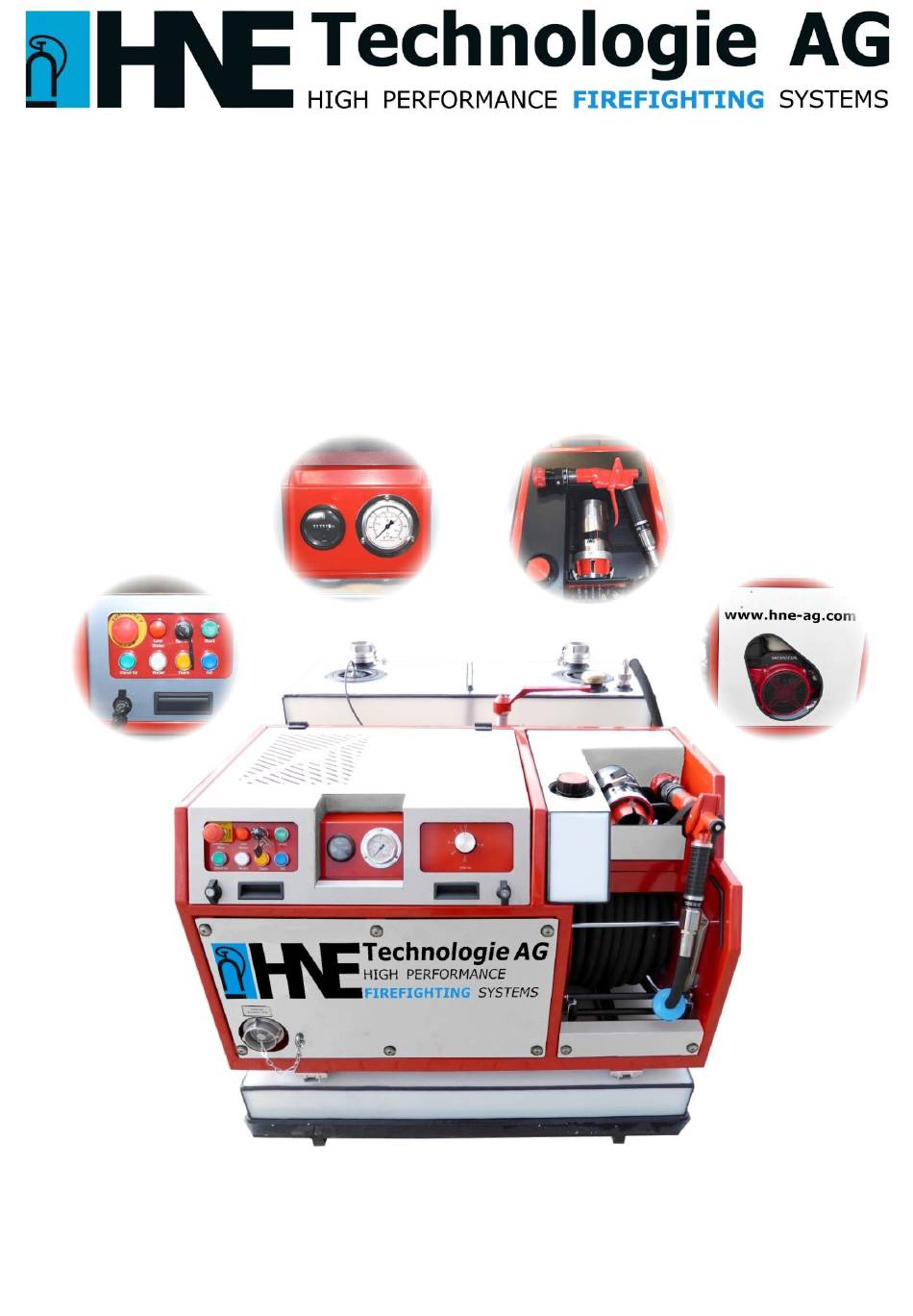

    Front (covers removed) Control panel with emergency stop button Hour counter and pressure gauge Adjustable foam proportioner Foam agent tank Adjustable turbo gun Fire hose on automatic reel Attachment points / universal mounting rails Diaphragm pump with gear Standard C-coupling for suction hose Gasoline engine / fuel tank Solenoid valves for water/foam function Pressure valve for pulsation damper...
  • Page 12: Back Cover

    Back cover Plug for floating switch (Tank level control) 12 Volt-Power plug (DIN 14690) Connector for Remote control Exhaust pipe Connection for water tank (C-coupling) Tank or suction mode switchover Connection for Tank reflux (bypass) Connection to suction port on front (C-coupling) Drain cock of foam agent tank Water filter Mobile Foam Unit...
  • Page 13: Delivery, Unpacking, Transportation

    Delivery, unpacking, transportation The following sections provide information for unpacking and safe movement of the machine. Shipping The MFU is secured and shipped in a wooden protection crate. Please check the condition of packaging and content upon delivery. Contact us immediately in case of transport damage. The unit comes without fuel and chemicals.
  • Page 14: Water And Operation Conditions

    Water and operation conditions 5.1 Water supply  The suction inlet requires cold and clean water, free of suspended matter.  Preferably, fill the tank with clean tap water. Dirt, germs or algae may affect the function of the solenoid valves or the ability of the foaming agent. ...
  • Page 15: Installation And Initial Start-Up

    Installation and initial start-up For maximum efficiency, we strongly recommend the combination of the MFU with a water tank of greatest possible volume. This allows further the connection of the back-flow line (bypass) with the tank. Any excess pump capacity not jetted from the gun is thereby directed back to the tank.
  • Page 16: Initial Start Up

    Initial start up Pleas carry out the following preparations after complete and correct installation: 1. Fill the fuel tank (10) and check the engine oil level according to the instructions of the engine manufacturer. 2. Check the oil levels of pump (page 31, section 11.6.1) and gear (page 33, section 11.6.4).
  • Page 17: Operating

    Operating Operating the MFU is simple and easy. After starting the engine, the function mode is selectable by a single push of a button. The engine features:  start automatic (automatic choke)  electromechanical power control (no throttle)  automatic fuel valve (no gasoline cock) ...
  • Page 18: Water Level Control

    Water level control The pump is protected against dry running by water level control in the intake tract. Any main function is only activatable with sufficient water supply. If the intake tract is empty, the system automatically shuts down the engine and the red Override button (2) is flashing. The flashing vanishes, after the tank is refilled with enough water.
  • Page 19: Deactivating The Mfu

    Deactivating the MFU 1. Press STANDBY (5) if another function is still active. The button lights up and the engine switches to idle speed. 2. Turn the ignition switch (4) left. The engine stops, the whole system is inactive. 3. Actuate the jet gun to relieve residual pressure. Before shutting off, we strongly recommend cooling down the engine at idling speed for about two minutes.
  • Page 20: Hose Reel

    Hose reel To unroll the hose, take the jet gun from its holder and pull the hose as needed (up to 28 meters) from the reel. The hose reel locks itself at standstill and unlocks again by a short pull. It has an automatic recoil spring, which greatly helps rolling up the hose again. We recommend cleaning the hose during reeling up.
  • Page 21: Turbo Jet Gun

    Turbo jet gun The MFU is equipped with a high-power jet gun, which is adapted to pressure and flow rate of the diaphragm pump. This allows for optimum range and performance. The jet shape ranges from compact beam to spray mode and is adjustable steplessly.
  • Page 22: Jetting Operation With (Filled) Water Tank

    Jetting operation with (filled) water tank  Set the ball valve lever at the rear into tank position  Turn on the ignition (3)  Push the START button (4)  If possible, let the engine warm up (ca. two minutes) ...
  • Page 23: Cleaning The Filter

    Cleaning the filter The intake manifold of the system is equipped with a filter, which holds back sand and finest dirt particles from pump and valves. If external water has been used, the filter insert must be cleaned prior to the actual flushing. If only clean water from the tank was used, proceed to section 8.2 (below).
  • Page 24: Troubleshooting

    Fax: +49(0) 821 720 47-99 Monday to Thursday: 8°° to 17°°/ central European Time Frday: 8°° to 14°°/ central European Time E-Mail: info@hne.ag Service address HNE Technologie AG Web: www.hne.ag Alter Postweg 96 86159 Augsburg Causes and remedial action Error...
  • Page 25: Further Troubleshooting

    Error Possible cause(s) Remedial action Rhythmic fluctuations of a) Too less or too much a) Check pressure at the pressure, noticeable pressure in pulsation pump (12), adjust if needed pulsing of the jet gun damper b) Check all connections of b) System draws false air the suction lines for leaks c) Water filter is dirty...
  • Page 26: Safety Valve And Pressure Adjustment

    10.3 Safety valve and pressure adjustment The integrated safety valve protects the system from excessive pressure and therefore controls the diversion of water into the bypass circle. Its setting is precisely adjusted and must not be changed normally. However, in case of unsatisfactory performance, check and adjust it if necessary.
  • Page 27: The High-Pressure System

    10.4 The high-pressure system All high pressure hoses, especially the fire hose, are wearing parts with limited lifetime. Depending on the severity of working conditions, replace them at appropriate intervals, even with no visible defects. At the latest, they must be replaced when the following signs of wear and tear are noticed: ...
  • Page 28: Electrical Troubleshooting

    10.5 Electrical troubleshooting For reliability and durability, the electrical system is as simple and robust as possible. There is no electronics; all switching devices are water- and dust protected. In case of electrical fault, check the following fuses: A blown fuse is identified by a molten wire inside the fuse body.
  • Page 29: Maintenance And Service

    Maintenance and service The following sections provide necessary information for proper maintenance and care in accordance with conditions of work and operation hours. 11.1 Safety during maintenance and repair  Please read and follow the operating instructions for MFU and engine carefully. ...
  • Page 30: Maintenance And Care After Every Use

    11.3 Maintenance and care after every use General visual inspection (connections, hoses, sealings, cabels, etc.). Turn off the ignition while performing the checks. Clean the entire machine if necessary.  Check the bottom of the water tank for dirt and debris and clean if necessary. ...
  • Page 31: Diaphragm Pump

    Diaphragm pump 11.6 The pump is able for suction and may be located above the water source. The maximum suction lift is approximately two meters. If no other source is available, even seawater can be used if the whole system is rinsed thoroughly afterwards. Seawater strongly expedites corrosion, dried salt crystals harm rubber, paint and all surfaces ! ATTENTION...
  • Page 32: Oil Change

    11.6.2 Oil change Perform an oil change only in horizontal position of the pump. Use exclusively high quality oils of type SAE 30 / 15W 40. In cases of damage resulting from improper oil types, we can grant no warranty. ...
  • Page 33: Reduction Gear

    11.6.4 Reduction gear The reduction gear connects the drive shaft fill of the engine to the pump. It comes together with the pump as a unit and is already filled with the correct amount of oil. The first change of oil is required after operating hours, every further oil change after check...
  • Page 34: Spare Parts And Consumables

    11.7 Spare parts and consumables Spare parts for engine and diaphragm pump must comply with technical requirements, specified by the manufacturer. This is only granted with the use of genuine spare parts. We are not liable for damages, resulting from the use of non-original spare parts. The following table contains a list of important parts for the MFU.
  • Page 35: Attachments

    Attachments 12.1 Technical data Dimensions and weight Width / Length / Height: 120 cm / 99 cm / 71 cm Empty weight: ca. 240 kg Operative weight (with fuel and foam agent): ca. 265 kg Performance Maximum jet range: ca. 35 m (water, full beam) Flow rate per minute: 40 / 80 / 130 l (switchable) Working pressure: max.
  • Page 36: Hne - Contact

    We hope you will be satisfied Should you require any further information or help, please contact: Sales & Service Singapore: HNE Germany: HNE Singapore Pte Ltd. HNE Technologie AG No. 99, Kaki Bukit Av #02-08 Alter Postweg 96 SG 415984 Singapore D-86159 Augsburg Tel.
