Summary of Contents for DRAKE ACT1000

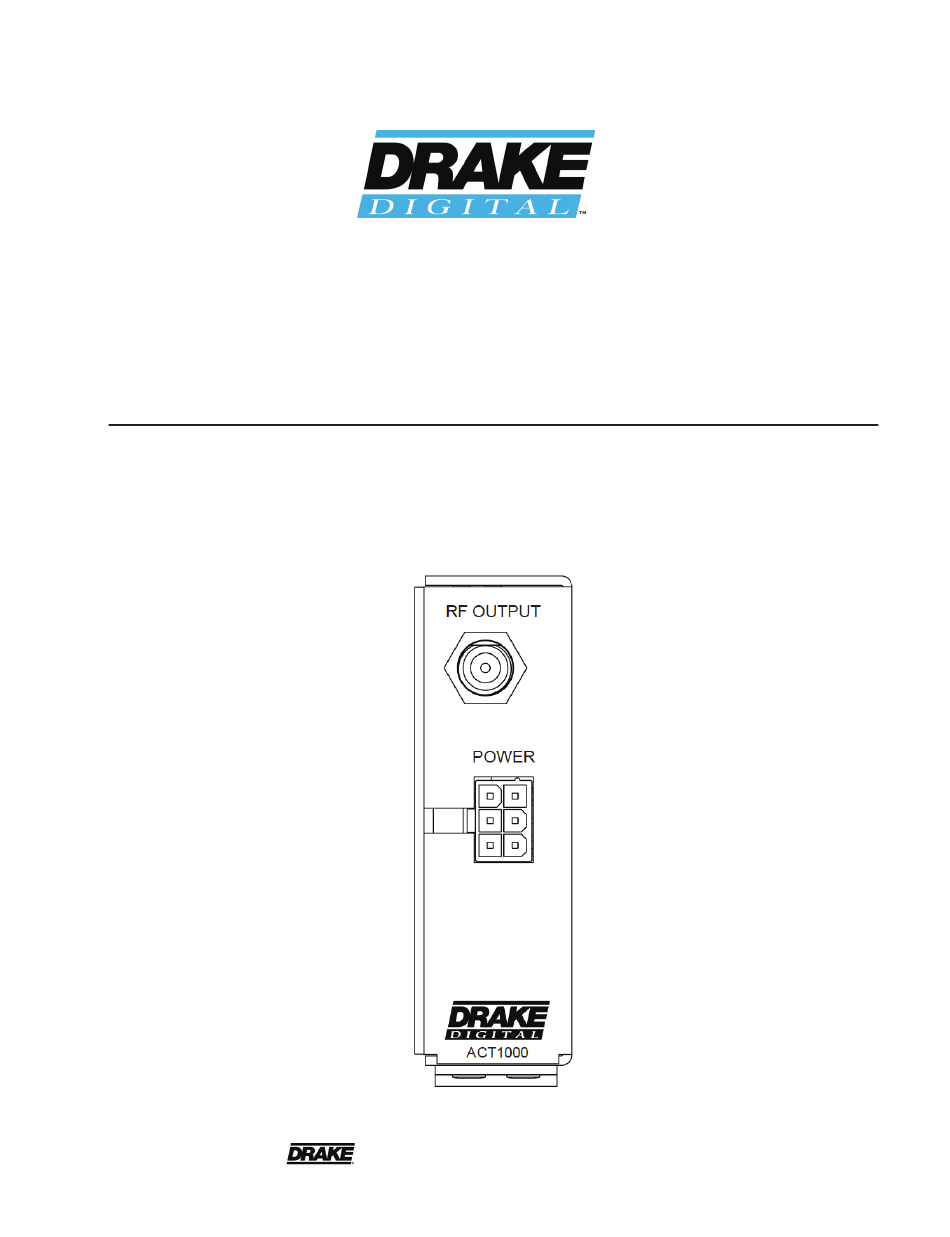

- Page 1 ACT1000 Air-to-CableTranscoder Instruction Manual is a registered trademark of the R.L. Drake Holdings LLC © Copyright 2013 R.L. Drake Holdings LLC P/N: 651230200 Printed in China. Rev: 20130116 1002564...
-
Page 2: Caution Statements
Table of Contents, Caution, & Important Safety Instructions CautioN StatemeNtS .............................2 imPoRtaNt Safety iNStRuCtioNS ......................2 SPeCifiCatioNS ..............................4 GeNeRaL DeSCRiPtioN / iNStaLLatioN aND mouNtiNG / CoNfiGuRatioN ........5 uSaGe ...................................6 WaRRaNty ................................7 Caution Statements: a product and cart combination should be moved WARNING: to PReVeNt fiRe oR with care. -
Page 3: Important Safety Instructions (Continued)
Important Safety Instructions (continued) Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. the product may fall, causing serious injury to a child or adult, and serious damage to the product. use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. -
Page 4: Specifications
Form Factor fits in Drake Digital Rmt150 chassis Dimensions 1.1"W x 3.4"H x 13.25"D Weight 1lb 6oz Power Requirements all power provided by the Drake® PS151 power supply. PS151 power requirement: 90-260VaC 150W maximum with 10 transcoders. Specifications subject to change without notice or obligation. -
Page 5: General Description
Qam input to Qam transmodulation and Rf upconversion (menu name listed in bold, valid settings listed in italics: in a single unit. up to 10 aCt1000 modules, along with the · IN MODE: VSB-8, QAM-64B, QAM-256B – this configures required PS151 power supply module, can be installed into... - Page 6 Setup button (see figure 1). once the PSiP Setup know that the aCt1000 is trying to tune in and lock to window opens, the table information can be extracted the input.
-
Page 7: Three Year Limited Warranty
Warranty Three Year Limited Warranty R.L. DRaKe HoLDiNGS LLC warrants to the original purchaser this product shall be free from defects in material or workmanship for three (3) years from the date of original purchase. During the warranty period R.L. DRaKe HoLDiNGS LLC or an authorized Drake service facility will provide, free of charge, both parts and labor necessary to correct defects in material and workmanship. - Page 8 R.L. Drake Holdings LLC 9900 Springboro Pike miamisburg, ohio 45342. uSa Customer Service and Parts Telephone: +1 (937) 746-6990 Telefax: +1 (937) 806-1576 Web Site: http://www.rldrake.com...
