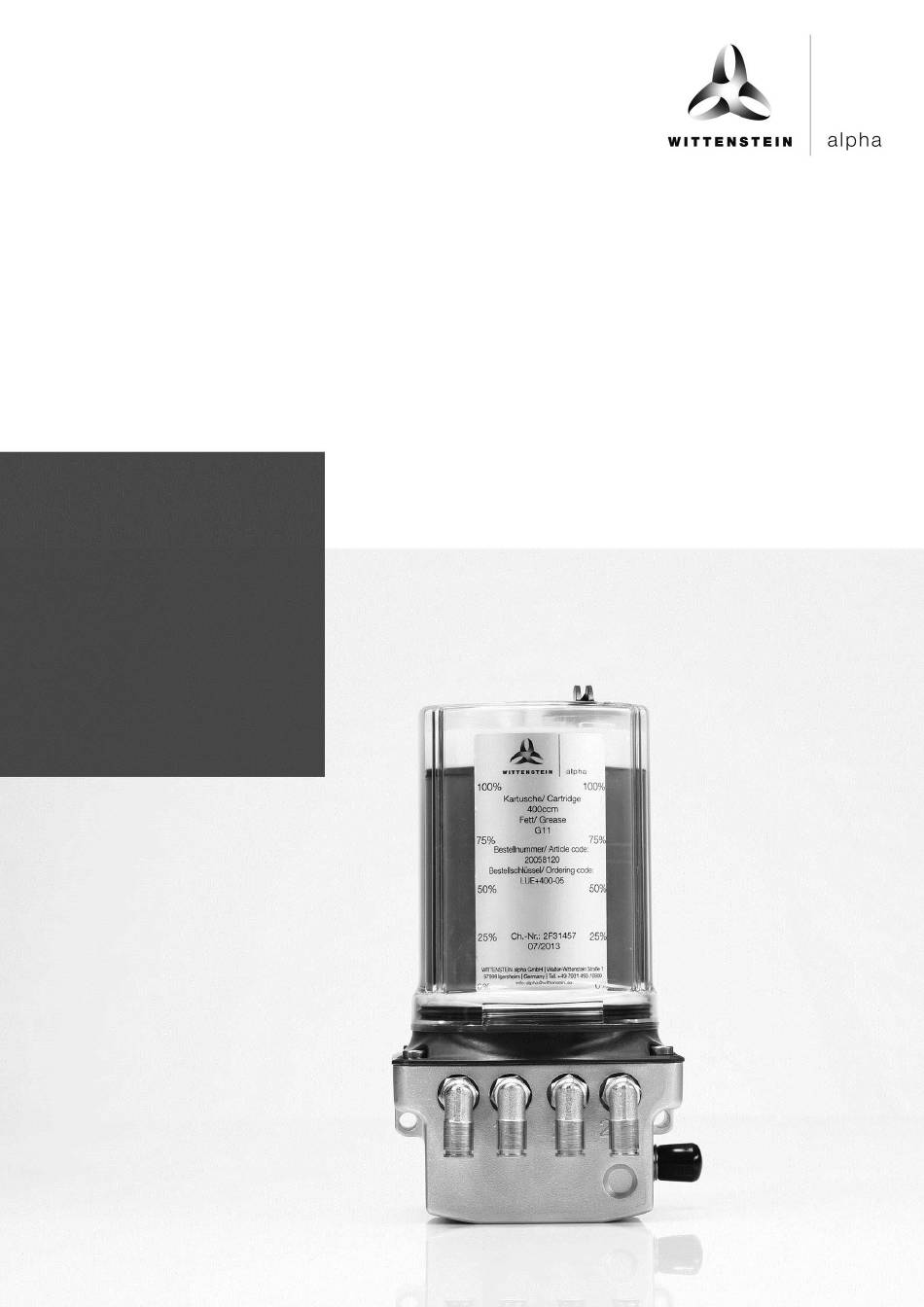

- Page 1 Lubrication System LUC+400 Operating Manual AC: 20059597 Doc. no.: 2022-D047797 Revision: 02...
- Page 2 E-mail: service-alpha@wittenstein.de Copyright © WITTENSTEIN alpha GmbH 2015 reserves all rights for layout and corporate design. © DLS Schmiersysteme GmbH 2015 reserves all rights for content and texts. This documentation is copyright protected. WITTENSTEIN alpha GmbH and DLS Schmiersysteme GmbH reserve all rights to photo- mechanical reproduction, copying, and the distribution by special processes (such as computers, file media, data networks), in whole or in part.
-
Page 3: Table Of Contents
Transport and storage Assembly instructions 2.5.1 Electrical connection Startup 2.6.1 Maintenance Function/Principle Communication interface and connection to LUC+400 Designation of the pump outlets / Details on the control Filling function Messages, Malfunctions Fault messages / Malfunctions 13 Maintenance Maintenance: LUC+400 -... -
Page 4: About This Manual
This compiled documentation contains important safety information. 1.1 Basic information The LUC+400 is an extremely compact lubrication pump for oil and grease up to NLGI 3. The pump is designed for an external control and power supply with 24 VDC. The lubricant supply (400 cm³) is stored in a grease cartridge. -
Page 5: Ordering Code
LUC+400 Operating Manual 1.3.1 Ordering code 1.4 Overview/Details Setting up your LUC+400 is easy. These instructions should help you install your devices quickly and easily and to learn the basics quickly. Vent for cartridge exchange Cover for cartridge Connection M12x1 Outlets that are not used must not be closed! Manipulation of an independent machine. -
Page 6: Safety
LUC+400 Operating Manual 2 Safety Before assembly and starting up the LUC+400 at the machine, this operating manual must be read carefully by all persons that are authorized to assemble, maintain, and operate the plant. 2.1 Intended use The LUC+400 is approved only for industrial applications. -
Page 7: Important Notifications
This signal word indicates a potential hazard that could lead to property damage. A note without a signal word indicates application hints or especially important information for handling the LUC+400. Notes attached directly to the machine must definitely be observed and be kept in a completely legible condition. -
Page 8: Safety Instructions For The Owner /Operator
Use suitable hoists for transport. The LUC+400 must not be thrown or subjected to hard impacts. When storing the LUC+400, it is important to keep the storage site cool and dry so that corrosion cannot form on individual parts of the system. -
Page 9: Assembly Instructions
Yellow hose fittings have been inserted in the outlets. The hose lines have already been prefilled with the respective grease. The startup of the LUC+400 is carried out step by step and in stages, from the LUC+400 onward to the lubrication point. -
Page 10: Function/Principle
PLC, controls and monitors the set amount of lubricant as well as the intervals between lubrications. As a connection to the controller of your plant, e.g. PLC, every LUC+400 features a 4-pin built-in plug for connecting a M12x1 socket. The communication with the controller as well as the voltage supply flows through this connection. -
Page 11: Designation Of The Pump Outlets / Details On The Control
Pulse signals for controlling the outlets (output in seconds, precision ± 0.2s or ± 10%) Important: Interval between two pulses > 15s Designation of the pump outlets: Control LUC+400-0_11: Outlet 1.1 Amount of lubricant per pulse 0.15 cm³ Control LUC+400-0_21: Outlet 1.1 or outlet 1.2... - Page 12 LUC+400 Operating Manual Control LUC+400-0_31: Outlet 1.1 Amount of lubricant per pulse 0.15 cm³ Outlet 2.1 or outlet 2.2 Amount of lubricant per pulse: 0.15 cm³ (per outlet). Beginning of the dispensing = outlet 2.1 or 2.2, outlets are signaled alternately.
- Page 13 LUC+400 Operating Manual Control LUC+400-0_41: Outlet 1.1 or outlet 1.2 Amount of lubricant per pulse: 0.15 cm³ (per outlet). Beginning of the dispensing = outlet 1.1 or outlet 1.2, outlets are signaled alternately. Outlet 1.1 and outlet 1.2 Amount of lubricant per pulse: 0.15 cm³ (per outlet). Beginning of the dispensing = outlet 1.1 or outlet 1.2, outlets are signaled after each other.
- Page 14 LUC+400 Operating Manual Control LUC+400-0_51: Outlet 1.1 Amount of lubricant per pulse 0.15 cm³ Outlet 2.1 Amount of lubricant per pulse 0.15 cm³ Outlet 1.1 and outlet 2.1 Amount of lubricant per pulse: 0.15 cm³ (per outlet). Beginning of the dispensing = outlet 1.1 then outlet 2.1.
-
Page 15: Filling Function
Table 1: Venting of the pump Note: This filling function can be used for filling/venting hose lines and/or distributors. Intervals between the pulses 12 s. Running time for LUC+400 with outlet 1.1 and 1.2: 240 s. For other variants 500 s. 4 Messages, Malfunctions 4.1 Fault messages / Malfunctions... -
Page 16: Maintenance
LUC+400 Operating Manual 5 Maintenance 5.1 Maintenance: LUC+400 - cartridge exchange (fault message, empty state E1) Maintenance of the device is not necessary until the cartridge has been exchanged. Switch off device: Remove venting lock (turning movement CLOSE --> OPEN) ... - Page 17 LUC+400 Operating Manual Put the cover on with light pressure, secure hand-tight by turning to the right Insert and secure vent lock Revision: 02 Doc. no.: 2022-D047797 en-15...
-
Page 18: Technical Specifications Luc+40016
LUC+400 Operating Manual 6 Technical specifications LUC+400 Lubricant volume 400cm³ in cartridge Lubrication medium Oil or grease up to NLGI, class 3 Functional principle Piston pump Dispensing volume per stroke 0.15 cm³ (per signaled outlet and pulse) Number of outlets max. -
Page 19: Assembly Luc+400
8 Disposal If there is a lubricant exchange, the disposal guidelines of the lubricant manufacturer must be observed. When disposing of the LUC+400, be sure to observe the pertinent regional provisions. The emptied cartridges contain lubricant residues! Please dispose of together with waste material containing oil. - Page 20 Sold by: WITTENSTEIN alpha GmbH Walter-Wittenstein-Straße 1 97999 Igersheim WITTENSTEIN – one with the future www.wittenstein.de...
