Summary of Contents for Online BHS-00A0

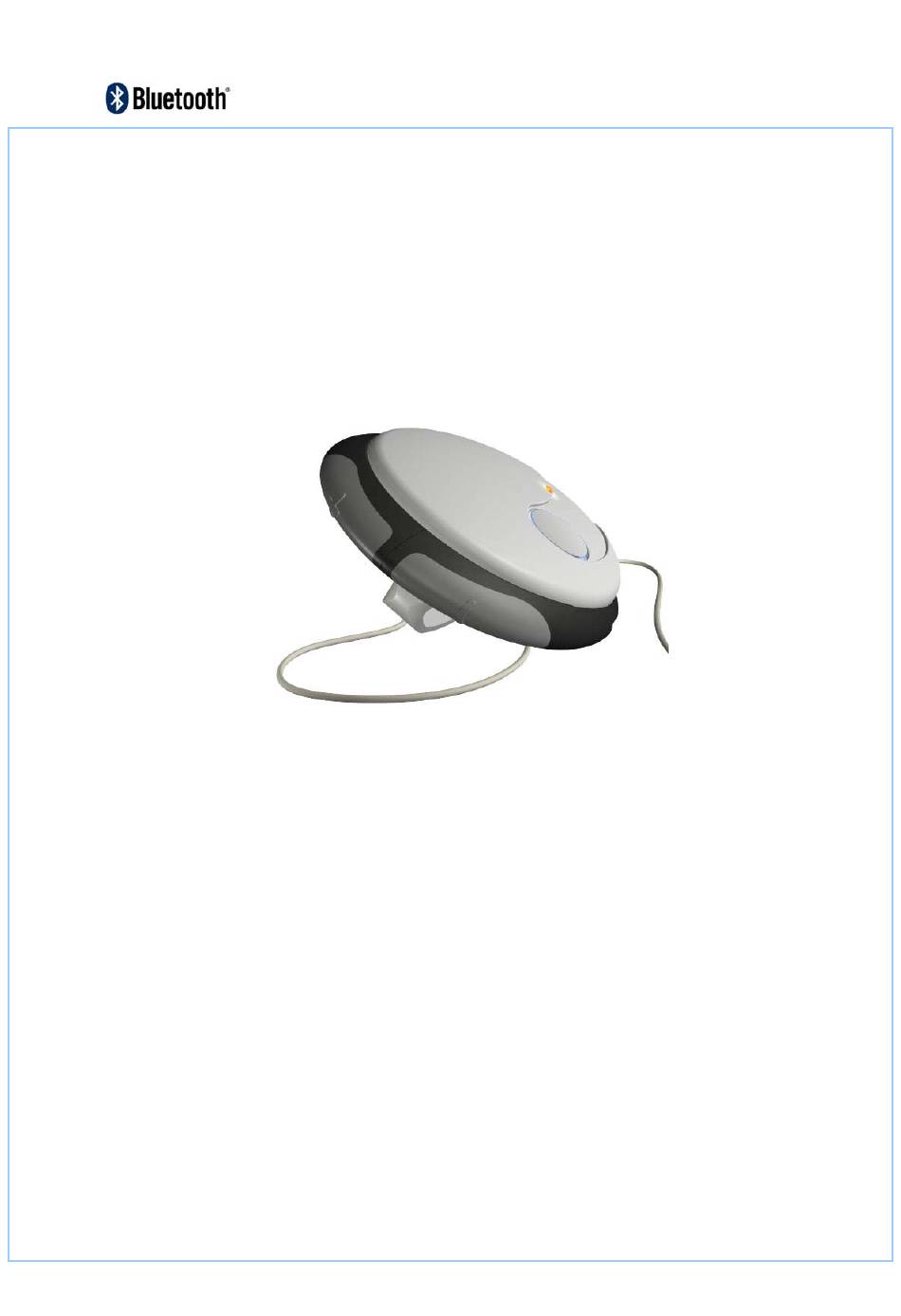

- Page 1 BHS-00A0 Bluetooth Headset User Guide...
- Page 2 Model No.: BHS-00A0 Description: Bluetooth Headset COPYRIGHT & TRADEMARKS Copyright © 2004 Online Technologies Ltd., All Rights Reserved. Sapphire is a trademark of Online Technologies Ltd. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks and brand names are the property of their respective proprietors.
-
Page 3: Table Of Contents
Online Technologies Limited Content Introduction 2 Product Feature Product Specification Main Machine Interface 5 Button Control Interface specification Power/Battery LED Indicator Specification 7 Bluetooth State LED Indicator Specification 7 Sound Indicator Specification 8 Battery Specification 8 Operation Specification 9 Pairing to Your Bluetooth Cellular Phone 9 Answer an incoming voice call. -
Page 4: Introduction
Online Technologies Limited 1. Introduction The Online BHS-00A0 Bluetooth Headset (Bluetooth 1.1) is equipped with a wireless connection, giving you hands-free control over your mobile phone without the need for obtrusive cables or wires. Designed for both looks and comfort, the... -
Page 5: Main Machine Interface
Online Technologies Limited Man Machine Interface • Talk Button : Multi-function button for controlling Bluetooth headset • Volume Up Button : 7 volume levels adjustment • Volume Down Button : 7 volume levels adjustment • Power on/off Switch : Turn on/off system power •... -
Page 6: Button Control Interface Specification
Online Technologies Limited 2.Man Machine Interface Button Control Interface specification ③ ③ ① ① ② ② ①Talk Button Short Click: • You can establish an RFCOMM with a paired AG if the headset is in standby mode. • You can answer an incoming call. - Page 7 Online Technologies Limited ④ ④ ⑦ ⑦ ⑤ ⑤ ⑧ ⑧ ⑥ ⑥ ④Power Switch Button Press and hold for longer than 2 seconds: • You can power on the headset if it is currently OFF. • You can power off the headset if it is currently ON.
-
Page 8: Sound Indicator Specification
Online Technologies Limited LED Indicator Specification System state Flashing Pattern Pairing Blue LED: ON(300ms), OFF(300ms) Standby Blue LED: ON(100ms), OFF(4900ms) Ring Blue LED: ON(100ms), OFF(100ms) Connected Blue LED: ON Power ON/OFF Red LED: flash 6 times when power is on and flash 1 times when the power is off. -
Page 9: Operation Specification
The display of phone will indicate that it found the Bluetooth devices, “BHS-00A0” should be included in the list. Control the joystick to select the BHS-00A0 Bluetooth headset to pair, and then press the select key. 3. The display of phone will ask you a passkey for pairing; please type the default passkey "1234"... -
Page 10: Answer An Incoming Voice Call
Online Technologies Limited BHS-00A0 added to the list. (NOTE: Some Bluetooth phone can connect automatically without pairing, and the headset can work just to select the Bluetooth connection. Please refer to the User Manual about Bluetooth connection of your cellular phone.) -
Page 11: Last Number Redial In Hf Mode
Online Technologies Limited Audio Transfer from Headset to cell phone Make sure the Headset is on an active call. Press and hold Talk button for 2 seconds. Audio Transfer from cell phone to Headset Make sure there is an active call. - Page 12 Online Technologies Limited FCC Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
