Pacific PB-K01 Installation Manual

Rainier coil pull down; kitchen faucet
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION GUIDE

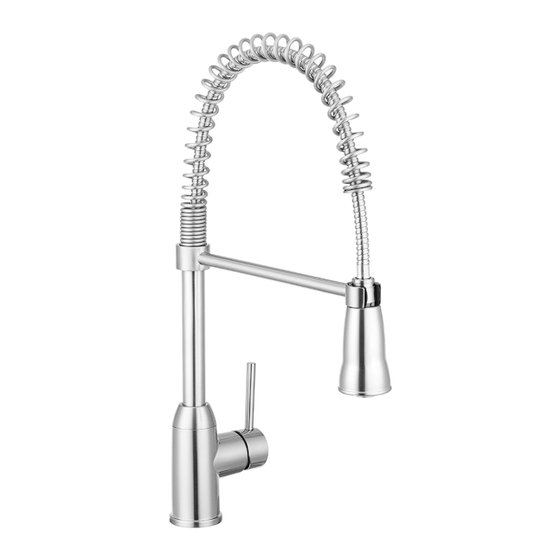

Rainier Coil Pull Down
Kitchen Faucet
PB-K01

Advertisement

Table of Contents
loading

Summary of Contents for Pacific PB-K01

  • Page 1 INSTALLATION GUIDE Rainier Coil Pull Down Kitchen Faucet PB-K01...

  • Page 2: Recommended Tools And Materials

    ¨ If possible, install the faucet before the sink ¨ Inspect tubing for damage - Replace as necessary Pacific Bay reserves the right to make any revisions in the design of faucets without notice. MAINTENANCE AND CLEANING Cleaning Tips: The finish on your faucet is designed to retain its beautiful sheen for years. To maintain the original look of the finish, a little care and caution should be used.

  • Page 3: Parts List

    INSTALLATION OF THE FAUCET Before starting turn off both the hot and cold water supply lines and remove the old faucet. Clean around all areas of attachment before placing new faucet on sink to help prevent corrosion after installation. Parts List Screw Lock-nut Washer Base-plate Deck-plate...
  • Page 4 Fastening Deck-Plate Apply plumbers putty or other suitable sealant to the bottom edges of the base-plate (optional). Once applied, align base-plate and press into place to firmly attach to sink. Remove excess plumber putty and place deck-plate onto base-plate. See images below. If installing on a one-hole sink installing the deck-plate is optional.
  • Page 5 Flush Lines Remove the aerator. Turn on the hot and cold water supply lines. Turn the faucet handle to the cold side and lift the handle to the “on” position. Run the water for one minute to remove any potential debris. Rotate handle to the warm side and run for a minute. During this process watch for any water leaks in the pipe.

  • Page 6: Limited Lifetime Warranty

    (1) year. If the faucet should develop a leak or drip during the warranty period, Pacific Bay will, free of charge, provide the parts necessary to put the faucet back into good working condition by you.
  • Page 7 ______________________________________________________________________________...
  • Page 8 ______________________________________________________________________________...
