Summary of Contents for Beyond Microwace Oven

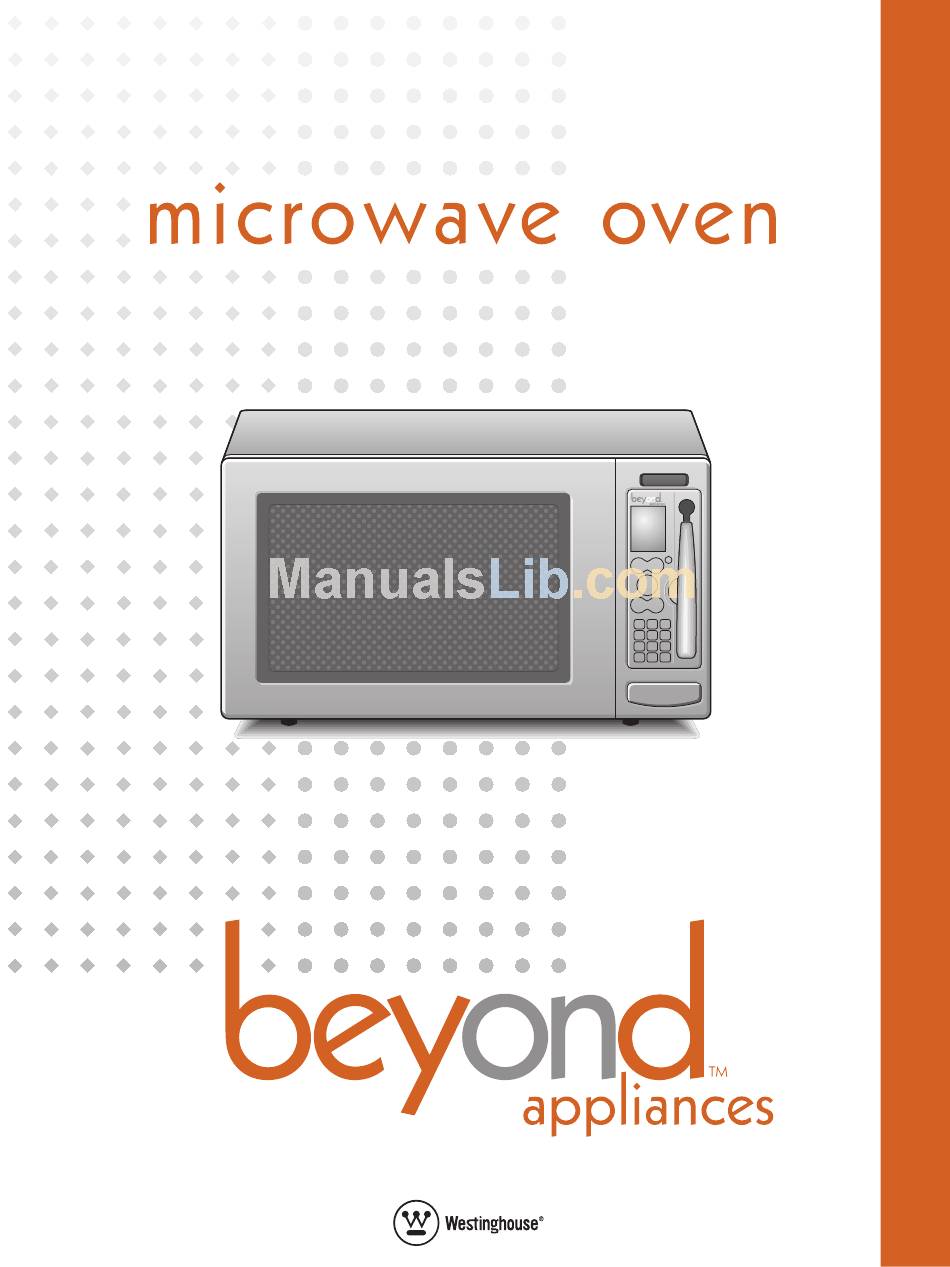

  • Page 1 WBYMW2-OM-USA-ENG-Rev 01...
  • Page 3: Important Safety Instructions

    Important Safety Instructions Important Safety Instructions Precautions to avoid possible exposure to excessive microwave energy (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
  • Page 4 Microwave Oven Owner’s Manual Precautions to reduce the risk of burns, electric shock, fire, injury to persons, or exposure to excessive microwave energy 1. Read all instructions before using the appliance. 2. Read and follow the specific precautions to avoid possible exposure to excessive microwave energy found on page 3.
  • Page 5 Important Safety Instructions 9. This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for examination, repair, or adjustment. 10. Do not cover or block any openings on the appliance. 11. Do not store this appliance outdoors. Do not use this prod- uct near water–...
  • Page 6: Additional Important Safety Instructions

    Microwave Oven Owner’s Manual 16. Liquids, such as water, coffee, or tea are able to be over- heated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present.
  • Page 7: Grounding Instructions

    Important Safety Instructions 7. The liquid may splash out during or after heating or when adding ingredients (instant coffee, etc) resulting in possible harm or injury to persons. 8. To reduce the risk of injury, stir the liquid several times before heating.
  • Page 8 Testing Containers and Utensils Some non-metallic containers and utensils become extremely hot when used in a microwave oven. To avoid risk of scald- ing, use the following procedure to determine if a container or utensil is safe for microwave use: 1.
  • Page 9 Materials You Can Use in a Microwave Oven TABLE 1. Cooking Accessories (not included with Microwave) Remarks Aluminum foil Shielding only. To prevent overcooking, use small, smooth pieces to cover the thin areas of meat or poultry. Arcing can occur if the foil is too close to the oven walls.
  • Page 10: How Your Microwave Oven Works

    Plastic foam Wood How Your Microwave Oven Works The microwave oven has an electronic tube called a magne- tron that produces microwaves, very short radio waves. The microwaves then pass through a wave-guide and into the oven cavity. The microwaves penetrate the food and cause water molecules within the food to vibrate extremely rapidly.
  • Page 11 Important Safety Instructions partially transparent to microwaves. Microwaves do not directly heat the oven walls and most cooking utensils because they do not absorb microwave energy. However, they fre- quently get very warm through being in direct contact with hot food.
  • Page 12: Microwave Oven

    Microwave Oven is ideal for routine microwaving chores: warming your cup of coffee, reheating leftovers, defrosting that roast or baking potatoes and so on. But the Beyond Micro- wave Oven can do so much more. The Beyond Microwave Oven is packed with advanced fea- tures, like "Scan and Learn"...
  • Page 13 Introducing the Beyond™ Microwave Oven Please read this manual thoroughly before using the Beyond Microwave Oven. Familiarize yourself with the safety precau- tions and all the great features of your Beyond Microwave Oven. Keep this manual handy for future reference.
  • Page 14: Choose A Location

    Microwave Oven Owner’s Manual Choose a Location Because you will be using your Beyond Microwave Oven fre- quently, choose a location that allows convenient access. Keep these points in mind when deciding where to place your oven: • The oven must be placed on a firm, level surface.
  • Page 15 Introducing the Beyond™ Microwave Oven Install the Turntable The turntable must be installed before using the Beyond Micro- wave Oven. Refer to Figure 1 for turntable installation. Turntable Installation FIGURE 1. 1. Place the turntable rest with rollers (B) on the roller ring (D) in the floor of the microwave oven.
  • Page 16: Set The Clock

    Skip this step. All instructions in this Owner’s Manual are written as though the clock is set. Before using the Beyond Microwave Oven for the first time, you must set the clock to the correct time of day. To set the clock: 1.
  • Page 17 Introducing the Beyond™ Microwave Oven 2. Use the digits on the number pad to enter the hour and min- utes. For example, if you want to set the clock to "5:30," press in sequence: 5 3 0. To set the clock to "10:45," press in sequence: 1 0 4 5.
  • Page 18 Microwave Oven Owner’s Manual Get To Know Your Beyond™ Microwave Oven The main features of your Beyond Microwave Oven are shown below in Figure 2. A. Door with Viewing Window B. Vents (Top, Back and C. Control Panel Bottom of Microwave) Microwave Oven Features FIGURE 2.
  • Page 19: Control Panel

    Get To Know Your Beyond™ Microwave Oven Control Panel The control panel is shown in Figure 3, below. Control panel push buttons and features are described in Table 1, immedi- ately following. NETWORK Microwave Control Panel FIGURE 3.
  • Page 20 Microwave Oven Owner’s Manual Figure Beyond Microwave Oven Control Panel TABLE 3. Push Function Button or Feature POWER Press POWER to select a power setting. The power setting (P 10, P 9 etc.) will appear in the display window. The default setting is P 10, the highest power setting.
  • Page 21 Get To Know Your Beyond™ Microwave Oven Display The display window shows the time of day, cook- Window ing time, food weight, power level, learn and user prompts such as Push Start or Scan. If the control panel safety lock is activated, LOC appears in the display window.
  • Page 22: Pause Function

    Microwave Oven Owner’s Manual • Make sure the oven is not in use. If necessary, clear or stop any functions. • Press and hold STOP/CANCEL for approximately 4 sec- onds. LOC will appear in the display window. The control panel will not function in lock mode.
  • Page 23 Get To Know Your Beyond™ Microwave Oven However, the cooking program is not canceled. To resume cooking, close the door and press START. To cancel the cook- ing program completely, press STOP/CANCEL again. Fan Protection When the cooking time is longer than 5 minutes, the fan will continue to run and the turntable will continue to rotate for approximately 15 seconds after the cooking time is complete.
  • Page 24: Basic Oven Operation

    Microwave Oven Owner’s Manual Basic Oven Operation Follow the instructions below for basic heating, reheating and cooking needs. In a Nutshell 1. Prepare the food. Place your food in a microwave-safe package or container. Set it carefully in the center of the turntable and close the oven door securely.
  • Page 25 Basic Oven Operation 4. Start Cooking. • Press START to start cooking. The display window shows the time remaining. • You may interrupt cooking at any time by pressing STOP/ CANCEL. "Push Start" will flash in the display window if cook- ing is interrupted.
  • Page 26 Microwave Oven Owner’s Manual • Cover foods loosely with a microwave-safe paper towel or microwave-safe plastic wrap to avoid splatters, reduce cook- ing time, and prevent drying the food. For basic heating, reheating, and cooking: 1. Place your food in a microwave-safe package or container.
  • Page 27 Basic Oven Operation 6. If the food needs to cook longer, you may follow the steps above, selecting a power level and cooking time. Or, simply press ADD 30 SECONDS to add 30 seconds of cooking time at high power. Note: You may interrupt cooking at any time by pressing the door release or by pressing STOP/CANCEL one time.
  • Page 28: Auto Defrost

    At the end of stage two cooking, the oven will beep four times. Defrosting The Beyond Microwave Oven has two defrost modes: Auto Defrost and Time Defrost. Use Auto Defrost to thaw food based on weight. Use Time Defrost to thaw for a specified amount of time.
  • Page 29 Basic Oven Operation The maximum food weight that can be entered is six pounds. If a higher weight is entered, the oven will beep twice and the display window will return to the time of day. To Auto Defrost: 1. The frozen food must be removed from packaging and placed in a microwave-safe package or container.
  • Page 30 Microwave Oven Owner’s Manual If the food weighs .25 pounds .50 pounds .75 pounds 1.0 pounds 1.25 pounds 1.50 pounds 1.75 pounds 2.0 pounds 4. Press START to begin defrosting. The defrost time (minutes : seconds) will appear in the display window and begin count- ing down.
  • Page 31: Time Defrost

    Basic Oven Operation 6. When the defrosting time is complete, the oven will beep four times and the time of day will reappear in the display win- dow. Press the door release to open the door and using oven mitts, remove the food. If the food needs to defrost longer, stir, or turn over, as appropriate .
  • Page 32: Defrosting Tips

    Microwave Oven Owner’s Manual To temporarily interrupt defrosting: • Press the door release or press STOP/CANCEL one time. • Turn the food over, stir, or break into smaller pieces, as appropriate. 6. Close the oven door and press START to resume defrosting.
  • Page 33 Basic Oven Operation • When defrosting food that has been stored in plastic con- tainers: thaw only until the food will slide out of the plastic container. Transfer the food to a microwave-proof container to complete defrosting. • If you are unsure about the weight of the food, it is best to underestimate the weight in order to avoid drying or overheat- ing the food.
  • Page 34 More About Beyond Microwaving When you scan the barcode on a package of food, the Beyond Microwave Oven searches its database of over 4000 barcodes. Each barcode in the oven’s memory has a corre- sponding set of cooking instructions. If the oven finds the barcode in its memory, it automatically programs itself to cook the food.
  • Page 35 Network? Beyond Appliances are able to exchange information with other Beyond appliances in your home. They do this through a wireless home network that you can set up. To use the wireless network of your Beyond appliances, you must have a Home Hub or an iCEBOX and your Microwave or other appliance must have a SANI card installed.
  • Page 36 Microwave Oven Owner’s Manual Adding Your Beyond Microwave Oven to Your Home Hub Network or iCEBOX Appliance Network If you do not have a Home Hub or an iCEBOX, skip this procedure. Note: Your Microwave must be equipped with a SANI card to use the networking features.
  • Page 37 Microwave, then press the NETWORK button once to enter bind mode again. When the iCEBOX detects the Microwave, it will prompt you to bind. You must choose OK to bind the Microwave. Beyond Microwaving...
  • Page 38 Several minutes later, the Home Hub will display “Microwave Database Download Finished”. Press OK Using the Scanning Wand Your Beyond Microwave Oven is equipped with a scanning wand that is similar to scanning equipment used in many retail settings. The scanning wand on your Beyond Microwave is like having a "magic"...
  • Page 39 Be sure to scan the entire barcode and to keep the wand tip touching the package. A beep tells you that the barcode was scanned successfully. Scanning With the Wand FIGURE 4. Beyond Microwaving...
  • Page 40 Microwave Oven Owner’s Manual 4. Scan the entire barcode from left to right beginning out- side the left edge then back across it right to left. If you are having any trouble, review the following list: • • • •...
  • Page 41: Display Window

    NOT IN MEMORY appears on the display window. Why Does NOT IN MEMORY Appear in the Display Window? Your Beyond Microwave Oven comes pre-programmed with thousands of cooking directions for national brand microwave foods. However, your oven may not recognize the barcodes for new, regional, private label, store, or distributor foods.
  • Page 42: Using The Learn Function

    Microwave Oven Owner’s Manual If you have a Beyond Appliance Network, the network center will search each evening for cooking programs for any NOT IN MEMORY barcodes that you have scanned that day. If the barcodes are in the larger Network database, your network center retrieves them and adds them to your oven’s memory.
  • Page 43 Beyond Microwaving 3. Press the POWER button to select the power setting. P 10 will appear in the display window. Pressing POWER repeat- edly will reduce the power setting one level at a time from P 10 (highest) to P 1 (lowest).
  • Page 44 Retrieving New Cooking Programs from the Home Network If you have a Beyond Appliance Network, you can "ask" your Beyond Microwave Oven to search the Network for new cook- ing programs. • Scan the barcodes for as many foods as desired. For exam- ple, you can scan all your packaged grocery items as you put them away.
  • Page 45 Beyond Microwaving To retrieve new recipes from the Beyond Information Network: 1. Press SCAN. The red light at the end of the scanning wand will illuminate. The Learn and Scan icons will blink on the display. 2. Scan the barcode on the package.
  • Page 46: User Maintenance Instructions

    Cleaning and Care Routine cleaning will enhance the performance and reliability of your Beyond Microwave Oven. Clean the oven on a weekly basis, more often, if needed. To ensure safe and efficient operation, be sure to keep the inner door, door seal, hinges, and latches clean and free of food residue.
  • Page 47: After Cleaning

    Maintenance • Unplug the oven before cleaning exterior surfaces or vents. - OR - Clean with the oven door open to prevent the oven from accidentally turning on. After Cleaning • Be sure to replace the turntable roller ring and turntable in the proper position.
  • Page 48 Removal Control Panel Wave Guide Cover Cleaning and Care of the Beyond Microwave TABLE 5. Oven Cleaning Procedure Wipe the window on both sides with a damp cloth to remove any spills or spatters. Do not use any type of abrasive cleaner.
  • Page 49 Reference Reference Guidelines for General Microwave Cooking: • Cook the food for the shortest time possible. If necessary, add cooking time until the food reaches the appropriate temperature. • The quantity, denseness, and temperature of food will all determine the cooking time necessary. Check for doneness, and if necessary cook or reheat for additional time.
  • Page 50 Microwave Oven Owner’s Manual • The edge of the cooking container gets more microwave energy than the center. So, place the densest part of the food (broccoli stem, for example) near the outside, and the less dense part (broccoli head) towards the center.
  • Page 51 • Omit instructions on package to rotate containers midway during cooking; this is not necessary since the Beyond Micro- wave has a turntable. • If there are directions on the package for cooking food fro- zen or thawed, the Beyond Microwave is programmed to cook the food thawed.
  • Page 52 Container Size Guidelines for Microwave Cooking When heating foods in a microwave oven, it is important to use a microwave-safe, clear, glass container that is large enough to allow the food to heat evenly and to prevent hot liq- uids from boiling over.
  • Page 53 Guidelines for Canned, Ready-to-Eat Soups, Stew, Chili and Pasta: Can Size 14 to 16 oz (397 to 567 gm) 17 to 28 oz (482 to 794 gm) 29 to 52 oz (822 to 1474 gm) Guidelines for Condensed Soups: Can Size Microwave Container Size 10 to 16 oz (283 to 567 1 quart/4 cups/946 ml...
  • Page 54 Microwave Oven Owner’s Manual Guidelines for Canned Vegetables: Can Size 8 oz (226 gm) 9 to 15 oz (255 to 425 16 to 28 oz (453 to 793 29 to 55 oz (822 to 1559 Guidelines for Dehydrated Scalloped Potatoes:...
  • Page 55 Guidelines for Dry Rice/Couscous/Pilaf Mixes: Amount Individual serving package 4 to 5 oz (112 to 140 gm) 5.1 to 12 oz (142 to 336 gm) Guidelines for Dry Pasta Mixes: Amount Individual serving package 4 to 5 oz (113 to 142 gm) 5.1 to 8 oz (142 to 224 gm) Reference Microwave Container Size...
  • Page 56 Microwave Oven Owner’s Manual Recommended Cooking Power Level Power Level P 10 (high) P 9 / P 8 P 8 / P 7 (medium) F Boil water F Most prepackaged microwave foods F Sauté ground beef F Cook fresh fruits and vegetables...
  • Page 57 Power Level F Cook less tender cuts of meats F Melt butter and chocolate F Soften butter & cheese P 1 (Low) F Soften ice cream F Raise yeast dough F Keep cooked foods warm for short periods of time Reference...
  • Page 58 Microwave Oven Owner’s Manual Fresh Vegetable Cooking Guide Use microwave plastic wrap to cover vegetables Vegetable Asparagus Beans Beets Broccoli Brussel Sprouts Cabbage Quantity Container / Liquid Cuts 3 cups, cut 2 quart casserole, add into 1 to 2 ¼ cup water...
  • Page 59 Carrots Sliced 1 lb Cauli- Whole 1 medium flower head Flowerets 1 medium head Chopped 4 medium Vegetable Quantity Corn on 1 to 5 small the Cob ears Eggplant 1 medium, about 1 lb Parsnips 1 lb Peas Shelled 2 lbs unshelled Potatoes Whole...
  • Page 60 Microwave Oven Owner’s Manual Spinach Squash Turnips Cubed 4 potatoes Peel, cut into 1 inch White (6 to 8 oz cubes, 2 quart casserole each) with 1/3 cup water. Stir after halfway through cooking time. 10 to 16 oz 2 quart casserole, place washed spinach.
  • Page 61: Microwave Cooking Guide

    Microwave Cooking Guide Always cook in microwave-safe containers. Paper is acceptable for some foods. DO NOT USE METAL CONTAINERS. Cooking times and food quantities should be used as guidelines only. Power Food Level Appetizers Party Mix (2½ quarts) P 10 Meatballs, small meat P 10 or Hot Dog chunks...
  • Page 62 Microwave Oven Owner’s Manual Cheesecake (9 inch pie plate) Bar Cookies (8 inch square dish) Muffins (6) Eggs, Cheese, Dairy Scrambled Eggs Quiche Thickened Sauces and Gravies (1 cup) Scald Milk (½ cup) Melt Butter (½ cup) Soften Cream Cheese...
  • Page 63 Fish & Shellfish Fillets or Steaks P 10 (1 lb) Casserole, P 10 precooked (2 to 3 quart) Scallops, Shrimp, P 10 peeled (1 lb) Fruits Baked Apples or Pears P 10 Meats and Poultry The USDA recommends cooking meats to the following internal temperatures to be sure any harmful bacteria has been killed.
  • Page 64 Microwave Oven Owner’s Manual Sausage Links Franks or Hot Dogs (1 lb) Food Meat Casseroles with pre-cooked Meat and Ingredients Meat Stews with raw Meat and Vegetables Meat Patties (4 per lb, or 4 oz each) Spareribs (2 to 3 lb)
  • Page 65 Chops with Sauce Pot Roast, 3 to 4 lb Pot Roast, tender Roast, tender beef such as rib-eye or rolled rib Ham Roast, pre-cooked Pasta and Cereals Long pieces P 10 (Spaghetti, Linguini, etc.) Noodle or Rice P 10 Casseroles (2 quarts) Reference 30 to 40 Turn over halfway...
  • Page 66 Microwave Oven Owner’s Manual Food Hot Cereal, regular or instant Rice, instant Pie Crust Crumb Crust (9 inch) Poultry (use microwave-safe cooking bag) Chicken, cut up. 6 to 8 pieces Whole Chicken or Cornish Hens Turkey Legs or Quarters Power...
  • Page 67 Turley Breast Eggs Fried 1 or 2 eggs P 10 Scrambled, 2 eggs P 10 Reference 12 to 15 Place on minutes per lb. microwave-safe dish, breast-side down. Turn over halfway through cooking time. 30 to 60 Break egg into small seconds per egg plate that has been greased with butter.
  • Page 68 Microwave Oven Owner’s Manual Poached P 10 2 minutes then 3 to 5 minutes Use a microwave-safe container. Add water to fill 2 inches deep. Heat on high for 2 minutes to bring the water to a boil. Break eggs, one at a time, into sauce dish;...
  • Page 69: Reheating Guide

    Reheating Guide Stir or rearrange large amount of food after half the suggested heating time. To be thoroughly heated, food should reach a tem- perature of 160ºF to 165ºF. Allow foods to stand a few minutes before serving. Food Appetizers Saucy meatballs, riblets, cocktail franks, etc.
  • Page 70 Microwave Oven Owner’s Manual Dinner Plate Meats & Main Dishes Meat plus 2 1 plate vegetables Saucy (1 cup serving) 1 to 2 servings chop 3 to 4 servings suey, spaghetti, 1 to 10 oz can creamed chicken, chili, stew, macaroni and cheese, etc.
  • Page 71 Sandwiches Moist filling (½ cup & Soups serving) Meat cheese filling with ham Soup (1 cup serving) Water based Dairy based Food Vegetables Small (½ cup serving) peas, beans, corn, etc. Large or whole asparagus spears, corn on the cob,etc. Mashed potatoes, squash, pumpkin, etc.
  • Page 72 Microwave Oven Owner’s Manual Sauces Bakery Foods Dessert: chocolate or ½ cup butterscotch 1 cup Chunky type giblet ½ cup gravy, 1 cup spaghetti sauce, etc. 1 16 oz can Creamy type ½ cup 1 cup Cake, coffee cake, 1 piece...
  • Page 73 Cocoa, other dairy based Other Microwave Oven Uses • Crisp stale crackers or chips by heating on high power for 45-60 seconds. • Defrost bread, frozen stock, egg whites, and pie dough. • Dry fresh herbs by placing between paper towels, then heating on high power for 4 minutes or until dried.
  • Page 74 Microwave Oven Owner’s Manual • To help loosen peels on fresh peaches or tomatoes, heat on high power for 10 to 30 seconds, depending on the fruit and size. Let stand for 10 minutes for peeling. • Before grilling meat or poultry, microwave on high power for about 3 minutes per pound.
  • Page 75 English/Metric Conversions English to Metric English Measure Metric Equivalent 1 teaspoon 5 milliliters 1 tablespoon 15 milliliters 1 ounce (liquid) 30 milliliters 1 cup 237 milliliters 1 pint 473 milliliters 1 quart 946 milliliters 1 gallon 3.79 liters 1 ounce (dry) 28 grams 1 pound 453 grams or 45 kg...
  • Page 76: Technical Specifications

    Microwave Oven Owner’s Manual Technical Specifications Power source Power consumption Output Oven capacity Note: Specifications subject to change without notice. 120V, 60 Hz 11.5 Amps, 1450 W 850 Watts 0.9 cubic feet (0.025 cubic meters)
  • Page 77: Troubleshooting

    Troubleshooting Problem Oven will not turn on. Oven will not turn on. Oven will not start cooking. The door is not closed Troubleshooting Possible Cause Remedy The oven is not plugged in Remove plug from outlet. securely. Wait 10 seconds and reinsert.
  • Page 78 Microwave Oven Owner’s Manual Arcing or sparking Unevenly cooked foods and/or undercooked foods Metallic or other Remove metal objects. Use inappropriate materials are microwave-safe utensils being used in food only. preparation. The oven is operated when Do not operate the oven empty.
  • Page 79 Uneven, incomplete Metallic or other defrosting inappropriate materials are being used in food preparation. Cooking time or power level is not suitable. The turntable wobbles. The turntable is not positioned properly on the roller ring or there is food under the roller ring.
  • Page 80: Frequently Asked Questions

    Microwave Oven Owner’s Manual Frequently Asked Questions I am having trouble with the scanning wand. Try moving the wand back and forth across the barcode several times. Try scanning from corner to corner. It is easier to move the scanning wand smoothly with a quick motion rather than a slow motion.
  • Page 81 When cooking with power other than 100%, the oven automatically turns on and off to obtain lower power output. The clicking noise can be heard when the oven switches on and off. This is normal. The fan will continue to run during the entire cooking cycle.
  • Page 82: Limited One Year Warranty

    Microwave Oven Owner’s Manual Limited One Year Warranty Warranty: This Toastmaster¨ product is warranted to be free from defects in materials or workmanship for a period of (1) year from the original purchase date. This product warranty covers only the original consumer purchaser of the product.
  • Page 83 Limited One Year Warranty For Products Purchased in the USA, but Used in Canada: You may return the product insured, packaged with sufficient protection, and postage and insurance prepaid to the USA address listed below. Please note that all customs duty / brokerage fees, if any, must be paid by you and we will require you to pay the cost of customs duty / brokerage fees to us in advance of our performing any service.
  • Page 84: Contact Information

    Microwave Oven Owner’s Manual Contact Information Contact Information Coordonnées : Contacte a: Toastmaster Inc. National Service Center 708 South Missouri Street Macon, Mo 63552 In USA and Canada call: Consumer Service: 1-800-947-3744 Consumer Parts: 1-800-947-3745 consumer_relations@ toastmaster.com Hours: 8:00 A.M. - 5:30 P.M. Central Standard Time Aux USA et au Canada, appeler les numéros suivants :...
  • Page 85 Contact Information...
