REGATRON TC.ACS Device Manual

Full 4-quadrant grid simulator
Hide thumbs Also See for TC.ACS:
Table of Contents

Advertisement

Quick Links

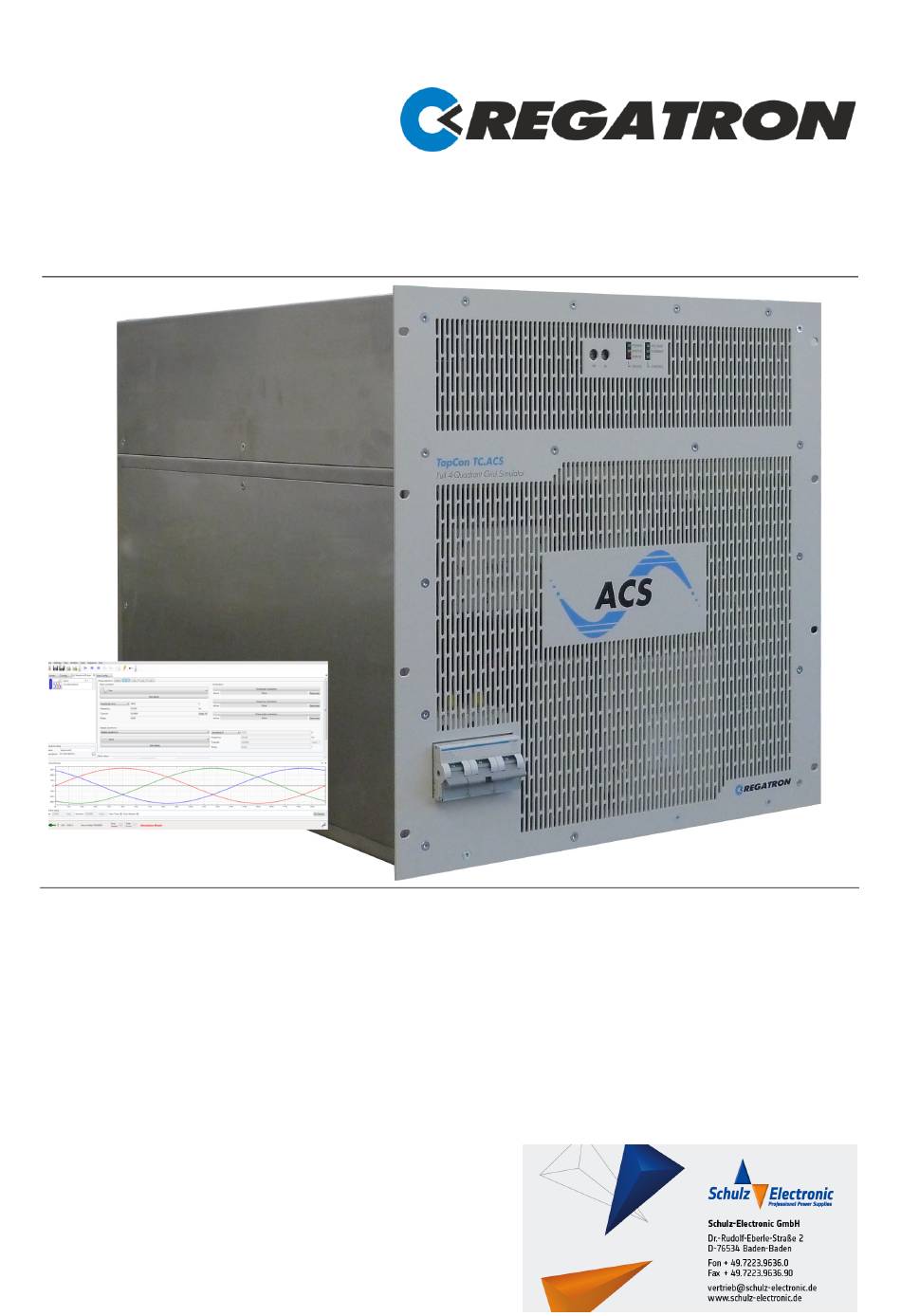

TC.ACS
Full 4-Quadrant Grid Simulator
Device Manual
Version V2.00
Your distributor:
Regatron AG
Feldmuehlestrasse 50
CH-9400 Rorschach

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC.ACS and is the answer not in the manual?

Questions and answers

Summary of Contents for REGATRON TC.ACS

  • Page 1 TC.ACS Full 4-Quadrant Grid Simulator Device Manual Version V2.00 Your distributor: Regatron AG Feldmuehlestrasse 50 CH-9400 Rorschach...
  • Page 2 Customer Support If you have any questions, your Regatron AG sales partner will be pleased to be of assis- tance. However, you can also reach Regatron Customer Support at tc.support@rega- tron.ch.
  • Page 3 The information in this documentation corresponds to the development situation at the time of going to print and is therefore not of a binding nature. Regatron AG reserves the right to make changes at any time for the purpose of technical progress or product improvement, without stating the reasons.
  • Page 4: Table Of Contents

    3.3 Interfaces on the Rear Side ............18 3.3.1 Senseboard (optional) ....................... 20 TC.ACS - Device Manual (V2.00) 4 / 33...
  • Page 5 6.2 What does Regatron Customer Support need to know? ......32...
  • Page 6: General Safety Information

    Hazard due to high voltage Hazard due to suspended load Hazard due to hot surface Hazard due to a substance or mixture of substances (H361, H373) Hazard due to a substance or mixture of substances (H302) TC.ACS - Device Manual (V2.00) 6 / 33...
  • Page 7: Ordinances And Regulations

    • Personnel Area (1.3.1) • Systems and Material Area (1.3.2) • Mains Connection Area (1.3.3) • Surrounding Area (1.3.4) • Area related to Interaction with the Device (1.3.5) TC.ACS - Device Manual (V2.00) 7 / 33...
  • Page 8: Personnel Area

    Supervision and preparatory measures (active protection). Use appropriate protection against physical contact throughout. Set up a suitable emergency stop chain and test it at regular intervals. Mark all wires and cables to prevent mistakes. TC.ACS - Device Manual (V2.00) 8 / 33...
  • Page 9: Electrical Heating

    Use breathing apparatus with independent air supply at long time and high concentrations of vapor and aerosols. • Use protective gloves which are resistant against acids and solvents and safety gloves to avoid direct skin contact. TC.ACS - Device Manual (V2.00) 9 / 33...
  • Page 10: Systems And Material Area

    In particular, on the supply of power to drives it is to be ensured, that excessively high speeds cannot result in load shedding. The monitoring of the maxi- mum speed with intervention in the safety chain is recommended above all if the system runs unmonitored. TC.ACS - Device Manual (V2.00) 10 / 33...
  • Page 11: Handling Storage Systems Containing Large Amounts Of Energy

    It is to be ensured that there are no undesirable effects (e.g. stirring up of dust or sand, deformation due to the action of heat etc.) due to the flow of air and the heat, which at high load may be powerful. TC.ACS - Device Manual (V2.00) 11 / 33...
  • Page 12: Area Related To Interaction With The Device

    The device is always to be operated within the permissible temperature range. High tem- peratures will significantly reduce the service life of various components. TC.ACS - Device Manual (V2.00) 12 / 33...
  • Page 13: Introduction

    ACSControl. 2.1.1.2 Full Waveform Generator Mode (Option) In the full waveform generator mode the TC.ACS device simulates a grid or any other kind of electrical source. I.e. it generates signal functions that resemble those being generated by the respective source.
  • Page 14: Amplifier Mode

    2.1.2 Amplifier Mode In the amplifier mode the TC.ACS device works as a triphase voltage or current (option) amplifier. I.e. it receives external signals via its analogue interfaces for each phase. These signals are amplified and then transferred to the output. Here any device, which creates electrical signals, can be used as an external signal generator.
  • Page 15: Operation

    Introduction Operation 2.2 Operation The TC.ACS device can be operated via the software ACSControl exclusively. The software ACSControl is included in the scope of delivery. 2.3 Product Variants The TC.ACS product range varies with regard to the following aspects: • Power •...
  • Page 16: Interfaces, Controls And Displays

    Device address selection switch NOTE: The selection switch is currently not used. LED indication indicates the current status of the device (for the possible indications and their meanings see 3.2) Main switch, circuit breaker TC.ACS - Device Manual (V2.00) 16 / 33...
  • Page 17: Led Indications And Their Meanings

    In any case, a flashing LED ( ) for ERROR indicates an error. In case of an error the device automatically switches to standby state. TC.ACS - Device Manual (V2.00) 17 / 33...
  • Page 18: Interfaces On The Rear Side

    Interfaces, Controls and Displays Interfaces on the Rear Side 3.3 Interfaces on the Rear Side Fig. 3: Interfaces on the rear side (standard version) TC.ACS - Device Manual (V2.00) 18 / 33...
  • Page 19 Signal input for phase L3 on the load side X611 Signal input for phase L2 on the load side used for Amplifier Mode X610 Signal input for phase L1 on the load side TC.ACS - Device Manual (V2.00) 19 / 33...
  • Page 20: Senseboard (Optional)

    Interfaces on the senseboard X606 Service interface RS232 (only used for software update) NOTE: This interface requires a cable with braided shield. 2 X614 Digital input interface (currently not supported) 3 X615 Sense input interface TC.ACS - Device Manual (V2.00) 20 / 33...
  • Page 21: Installation And Commissioning

    Installation and Commissioning Overview Installation and Commissioning 4.1 Overview The installation and commissioning of the TC.ACS includes the following steps: • Case Installation (4.3) • Electrical Installation (4.4) • Connecting a Cooling System (4.5) • Connecting a PC (4.6) • Starting the TC.ACS (4.7) •...
  • Page 22: Case Installation

    The TC.ACS is intended to be installed in a standard 19” switch cabinet with an external air flow. In this case it is to be placed on rails or shelves and fastened at the holes on the left and right edges of the front panel.
  • Page 23: Electrical Installation

    If you want to use a residual current device, please consider the varying requirements for protection against fire and the protection of individuals. Regatron recommends the usage of a residual current device sensitive to AC and DC leakage currents. Prior to the electrical installation, Regatron recommends to confirm the following aspects: - The type plate matches the data in the order and delivery documents.
  • Page 24: Prerequisites

    Prerequisites For the electrical installation of the TC.ACS the following must be given: • The TC.ACS is electrically isolated, switched off (via the main switch) and secured against being switched on. • Correct Size of Cables and Cable Ends (4.4.2.1) •...
  • Page 25: Electromagnetic Compatibility Of Cables

    • Star topology earthing (suitable for EMI) of the device 4.4.3 Procedure To electrically install the TC.ACS, do the following: Connect the mains via the X10 AC line input terminal (see 3.3). Connect the load to the X20 AC load output terminal (see 3.3).
  • Page 26: Connecting A Cooling System

    4.5 Connecting a Cooling System 4.5.1 Introduction In order to dissipate the generated heat, the TC.ACS necessarily needs to be connected to an external cooling system. The liquid to air heat exchanger TC.LAE is designed to be used as an external cooling system with the TC.ACS.
  • Page 27: Connecting A Pc

    Connecting a PC 4.6 Connecting a PC In order to be operate the TC.ACS you need to connect a PC with the software ACSCon- trol. You can connect the PC via the USB-interface X607 or the Ethernet-LAN-interface X605 (see 3.3).
  • Page 28: Running A Function Test

    Running a Function Test 4.8 Running a Function Test With the software ACSControl you can run a function test on the TC.ACS to confirm that it actually works as intended. For installing the software ACSControl as well as detailed information on how to use it, see the related software manual.
  • Page 29: Transport, Packaging And Disposal

    - Due to the weight of the device, a robust trolley, a forklift, or a crane should be used. The TC.ACS is equipped with four eyelet rings, which allow to attach hoisting slings. Use the eyelet rings to lift the TC.ACS.
  • Page 30: Packaging

    4. Lower protective support 5. Cardboard box 6. Transport pallet You can order new shipping packaging from Regatron Customer Support. Here you can also get additional package protection for the front and the sides, if necessary (e.g. for overseas shipping).
  • Page 31: Disposal

    When disposing a TopCon power supply, the following points are to be regarded: - Electrical equipment is too valuable for household waste. - Disposal with due care for the environment. - On the disposal of electrical equipment, comply with national laws. TC.ACS - Device Manual (V2.00) 31 / 33...
  • Page 32: Support

    SWITZERLAND E-mail: tc.supportregatron.ch Phone. +41 (0)71 846 67 44 Web: www.regatron.com 6.2 What does Regatron Customer Support need to know? To help you in a most efficient way, Regatron Customer Support needs the following infor- mation: • Contact Information (6.2.1) •...
  • Page 33: Contact Information

    Support What does Regatron Customer Support need to know? 6.2.1 Contact Information Contact information is the following: • Name of your company • Name of a contact person, i.e. the person with whom further contact will be made • E-mail address, telephone number (extension) of the contact person •...
