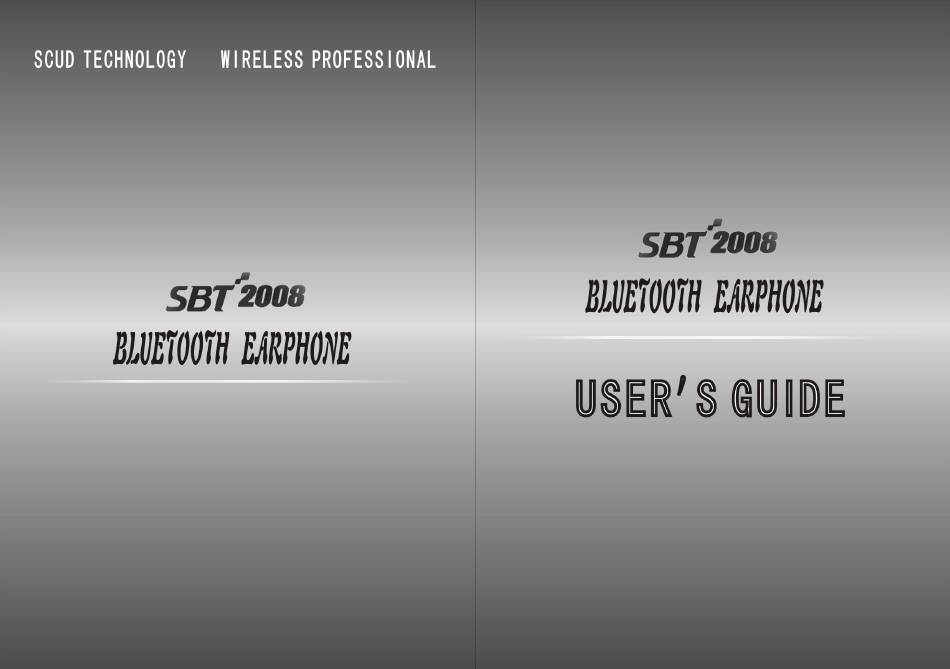

Summary of Contents for SCUD SBT-2008
-
Page 2: Table Of Contents
CONTENTS Brief Introduction……………………………………3 Bluetooth Bluetooth Earphone General Features Operation……………………………………………6 Charge Keypads function Switch On/Off Matching Dialing and receiving Connect PC and PDA Important Info ……………………………………10 Troubleshooting Maintenance Charger Wired Earphone Battery Info. List…………………………………………………15... -
Page 3: Brief Introduction
Brief Introduction What is Bluetooth? Bluetooth technology cutting-edge open specification that enables short-range wireless connections between desktop and notebook computers, personal digital assistants, mobile phones, camera phones, printers, digital cameras, headsets, keyboards and even a computer mouse. Bluetooth wireless technology uses a globally available frequency band (2.4GHz) for worldwide compatibility. - Page 4 Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 5 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Modifications not authorized by the manufacturer may void users authority to operate this device.
-
Page 6: General Features
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. General Features Bluetooth Specification Bluetooth 1.1 version Profiles Supported. Headset and Hands Free Transmission scope Class 2 Class Supporting HV1/HV2/HV3 transmission packet Supporting USA/EU （79 channel） frequency-hopping mode Sensitivity... - Page 7 SCUD Schematic Diagram...
-
Page 8: Operation
Operation Charge There is the chargeable battery in the earphone. It needs for 3 hours to be charged fully when used for the first time, and then it will take about 2~3 hours to charge each time. Communication time will last for about 4~5 hours and the standby time is about 100 hours when the battery has been charged fully. -
Page 9: Switch On/Off
TALK Button Volume adjustable State button Short Hold Short Hold press press press press Power Power off Voice Power Standby dial Power Voice Dial Cancel Power Ringing Answer End a Power Adjust Communication Mute call volume Hands Free Profile: Volume adjustable TALK Button button State... -
Page 10: Matching
5 seconds would lead the earphone to work when the LED indicator twinkles green for 5 times. 2.To switch off the earphone: Pressing TALK for about 3 seconds, it will be off when the red LED indicator twinkles for 5 times and the red、green indicator both don’t show. -
Page 11: Dialing And Receiving
2. The matching mode will last for about 2 minutes. If matching is still not finished within 2 minutes, the earphone will be off automatically. Dialing and receiving After the matching, you can dial or receive calls with earphone. This earphone device supports voice dialing. -
Page 12: Important Info
4. If the earphone is off when the in-call comes, hold p r e s s TALK to switch on, then press TALK again to answer the phone. Mute Please hold press volume-adjusted button to switch on mute function. Low power The red indicator on the earphone shines to show the battery power is insufficient. - Page 13 s i g n a l . 4.Why the mobile and earphone work abnormally under full battery power and power on. ○ e n s u r e y o u r m o b i l e i s w i t h Bluetooth technology.and the matching program has been finished.
- Page 14 and the earphone every time ? ○No. The matching between the mobile phone and the earphone is only once. After that, no rematch is necessary even one of them is disconnected from outlet. 10.Why there’s noise with my Bluetooth earphone? ○The communication quality may be affected by the following two factors: ○If your mobile is not in a good receiving situation,...
-
Page 15: Maintenance
software by each mobile manufacturer. Maintenance ○Using non-original accessories may result in the descend of the function of product, or confliction of electrical and failure of guarantee repair. ○Do not disassemble earphone. It may destroy the product or cause the failure of guarantee repair. ○Don’t put it in the dusty place ○Clean earphone surface with soft and clean cloth. - Page 16 ○For new battery, charge it for at least 4 hours every time until it’s fully charged． Battery Maintenance： ▲ The battery can’t be replaced by anyo except qualified service personnel. ▲The battery can reach an extreme long life by normal use. ▲The ambient temperature should between -10℃...
-
Page 17: List
from each phone factory， so please set it according to the mobil instruction. Matched device will keep the matchi- ng programthough the following circumstances happen: ○ One of devices is power off; ○ one of devices interrupt or stop service; ○...
