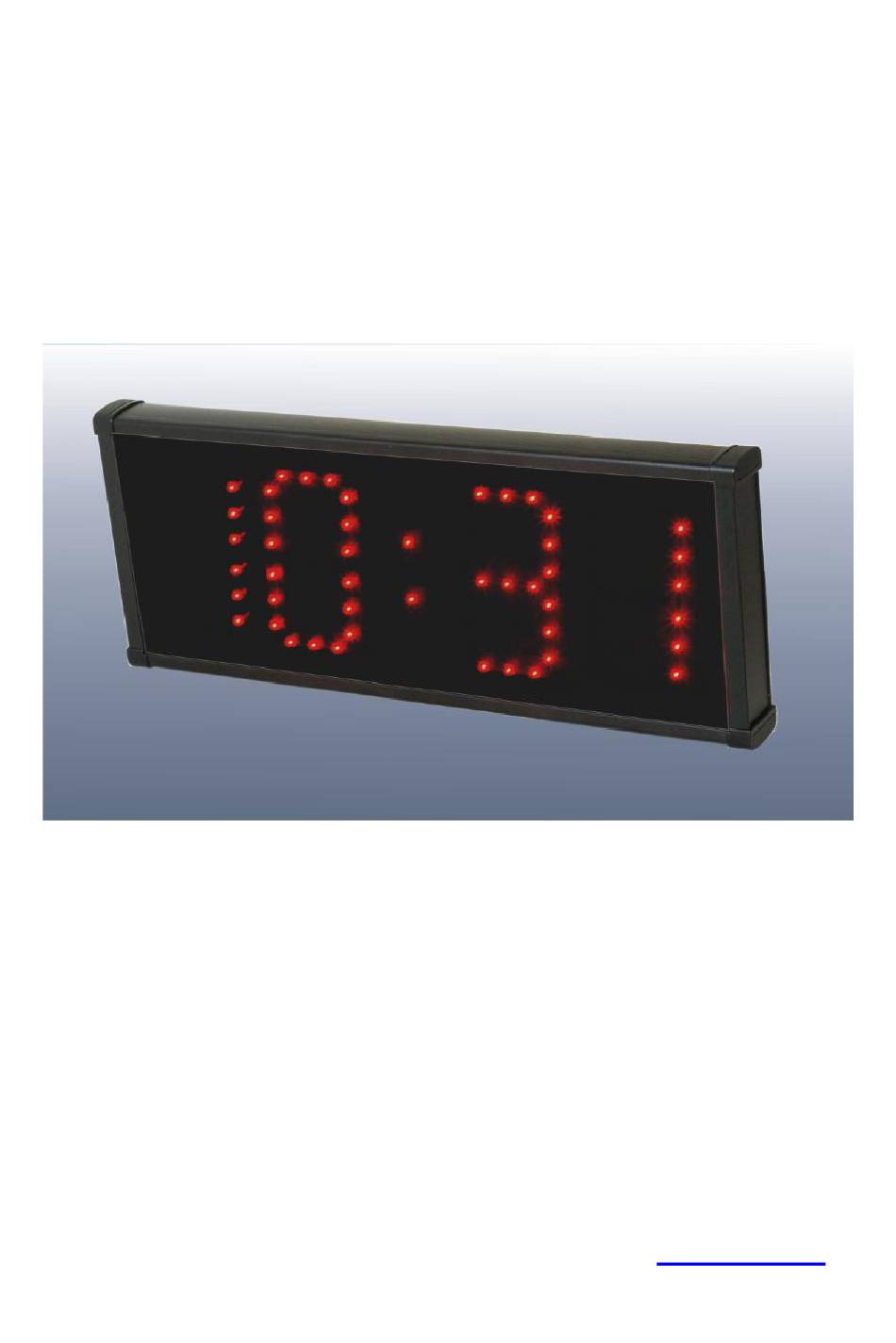

Large digital clock VDH17 User manual RMC s.r.o. Trenčianska 863/66, 018 51 Nová Dubnica Tel.: 042/4455621, Fax: 042/4434175, E-mail: rmc@rmc.sk, www.rmc.sk... - Page 2 Contents: 1.Technical description ..................3 2.Technical data ....................3 3. Operating manual ..................4 3.1. Installation and putting into operation .......... 4 3.2. Parameters setup ................. 6 4. Certificate of warranty ..................8 - 2 -...
-
Page 3: Technical Data
1. Technical description The clock is designed for displaying of real time HOUR:MIN, date DAY.MON. and temperature in the interior or exterior. Intervals of displaying of data can be adjusted. Setting of parameters is simple by wireless IR controller RC403. Display brightness can be adjusted in eight steps manually or autimatically in dependence on surrounding lighting. - Page 4 3. Operating manual 3.1. Installation and putting into operation The clock is installed depending on the type of installation. At the rear gripping, you have to mount the console with four screws to desired position. Respect proper console rotation. Slip-on the console as the clip at the rear side of the clock is located from the outside and mount with applied screws M6.
- Page 5 column diameter shouldn’t be smaller than 100mm because of placement of the socket for cables. Obr.4: Side gripping to a column After mounting the clock, connect the power supply and put the temperature sensor to an adequate place. With the internal version of clock, there’s a supplied power supply SSZ02 with protection IP65 in the box.
- Page 6 3.2. Parameter setup After switching on the power supply, time, date and temperature are showed on the display in adjusted intervals. The clock can be adjusted by supplied infra-red controller RC403HL. You can access the menu after pointing the controller to the clock and pressing the P<P button for longer than 2 seconds.
- Page 7 3.2.7. Setup of the display brightness The display brightness can be adjusted in 8 steps. An abbreviation br and the brightness step 1 to 8 is displayed. If you choose 0, an abbreviation AU is displayed and the brightness is changed automatically depending on the solar radiation. After this setup, everything is adjusted.
- Page 8 4. Certificate of warranty Product: Large digital clock VDH17 Type: ....... Serial number: ....... Date of sale: ....... Warranty terms The producer and distributor are responsible for the product characteristics defined in the technical specifications and provide warranty within 24 month from...
