Summary of Contents for Time domain RadarVision 2

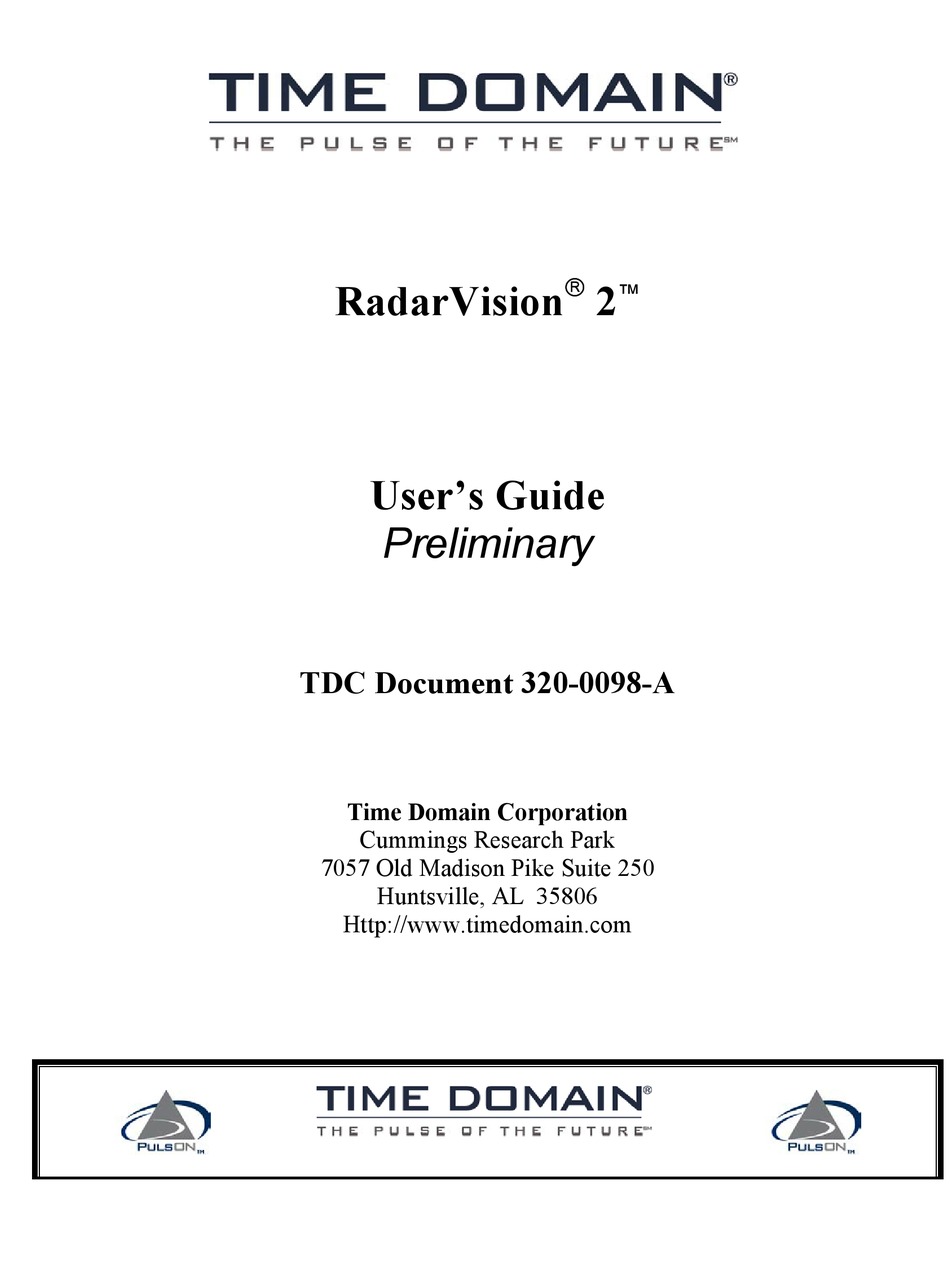

- Page 1 RadarVision ™ User’s Guide Preliminary TDC Document 320-0098-A Time Domain Corporation Cummings Research Park 7057 Old Madison Pike Suite 250 Huntsville, AL 35806 Http://www.timedomain.com...
- Page 2 Rights to use this documentation extends only to direct purchasers for training and operation of the RadarVision unit. All other uses require prior written permission from Time Domain before this User’s Guide contents are reproduced or used in full or in part.
- Page 3 Public Safety Radio Pool under Part 90 of CFR Title 47. The license may be held by the organization for which the UWB operator works on a paid or volunteer basis. • Changes or modifications not expressly approved by Time Domain Corporation could void the user’s authority to operate this equipment. •...
-
Page 4: Table Of Contents
Powering Up the RV 2 ....................... 5 Scanning ..........................6 Charging the Batteries ......................6 2.0 Getting Familiar with RadarVision 2 ................. 9 2.1 Overview of Controls......................10 2.2 Overview of Display......................11 2.3 Feet and Meters in Figures and Illustrations................. 13 3.0 Basic Features and Operation .................... -
Page 5: Quick Start
1.0 Quick Start 1.1 What’s in the box Each RadarVision 2 (RV2) is shipped in a custom protective case with a foam insert to protect during shipping and in normal use. Store the RV2i in the RadarVision case when not in use. -
Page 6: Scanning
For further information on • Overview of the RadarVision 2 and controls see Section 2.0. • Basic operation and controls see Section 3.0. • Detailed explanation and instructions on the control menu see Section 4.0. - Page 7 Preliminary RadarVision 2 User’s Guide • Yellow Solid: Standby • Red Flash: Error If an error indication appears, unplug the battery from the control module. Unplug the control module from the power converter. Reattach the power converter, then plug the control module into the battery.
- Page 8 RadarVision 2 User’s Guide Preliminary This page intentionally left blank Page 8...
- Page 9 RadarVision 2 User’s Guide 2.0 Getting Familiar with RadarVision 2 The RadarVision 2 (RV 2) is an ultra wideband-enabled device that detects motion through most common building materials. RadarVision 2 radar units provide through-wall intelligence vital to law enforcement and search and rescue teams.
-
Page 10: Power On/Off
RadarVision 2 User’s Guide Preliminary Sheetrock Brick Wood and wood composites Plaster Tile Fiberglass This manual will explain the basic features and functions of the device, describe the controls and options, provide tips for operation and give troubleshooting assistance. Figures 2.1 and 2.2 show the RV 2 from the operator’s side of the unit. The device is activated with a single Power On/Off [red] button. - Page 11 Preliminary RadarVision 2 User’s Guide Text describing parameter options is displayed on the menu function bars. This text will change depending on where one is in the menu structure. Choices are implemented with either arrows or highlighting text centered between the function bars, see Figures 2.3, 2.4, and 2.5.
-
Page 12: Display Options
Menu function bars Figure 2.6: RadarVision 2 Display • Display option settings area (Figure 2.7) indicates which display options (motion, static, and/or symbol) are active. Any combination of these options may be selected or ‘layered’ upon one another for display viewing. Because of this layering capability, when the radar is set for motion detection the ‘motion layer’... -
Page 13: Range Options
Preliminary RadarVision 2 User’s Guide • Maximum range indicates maximum distance for target detection and display. This range is user selectable for distances of 9ft., 15ft., and 30ft. as defined in Section 3.5.2. • Boresight line indicates the center of the field of view. - Page 14 RadarVision 2 User’s Guide Preliminary This page intentionally left blank Page 14...
