Summary of Contents for Multilink Smart Tracker ST-01

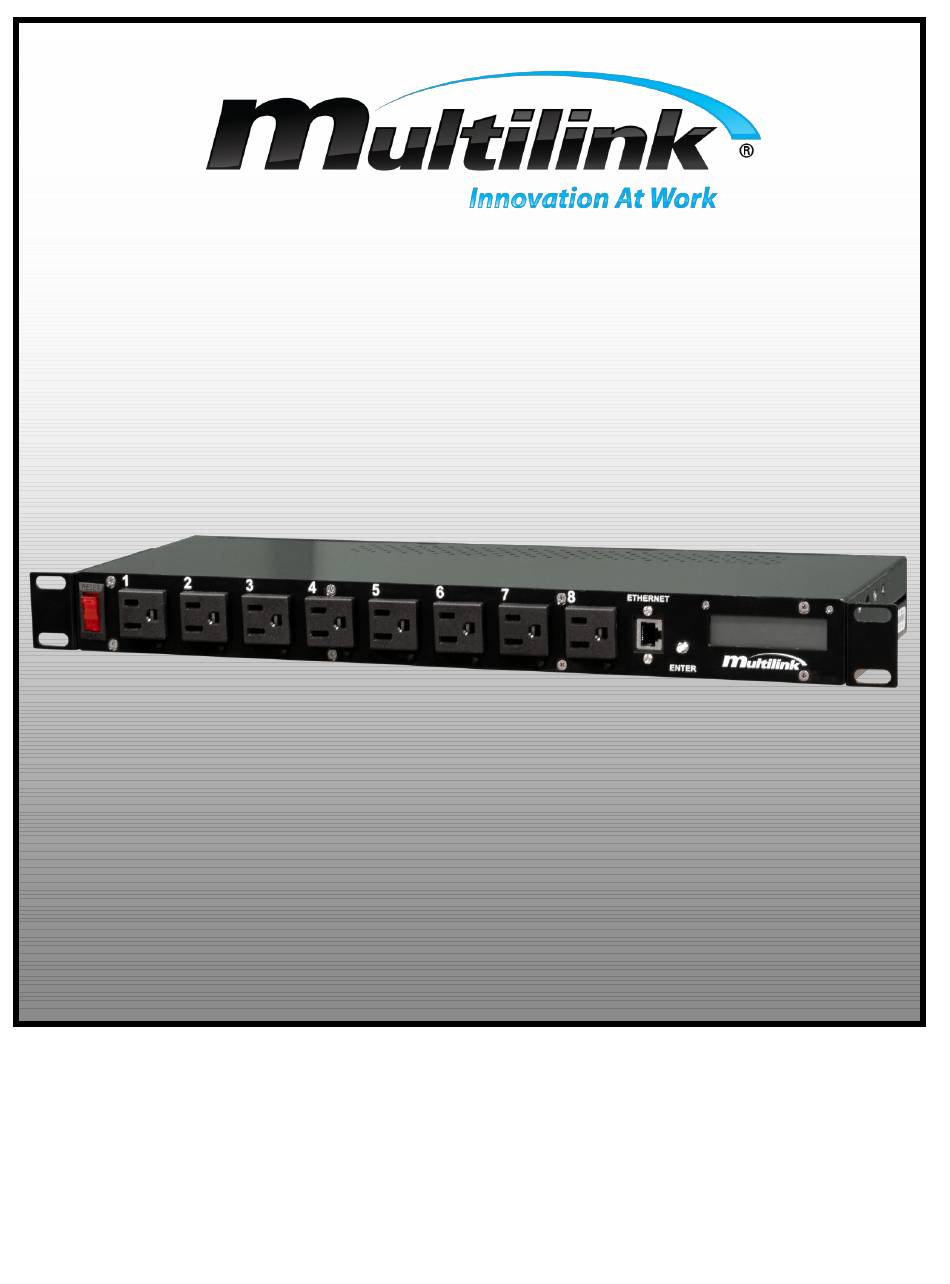

- Page 1 Smart Tracker Remote Power Manager Installation and Operation Manual Manual Part No: 018-041-A0 Revision 05 (03/21/19) P.O. Box 955 Office & Plant (440) 366-6966 580 Ternes Avenue Fax # (440) 366-6802 Elyria, Ohio 44035 USA Website: www.gomultilink.com...
- Page 2 The following models, with their part numbers, are documented by this installation and operation manual. This device and its respective packages may be referenced using the part numbers listed below. MODEL NUMBER PART NUMBER INPUTS OPTIONS Smart Tracker ST-01 018-041-10 120VAC/60Hz Blue Chassis Smart Tracker ST-01 018-041-11...
-
Page 3: Table Of Contents
Table of Contents Smart Tracker Remote Power Manager Section 1: Critical Safety Issues ..........................4 Safety Admonishments Emergency Shutdown Procedure General Safety Issues Safety Issues Enclosure Safety Issues Section 2: Introduction .............................. 6 Smart Tracker Product Overview and Features Unpacking and Inspection Missing or Damaged Items Original Shipping Container Section 3: Front Panel Controls, Connections, and Indicators ................ -
Page 4: Section 1: Critical Safety Issues
Section 1: Critical Safety Issues Safety Admonishments: Three different levels of safety admonishments are used within this instruction manual; specifically DANGER, WARNING, and CAUTION. Trois niveaux différents d'avertissements de sécurité sont utilisés dans ce mode d'emploi; spécifiquement DANGER, AVERTISSEMENT et ATTENTION. DANGER The statement following the DANGER heading alerts the equipment user of a potentially life or health-threatening situation unless precautions are taken against it. -
Page 5: Emergency Shutdown Procedure
Emergency Shutdown Procedure: DANGER Exercise extreme caution when performing the following procedure. Carry out the steps precisely in the order given to avoid the possibility of personal injury or equipment damage. Perform the following procedure if the Smart Tracker must be shut down and disconnected on an emergency basis: 1. -
Page 6: Section 2: Introduction
Section 2: Introduction Overall Operation: The Smart Tracker Remote Power Manager is an IP ready, GPS enabled device that provides remote control over each independent outlet, relay, or input contact. Each of the eight outlets may be remotely commanded on or off to cycle power to network devices, CCTV cameras, heater mats, or any device that may be attached to the Smart Tracker. -
Page 7: Unpacking And Inspection
Tracker or other items were damaged in shipment, file a damage claim with the shipping company and contact a Multilink representative immediately. Be sure to retain the original shipping carton and all packing material for the Smart Tracker until it is certain that a warranty return will not be required. -
Page 8: Section 3: Front Panel Controls, Connections, And Indicators
Section 3: Front Panel Controls, Connections, and Indicators The front panel of each Smart Tracker contains various connections and indicators. These items are described as follows. See figures 3-1 for connector locations. Further details regarding use of controls and indicators may be found in the Startup and Operation section of this manual. -
Page 9: Indicators
Tracker, each of the terminal plugs uses bare copper wiring. Moreover, connections used in this Smart Tracker mate with accessory harnesses and assemblies designed and manufactured by Multilink Inc. Refer to the OPTIONS section of these instructions for further information. -
Page 10: Placement In The Enclosure
The AC utility conductors installed in the service entrance box must contain a safety ground conductor. The Smart Tracker installer should verify that this grounding conductor is in place, having been installed along with the AC utility input. A separate enclosure ground wire must be connected between the enclosure ground lug and an earth ground connection provided by a ground rod installed at the Smart Tracker site. -
Page 11: Section 5: Startup & Operation
Operating parameters of the Smart Tracker are indicated in the various menus available on the Liquid Crystal Display (LCD) located on the front panel of the Smart Tracker. All menus automatically scroll to show pertinent information. Multilink ENTER BUTTON VOLTAGE: 120.00V... - Page 12 The faded characters are temporary. Some values may take up to two minutes to properly display upon startup. Menu Options and Descriptions: MULTILINK AC Input Voltage: This is the voltage available to the outlets for their VOLTAGE: 120.50V individual use.
-
Page 13: Section 6: Webpage Interface
Enter Button Functionality: The Enter button provides the user with two options for local control of the Smart Tracker. When the Enter button is pressed, held for a particular length of time, and then released, the Smart Tracker will react appropriately to the user input as described below. - Page 14 5. Navigate to the Control Panel, “Network and Sharing Center”, and select “Change adapter settings” from the left panel. 6. Left click on the “Local Area Connection” and select “Properties”. Click to highlight “Internet Protocol Version 4 (TCP/IP)” and click the “Properties” button below.
-
Page 15: Webpage Overview
7. Highlight the “Use the following IP Address” radio button and enter an IP Address in the range of the currently assigned IP address of the Smart Tracker. Be sure not to enter an identical IP address in this textbox. For example;... -
Page 16: Summary Page, Device Time, And User Login
Beneath the URL address box resides a row of tabs for pages that may be viewed in order to control the outlets and re- lays, configure the unit, change network settings, or to remotely update firmware of each unit. At any time, the user may return to the Summary Page by clicking the “Multilink” logo in the upper left corner. - Page 17 Smart Tracker. When clicking any of the pages, the user will be prompted to log in. The default username for the Smart Tracker is “user”. The default password is “multilink”. Once this information has been entered, click the “Log in” button and the user may navigate to any page with full access to control and configure the Smart Tracker.
-
Page 18: Control Tab
When clicking “Change Password” from the More tab, the user is prompted with the following. Enter the old password and then enter a new password, followed by the new password again to confirm the change. Be sure to click “Save Changes” to save the new password. A prompt will appear at the top of the page to confirm or deny the new password. -
Page 19: Outlets
Outlets Page: The Outlets page allows the user to independently control each of the eight outlets. The user may select to turn on or off any or all of the outlets. Textboxes are included to allow the user to rename each outlet to reflect the piece of equipment that may be attached to that respective outlet. - Page 20 Controlling Outlets: To change the state of an outlet or all outlets at once, select an outlet and click its respective “Turn On” or “Turn Off” button. The user may also select the option reset the respective outlet by selecting a reset time and clicking the “Re- set”...
- Page 21 The user will also be prompted when turning off Outlet 1. Click “Turn Off” and the outlet will turn off. If Outlet 1 was previously off, it will remain off. After clicking “Turn Off”, the indicator next to Outlet 1 will display in Red. The Summary page will also display a Red indicator.
- Page 22 Assigning Outlet Actions: The Outlet Actions box may include tasks that the user has created that are to be performed when the Outlet is energized. Each action may be selected by using the mouse to click on and highlight the action that is to occur. An ac- tion may be deselected by holding the Ctrl key (Command key for Mac) and clicking on the highlighted action.
- Page 23 Relays Page: The Relays page provides control and configuration of each of the eight relays. The relays are used to provide a low or high impedance signal that may be used by a traffic controller or device as indication that a specific event or action has taken place.
-
Page 24: Relays
Controlling Relays: To change the state of a relay or all relays at once, select a relay and click its respective “Turn On” or “Turn Off” but- ton. The user may also select the option to reset the respective relay by selecting a reset time and clicking the “Reset” button. - Page 25 The user will also be prompted when turning off Relay 1. Click “Turn Off” and the relay will turn off. If Relay 1 was previously off, it will remain off. After clicking “Turn Off”, the indicator next to Relay 1 will display in Red. The Summary page will also display a Red indicator.
- Page 26 Saving Relay Changes: Click the “Save” button to save any changes. When the “Save” button is clicked, all text boxes will illuminate Green to indicate the changes have been saved and a prompt at the top of the page will indicate the changes have been suc- cessfully saved.
-
Page 27: Input
Inputs Page: The input contacts are used to indicate the state of an event or action that is external to the Smart Tracker, such as a UPS system being activated. Each input has two mating contacts for which to attach wiring. When continuity is pre- sent between the two contacts, the input will indicate Green on the Inputs and Summary pages. - Page 28 Renaming Inputs: To rename any one of the inputs and provide additional information, the user may type a new name into the text box for the respective input. Click the “More” button to expand an additional textbox that may be filled with information that describes the use for the input.
- Page 29 Be sure to click the “Save” button to save the action(s) that each input contact will perform. Once saved, the selected action(s) will appear in grey under each respective input contact. Refer to the Scheduling section of this user manual for step-by-step instructions to create, edit, and remove actions. Saving Input Changes: Click the “Save”...
-
Page 30: Scheduling
Scheduling Page: The Scheduling page allows the user to setup automated tasks at specific times and/or dates. Some useful examples of this feature would be to turn on an outlet that is powering CCTV cameras during rush hour to monitor traffic, or to pe- riodically reset an outlet that is used to power a network switch to maintain connectivity. - Page 31 The user can select from any of the six Action Types in the dropdown list. Each action is described by its name, and when selected, will turn on, turn off, or reset an outlet or relay. When selecting an action, note that the action selected will either apply to an outlet or to a relay, not to both.
- Page 32 The following screen shot shows how the user can create an action that will reset Outlet 1 for 30 seconds. This action will be triggered after a 5 second delay time has elapsed. Be sure to click “Submit” to add this example action or any created action to the list of created actions that will display on the Scheduling page.
- Page 33 Deleting Trigger Actions: Trigger actions can be also be deleted on the Scheduling page. The user may remove any of the trigger actions by clicking the “Delete” button next to the trigger action. Doing so will remove the trigger action from the list as well as from the Outlets and Inputs pages.
- Page 34 Name: In the “Name” textbox, the user will input the name of the event that will take place, such as “Reset Outlet 1”. As a tip, if any of the names of the outlets or relays were changed, use those names in place of “Outlet 1”. Minute: In the Minute dropdown list, the user can specify the minute portion of the time of the event.
- Page 35 After selecting the criteria for the scheduled event, click the “Submit” button to create the scheduled event. The Scheduled event will appear under “Schedules” on the Scheduling page. The name of the event will be listed, as well as when the event will occur. In this example, Outlet 1 will be reset at 12:00PM (EST) on Feb 3 .
-
Page 36: System
Deleting Schedules: Schedules can be also be deleted on the Scheduling page. The user may remove any of the schedules by clicking the “Delete” button next to the schedules. Doing so will remove the schedule from the list as well as from future use. System Page: In the System page, the user can remotely shutdown or reboot the operating system of the Smart Tracker. -
Page 37: Unit
Unit Configuration Page: The Unit configuration page allows the user to modify the Smart Tracker’s device information, operating attributes, select the time zone, set an NTP server address for time and date synchronization, and provide GPS location infor- mation. It allows the user to edit the high and low threshold points for voltage, current, temperature, and humidity. If an external temperature and humidity sensor has been purchased, the option to enable this feature is also found on this page. - Page 38 Name: This text field may be used to rename each unit or to reflect the organization who owns the unit. Location: Used to describe the location of the device. For example: Northeast corner of 1 and Main. Cabinet Information: Used to describe the enclosure and/or the equipment that may reside inside the enclosure. Timezone: This configuration item is used to set the time offset from UTC time.
- Page 39 Temperature Units: Allows user to change the unit of measure for the temperature. Values for the temperatures on the Summary page, Unit configuration page, and LCD will change when the unit of measure is changed. Temperature Low: This threshold can be adjusted to indicate when the internal temperature of the Smart Tracker has exceeded its low threshold value.
- Page 40 Email Notifications: When enabled, each Smart Tracker will send an email when one or more thresholds are exceed- ed. There is also the option of including state changes in emails whenever an outlet, relay, or input has changed state. Enable Timeout (Minutes): Allows the user to delay the frequency of emails, as the potential for several emails may exist at any one time.
- Page 41 High Current: This threshold can be adjusted to indicate the total current draw has exceeded its High value. When this occurs, the Smart Tracker will send an email notification to the list of recipients concerning the alarm. This feature is auto-correcting but the AC circuit breaker may trip on the unit, requiring a manual restart.
-
Page 42: Email
Saving Unit Configuration Changes: Be sure to click the “Save” button at the bottom of the page to save all changes. As with the Outlets, Relays, and In- puts pages, all textboxes and fields will illuminate Green to signify the changes have been saved. Email Configuration Page: On this page, the user can configure and test the email notification feature. - Page 43 SMTP Host IP Address: This item is the SMTP host server for which emails will be relayed to the recipients. This may be an IP address or a domain name. In this example, an IP address for the host’s email server is used. SMTP Port Number: This text field is the SMTP port for which emails will be relayed.
- Page 44 Adding Email Notification Recipients: The user is required to add at least one recipient in order to test and receive email notifications. There is no limit on the number of email recipients. Enter a valid email address into the “Add Recipient” textbox and click the “Add” but- ton to add the email address to the list.
-
Page 45: Network
Network Configuration Page: The Smart Tracker is factory configured with a default IP address for local configuration and control. When selected, it may also utilize DHCP to automatically acquire its network configuration from the network’s DHCP server. Once a connection is established, the IP, subnet mask, and default gateway addresses are stored for display and use. The de- vice MAC address is also displayed. - Page 46 Configure Static and DHCP IP Addressing: The user may change the network configuration to a static IP address by selecting the “Static” radio button and filling in the three textboxes. The gray addresses in the textboxes are used to show valid formats for each textbox. The user may also press and hold the “Enter”...
-
Page 47: Snmp
A Management Information Base (MIB) is required when using SNMP to communicate with the Smart Tracker. It is available by contacting Multilink and may be downloaded from Multilink’s website. If necessary, please consult with the network administrator to properly configure SNMP. - Page 48 Trap Port: The Trap Port is the port where asynchronous traps from the Smart Tracker will be received. The SNMP manager will receive traps from the Smart Tracker at this port when they occur. Traps are listed in the MIB file, which will be discussed later in this user manual. The default is Port 162. Trap IP Address: Trap IP Address is the SNMP server’s IP address;...
- Page 49 SNMP operating parameters and traps to be passed over a network connection. This is a proprietary document and may be found on Multilink’s website or by contacting Engsupport@gomultilink.com. All objects and traps that may be passed over a network connection are described in this document. OID information is provided and can be visualized using a MIB browser or network management software suite.
-
Page 50: Manage
Manage Page: The Manage page allows the user to remotely download a unit’s configuration file, upload an existing configuration file, and update the firmware of each Smart Tracker when a new release is available. These features and their re- quirements are described below. Note: This feature is only available in Smart Trackers with v1.1.0 or later firmware. Download Configuration: This section of the Manage page allows the user to download the respective Smart Tracker’s configuration file for use in other Smart Trackers. - Page 51 Upload Configuration: After a configuration file has been downloaded, it may then be uploaded to another Smart Tracker for use. This file will copy the existing configuration of the previous device into the new Smart Tracker. This feature requires the Smart Tracker to reboot after uploading.
- Page 52 2. Click the “Upload” button. 3. A prompt will appear notifying that the upload will require a system reboot is required. Click “Upload & Reboot” to begin the upload. 4. The upload will commence and then inform the user that the system is rebooting. 5.
- Page 53 1. Click the drop down arrow to expand the Update Firmware menu. The current firmware version will be listed. 2. Click “Choose File” and select the .zip file provided by Multilink. Click “Open” and the name of the file will be...
- Page 54 3. Click the Update button. 4. A prompt will display notifying the user that a reboot is required. Click “Update & Reboot” to begin the firmware update process. 5. After the firmware update process has completed, the user will be prompted that the Smart Tracker is rebooting. After a few minutes, refresh the webpage, click the drop down arrow next to Update Firmware, and verify the cur- rent firmware version has changed.
-
Page 55: Section 7: Smart Tracker Shutdown
Event History Page: All events that occur in each Smart Tracker are recorded and listed in the Event Log. When the state of an outlet, re- lay, or input changes, the date and time of that event are recorded. This will also occur for operating parameter thresh- old alarms that are currently exceeded, as well as for Ping events, Enter button actions, and scheduled events. -
Page 56: Section 9: Troubleshooting
This troubleshooting guide has been designed to help quickly locate and resolve common problems. The table assumes normal operation and configuration of the Smart Tracker at any given time. If the problem cannot be resolved, replace the Smart Tracker with a known good unit or call Multilink Inc. for support. Operating Conditions... -
Page 57: Section 10: Specifications
Section 10: Smart Tracker Specifications The operating specifications of the Smart Tracker are listed below. Parameter Specification Notes Dimensions 1.75” x 7.0” x 19.0” (HxDxW) Weight 5.0 Lbs 2.2 Kg Mounting Rack or Shelf Adjustable brackets Operating Temperature -34° to +74°C -29°...
