Slingshot S64 User Handbook Manual

Professional coffee grinder
Hide thumbs Also See for S64:

Advertisement

Quick Links

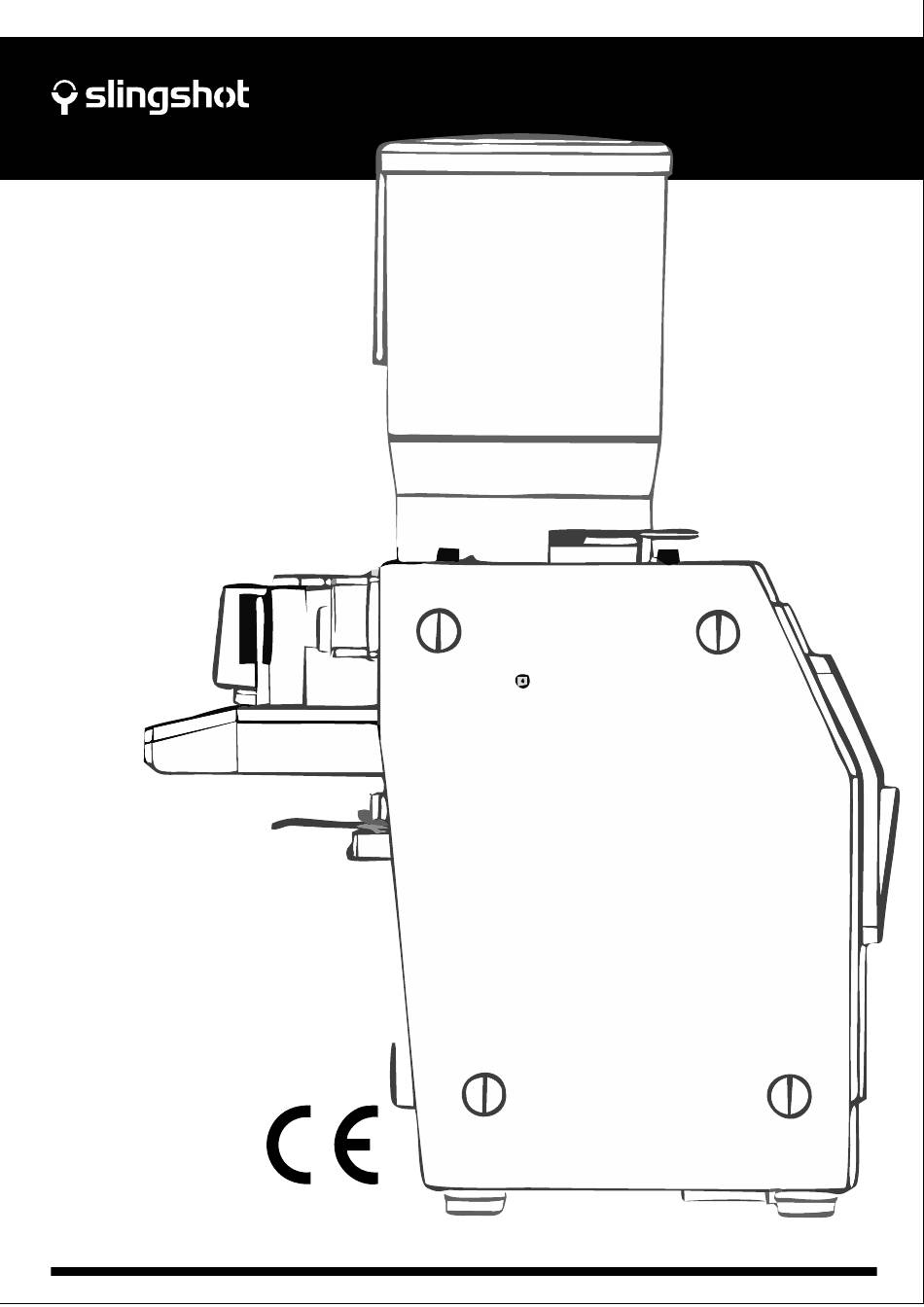

USER HANDBOOK
SLINGSHOT
PROFESSIONAL
COFFEE GRINDER
MODEL
S64-S75-C68

Advertisement

loading
Need help?

Need help?

Do you have a question about the S64 and is the answer not in the manual?

Questions and answers

Related Manuals for Slingshot S64

Summary of Contents for Slingshot S64

  • Page 1 USER HANDBOOK SLINGSHOT PROFESSIONAL COFFEE GRINDER MODEL S64-S75-C68...

  • Page 2: Table Of Contents

    ADJUSTING THE GRIND ADJUSTABLE GRINDING SCALE ADJUSTING THE DOSAGE GRINDING TIME DELAY PAGE 10 SAFETY DEVICES PAGE 11 CLEANING AND MAINTENANCE SLINGSHOT TECHNOLOGY CORPORATION LTD All rights reserved. It is prohibited to reproduce, adapt or translate this document without prior written authorization.

  • Page 3: Application And Use Of The Grinder

    PRECAUTIONS AND SAFETY FEATURES The packing materials (carton, cellophane, staples, polystyrene, etc..) can cut, wound or create hazards if used improperly or handled carelessly. Store such materials out of reach of children and irresponsible persons. This symbol on the appliance or package means that the appliance must not be considered as normal household refuse but that it must instead be delivered to an appropriate collection centre for the recycling of electric and electronic appliances.

  • Page 4: General Description

    Fig. A Fig. B Depth - 440mm Fig. C Width - 212mm General Description AUTO MODE 1 Display Window - Hopper Lid 10 Function Selector 2 Coffee Bean Hopper 11 Fork Portafilter DEMAND 3 Adjustable Scale 11a Sliding gate 4 Side Panels 12 Grinding Adjustment BURRS 5 Digital Display...

  • Page 5: Adjusting The Fork Portafilter

    INSTRUCTION FOR USE INITIAL SETUP The Slingshot features a unique volumetric self-dosing chamber which is always on standby to provide the professional barista with their next shot of espresso. To be able to perform at its optimum an initial setup is required.

  • Page 6: Using The Grinder

    Fig. F 1-time since last grinding 2-time spent of ground coffee inside the coffee chamber 3- time needed for last grinding slingshot GREEN ON DEMAND : Start grinding ready to dispense coffee slingshot RED Digital Timer wait until grinding...

  • Page 7: Ready To Start

    INSTRUCTION FOR USE FUNCTION SELECTOR Slingshot feature a Function Selector (Fig. C) that allows the user to set the grinder in three different modes: BURRS LIFE , ON DEMAND, AUTO MODE AUTO MODE Fig. C The grinder will always grind for the next shot.

  • Page 8: Dispensing The Coffee In The Portafilter

    INSTRUCTION FOR USE DISPENSING THE COFFEE IN THE PORTAFILTER Slingshot’s unique self dosing coffee chamber delivers the desired coffee dosage directly in the portafilter: 1) insert the portafilter in between the fork and the sliding gate 2)push the portafilter towards the grinder until stop 3) pull back the portafilter immediately...
  • Page 9 ADJUSTABLE GRINDING SCALE Once the Head Barista has adjusted the Slingshot to the perfect espresso shot, the main grinding scale (3 Fig.A) is reset to the Absolute Zero.This adjustable point of reference facilitates coffee grinding calibration throughout the day.
  • Page 10 SAFETY DEVICES Thermal Overload Protection The appliance’s motor is protected against overheating resulting from overload by a thermal overload protection which, when tripped, cuts off the power supply to the motor. Should the protection trip as a result of anomalous operation, such as the grinding blades jamming, the appliance must be turned off...
  • Page 11 CLEANING AND MAINTENANCE CLEANING THE GRINDER DISCONNECT THE APPLIANCE’S POWER SUPPLY BY UNPLUGGING IT BEFORE CLEANING. THE APPLIANCE MUST BE CLEANED PERIODICALLY BY SKILLED TECHNICAL PERSONNEL ONLY. Use perfectly clean, disinfected cloths or brushes for cleaning. Do not use abrasive products as these are liable to take the sheen off shiny parts. COFFEE HOPPER Wash the Coffee Hopper once it has been removed from the appliance, using neutral soap and water, rinse abundantly with lukewarm water and dry thoroughly.
  • Page 12 For verification of compliance with said directive, the following harmonized standards have been applied: 2006/42/EC Annex I EN ISO 12100:2010 EN60204-1:2006+A1:2009/AC:2010 Product Name: Slingshot Coffee Grinder Product Model: S64, S75, C68 Trade Mark: SLINGSHOT AUTHORISED PERSON TO COMPILE THE TECHNICAL FILE Mr. Luca Giorgella 2/19 Rudloc Rd, Morley WA 6062...

This manual is also suitable for:

S75C68
