Maverick System NasDisk User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
NasDisk
User Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the NasDisk and is the answer not in the manual?

Questions and answers

Summary of Contents for Maverick System NasDisk

  • Page 1 NasDisk User Manual...
  • Page 2 This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Thank you for purchasing our product. This manual contains how-to of installing and using NasDisk. It explains the pre-requirement and product specification to know before installing NasDisk. Please, be sure to read before installing.

  • Page 3: Warranty

    This Maverick System Co., LTD End User License Agreement ("EULA") is a legal agreement between you (either an individual or a single entity) and Maverick System Co., LTD for the Maverick hardware & software product identified above, which includes computer software and associated media and printed materials, and may include "online"...
  • Page 4 - Exemption from Liability : Maverick System Co.,LTD. Maverick System Co.,LTD is not responsible for any liability or engagement claimed to be imposed upon Maverick System Co., LTD by any disinterested third party or person other than Maverick System Co.,LTD in written or spoken form.
  • Page 5 Caution Be sure to observe following cautions since they are related with the way you may be safe from any possible damage or danger caused during the use of the product. If any of the following cautions is neglected, user's data may be lost or equipment damaged. And since you may possibly go through accident, you should be aware of the fact that using the product may do harm to you.
  • Page 6 8. When installing HDD, please turn off the power line and be fully aware of the procedure in advance. And make sure that the HDD to be installed is proper to NasDisk. If this caution is neglected, it will cause the product to be malfunctioning or damaged.
  • Page 7 Chapter 1 Introducing NasDisk Things to be aware before making use of NasDisk . Introducing basic function, specification and make-up of the product 1 - 1 -...
  • Page 8 1. Introducing NasDisk NasDisk is the product characterized as NAS(Network Attach Storage) that is affordable and easy-to- use for enterprise. NasDisk can easily be connected to the Internet through broadband connection function such as ADSL or Cable Modem without getting assisted by network engineer and such easy-to-use features may be popular with small-scale office or home that is not networked.
  • Page 9 Using two PC at the same time with Internet connection is possible through the built-in IP sharing technology of NasDisk and in case that extra hub is used, as many as 253 personal computers may be connected to the internet.

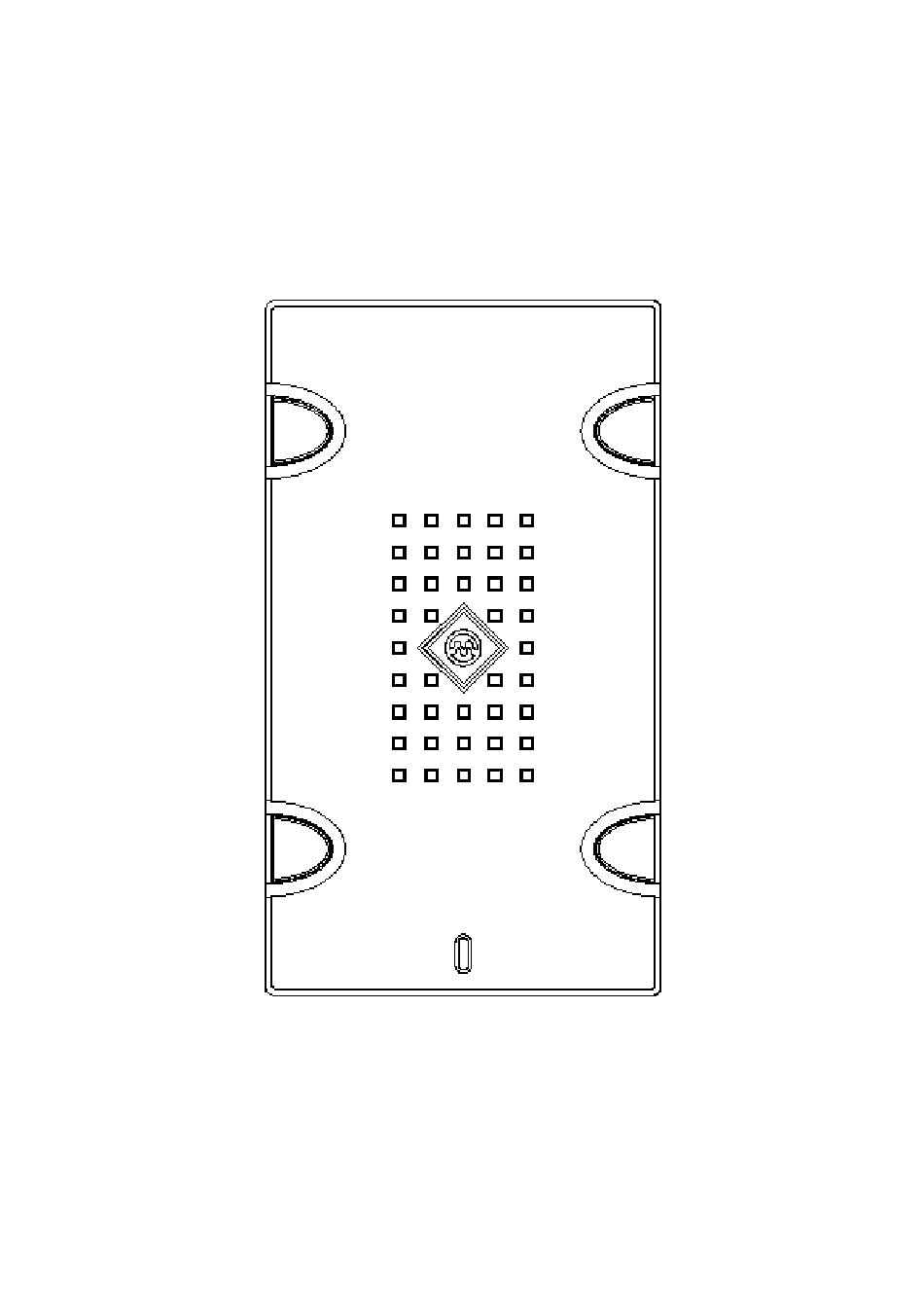

  • Page 10 In use (Storage device Green + Red Signifying that a user is connected to NasDisk and it is in use working) ③ Emblem of NasDisk manufacturer ④ Ventilating opening for getting heat discharged out of internal HDD (prescribed space should be secured when setting the device) ⑤...
  • Page 11 ⑦ Direct current port for connecting electrical adaptor 1. Introducing NasDisk 3) NasDisk specification 32bit RISC Type Processor (CPU Clock 100MHz, Bus Clock 50MHz) FLASH 4MB Flash MEMORY 16MB SDRAM HARD DISK 40 ~ 120GB(7200RPM) EIDE Type Hard Disk Drive...
  • Page 12 1.Introducing NasDisk 4) NasDisk software specification Network Transport Protocol TCP/IP, NetBEUI, SMTP, POP3 Microsoft Networks (CIFS/SMB) Network File Protocol File Transport Protocol (FTP) Internet (HTTP) xDSL(PPPoE), Cable(HFC),Dynamic/Static IP Network Connection (xDSL, Cable : External Modem Only) DHCP Server, Port Forwarding, DMZ Host...
  • Page 13 In case the included items inside the product are different from the detail above, please get in contact with vendor or our company. ㈜ Maverick System 511 Seocho World Officetel 1355-3 Seochodong Seochogu Seoul, South Korea Tel : 02-6283-7425 Fax : 02-6283-7421 E-mail : admin@mavericksys.co.kr...
  • Page 14 Chaptor 2 Installing NasDisk This chaptor explains how to connect NasDisk to the network and to install each element. And basic method of operating the product will be explained You can easily set up the product if you follow the user manual.

  • Page 15: Things To Know Before Installation

    ① If you are connected through ADSL, you should be using external ADSL modem for installing NasDisk.(Internal or USB modem is not compatible with NasDisk. You should replace the internal modem with external one) ② If you are connected using CABLE modem, please confirm the Mac Address value in your NIC(Network Interface Card).
  • Page 16 The illustration is the example of installing NasDisk when you’re using ADSL or CABLE modem. Before installing NasDisk, you can see that ADSL or CABLE modem is directly connected to the PC, but if you want to install NasDisk, it must lie between PC and ADSL or CABLE modem.
  • Page 17 IP is currently available, you don’t have to use sharing router for connecting NasDisk. Instead, you can simply install Nasdisk onto the extra IP. If there is no more IP available, your PC should be connected through NasDisk.
  • Page 18 ADSL Connect the LAN Port in PC to LAN1 or LAN2 of NasDisk using the enclosed UTP cable in the product and connect the UTP cable that had been connected ADSL or CABLE modem, to WAN of NasDisk. (Connect ADSL or CABLE modem to WAN Port in NasDisk, and user’s PC to LAN Port of NasDisk) And reboot the system after making sure that the connection is rightly done and that the network configuration of PC is “automatic IP assignment”...

  • Page 19: View Network Status

    ⑧ Confirm the IP Address item in WAN CONNECTION by sele cting ‘VIEW NETWORK STATUS’ on the right side.(In case of 0.0.0.0, press the refresh button) ⑨ Make sure that NasDisk is working properly by confirmin g the IP on Internet connection information (Insert the IP Address right after “http://”)
  • Page 20 Connect the LAN Port in PC to LAN1 or LAN2 of NasDisk using the enclosed UTP cable in the product and connect the UTP cable that had been connected ADSL or CABLE modem, to WAN of NasDisk. (Connect ADSL or CABLE modem to WAN Port in NasDisk, and user’s PC to LAN Port of NasDisk) And reboot the system after making sure that the connection is rightly done and that the netw configuration of PC is “automatic IP assignment”...
  • Page 21 3) Installing NasDisk c) Installing xDSL and Cable(static IP) onnect the LAN Port in PC to LAN1 or LAN2 of NasDisk using the enclosed UTP cable in the product and connect the UTP cable that had been connect ed ADSL or CABLE modem, to WAN of NasDisk.
  • Page 22 In the main page, if you click on the network setup of left menu, you can see Internet Setting, LAN setting and DNS tab. Configure the setting as following direction to connect NasDisk to network ① Choose Network setup on the main page.
  • Page 23 LAN2 of NasDisk using the enclosed UTP cable in the product and connect the UTP cable that had been connected ADSL or CABLE modem, to WAN of NasDisk. (Connect ADSL or CABLE modem to WAN Port in NasDisk, and user’s PC to LAN Port of NasDisk) 2 - 10 -...
  • Page 24 In the main page, if you click on the network setup of left menu, you can see Internet Setting, LAN setting and DNS tab. Configure the setting as following direction to connect NasDisk to network ① Choose Network setup on the main page.
  • Page 25 ⑧ Confirm the IP Address item in WAN CONNECTION by selecting ‘VIEW NETWORK STATUS’ on the right side. ⑪ Make sure that NasDisk is working properly by confirming the IP on Internet connection information (Insert the IP Address right after “http://”) VIEW NETWORK STATUS’...
  • Page 26 NasDisk INSTALLER Password panel Properties-TCP/IP ⑦ Select the NasDisk information as illustrated above and click on the left button of mouse will let the password panel appear. Insert a correct password and execute "properties"(You should insert the initial password). 2 - 13 -...
  • Page 27 ② NasDisk user account for using NasDisk NasDisk administrator account enables you to set overall value for network configuration, service and users, but you cannot user general service from NasDisk with this administor account to which there 2 - 14 -...
  • Page 28 NasDisk user account is only related with the use of NasDisk service, not with administration functionality. Administrator may freely delete, modify and set the files in NasDisk, and in case of creating sharing folder, administrator can change the permission on users and groups.
  • Page 29 4) NasDisk User Configuration a) Using user account. This section will explain how to use NasDisk with user account. Only simple feature will be explained, so, if you need more detailed features, please refer to the “NasDisk special function manual”...
  • Page 30 Creating user account (2) Using Mail Server In order to use Mail Server service of NasDisk, Mail Server checkbox on the Service Set-up must be turned on. Since the default value is activated, you can set up the Mail Server through the following steps.
  • Page 31 Account ID > NasDisk ID, Password > NasDisk Password ) ⑥ Type the Nasdisk ID and Password and press the next button to complete procedure (Save 'password', then it will never ask you password whenever you launch you mail client.
  • Page 32 - While NT user may have access to account with user ID and password that has been registered in NasDisk, 9x user must have the same ID with the computer name. -File server service is compatible only with Windows series. On the different platform such as Macintosh or Linux, third party FTP client should be used.
  • Page 33 ④ Press "Next" and type user ID. (if anonymous account is actiated, no user ID is required) ⑤ Type the name for the network connection and new connection icon will be created. ⑥ Insert the path of NasDisk in Windows Explorer address for completing Network folder setup That is all about File Server service.
  • Page 34 Chapter 3 Registering NasDisk This chapter is about the product registration procedure on customer site after installing NasDisk DDNS Server setting and NasDisk DDNS service will also be explained Those customers who registered to the customer site become a member at DDNS service...
  • Page 35 ⑤ "Do not agree" stops registering procedure and you are not entitled to DDNS service. For details, please contact customer support team. ⑥ Selecting "Agree" will move you to the NasDisk User Registration page. ⑦ Fill in the blank and press registration button, then "Registration complete" panel will show up.
  • Page 36 For details, please refer to the service agreement that is provided when registering the product on- line. 3 - 3 -...
  • Page 37 DDNS server setting will not apply. To get the DDNS service from www.nasdisk.com, you have to configure following two items. ① Host name to be used by NasDisk (Registering multiple host names is enabled.) (ex : If Host name is Maverick, Domain name of NasDisk is maverick.nasdisk.com.)
  • Page 38 ⑨ In case that modfication or deletion of generated list is required, proceed by pressing "modify" or "delete" button after selecting the leftmost check-box. That's all about DDNS server configuration. In order to connect the DDNS server to NasDisk, you have to configure also the setting of NasDisk DDNS. 3 - 5 -...
  • Page 39 ③ Select DDNS configuration tab when 'Network set-up' menu page loads. ④ When DDNS configuration page loads, type the ID and Password for www.nasdisk.com. ⑤ Insert the domain name to be used in the DDNS server into NasDisk domain. (If registered name is 'maverick.nasdisk.com', type 'maverick.nasdisk.com') ⑥...
  • Page 40 'maverick'. The services provided from NasDisk using DDNS is only Web Storage and Mail Server service. Since Internet Sharing and File Server service is enabled only inside internal network, user cannot have access to those services ouf of the internal network in spite of the fact that DDNS service is configured.
  • Page 41 4. FAQ Chapter 4 This chapter includes frequently-asked questions for operating NasDisk. with explanation on how to configure user's PC network and to manage when NasDisk does not work properly. 4 - 1 - All rights Reserved. Copyright© 2003, Maverick Systems, Inc.
  • Page 42 ① Start -> Run -> winipcfg -> Yes ② When IP Configuration panel loads, press "More Info." to make IP is properly assigned. (Gateway address '192.168.1.1' is normal when DHCP Server works in NasDisk) 4 - 2 - All rights Reserved. Copyright© 2003, Maverick Systems, Inc.
  • Page 43 Click! lick! Use the following address Setting Static IP for using NasDisk - 1 Windows 9x ① Select 'Properties" after clicking on "Network" on desktop. ② When Network panel opens, select TCP/IP from Network components box and click on "Properties"...
  • Page 44 Setting Dynamic IP for Windows (Windows NT 4.0/2000/XP) Click! Click! Click! Setting Dynamic IP for using NasDisk - 1 Windows NT ① Select 'Properties" after clicking on "Network" on desktop. ② When 'Network and Dial-up Connection' window loads, right- click on 'Local Area Connection' and choose 'Properties'.
  • Page 45 Click Click 클릭! Click! Setting Static IP for using NasDisk - 1 Windows NT ① Select 'Properties" after clicking on "Network" on desktop. ② When 'Properties' window loads, choose TCP/IP in "Components checked are used by this connection" then press "Properties" button...
  • Page 46 Is it possible to replace internal HDD in NasDisk by another? Yes,It is possible. NasDisk was originally designed to be assembled by user and hard drive had to be installed for yourself. So, replacing internal HDD by another product is possible.
  • Page 47 Especially, concerning the program that users frequently use, we have customer support system called 'Special Application'. For details, please refer to "NasDisk Special Function" of the CD enclosed in the product box. (We will create patches for any possible error in our software.) 4 - 7 - All rights Reserved.
  • Page 48 Chapter 5 Appendix This chapter contains helpful features for using NasDisk. UTP Calbe connection, DNS Server address and some others. 5 - 1 -...
  • Page 49 1) NasDisk cable connection To use NasDisk, you need CAT.5 level UTP cable for making RJ-45 moduler plug. EIA/TIA 568A EIA/TIA 568B Color order: light green, green, light Color order: light orange, orange, light green orange, blue, light blue,orange,light brown, brown: blue, light blue, greenm light brown, brown The illustration above is EIA/TIA 568A and EIA/TIA 568B.
  • Page 50 2) ISP DNS Server address list DNS Server address for each Internet Connection Provider KT (Korea Telecom) : kornet.net 168.126.63.1 168.126.63.2 211.216.50.150 211.216.50.160 Chollian/DACOM : chollian.net 211.106.67.221 164.124.101.2 (Bora homenet) HANARO : hananet.net 210.220.163.82 210.94.6.67 210.180.98.69 thrunet : thrunet.com 210.117.65.1 210.117.65.2 Shinbito Shark : shinbiro.com 202.30.143.11...
  • Page 51 IP address to connect to certain host of a network. While IP address is based on the address pointed off by 4-byte numerical value, domain name is easily memorizable because it is readable as ‘www.nasdisk.co.kr’. EIA (Electronic Industry Association) Electronic Industry Association in U.S.
  • Page 52 A LAN Transmission standard developed by DEC, Intel, and Xerox. It is featured by its capability of transmitting data up to the data station 2.5km away at 10Mbps and 1,024 data stations can be internetworked by the technology, one of the model originated from IEEE 802.3. The cable most adopted by this standard includes 10BASE 5, 10 BASE 2 및...
  • Page 53 building. 10BaseT Ethernet is the most commonly used form of LAN. A piece of hardware called a hub serves as the common wiring point, enabling data to be sent from one machine to another over the network. LANs are typically limited to distances of less than 500 meters and provide low-cost, high- bandwidth networking capabilities within a small geographical area.

  • Page 54: Subnet Mask

    SDSL (Symmetric Digital Subscriber Line) SDSL stands for Symmetric Digital Subscriber Line, a relatively new technology that allows high data transfer rates to be sent over existing copper telephone lines. SDSL is called symmetric because it supports the same high data transfer rates for upstream and downstream traffic. SDSL works by sending digital pulses in the high-frequency area of telephone lines that are not used by voice communications.
  • Page 55 URL (Uniform Resource Locator) URLs are the Internet equivalent of standardized logical addresses. It is made up of protoco, host name, address, and directory location. For example, http://www.nasdisk.com/index.html, or ftp://ftp.nasdisk.com/pub/public.zip. VDSL (Very high-Data rate digital Subscriber Line) VDSL (Very high data rate Digital Subscriber Line) is a type of broadband transport technology for twisted-pair access operating at data rates from 12.9 to 52.8 Mbps with corresponding maximum...
  • Page 56 dominating forces in the industry today, and in the near-term future, until fully fiber-optic solutions are deployed. WAN (Wide Area Network) A WAN spans a large geographic area, such as a state, province or country. WANs often connect multiple smaller networks, such as LANs or MANs. The most popular WAN in the world today is the Internet.

  • Page 57: Warranty Period

    (2) In any case, Maverick System Co., LTD will not be liable for more compensating fee than the amount paid for the resultant damage done directly, indirectly, specially or accidentally by the software or manual provided by Maverick System Co., LTD.

  • Page 58: Customer Information

    Warranty specified in this document provides all the warranty details including explicit or implicit liability on the product of Maverick System. In case of defect, all means for customer to claim damage are comply with the regulation for consumer guarantee or product repair service in Maverick system.
