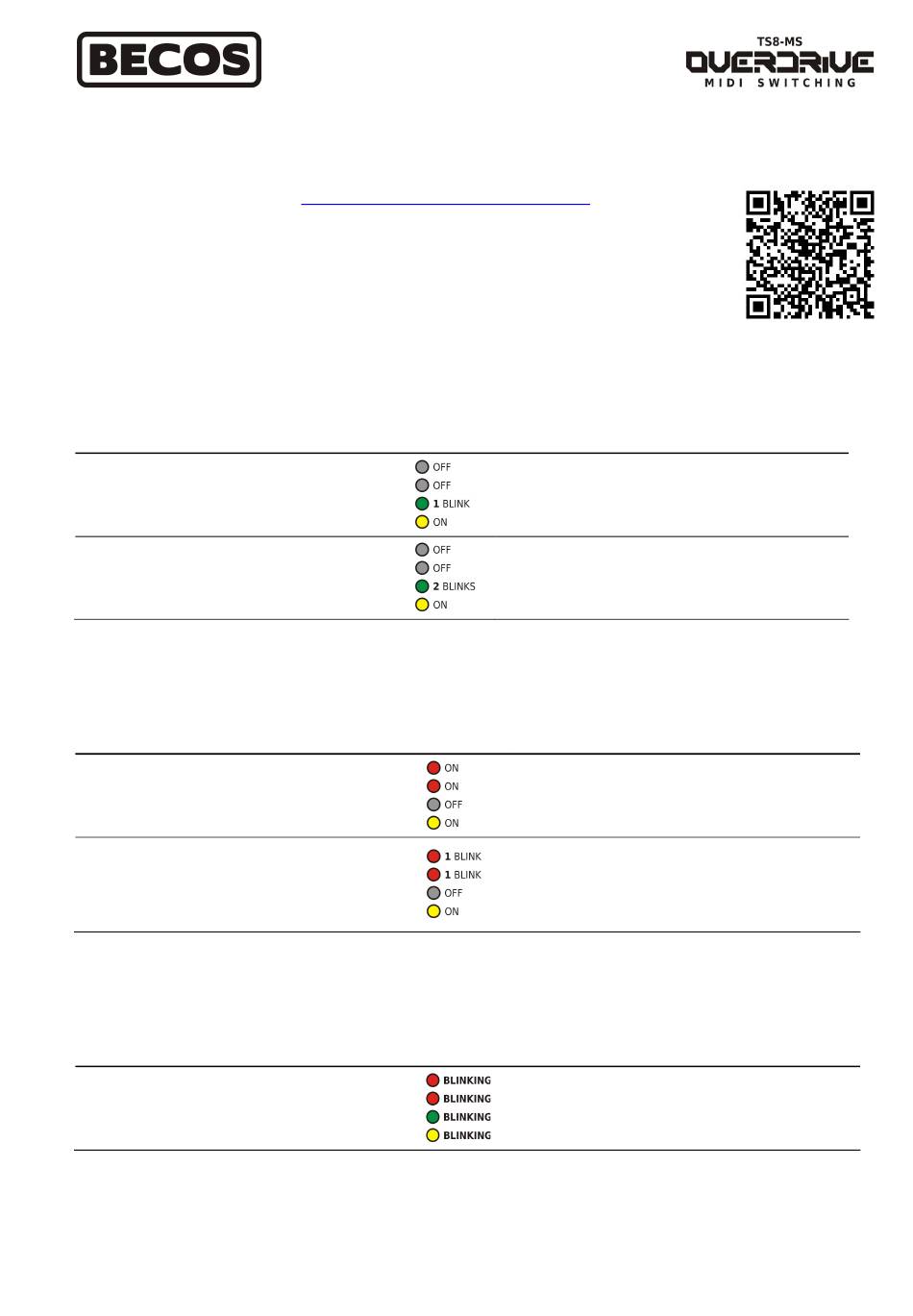

TS8-MS Quick Setup

For full product information go to
1. Power off pedal (battery or DC power adapter) and set the Multi Function rotary HEX
switch inside to a position corresponding to the desired setup setting.
2. Push and hold the Footswitch while power on pedal and continue to hold the Footswitch
for at least 3 seconds, until visual indication of LED's confirm saving the setting.
3. Power off pedal. The setting is saved. Power on pedal and start using it.

Set the type of Bypass

Bypass Type
Buffered Bypass
HEX = A
(factory default)
Relay True Bypass
HEX = B

Set the switching mode of External Switching Relays

Switching Type
Latching Switching
HEX = 0
(factory default)
Momentary
HEX = 1
Switching

Reset to Factory Defaults

Reset
Factory Defaults
HEX = F
* After setting procedure is finished (power off), you may need to set the Multi Function switch to a different in operation position than
the one used for setup.
** During setup, LED blinking is continuous until power off. Steady lit LED's remain as such until power off.
http://midi-overdrive-switcher.becosfx.com/
Multi Function
Visual
Switch Position*
Indication**
Multi Function
Switch Position*
Indication**
Multi Function
Switch Position*
Indication**
http://midi-overdrive-switcher.becosfx.com/
Silent "soft switching" using FET transistors
placed between input and output buffers. No
sound loss even with long connection cables.
Recommended and used as factory default.
Mechanical switching using relays controlled
by a microcontroller. In bypass or without
power, signal goes directly from input to
output. Avoid long connection cables.
Visual
External Relay switching with latching. When
relays are ON, Tip-to-Ground or/and Ring-to-
Ground are shorted and mentained until OFF
command is initiated.
External Relay switching is momentary ON.
Tip-to-Ground or/and Ring-to-Ground in the
External Switching 1/4TRS Connector are
shorted momentarely (100ms ON, then OFF)
for either "ON" or "OFF" relay commands.
Visual
Pedal settings are restored to factory defaults.
Download Full Manual
Notes
Notes
Notes
