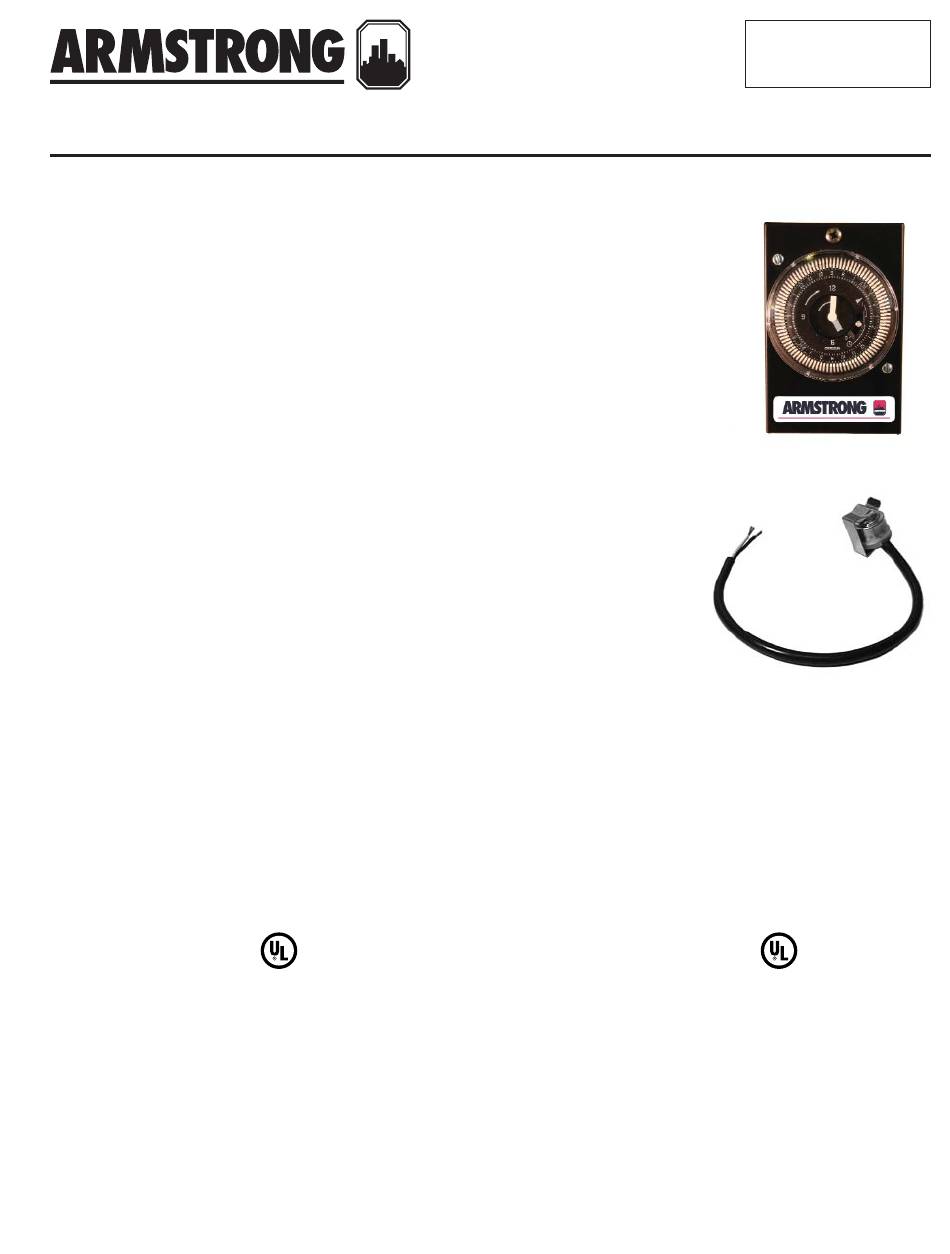

TIMER APPLICATION
The Armstrong 24-hour timers provide On/Off pump control according to preset operating
times in order to increase comfort and improve the overall efficiency of domestic hot water
re-circulation systems. The 24-hour timers are designed only for use with specified
Armstrong Astro series wet rotor circulators installed in indoor hot water re-circulation
applications.
Typical timer applications will cycle the pump at preset times, allowing the user to select
operation of the circulating pump during high peak usage periods in order to decrease the
delivery time to outlet fixtures and reduce wasted water.

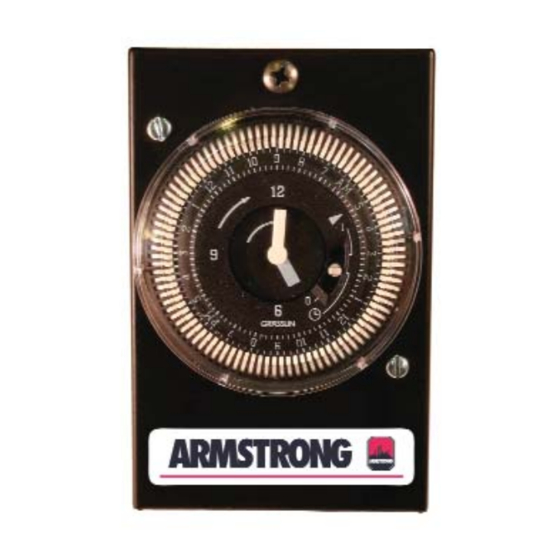

The timer control is programmable to ¼ hour intervals within a 24-hour time frame utilizing
a user friendly analog clock timer with hour and minute hands, two directional arrows, and
AM/PM time setting.
AQUASTAT APPLICATION
An optional aquastat is available for constant circulation applications to maintain
temperature between 85ºF and 105ºF (29ºC and 41ºC). The Armstrong aquastat
control accessory is designed for use with Astro Series wet rotor circulators in potable
hot water re-circulation installations.
The aquastat control automatically turns the circulator on when the temperature in the hot
water line falls below approximately 85ºF (ON condition - for example when there is low demand on the hot water
supply). The control turns it off again when the temperature exceeds 105ºF (OFF condition - as in the case of
periods with high demand).
TIMER AND AQUASTAT APPLICATION
The 24-hour timer and aquastat can also be used together giving a comprehensive time and temperature actuated
pump control in a domestic hot water re-circulation system. Typical application of the timer and aquastat combination
will circulate water only when both time and temperature ON conditions are initiated.
TIMER FEATURES
• Easy to install and program
• Time actuated 24-hour on/off pump control
• Hour and minute time setting with AM/PM function
• Manual override switch modes
• Rugged construction - steel enclosure
• Clear plastic cover for dust and moisture protection
of the clock face
• Designed specifically for hot water re-circulation
applications
• UL Listed
INSTALLATION AND OPERATING INSTRUCTIONS
24-HOUR TIMER and AQUASTAT CONTROL ACCESSORY
AQUASTAT FEATURES
• Easy to install
• Temperature actuated pump control
• Environmentally sealed enclosure
• Surface sensing through snap acting bimetalic disc
• UL Listed
Page 1 of 4
FILE NO:
11.87
DATE:
Apr. 22, 2004
SUPERSEDES: 11.87
DATE:
Feb. 24, 2004
Advertisement
Summary of Contents for Armstrong 24-HOUR TIMER
- Page 1 TIMER AND AQUASTAT APPLICATION The 24-hour timer and aquastat can also be used together giving a comprehensive time and temperature actuated pump control in a domestic hot water re-circulation system. Typical application of the timer and aquastat combination will circulate water only when both time and temperature ON conditions are initiated.
-
Page 2: Technical Data
11. Program the timer according to instructions provided on page 4. 12. Connect the unit to electrical supply. 13. Start the circulator. Fig. 1 Astro Series circulator and 24-Hour Timer assembly drawing Fig. 2 Astro Series circulator and 24-Hour Timer wiring diagram Page 2 of 4... - Page 3 TIMER and AQUASTAT INSTALLATION Follow the installation steps in both the Timer and Aquastat installation instructions and refer to Fig. 5 for the wiring connections. Fig. 5 Astro Series circulator with 24-Hour Timer and Aquastat Control wiring diagram Page 3 of 4...
- Page 4 The "O" (OFF) position of the switch will shut the circulator off at all times. 5. In the event of power outage, the timer must be adjusted for the correct time of day after power is restored. Note: The 24-hour timer requires manual resetting for daylight savings time. Programming Ring...
