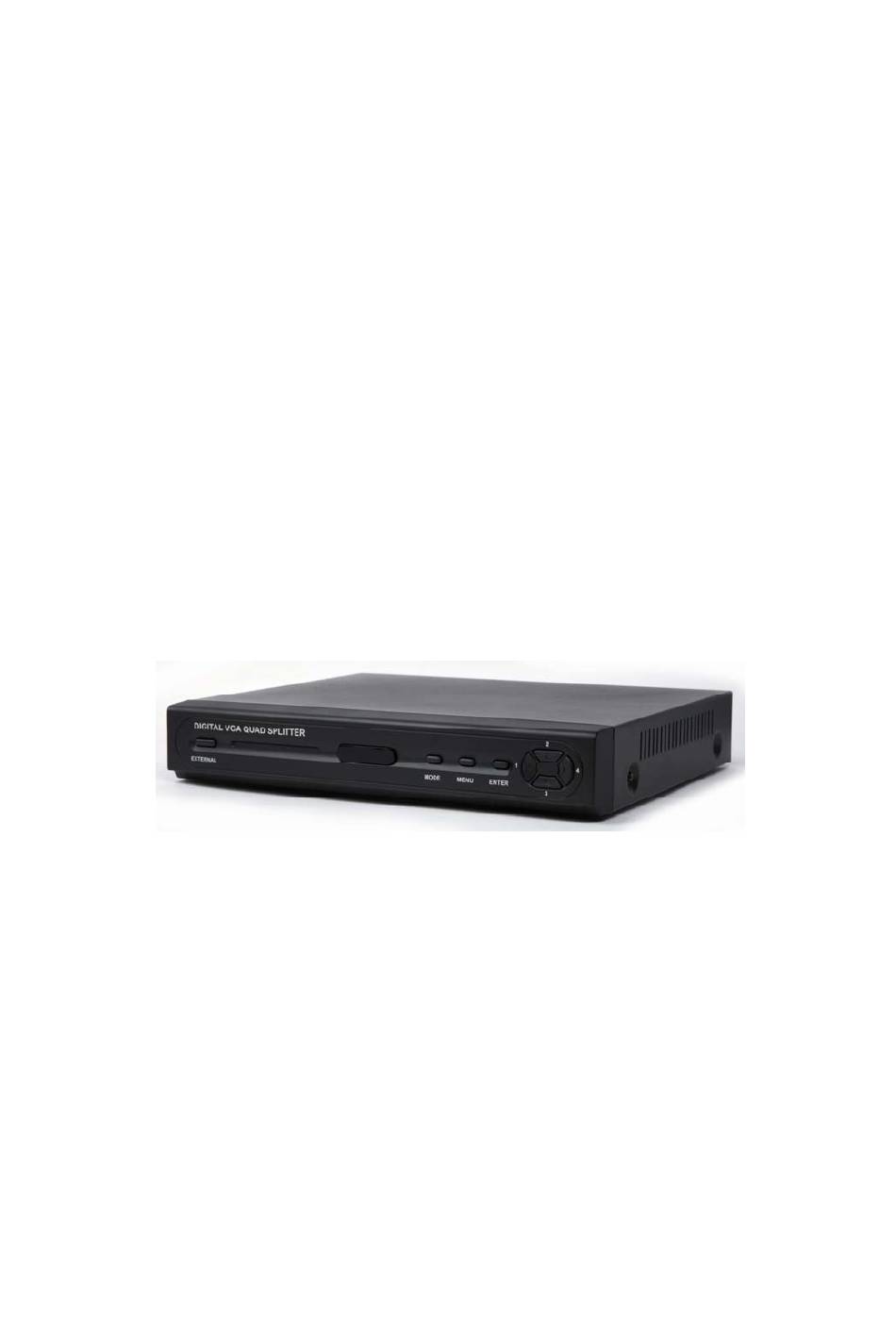

DIGITAL COLOR QUAD SPLITTER
with VGA OUTPUT
USER'S MANUAL
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quad404LV and is the answer not in the manual?

Questions and answers

Summary of Contents for Allwan Security Quad404LV

  • Page 1 DIGITAL COLOR QUAD SPLITTER with VGA OUTPUT USER’S MANUAL ENGLISH...
  • Page 2 WARNING AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT IN SERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS CAUTION Explanation of Graphical Symbols The lighting flash with arrowhead symbol, within an equilateral triangle, is in- tended to alert the user to the presence of uninstalled "Dangerous Voltage"...
  • Page 3 IMPORTANT SAFETY WARNINGS ● Before Using the unit for the first time, Read and Follow these Instructions. This is to inform the customers of seriousness of safety-related (electric shock, fire, explosion and etc) damages (personal and property) caused by misusing or using the product for the purposes for which it was not intended and to protect customers from such dangers.
  • Page 4: Table Of Contents

    CONTENTS 1 FEATURE 2 SPECIFICATION 3 OPERATION 3-1 FRONT PANEL OPERATION 3-1-1 POWER ON/OFF 3-1-2 QUAD/AUTO SEQUENCE/PIP KEY & FULL SCREEN MODE 3-1-2-1 QUAD SCREEN 3-1-2-2 AUTO SEQUENCE KEY 3-1-2-3 PIP KEY 3-1-2-4 FULL SCREEN KEY 3-1-2-5 SPECIAL SYSTEM KEY FUNCTION 3-2 OSD MENU SET 3-2-1 TIME/DATE 3-2-2 CAMERA SET...
  • Page 5: Feature

    1 FEATURE This VGA Quad Processor supplies high quality monitoring and recording by connection up to 4 cameras at the same time. As digital process is applied, it performs the cost-effective system configuration. This VGA Quad Processor has typical Quad Processor function such as full screen, Quadrant screen and Auto Switching mode.
  • Page 6: Specification

    2 SPECIFICATION DESCRIPTIONS Video Input 1V p-p 75 Ohm BNC x 4 , LOOP OUT x 4 External Input 1V p-p 75 Ohm BNC x 1 Monitor Output 1V p-p 75 Ohm BNC x 1, VGA OUT x 1 (External Output) Camera ID Display : Up to 8 Character Camera ID Display On/Off Selectable Time / Date Display (YYYY/MM/DD, HH/MM/SS)
  • Page 7: Operation

    3 OPERATION 3-1 FRONT PANEL OPERATION 3-1-1. POWER ON/OFF - When you push up power Switch, the system power on and push down the system to power off. -1-2. QUAD/AUTO SEQUENCE/PIP/DOUBLE/TRIPLE Mode - The MODE button introduces you to select the Quad Screen, AUTO Sequence, PIP, DOUBLE, TRIPLE Mode.
  • Page 8: Auto Sequence Key

    3-1-2-2. AUTO SEQUENCE KEY When the Auto sequence is active, it shows “AUTO” at the bottom right side of the screen, the screen will be changed the based on dwell time of each camera and camera ID showing the bottom side. <AUTO Sequential Mode>...
  • Page 9: Special System Key Function

    3-1-2-5. Special System Key Function MENU/ ESC Channel Key Button Button in Front in Front Panel Panel ● To switch BORDER LINE Toggle - ON/OFF 1. Press and hold button and then Power on the system. 2. Release your button. ●...
  • Page 10: Osd Menu Set

    3-2 OSD MENU SET ▪ Instruction of Button on Front Panel. ▪ To move to Next Space : Use ◀ or ▶ button. ▪ To change Setting Value : Use ▲ ▼ button. ▪ To move Next line & Select menu: button.
  • Page 11: Time/Date

    3-2-1. Time/Date - To choose the “TIME/DATE”, while it is highlighted, just press “Enter” button. Then, the following screen will be displayed; <Time/Date MENU> ◀ , ▶ , ▲ ▼) - To change the Time / Date, use the direction button. ( - User can select the Display-On/Off of the TIME/DATE in your screen.
  • Page 12: Camera Set

    3-2-2. CAMERA Set. - To change the Brightness & Contrast & Color of each camera, use the ◀ , ▶ , ▲ ▼), direction button ( then Select “EXIT” menu in the screen. <CAMERA Set MENU> 3-2-3. CAMERA ID. - User can give the title to the cameras up to 8 characters, choose “CAM ID” menu, then press “ENTER”...
  • Page 13: Function

    3-2-4. Function - When user select the “Function” menu, user can set “FACTORY DEFAUT” & “BORDER LINE”, and the Dwell Time (1~60 sec.) of Auto Sequence Mode. ◀ , ▶ , ▲ ▼) To change your setting, use the direction button ( then Select “EXIT”...
  • Page 14: Vga Set

    3-2-5. VGA Set - Adjusting Brightness / Contrast in VGA Set menu is only working in VGA mode. - In this menu, user can change the monitor’s Resolution, Brightness, and Contrast. In case of Resolution, there are 3 modes (1280x1024, 1024x768, &...
  • Page 15: Back Panel Connection

    3-3 BACK PANEL CONNECTION 3-3-1. CAMERA INPUT - These BNC connections (C1~C4) are to use with main cameras. 3-3-2. EXT. INPUT (EXTERNAL INPUT) - This BNC input is used to display only the Full Screen Mode VCR, DVR, or Extra Camera. 3-3-3.
  • Page 16: Freeze Set

    3-4 FREEZE SET 3-4-1. FREEZE OF QUAD / FULL SCREEN MODE - In the QUAD / FULL SCREEN mode, the Freeze function will be available by pressing the channel button to change frozen Full screen. When the screen is frozen, ‘F’ will be appear in frozen channel. When you want to return to cam- era mode, please press the same channel button once again.
  • Page 17 ▪ How to Freeze Screen in Full Screen Mode ( by using Remote Controller ) 1. Go to Full Screen Mode by pressing direct full screen switching button in the Remote controller. 2. Just press FRZ button or each channel button once to freeze Full Screen and then “F”...
  • Page 18: Remote Controller

    4 REMOTE CONTROLLER DIGITAL VGA QUAD REMOTE CONTROLLER 3-5-1. INSTRUCTION OF REMOTE CONTROLLER BUTTON - To switch screen to external input. - Not available.
  • Page 19 ● On Screen Display button. ● User can select Display-ON / OFF of the TIME/DATE & CAMERA ID in your screen. ● Display Screen Zoom In/Out button in each full screen. ● This function supports only in Remote Controller. ● To Freeze screen. - User can freeze screen in QUAD / FULL mode by using this FRZ button.
  • Page 20 ● QUAD / AUTO / PIP / DOUBLE / TRIPLE Display function button. Button : User can go to QUAD display mode. For more details : See page 3. Button : User can go to Auto Sequence mode. For more details : See page 4. Button : User can go to PIP display mode.
  • Page 21 - When your display is in 3 PIP mode and Press each button : 1 Button : C1 is main and C2, C3, C4 are sub display. 2 Button : C2 is main and C1, C3, C4 are sub display. 3 Button : C3 is main and C1, C2, C4 are sub display.
  • Page 22: System Connection

    5 SYSTEM CONNECTION SWITCHING ADAPTER DC12V,1A VGA IN EXT. IN MONITOR LCD MONITOR (BACK VIEW) EXTERNAL (BACK VIEW)
  • Page 23 —– MEMO —–...
  • Page 24 —– MEMO —–...
