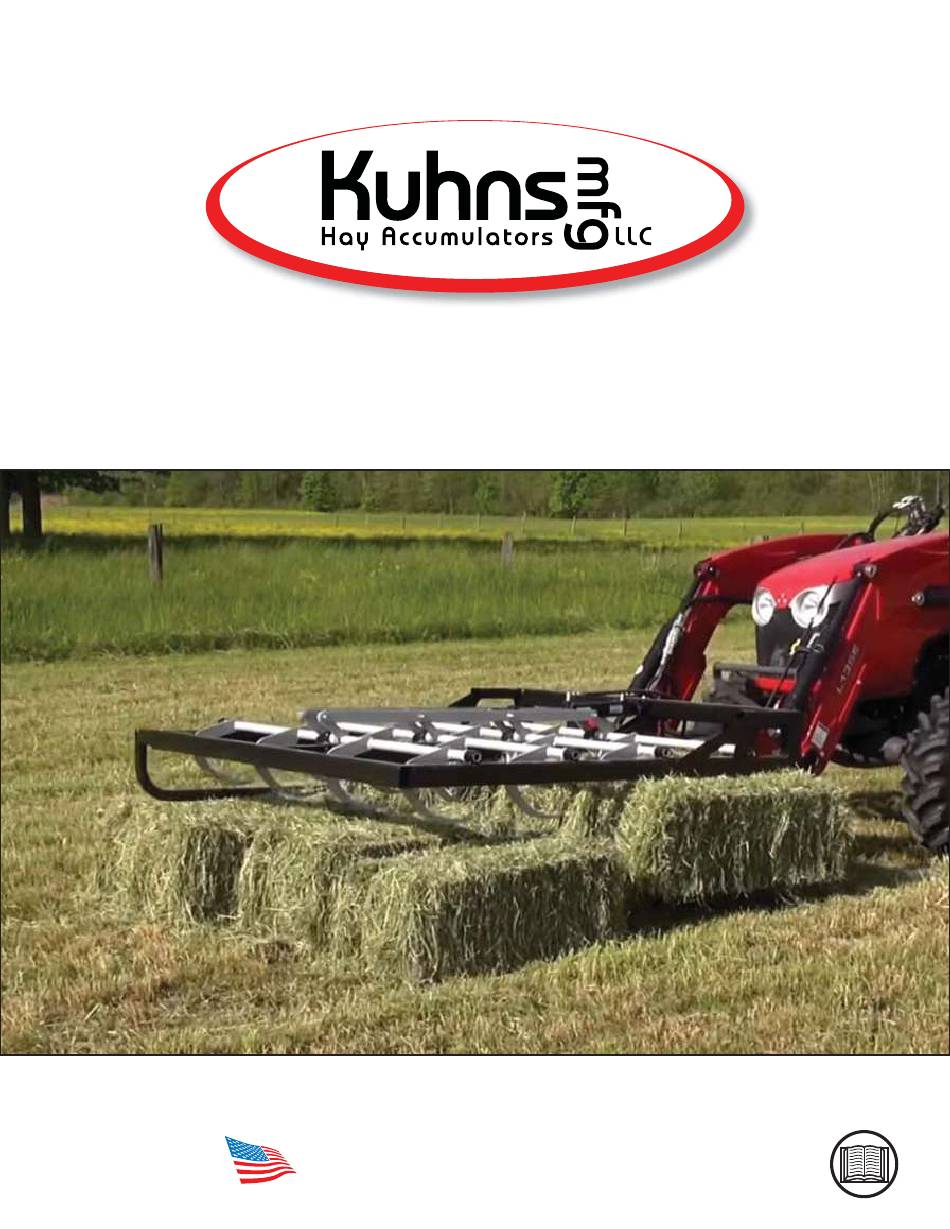

- Page 1 Owner’s Manual EGF8 Grabber 2017 Read and Understand the manual. This manual provides information and MADE IN THE USA procedures to safely operate and maintain the Grabber.
-
Page 3: Table Of Contents
Safety Signs ......13 4. NOMENCLATURE ..... . . 14 EGF8 Grabber Kuhns Manufacturing (877-296-5851) -
Page 4: Introduction
14 x 18” or 16 x 18”, Bale Size 32 to 38” long The EGF8 Grabber picks up bales arranged 4 wide Specifications subject to change without notice. and 2 long on their strings, using 16 hooks mounted on 4 bars. -
Page 5: Product Improvements
1.7 Disposal of Equipment at End of Useful Life The Kuhns Mfg. LLC Grabber has been designed for the specific purpose of picking up bales that have been arranged into groups with an Accumulator, and moving them to wagons or storage facilities. -
Page 6: Safety
The information, specifications, and illustrations in Note: Contains additional information important to a this manual are based on the information that was procedure. available at the time this material was written and can change at any time. Kuhns Manufacturing (877-296-5851) EGF8 Grabber... -
Page 7: Safety Icons Nomenclature
Chock wheels Stop engine STOP Maintain safe distance Visibility Pinch point hazard Set parking brake Crush hazard 2.3.2 Prohibited Actions Rollover hazard Do not alter or modify Do not leave out tools Do not weld EGF8 Grabber Kuhns Manufacturing (877-296-5851) -
Page 8: General Operating Safety
Grabber at any time. Falling can result in severe injuries or death. If you do not understand any information in this manual, see your dealer or contact Kuhns Mfg. LLC before proceeding. Do not use or allow anyone else to use this Grabber until all information has been reviewed. -
Page 9: Hydraulic Safety
2.8 Hydraulic Safety 2.9 Sign-Off Form Kuhns Mfg LLC follows the general Safety WARNING Standards specified by the Farm Equipment High-Pressure Fluid Hazard Manufacturers Association (FEMA), and the Hydraulic fl uid escaping under pressure American National Standards Institute (ANSI). can penetrate the skin. Openings in the... - Page 10 Sign-Off Form Date User’s Signature Owner’s Signature Kuhns Manufacturing (877-296-5851) EGF8 Grabber...
-
Page 11: Operation Safety
2.13 Maintenance Safety Refer to “8. Maintenance” on page 21 for safety recommendations related to maintaining the Grabber. All applicable safety recommendations in other sections should also be followed. EGF8 Grabber Kuhns Manufacturing (877-296-5851) -
Page 12: Safety Signs And Labels
5. Replacement parts must have replacement labels attached before the Grabber is used. 6. Labels are available from your authorized dealer or from Kuhns Manufacturing LLC at no charge. Kuhns Manufacturing (877-296-5851) EGF8 Grabber... -
Page 13: Safety Sign Locations
3. DO NOT use your bare hand to check for potential leaks. Always use a board or be treated immediately by a doctor cardboard when checking for a leak. familiar with this type of injury. KN-00068 EGF8 Grabber Kuhns Manufacturing (877-296-5851) -
Page 14: Nomenclature
4. Nomenclature KN-00061 Item Description Frame Assembly Stand Crowd Bar Hook Shaft Assembly Center Bar Hydraulic Cylinder Hydraulic Hoses Document Canister Kuhns Manufacturing (877-296-5851) EGF8 Grabber... -
Page 15: Operation
Structure (ROPS) and a seat belt. A crushing Do not use an oversized tractor or loader. The EGF8 hazard could occur if the operator is ejected Grabber is intended to be used on tractors up to from the seat while the tractor is in motion. -
Page 16: Rops And Seat Belt
The Grabber does not have a hydraulic reservoir and therefore can deplete the tractor or skid loader’s oil reservoir during initial charging of the cylinder. After this initial setup, check the hydraulic oil reservoir and add oil as necessary. Kuhns Manufacturing (877-296-5851) EGF8 Grabber... -
Page 17: Setup
2. Slide the crowd bar in or out to the desired position, and align to the closest set of holes. 3. Replace the bolts and lock nuts. Default location is second hole from the right. KN-00062 EGF8 Grabber Kuhns Manufacturing (877-296-5851) -
Page 18: Detaching From Loader
Grabber from the tractor or loader. Place the hoses on top of the Grabber, do not allow them to lay on the ground. 5. Board the tractor or loader and start the engine. Drive the tractor or loader away. Kuhns Manufacturing (877-296-5851) EGF8 Grabber... -
Page 19: Transporting
• Use approved accessory lighting, flags, or other necessary warning devices to protect operators of other vehicles on the highway during daylight and nighttime transport. Various safety lights and devices are available from your dealer. EGF8 Grabber Kuhns Manufacturing (877-296-5851) -
Page 20: Storage
Grabber from the tractor or loader. Place the hoses on top of the Grabber, do not allow them to lay on the ground. 8. Touch up all paint nicks and scratches to prevent rusting. Kuhns Manufacturing (877-296-5851) EGF8 Grabber... -
Page 21: Maintenance
Unapproved parts could create a safety hazard. The manufacturer will not accept responsibility for damages as a result of the use of unapproved parts. EGF8 Grabber Kuhns Manufacturing (877-296-5851) -
Page 22: Lubrication
KN-00084 8.4 Welding Repairs Before performing any type of welding repair 8.3 Bolt Torque Requirements to the Grabber, contact Kuhns Mfg LLC for approval. Repair welding must be done with WARNING care and with procedures that may be beyond the Equipment Failure capabilities of the ordinary welder. -
Page 23: Service Record
Inspect the bale hooks and linkage for damage. Annually Make sure all fasteners are tightened to proper torque. Refer to “8.3 Bolt Torque Requirements” on page 22. Inspect the bale hooks and linkage for damage. Wash the Grabber. EGF8 Grabber Kuhns Manufacturing (877-296-5851) -
Page 24: Parts Section
Remember, it is the users responsibility to maintain these decals. All decals must be in place and legible or all warranties are void. Kuhns Manufacturing (877-296-5851) EGF8 Grabber... -
Page 25: Parts Detail
Bolt, Hex, 1/2 x 1-1/2” Grade 5 1006230 Bolt, Hex, 1/2 x 1-1/4” Grade 5 1006260 Bolt, Hex, 1/2 x 3-3/4” Grade 5 1006430 Canister, Document 1000360 Hydraulic Cylinder, 2 x 8” 1007020 Fitting, Hydraulic, 90 deg., 3/8”, NPTF EGF8 Grabber Kuhns Manufacturing (877-296-5851) - Page 26 Notes Kuhns Manufacturing (877-296-5851) EGF8 Grabber...
- Page 28 Kuhns Mfg LLC 4210 Kinsman Rd NW North Bloom ield, OH 44450 (877) 296-5851 www.kuhnsmfg.com support@kuhnsmfg.com Revised 8-2017...
