Summary of Contents for SI Solo / Pro 2

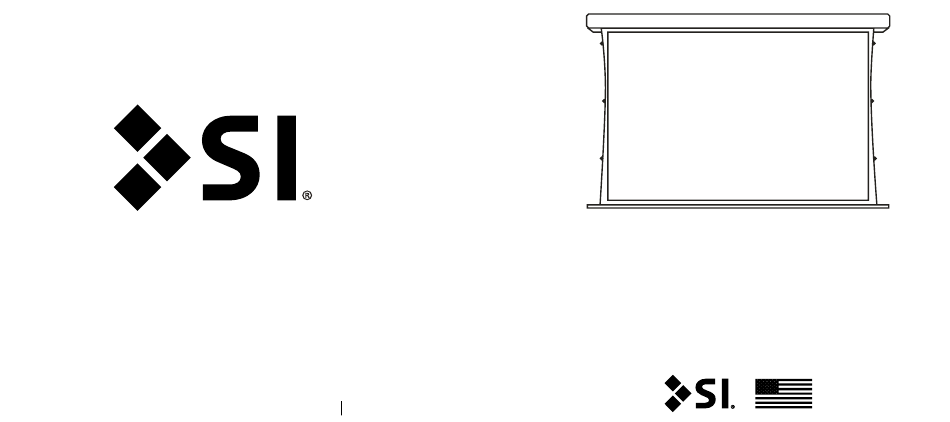

- Page 1 Solo / Pro 2 Installation Instructions Screen Innovations 9715-B Burnet Rd, Suite 400 Austin, TX 78758 512.832.6939 Lithium Rechargeable Motors www.screeninnovations.com Rev B April 2019...
-
Page 2: Table Of Contents
Running ................Pg 14 Charging ................. Pg 14 - 15 Programming ..............Pg 15 - 16 Thank you for purchasing an SI product. If you have Pairing another RF Remote using Original any questions or need any assistance with your Remote................ -
Page 3: Initial Consideration
INITIAL CONSIDERATIONS Thank you for your purchase of Solo/Pro 2. The screen is mountable outdoors, but is not waterproof. It has not been designed to be run or left in the rain or condensing humidity. Also avoid water spray, splash and extreme heat or cold. -
Page 4: Parts In The Box
PARTS IN THE BOX SPACER BLOCKS & LEVELING SHIMS Spacer Blocks are used to Leveling Shims are used if Solo/Pro 2 Screen clear an obstruction on the the ceiling or other wall. Connect spacer block mounting surface is out to each wall bracket before of level or plumb. -
Page 5: Installation
INSTALLATION Small Medium 3.43” 2.01” Proper mounting preparation will ensure a great 1.61” 2.87” (87mm) (51mm) (41mm) (73mm) installation. Mounting brackets must be level to each Bracket other, as well as plumb. They must be screwed into 2.85” size 3.78” (72mm) (96mm) structural members of some kind, such as ceiling joists... -
Page 6: Installation
2. Determine the desired horizontal viewing position Cassette Length centerline of the projected viewing area. Brackets secured to Wall or Ceiling Structural Supports 3. The Solo/Pro 2 screen must be installed with the 2" Min to 8" Max brackets no more than 8 inches from each end of the cassette. - Page 7 6. Slide the cassette left to right to verify it is positioned 4. Ensure the wall bracket lever is down. at your desired viewing location, then lock the screen in place, rotating the wall bracket lever to the upward Proper position position.
-
Page 8: Start Up
START UP 1a. Connect charger (Preferred) 1. Connect the Charger - Solo/Pro 2 are shipped in sleep mode. Prior to first use, wake the screen from sleep: a. Plug the charger into the wall, connecting the charging cable to the charger and magnetic charging port on the cassette. -
Page 9: Flatten The Material At The Weight Bar
FLATTEN THE MATERIAL AT 2. Open the screen up by pressing the down button on THE WEIGHT BAR the remote and remove the weight bar shipping locks. 1. Bump the bottom of the weight bar up several times along it. 2. -
Page 10: Running
RUNNING magnet and the other end to the wall battery charger. The light on the charger turns red if the battery is Solo/Pro 2 is very easy to operate. The RF remote, charging, and turns green when it is done charging. supplied with the screen, controls the opening and closing from up to 30 feet away. -
Page 11: Pairing Another Rf Remote Using Original Remote
PAIRING ANOTHER RF REMOTE 3. Use the DOWN and UP buttons to position the USING ORIGINAL REMOTE viewing area vertically, up to Max Drop from the bottom of the cassette. If another remote was purchased, it will not come DO NOT set the lower limit (top of viewing) more paired to your screen motor. -
Page 12: Storage And Transport
STORAGE AND TRANSPORT It is preferred to store or transport your Solo/Pro 2 horizontally. Although it may be stored vertically in a Before storing or transporting, deactivate the motor by closet, or out of the way, it should only be transported putting it in sleep mode, to make sure the screen does horizontally or as near horizontally as possible. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE 3. Repeat the process to move the material from the center toward the other edge. DO NOT scrub the screen material. This will 4. If the screen has been stored in a wrinkled condition. damage the viewing surface. The wrinkles may not fall out immediately. -
Page 14: Troubleshooting
Solo bar until smooth Remote orientation Hold remote vertical RTS won't When down An intermediate Call SI Customer operate button is stop was set for Support to fix at Turn off other sources RF interference pressed, the motor 512.832.6939,... -
Page 15: Mounting Accessories
MOUNTING ACCESSORIES MOTOR ACCESSORIES - RTS (purchased seperately) (purchased seperately) LinkPro Zero Gap Wall Brackets Décora Ceiling Brackets Connect Décora Flying Brackets Ceiling/Wall Locking Solo remote Brackets (incl. standard) Mounting Accessories Motor Accessories - 24v RS485... -
Page 16: Warranty
WARRANTY New SI products carry a standard 1- year warranty on parts and labor. FCC INFORMATION This device complies with Part 15 of the FCC Results. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
