Summary of Contents for Diagnostic Box TDB750

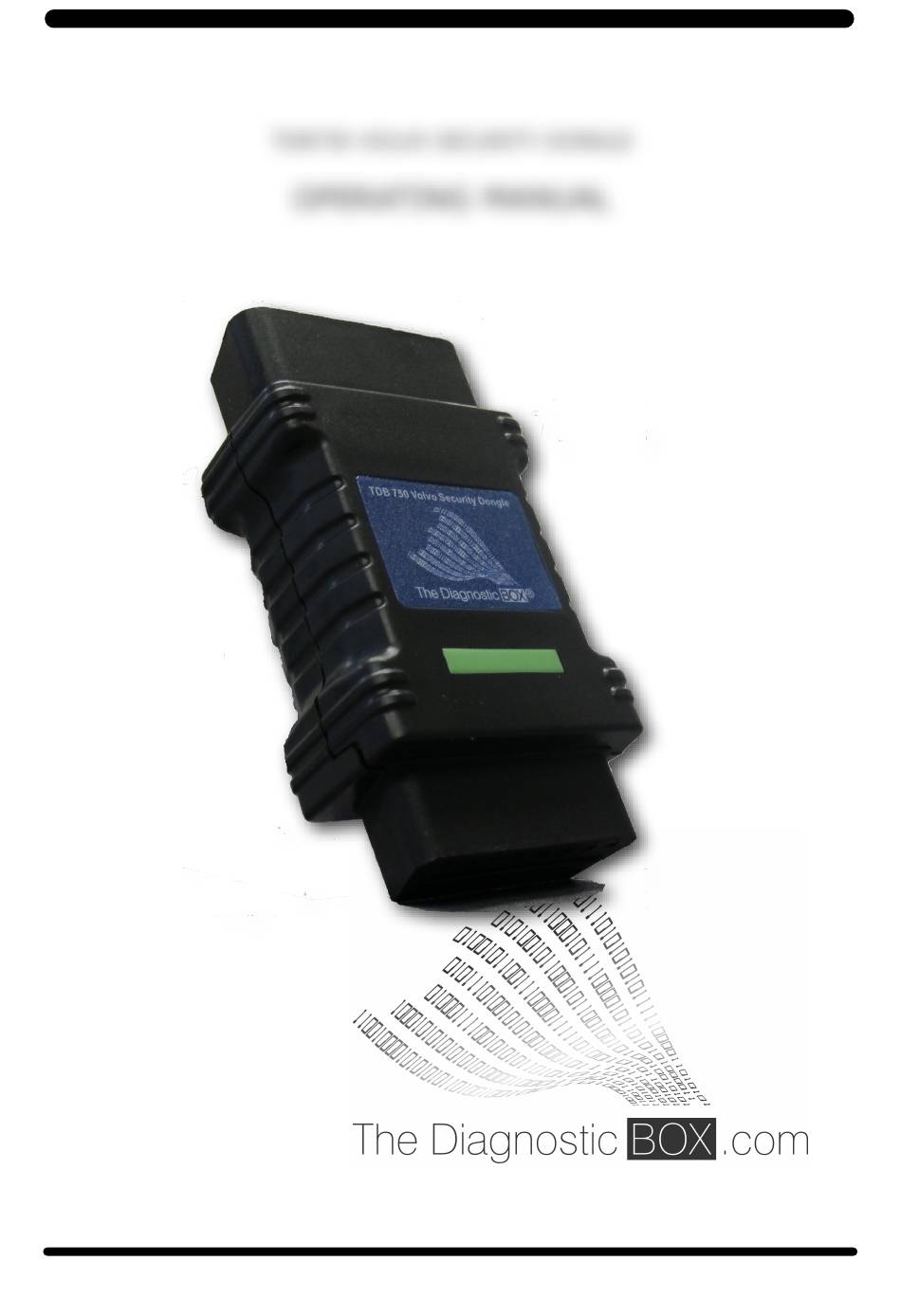

- Page 1 TDB750 VOLVO SECURITY DONGLE OPERATING MANUAL TDB750! PAGE 1 VERSION 1.0! 01/02/2019...
-
Page 2: Table Of Contents
CONTENTS CONTENTS CONTENTS INTRODUCTION PAGE 3 GENERAL OPERATION PAGE 4 VEHICLE TESTING PAGE 5 SPECIFICATION PAGE 7 CONTACT INFORMATION PAGE 8 DECLARATION OF CONFORMITY PAGE 9 TDB750! PAGE 2 VERSION 1.0! 01/02/2019... -
Page 3: Introduction
The TDB750 even remembers the codes, so if the device is unplugged from that vehicle, as long as you do not connect it to another vehicle it remembers the information, so you can pop back later if needed to program the keys without the security wait. -
Page 4: General Operation
IS AT LEAST 12.5 VOLTS. DISCONNECT, PRESS START BUTTON, WAIT FOR 10 SECONDS AND THEN RE-CONNECT. GREEN ‘LED’ - SOLID THE TDB750 HAS FOUND THE SECURITY CODES, AND IS READY FOR CONNECTION OF TDB1000 TO PROGRAM KEYS. RED AND GREEN ‘LED’ - FLASHING THE TDB750 IS GAINING SECURITY ACCESS TO ENABLE KEY PROGRAMMING. -
Page 5: Vehicle Testing
VEHICLE TESTING PRESS START STOP BUTTON ONCE TO ENERGISE SYSTEM. DO NOT INSERT SLOT KEY CONNECT TDB750 TO VEHICLE OBD PORT. THE TDB750 WILL FLASH RED AND GREEN. AFTER A PERIOD OF TIME THE TDB750 WILL CHANGE TO SOLID GREEN. TDB750! PAGE 5 VERSION 1.0! - Page 6 KEY PROGRAMMER TO THE TDB750. SELECT CORRECT VEHICLE MODEL. THE TDB1000 WILL READ THE SECURITY INFORMATION FROM THE TDB750. SELECT THE PROGRAM KEY OR ERASE KEY AS REQUIRED. PROCEED TO PROGRAM KEYS AND FOLLOW TDB1000 A.S.S.E.T PROCEDURE AS NORMAL. TDB750! PAGE 6 VERSION 1.0!
-
Page 7: Specification
SPECIFICATION MAXIMUM INPUT VOLTAGE 18 VOLTS MINIMUM INPUT VOLTAGE 12 VOLTS TEMPERATURE RANGE 0 TO 50 DEGREES CELSIUS DIMENSIONS 85mm x 45mm x 25mm WEIGHT 60 grams TDB750! PAGE 7 VERSION 1.0! 01/02/2019... -
Page 8: Contact Information
CONTACT INFORMATION The Diagnostic Box Diagnostic Box House Unit 8, Fairfield Meadow Orchard Way Chillington Kingsbridge Devon TQ7 2LB United Kingdom Tel : +44 1548 580348 Fax : +44 1548 580348 Email : info@thediagnosticbox.com Web : www.thediagnosticbox.com Skype : diagnosticbox... -
Page 9: Declaration Of Conformity
EN 55022:1998, A1: 2000 + A2: 2003 EN 55024:1998, A1: 2001 + A2: 2003 204/108/EEC Following the Provisions of EMC Directive: Product conforms to class A emission standards Signed : G CHAMBERS Signed on behalf of The Diagnostic Box TDB750! PAGE 9 VERSION 1.0! 01/02/2019...
