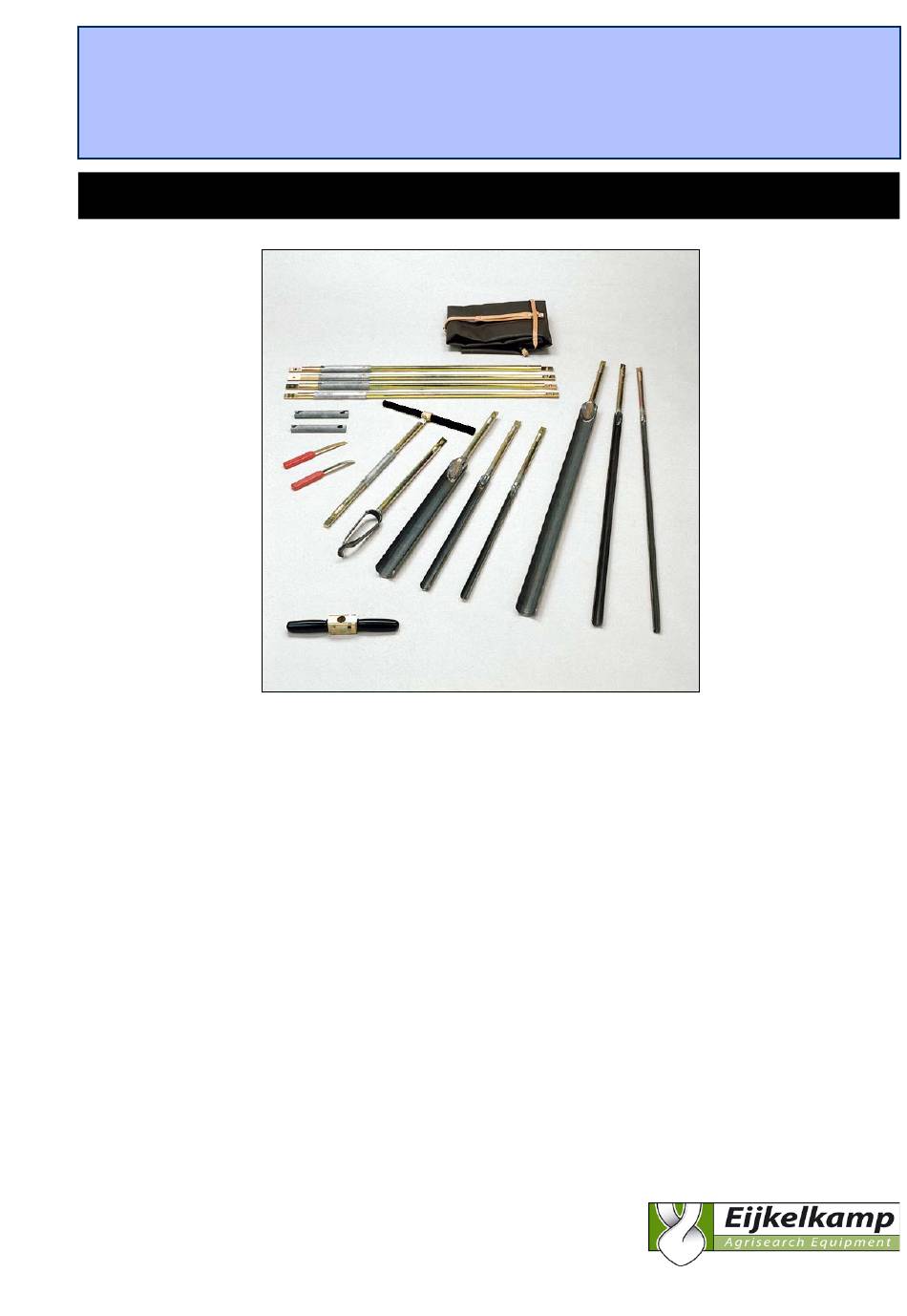

OPErating instructiOns
Contents
On these operating instructions ..........................................................................................................................2
introduction ......................................................................................................................................................2
1. Description ...................................................................................................................................................2
1.1
general information ............................................................................................................................2
1.2
single gouge auger set for more or less soft soils .................................................................................3
1.3
single gouge auger set for hard soils ..................................................................................................3
1.4
single gouge auger set for very hard soils ............................................................................................3
1.5
Bi-partite gouge auger for more or less soft soils ..................................................................................4
1.6
Bi-partite gouge auger set for hard soils ...............................................................................................5
2. Technical specifications ..................................................................................................................................6
3. safety instructions ..........................................................................................................................................6
4. Preparing for use ...........................................................................................................................................7
5. the use of gouge augers ................................................................................................................................8
5.1
single gouge augers for more or less soft soils .....................................................................................8
5.2
single gouge augers for hard soils ......................................................................................................8
5.3
single gouge auger set for very hard soils ............................................................................................9
5.4
Bi-partite gouge auger sets ..................................................................................................................9
6. applications .................................................................................................................................................11
7. troubleshooting ...........................................................................................................................................12
8. Maintenance ................................................................................................................................................13
appendix: rust on augers and gouges .............................................................................................................14
P.O. Box 4, 6987 Zg giesbeek, nL
T
+31 313 880200
F
+31 313 880299
e
eijkelkamp@eijkelkamp.com
© July 2008
04.01/04.02 gouge augers
www.eijkelkamp.com
1
M1.04.E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 04.01 and is the answer not in the manual?

Questions and answers

Summary of Contents for EIJKELKAMP 04.01

  • Page 1: Table Of Contents

    OPErating instructiOns 04.01/04.02 gouge augers Contents On these operating instructions ..........................2 introduction ..............................2 1. Description ..............................2 general information ..........................2 single gouge auger set for more or less soft soils .................3 single gouge auger set for hard soils ....................3 single gouge auger set for very hard soils ....................3 Bi-partite gouge auger for more or less soft soils ..................4...
  • Page 2: On These Operating Instructions

    on these operating instructions  When the symbol shown on the left is placed before a piece of text, this means that an impor- tant instruction follows. When the symbol shown on the left is placed before a piece of text, this means that an impor- tant warning follows pointing out a risk of injury to the user or damage to the device.
  • Page 3: Single Gouge Auger Set For More Or Less Soft Soils

    single gouge auger set for more or less soft soils The single gouge auger set for more or less soft soils (left-hand figure) consists of two regular single gouge augers (1, 2), a bent spatula (3) and a carrying bag (4). the set is suitable for use in softer soils such as peat, clay and sandy or disturbed soils. Both augers measure 110 cm;...
  • Page 4: Bi-Partite Gouge Auger For More Or Less Soft Soils

    Purckhauer gouge auger (1) with grip (2) Gouge auger pulling set consisting of nylon hammer (3), a square ring (4) and a lever (5) The solid nylon hammer (3) is not impact-absorbing, its handle has indentations at fixed distances and it can be used to:  pound the Purckhauer gouge auger.  withdraw the auger with the lever. the gouge auger pulling set consists of a lever (5), a square ring (4) and a nylon hammer (3).
  • Page 5: Bi-Partite Gouge Auger Set For Hard Soils

    the Edelman auger combination type. the Edelman auger body is conical in shape and consists of two blades (1) joined in a bit (2). the top of the blades is welded to a bracket (3), which is connected to the auger rod (4) (see figure). The blades are vaulted and when entering the soil the sample is dug up and evenly guided into the inside of the auger body.
  • Page 6: Technical Specifications

    Technical specifications the table below lists the dimensions of various augers. the Edelman combination type auger’s diameter is measu- red diagonally between the blades at the broadest part of the auger body! gouge auger set auger type operational Diameter (mm) depth (cm) single, soft soils standard gouge auger 50, 100 cm...
  • Page 7: Preparing For Use

    Preparing for use single auger sets: Depending on the type of soil select an appropriate gouge auger (see 6. applications). Bi-partite auger sets: 1. Bayonets: Upon first use, detach the coupling sleeves from the extension rods and the upper part. 2. screw the handle into the upper part. 3. select an appropriate auger, depending on the type of soil (see 6. applications). 4.
  • Page 8: The Use Of Gouge Augers

    The use of gouge augers single gouge augers for more or less soft soils 1. Push the gouge auger vertically into the soil without rotating it. take a sample with a maximal length equal to the operational length of the auger. 2.
  • Page 9: Single Gouge Auger Set For Very Hard Soils

    always utilise the impact-absorbing steel hammer if force is necessary. This is safer and will prevent damage to the auger. avoid using standard metal hammers. This may cause damage to the auger and a bouncing hammer may lead to injuries. 3.
  • Page 10 This will allow you to easily drive the auger through the auger hole  When a moderately cohesive layer precedes a cohesive layer, use an Edelman auger before augering.  to allow working in a comfortable position, Eijkelkamp agrisearch Equipment also has 25- and 100-cm upper parts available.
  • Page 11: Applications

    3. cut off the sample and hoist the auger while gently rotating 4. to release the cohesive material hold the auger askew on the surface (see figure), rotate the auger 180° while press- ing it into the ground. the sample should detach itself and can be taken out by hand or by lightly tapping the auger. Moderately cohesive material will detach itself immediately.
  • Page 12: Troubleshooting

    the tables below list various applications of gouge augers and different types of connections for bi-partite augers. applications single gouge auger sets Pedological research of surface layers in cohesive soils; to obtain minimally disturbed samples with a wide profiel range. Bi-partite gouge auger sets Pedological research in cohesive soils up to a depth of 5 m;...
  • Page 13: Maintenance

    Eijkelkamp agrisearch Equipment. Technical data can be amended without prior notification. Eijkelkamp agrisearch Equipment is not responsible for (personal damage due to (improper) use of the product. Eijkelkamp agrisearch Equipment is interested in your reactions and remarks about its products and operating instructions.
  • Page 14: Appendix: Rust On Augers And Gouges

    appendix: rust on augers and gouges these augers and gouges are made of high tensile-strength forgeable iron-manganese steel. Both iron and man- ganese are non-toxic metals, abundant in the earth’s crust on which we live. natural concentrations are very high. During storage and transport some rust may develop on the bare metal surface. During first use this rust will scour off quickly. You may also scour with some wet sand prior to first use. The auger or gouge is then ready for sam- pling of soil on all metals like zinc, cadmium, chromium, copper and even iron and manganese!
