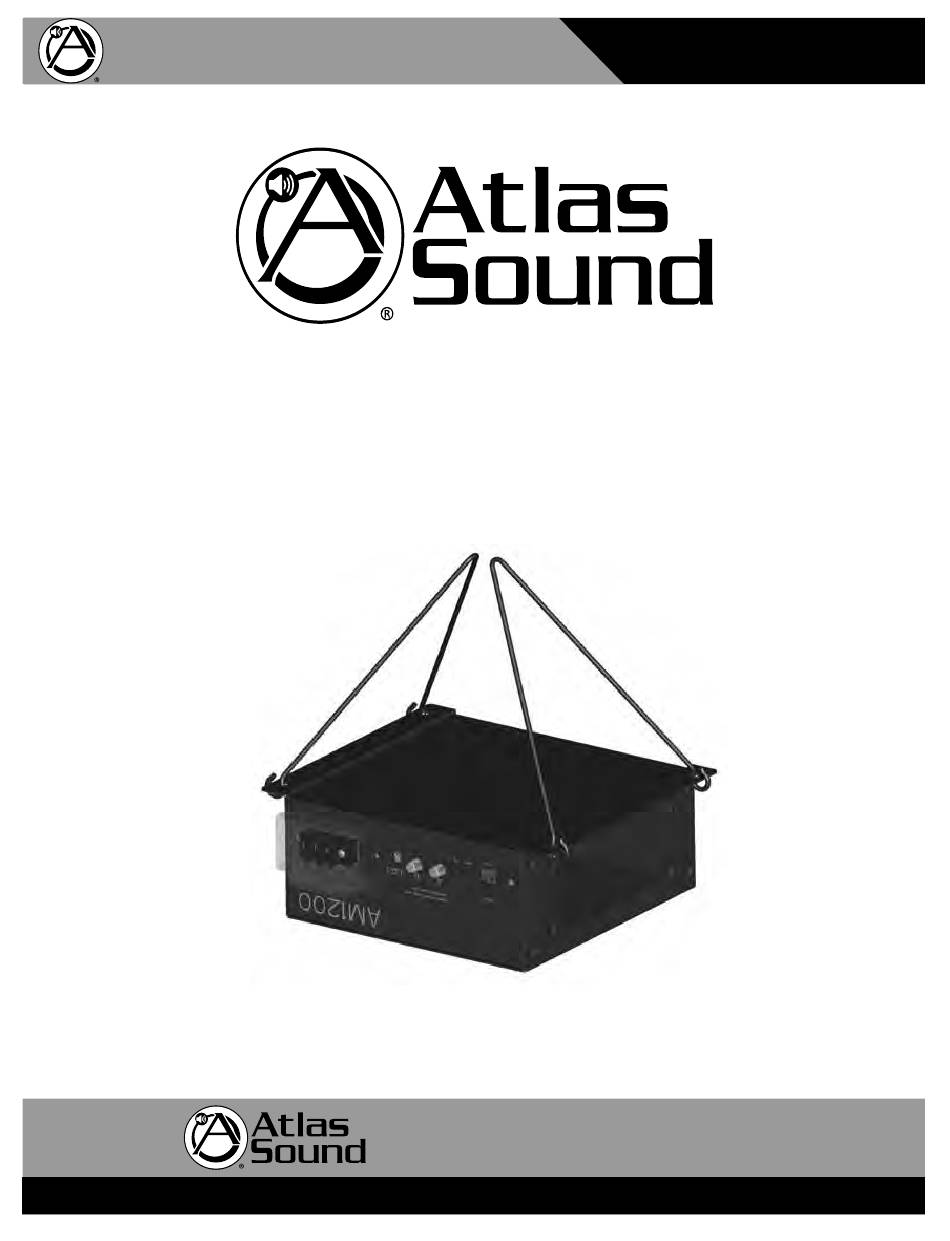

- Page 1 AM1200 Owner’s Manual Sound Masking System AM1200 Soung Masking System 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasSound.com – 1 – Specifications are subject to change without notice.
-
Page 2: Table Of Contents
AM1200 Owner’s Manual Sound Masking System Table of Contents Safety Instructions ....................3 Introduction ......................6 Features ....................... 6 Applications ......................6 Controls and Features ................... 7 Installation Tips ...................... 9 Amplifier Output Frequency Graphs ..............10 Specifications ...................... 11 Architect and Engineer Specifications .............. -
Page 3: Safety Instructions
AM1200 Owner’s Manual Sound Masking System The lightning flash with arrowhead symbol within an CAUTION equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the RISK OF ELECTRIC SHOCK product’s enclosure that may be of sufficient magnitude DO NOT OPEN to constitute a risk of electric shock to persons. - Page 4 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...
- Page 5 In addition, the product itself may fall and cause injury and property damage. • Contact Atlas Sound for instructions on cleaning the inside of the unit. Large accumulations of dust inside the unit may result in heat buildup and fire. •...
-
Page 6: Introduction
Installation is flexible and easy to do. There are four mounting holes on the chassis so the AM1200 can be mounted to the wall or ceiling. If you need a single suspension point, two removable hanger brackets are included for mounting. -
Page 7: Controls And Features
Controls and Features DC Power Input – An UL Certified external 24VDC power supply is supplied to power the AM1200. Note: Only use this approved power supply or failure may occur. Power Indicator – A Blue LED will illuminate if the External DC power supply is plugged into the receptacle and has AC power supplied. - Page 8 Internal Speakers – The AM1200 has two internal speakers, to adjust the speaker level use the internal speaker level control. 10. Mounting Holes – There are four mounting holes to secure the AM1200 to a wall or ceiling. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
-
Page 9: Installation Tips
On Install on Install The above illustration shows you how to mount the AM1200 to a open or Plentum ceiling. We suggest suspending the unit via a cable to the enclosed AM1200 hanging brackets. The cable must be secured enough to handle 5 times the weight of the unit. Note: The location of ceiling of which you want to secure the AM1200 must meet your local building codes. -
Page 10: Amplifier Output Frequency Graphs
AM1200 Owner’s Manual Sound Masking System Amplifier Output Frequency Graphs Pink Noise flat and with Hi-Cut engaged White Noise flat and with Hi-Cut engaged 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 AtlasSound.com – 10 –... -
Page 11: Specifications
2" x 4" speakers. The frequency response shall be 200 Hz – 4 kHz. The speakers shall be powered by a Class D 12 W amplifier channel. AM1200 shall be powered by an UL approved external inline 24VDC power supply. The AM1200 shall be capable of producing either analog pink or white noise. -
Page 12: Warranty
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Atlas Sound does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.
