Microsafe Mkomfy 2G R-T 25A Installation Instructions User Instructions

Panel-installed cooker guard relay
Hide thumbs
Table of Contents

Advertisement

Quick Links

Installation instructions/User instructions
Mkomfy 2G R-T 25A
Panel-installed cooker guard relay
Mkomfy set with sensor and relay
is supplied ready paired and ready for use
Fulfils the requirements
of NEK 400:2014
SAVE THESE INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mkomfy 2G R-T 25A and is the answer not in the manual?

Questions and answers

Summary of Contents for Microsafe Mkomfy 2G R-T 25A

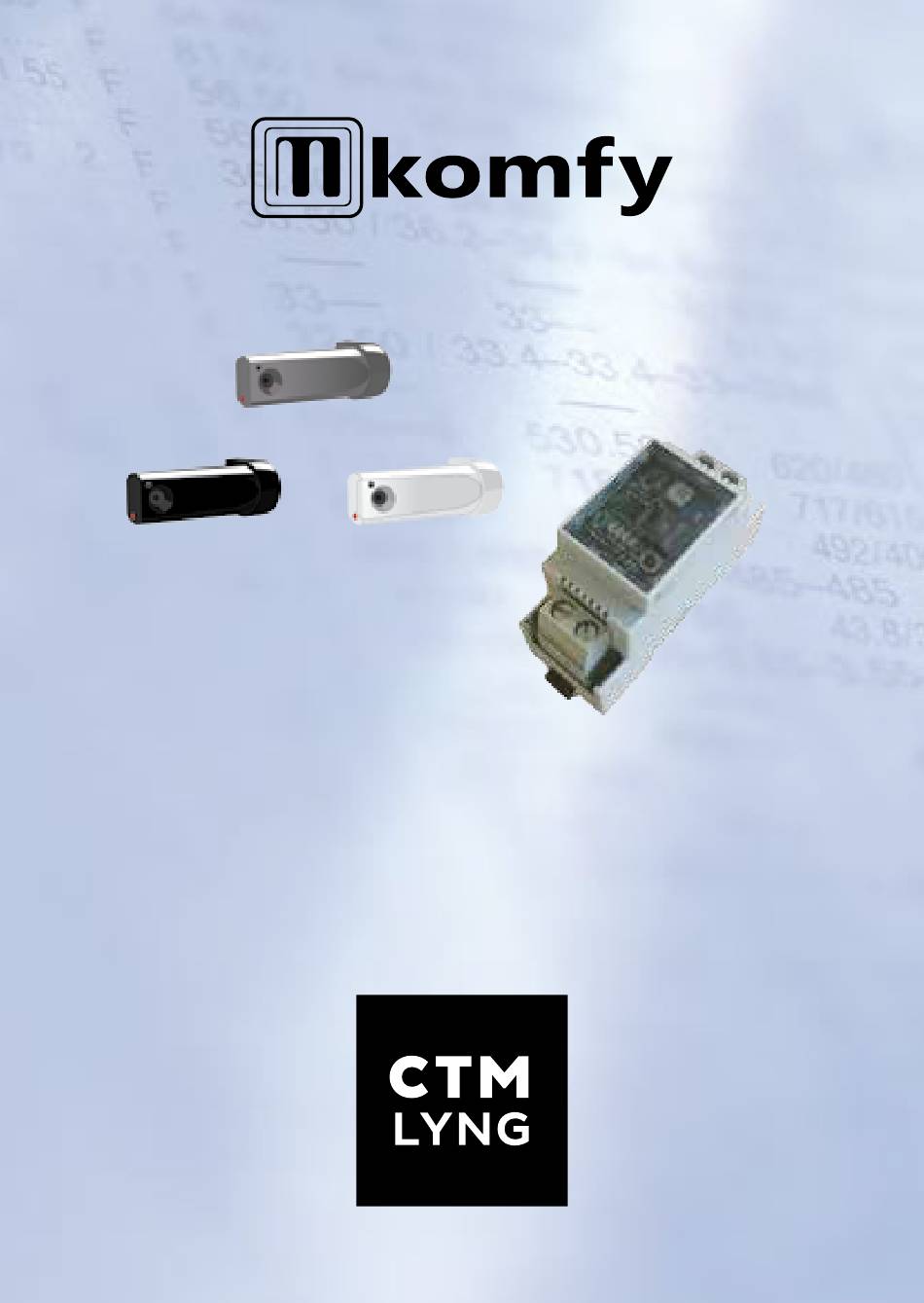

  • Page 1 Installation instructions/User instructions Mkomfy 2G R-T 25A Panel-installed cooker guard relay Mkomfy set with sensor and relay is supplied ready paired and ready for use Fulfils the requirements of NEK 400:2014 SAVE THESE INSTRUCTIONS...

  • Page 2: User Information

    User information Microsafe Mkomfy is a safety product from CTM Lyng AS. The product assumes normal care in the use of the cooker and suitable cooking implements. A cooker should never be left unattended during use, even if safety equipment such as Mkomfy is installed.

  • Page 3: Maintenance

    User information Changing the user time The user time can be altered from 2 hours (standard) to 12 hours. This is done by holding in the function button at the end of the sensor (see illustration below) for 10 seconds. The sensor will acknowledge this with two short sound signals. If it is wished to reset Mkomfy to 2 hours operating time, hold the cut-off button in for 10 seconds, and the sensor will acknowledge this with 1 sound signal.

  • Page 4: Installation Information

    Installation information Installation information for sensor The sensor is supplied with a screw fixing and double-sided tape. To ensure a permanent fix, it is recommended to use the accompanying screws. If using the double-sided tape, it is very important that the wall is carefully cleaned prior to mounting and that the wall is completely free from moisture after cleaning.

  • Page 5: Mounting Distances

    Installation information Mounting distances The straight-line distance from the sensor eye to the centre of the hob must not be more than 120 cm. • The height from the hob to the sensor must a minimum of 50 cm. • The distance from the sensor bracket/wall to the hob edge must be no more than 15 cm.
  • Page 6 Installation information Installation information for sensor Fixed sensor (for different mounting heights, see page 4-5) Identify the correct location by making sure the sensor eye is in the centre of the cooker’s width dimension and mark off where the bracket is to go. Pull the sensor off the bracket.
  • Page 7 Installation information Adjusting the sensor Remove the set screw. Set screw Light beam Hold the function button in for 20 seconds. The light beam will flash for 60 seconds. Function button Rotate the sensor so the light beam hits the centre of the hob. Tighten the set screw at the end of the sensor.

  • Page 8: Explanation Of Leds

    Installation information Blue Yellow LOAD/CONTACTOR* R-T 25A Green *Can also control a contactor. This is recommended when RC circuit is wired in parallel Programming button with coil on contactor. Explanation of LEDs Green Lights up continuously while the relay is connected. Flashes if there is no communication with the sensor * Flashes when paired units are deleted or if the command from the sensor is rejected.

  • Page 9: Sensor Overview

    Installation information Test mode Remove the sensor from the bracket and remove the batteries. Set DIPSW6 to “ON”, and insert the batteries. If the sensor has radio contact, it will start to beep and the function test will run. If the sensor does not have radio contact, see “Pairing” page 11. NB After 2 minutes, the function test will deactivate.
  • Page 10 Installation information Pairing of Sensor and Relay The Mkomfy set with sensor and relay in the same pack are already paired. If you have bought a separate sensor, this must be paired with the relay. This can be done in two different ways. Read through the whole instruction for both alternatives before performing pairing! Alternative 1: Pairing of Sensor without physical intervention on relay.
  • Page 11 FORSKJELLIGE ALARMSIGNAL VED BRUK AV MKOMFY User information Alarmsignal: Ett (1) lydsignal hvert 30. sekund. Årsak: 5 minutter funksjonstid gjenstår av 2-timers ”Timer-funksjon”. Alarms signals with use of Mkomfy Tiltak: Trykk på funksjonsknappen for nye 30 minutter funksjonstid. Alarm signal: One (1) sound signal every 15 seconds.
  • Page 12 2 pcs. AAA/LR03 Up to 6 years Transmitter power: 868,100 MHz +5 dBm El. No. Name 6251661 Mkomfy 2G R-T 25A Chrome 6251662 Mkomfy 2G R-T 25A Black 6251663 Mkomfy 2G R-T 25A White Manufacturer: CTM Lyng AS, www.ctmlyng.no, Tel. +47 72831611...
