Summary of Contents for Legend MILANO

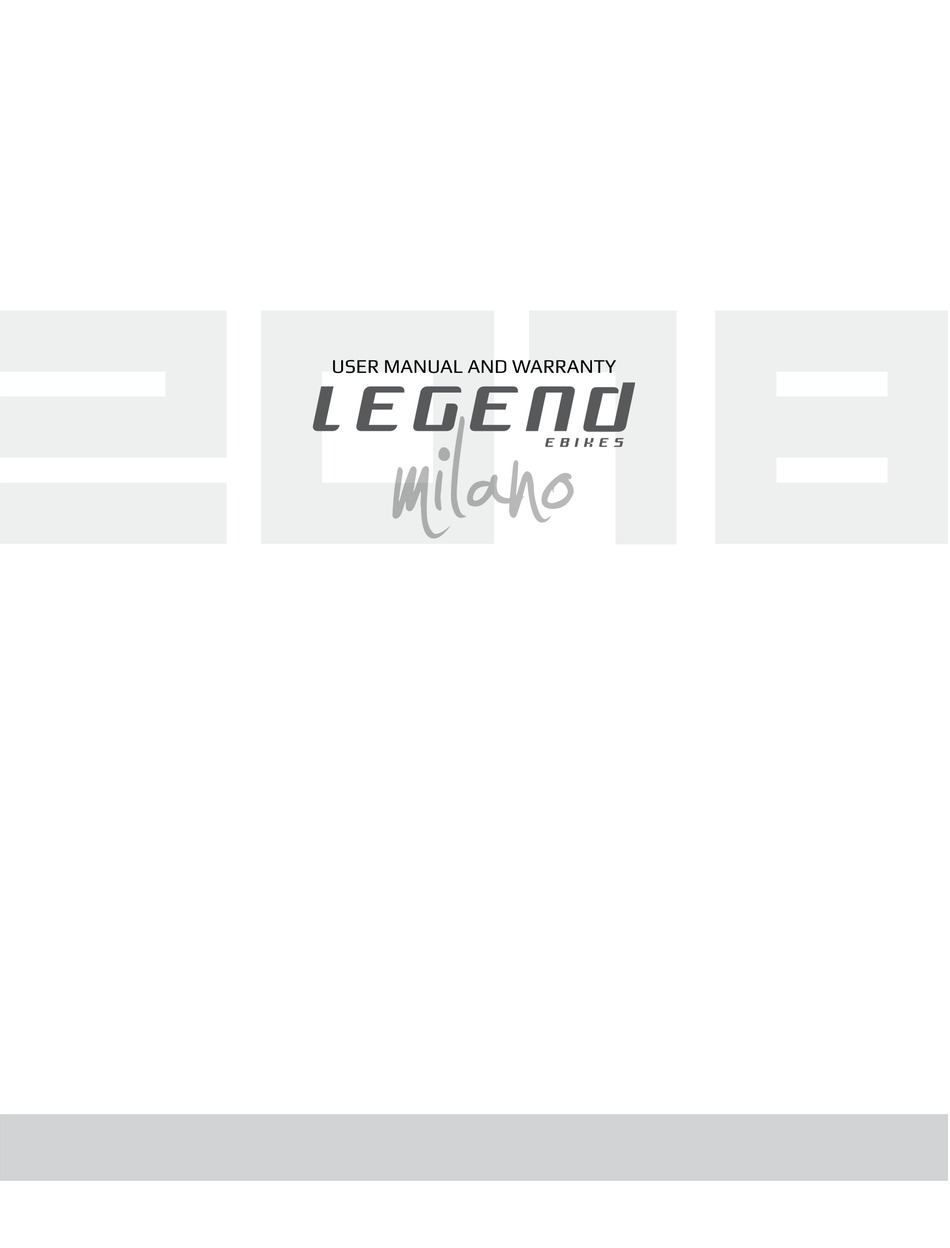

- Page 1 2018 USER MANUAL AND WARRANTY...
- Page 2 Attention! Messages written in this format contain instructions critical to safety and proper use. Disregarding them may cause harm and damage. The manual and its contents are current at the time of writing and printing. LEGEND EBIKES reserves the right to modify it without notice.
-
Page 3: Table Of Contents
CONTENTS SAFETY Page 4 PRELIMINARY SAFETY CHECKS Page 4-5 ROAD SAFETY Page 6 USE IN RAIN Page 7 NIGHT USE Page 7 BICYCLE PARTS Page 8 TECHNICAL SPECIFICATIONS SHEET Page 9 GETTING STARTED Page 10 SETTING THE SADDLE HEIGHT Page 10 ASSEMBLING THE PEDALS Page 11 CHARGING THE BATTERY... -
Page 4: Safety
SAFETY Read this manual completely and familiarise yourself with it before using your LEGEND MILANO 2018 electric bicycle for the first time. Like any outdoor activity, cycling involves a risk of injury and accidents. In addition, as the vehicle has an electrical component, this risk may be higher. - Page 5 If a component needs to be replaced, contact the point of sale where you purchased your Legend ebikes and, if possible, our technical service. Never tamper with the warranty seal of the components, or it will be voided.
-
Page 6: Road Safety
ROAD SAFETY 1. Always wear an approved helmet. 2. Try to keep body parts and other objects away from the links of the chain, pedals, cranks and wheels in motion. 3. Always wear: • Correctly fitting shoes that grip the pedal well. Never use your bike barefoot or in sandals. •... -
Page 7: Use In Rain
USE IN RAIN In rain, the effectiveness of your brakes (as with the brakes of other vehicles) is dramatically reduced and your tyres do not have such good traction as when dry. To ensure that you can reduce speed and stop safely in the rain, drive more slowly and use your brakes earlier and more gradually than if it were dry. -
Page 8: Bicycle Parts
BICYCLE PARTS 1. Iwoc ® 8. Pedal 15. Rear mudguard 2. Handlebars 9. Chainwheel 16. Rear light 3. Brake levers 10. Kickstand 17. Rear rack 4. Front light 11. Chain 18. Controller (Internal) 5. Suspension fork 12. Derailleur 19. Saddle 6. -
Page 9: Technical Specifications Sheet
TECHNICAL SPECIFICATIONS SHEET IP-65 26” 250W GEARED 1:4.5 Ratio 40Nm MOTOR 25 Kph SPEED 36V 10.4Ah Sanyo-Panasonic BAT TERY 36V 14Ah Panasonic BAT TERY 32 pulses BB integrated speed sensor SENSOR Real time BB integrated torque sensor SENSOR Iwoc Bluetooth SCI* by Ebikemotion ®... -
Page 10: Setting The Saddle Height
SETTING THE SADDLE HEIGHT The height of the seat post can be easily adjusted by manual clamping and set to the desired height. The quick release system allows this operation to be carried out as many times as necessary without any effort. The fixation must be firmly closed. Loosen the quick release Set the saddle to the desired height Tighten the quick release... -
Page 12: Charging The Battery
CHARGING THE BATTERY Before using your bike for the first time, you should charge the battery for 4 to 6 hours using the included charger. 1. Connect the charger to the socket. You will notice that the charger light turns green, meaning that the unit is working properly. -
Page 13: Turning On The Bike
TURNING ON THE BIKE To start the electrical system of your bicycle, turn it on with the left middle button of the iWoc. To do this, press the power button for 2 seconds. You can check the battery charge by pressing the battery power button. Download and consult the Ebikemotion system manuals for detailed information on how they work. - Page 14 HANDLEBARS FOLDING Raise the lever to loosen the assembly by sliding the side lock. Adjust the handlebars to your preference. Lower the lever again to secure the assembly.
-
Page 15: Battery Removal
BATTERY REMOVAL Unfold the frame by following the steps above Turn the key 180º You can now remove the battery... -
Page 16: First Use
FIRST USE Using an electric bicycle is similar to a non-electric one but with some notable differences. An electric bicycle is heavier and takes longer to stop. To use it, place yourself in a balanced position on the bike. Once you have put on your helmet and begin to make your first journey on your new bicycle, be sure to pick a controlled environment, away from cars, other cyclists, obstacles and unforeseen situations. -
Page 17: Battery
Do not use pressurized water. BATTERY MAINTENANCE All LEGEND EBIKES are powered by Lithium batteries. To recharge the battery, connect the transformer to the current and the output jack to the battery in its sole position. The charge indicators notify that charging is complete when the transformer has a green light. -
Page 18: Motor
Then, you can turn the assisted pedaling system back on. Do not attempt to open the controller box. Any attempt to modify or adjust it will not be covered under warranty. Ask for assistance at your local Legend dealer or technical service. -
Page 19: Electronics
1.1 All LEGEND products are guaranteed for 2 years, excluding consumables, and provided that normal conditions are met. 1.2 The batteries sold by LEGEND also have a 2 year warranty. However, after the first 6 months the customer must prove that the fault corresponds to a manufacturing defect. -
Page 20: Application
2.5 In all cases, the effective application of the warranty shall be subject to evaluation by LEGEND’s Technical Department, who may determine the exclusion thereof as long as it provides a reasoned justification of the nature of the malfunction or breakage. - Page 21 SMART EBIKES C/Industria 60 Nº5 Ripollet, BARCELONA 08041 Phone: +34 93 141 33 86 www.legendebikes.com info@legendebikes.com...
