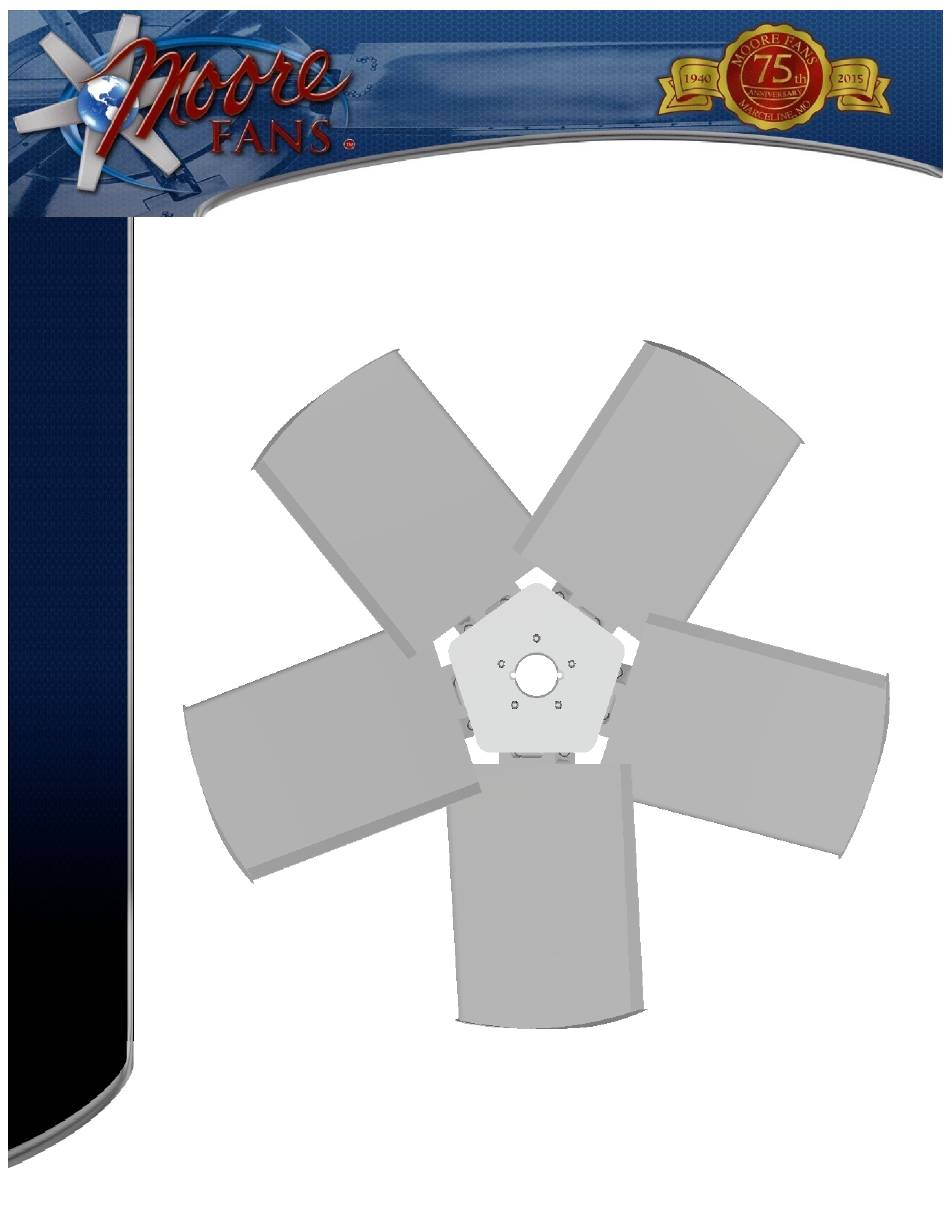

Page 1: Installation Instructions
Class 10000 Heavy Duty Series 12 Installation Instructions MOORE FANS LLC, MARCELINE, MO 64658 PHONE (660) 376-3575 FAX (660) 376- 2909 EMAIL info@moorefans.com TMC 911 REV A (JUN/17) www.moorefans.com... -
Page 2: Install And Adjust Blades
INSTALL HUB AND AIR SEAL Hub installation instructions: The aluminum bushing is lubricated and pre-installed in the hub at the factory, no further lubrication is required prior to installa- tion. DO NOT apply lubricant between the bushing bore and the shaft. Leave slight play between the bushing and hub to fa- cilitate installation on the shaft. - Page 3 Moore fan blades are carefully balanced to the same moment at After installing the first blade, manually rotate the fan the factory. to be sure the blade clears the ring or throat at all points. When the blade is held in alignment with the rod end (that is, straight Proper installation, with particular attention to outward from the hub), it should clear the fan ring by a tightening bolts to the specified torque, is essential to...
-
Page 4: Parts List
FAN BLADE P1144 3 BLADE HUB P1152 4 BLADE HUB P1153 5 BLADE HUB P272 BORED MOUNT P119 BLADE BOLT MOORE FANS LLC, MARCELINE, MO 64658 PHONE (660) 376-3575 FAX (660) 376- 2909 EMAIL info@moorefans.com TMC 911 REV A (JUN/17) www.moorefans.com...
